Bowers & Wilkins

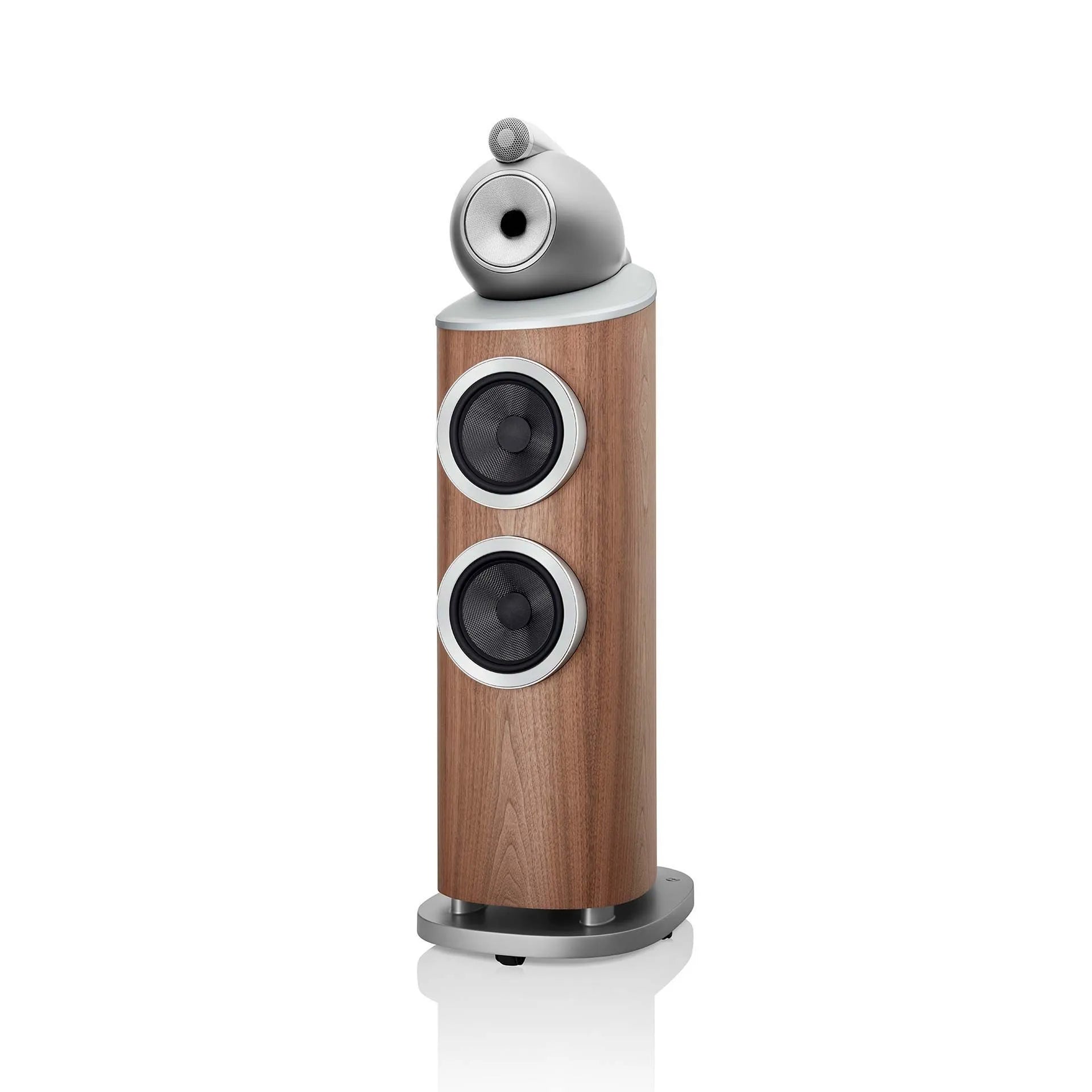

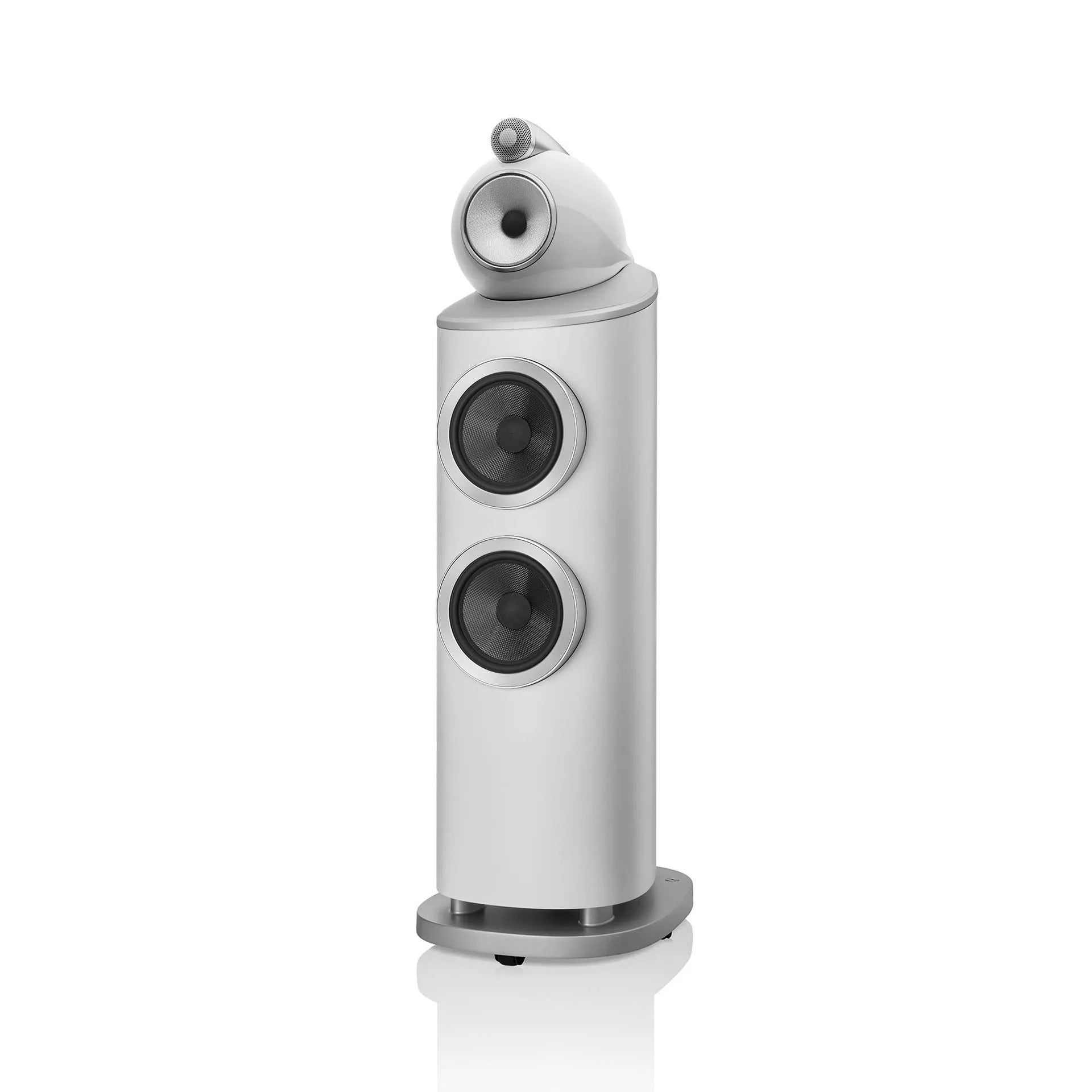

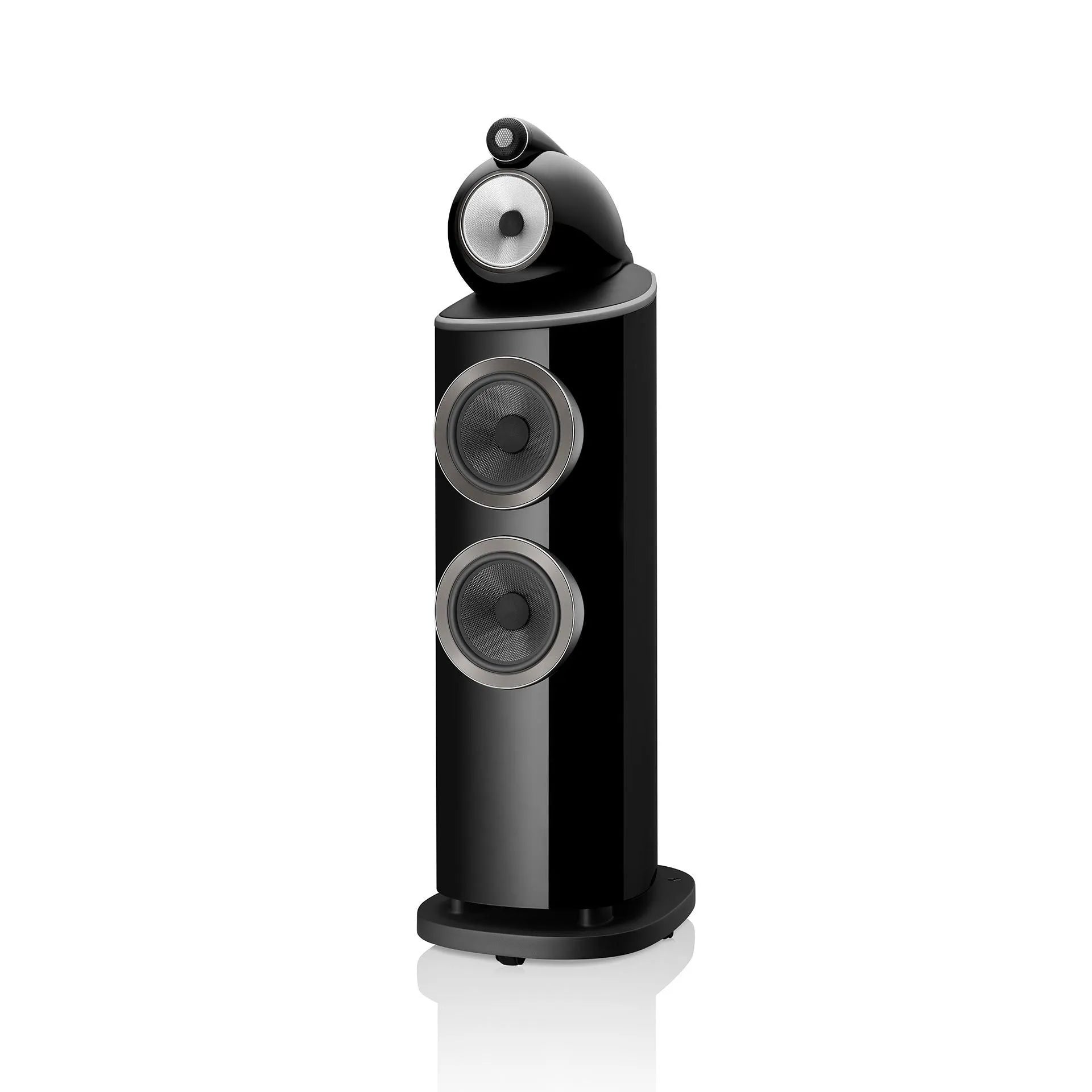

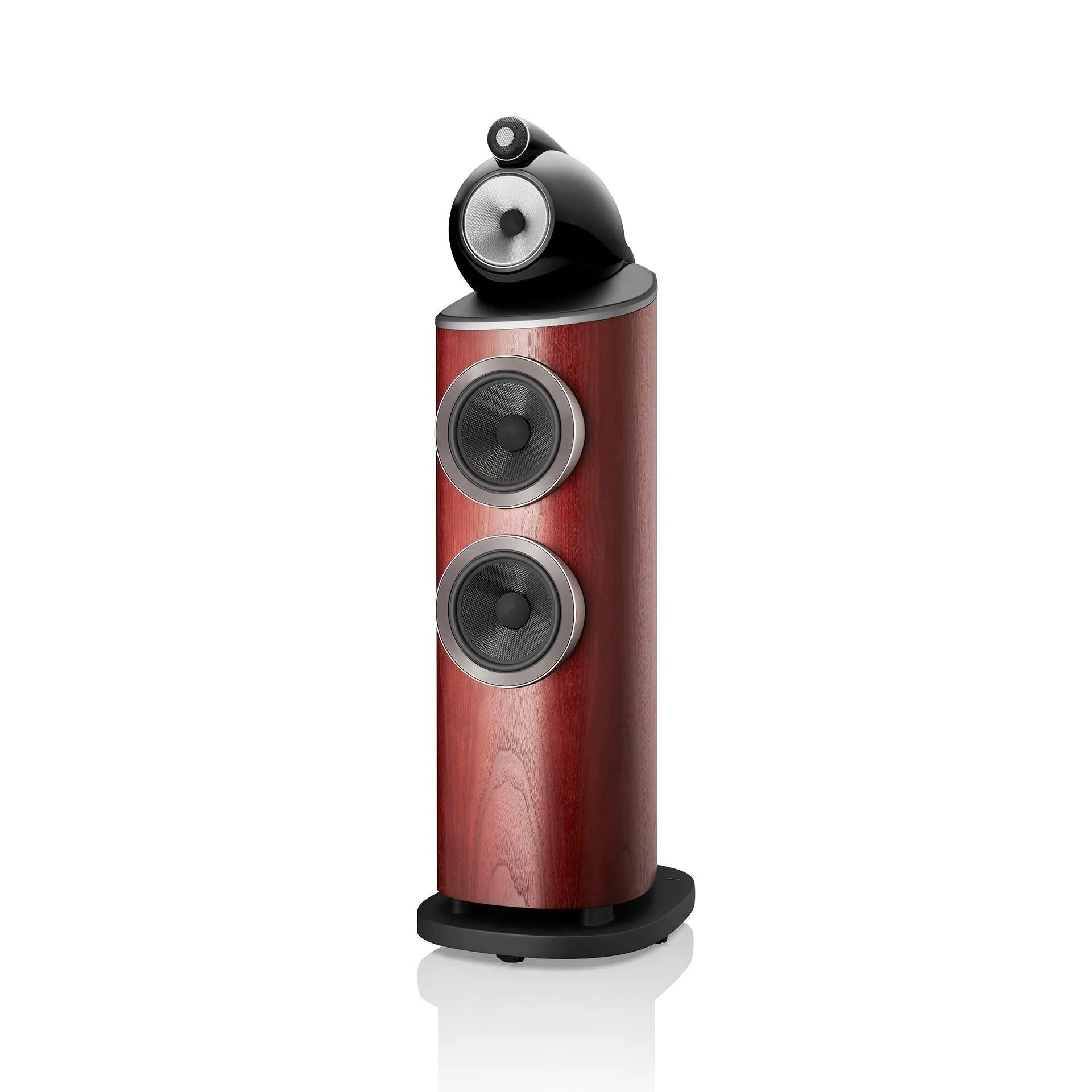

Bowers & Wilkins 803 D4 floorstanding speakers (various colors)

Elegant floorstanding speakers with Turbine Head technology. They provide impeccable sound clarity and detail, ideal for larger rooms.

€22,500.00 EUR

Bowers & Wilkins 803 D4 floorstanding speakers (various colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Can't decide on speakers for your home?

We have a solution for you! We invite you to come to our store and listen to the audio equipment you are interested in. ➡️Book your time now

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The 803 D4 is an eye-catching, great-sounding floorstanding speaker from Bowers & Wilkins. The speakers are characterized by a timeless design and high-quality components used in the assembly. So long-lasting performance and a great look are guaranteed!

  • Recommended amplifier power: 50-500W (at 8Ω ).
  • Frequency range: 19Hz to 28kHz (+/-3dB).
  • Sensitivity: 90dB.
  • Technological solutions used in the columns: Matrix™, Turbine™, Aerofoil™, Continuum™.


DESCRIPTION

Small wonder

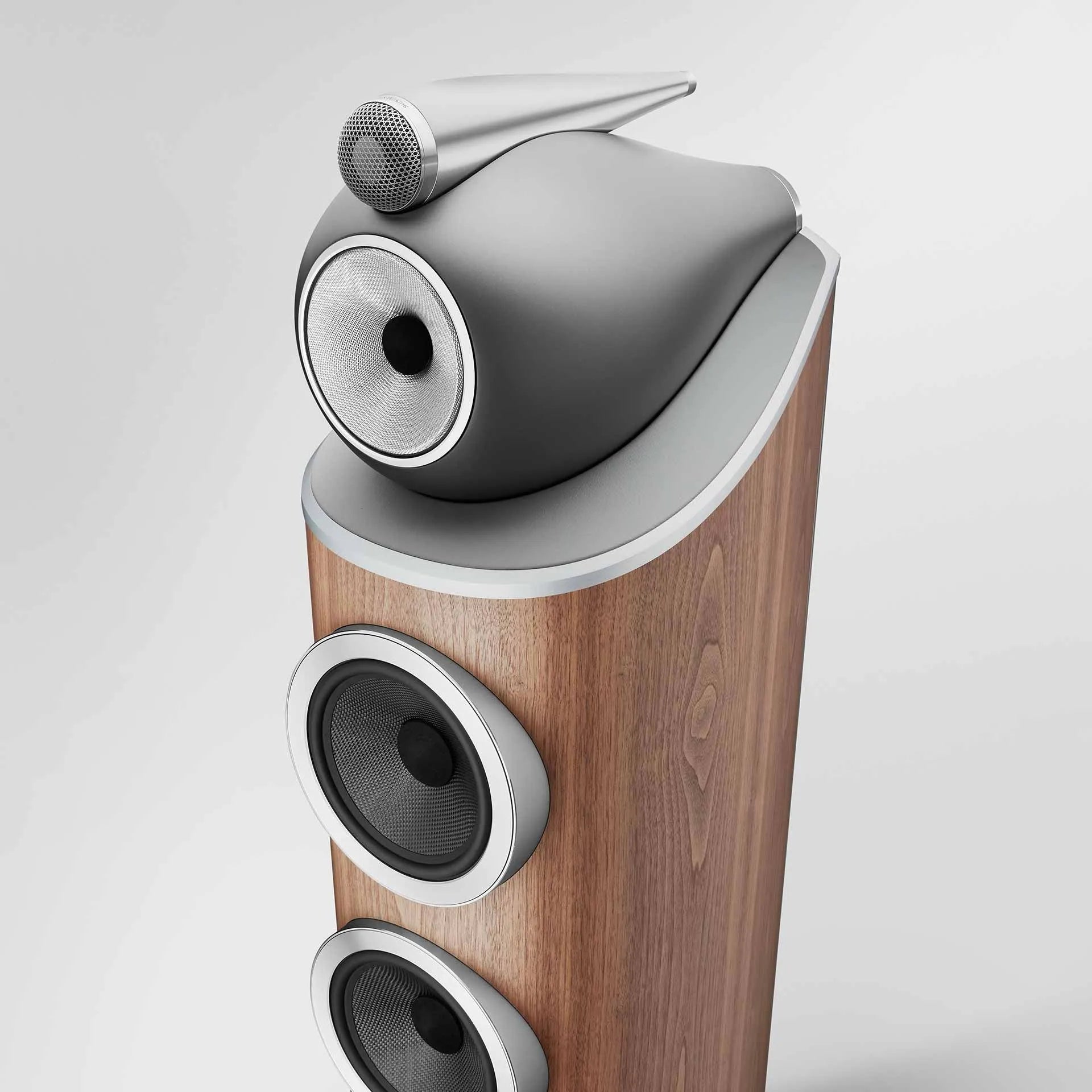

803 D4 may be noticeably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.

Enhanced Matrix ™

Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Aluminum bass pods

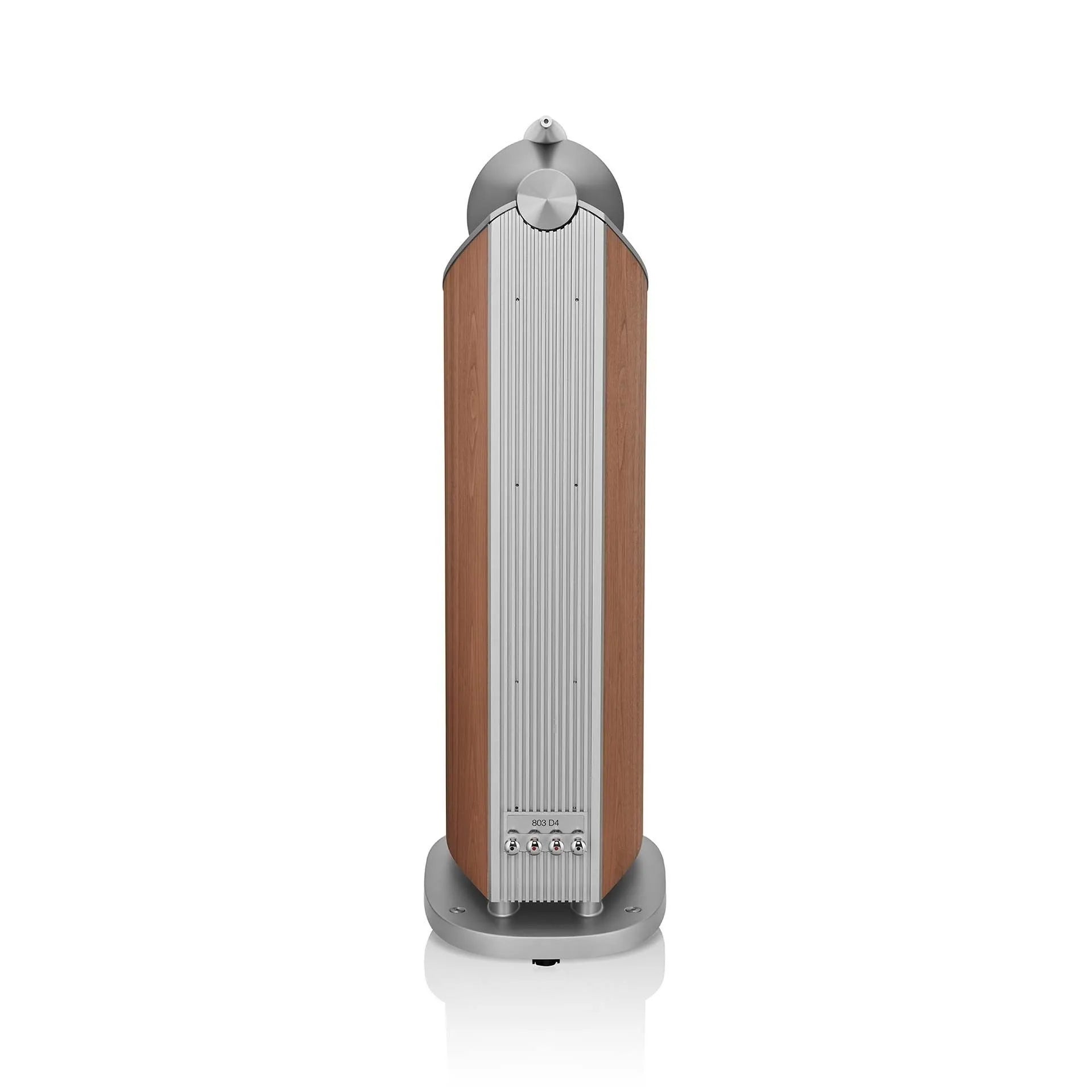

803 D4 mounts two Aerofoil ™ bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.

The science of sound

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modeling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond ™ so special here.

Step up for more power

803 D4 features all the most iconic ingredients in the 800 Series Diamond range including, of course, that famous headed enclosure. It is, however, smaller than its other siblings. Step up to the 802 D4, and you'll get both larger 200mm (8in) bass cones and a larger 150mm (6in) midrange driver.


TECHNICAL DATA

SPECIFICATIONS

Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum ™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Turbine ™ Head
Matrix ™
Aerofoil ™ cone bass units
Flowport

Description
3-way vented-box system

Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units

Frequency range
16Hz to 35kHz

Frequency response
19Hz to 28kHz (+/-3dB from reference axis)

Sensitivity
90dB (on axis at 2.83Vrms at 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 80Hz - 20kHz
<0.3% 100Hz - 20kHz

Nominal impedance
8Ω (minimum 3.0Ω)

Recommended amplifier power
50W – 500W into 8Ω on unclipped program

Max. recommended cable impedance
0.1Ω

Dimensions
Height: 1165mm
Width: 357mm
Depth: 511mm

Even weight
62.15 kg

Finishes
Cabinet:
Gloss Black
White
Satin Rosenut
Satin Walnut

Grille:
Black
Grey
Black
Grey

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
