BOWERS & WILKINS CCM663RD in-ceiling speaker
BOWERS & WILKINS CCM663RD in-ceiling speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Can't decide on speakers for your home?
Can't decide on speakers for your home?
We have a solution for you! We invite you to come to our store and listen to the audio equipment you are interested in. ➡️Book your time now
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
A loudspeaker is installed in the ceiling. Excellent price-quality ratio for those who want high-quality sound at a reasonable price.
- Power: 130W.
- Frequency band: 45 - 50000 Hz.
- Sensitivity: 88 dB.
- Resistance: 8 ohms.
DESCRIPTION

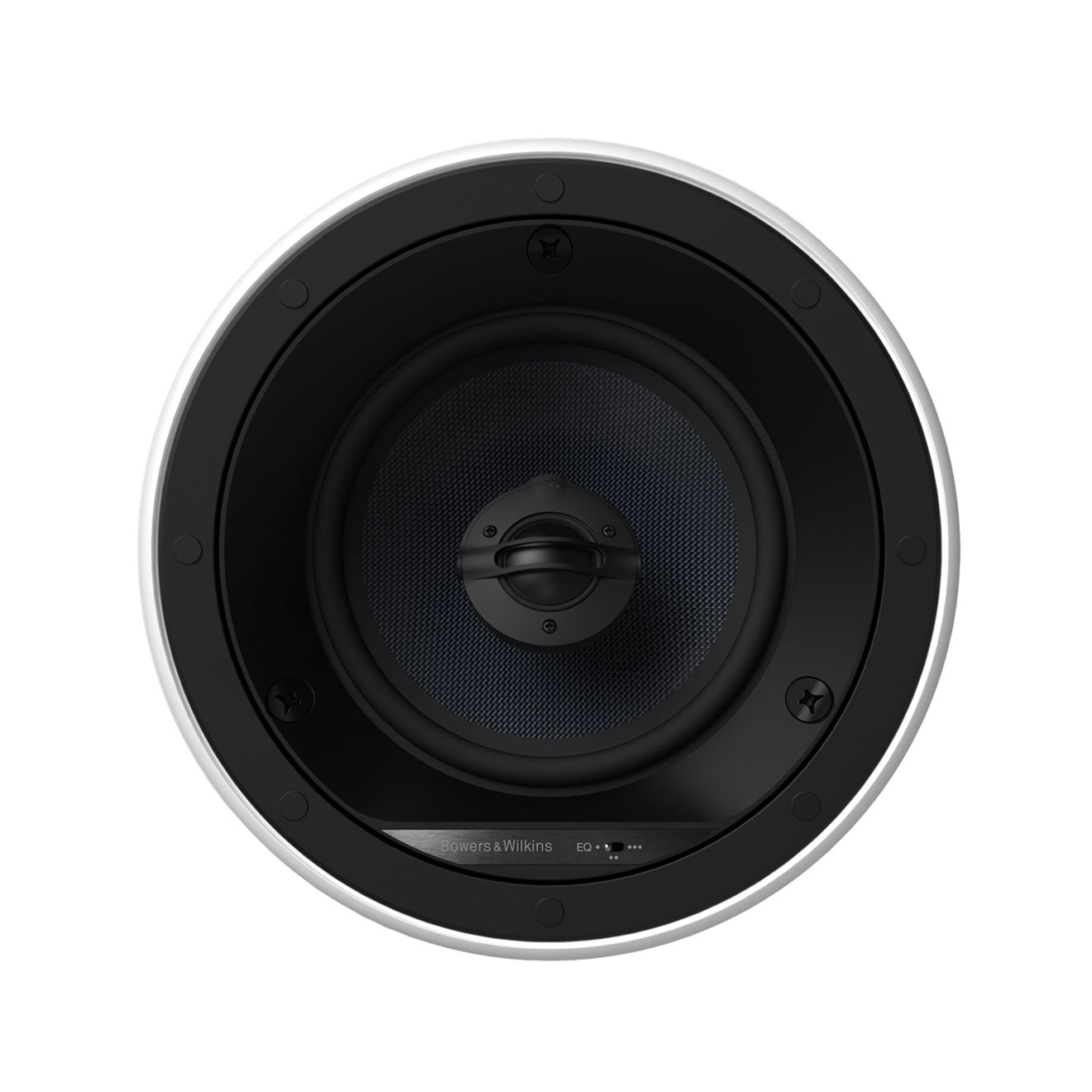

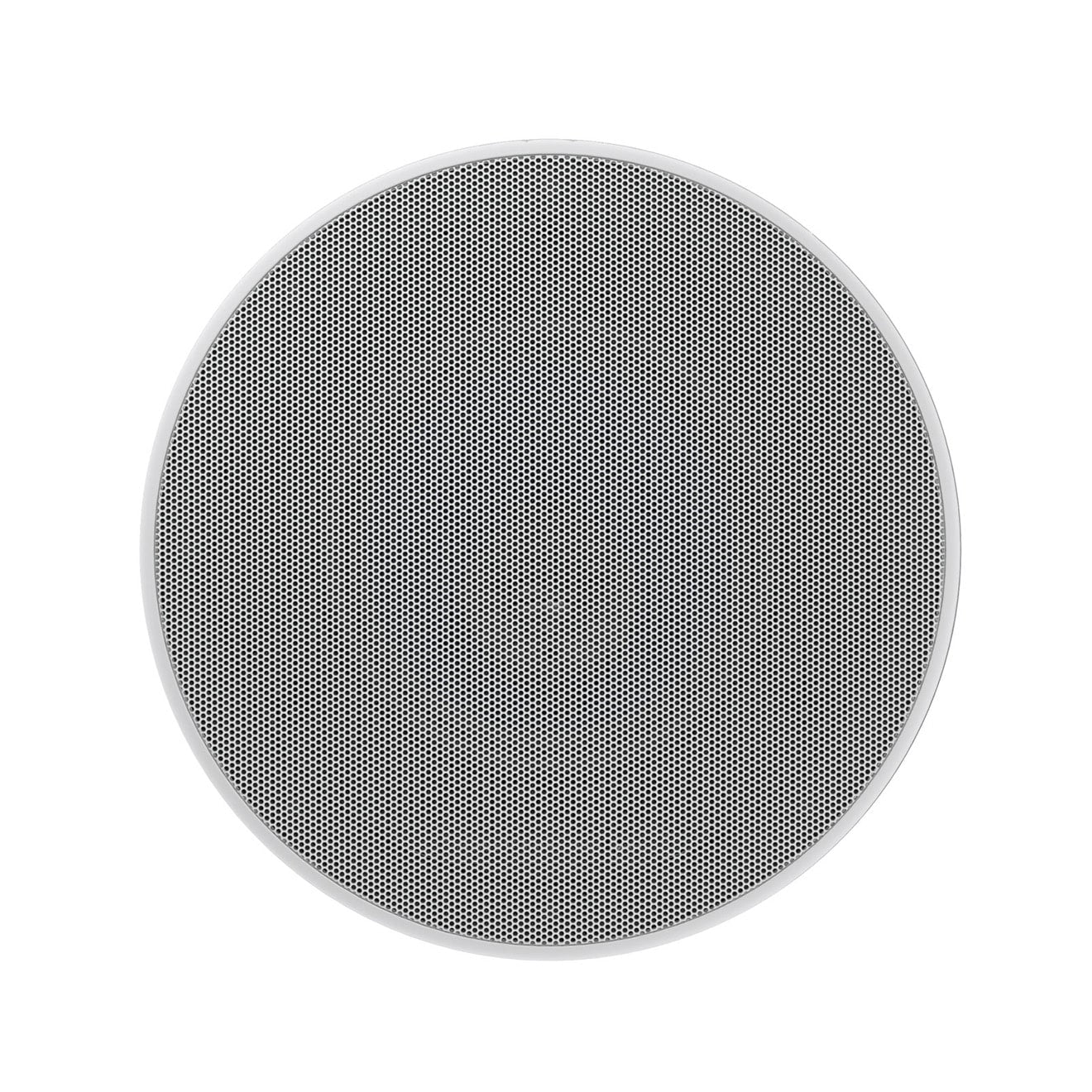

RD stands for Reduced Depth - so this speaker will fit into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great inceiling speaker. The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminum dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille
TECHNICAL DATA
SPECIFICATIONS
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter, 1x ø150mm (6in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 35Hz - 50kHz |
| Recommended Amp Power | 25 - 100w |
| Sensitivity SPL (2.83V, 1m) | 86dB |
| Impedance Nominal (min) | 8Ω (4.5Ω) |
| Frame diameter | 240mm (9.4in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 92mm (3.6in) |
| Protrusion | 7mm (0.3in) |
| Pre-mount Kit | PMK C6 |
| Back Box | BB6W or BB125C |
