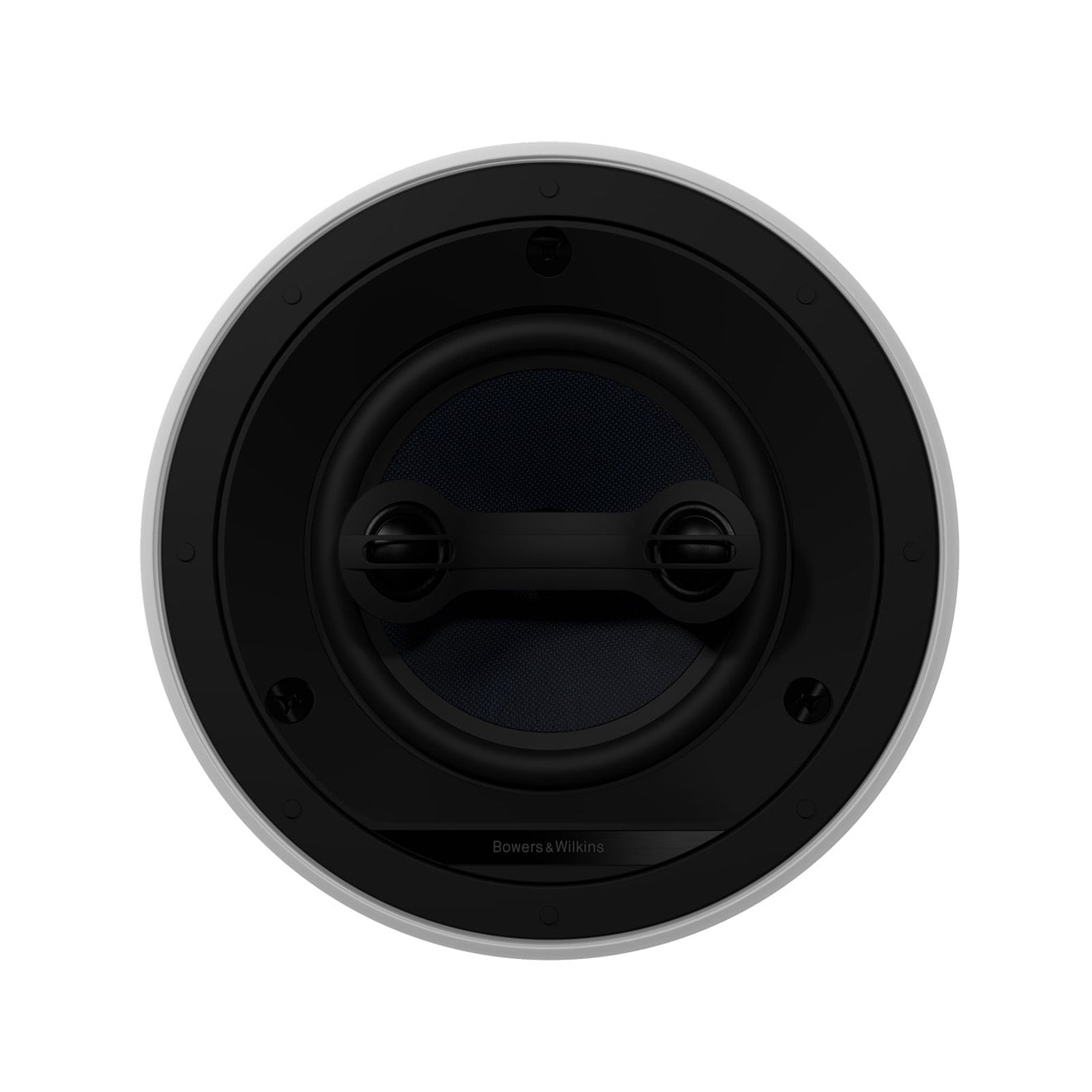

- BOWERS & WILKINS CCM663SR, į lubas montuojamas garsiakalbis

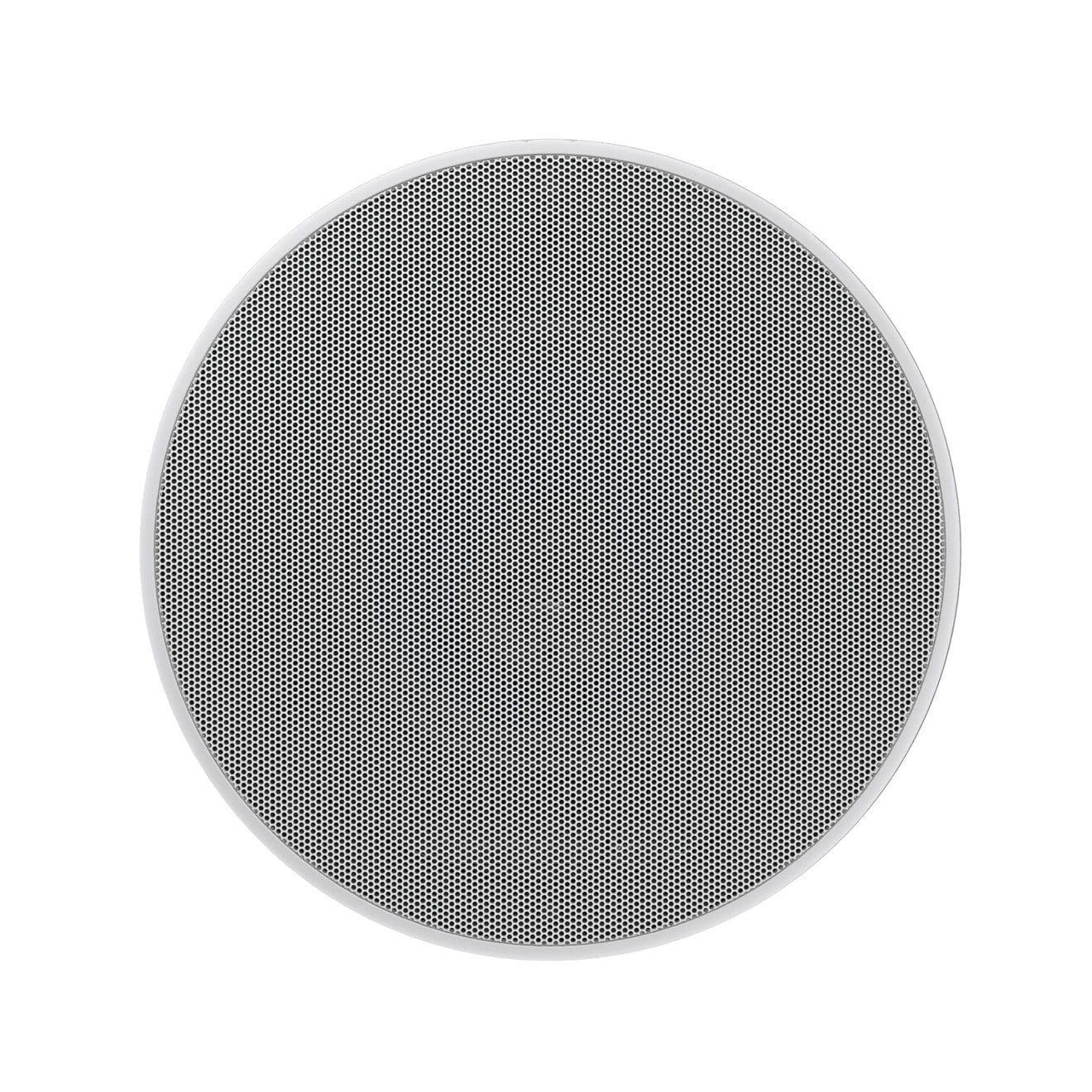

- BOWERS & WILKINS CCM663SR, į lubas montuojamas garsiakalbis - grotelės
BOWERS & WILKINS CCM663SR in-ceiling speaker
BOWERS & WILKINS CCM663SR in-ceiling speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
You do not collect sound columns ?
You do not collect sound columns ?
We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
2-way in-ceiling loudspeaker. Excellent price-quality ratio for those who want high-quality sound at a reasonable price.
- Power: 80W.
- Frequency band: 48Hz - 30kHz .
- Sensitivity: 82 dB.
- Resistance: 8 ohms.
DESCRIPTION
The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fiber coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fiber features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.
TECHNICAL DATA
SPECIFICATIONS
| Description | 2-way dual channel in-ceiling system |
| Drive Units | 2x ø20mm (1in) soft dome tweeter 1x ø150mm (6in) black glassfibre cone bass/midrange |
| Frequency Range (-6dB) | 48Hz - 30kHz |
| Recommended Amp Power | 25 - 80w (per channel) |
| Sensitivity SPL (2.83V, 1m) | 82dB (per channel) 88dB (both channels driven) |
| Impedance Nominal (min) | 8Ω (4Ω) (per channel) |
| Frame diameter | 240mm (9.5in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |
| Pre-mount Kit | C6 |
| Back Box | 6C |
