BOWERS & WILKINS CCM682 in-ceiling speaker

INFORMACIJA

. Excellent price-quality ratio for those who want high-quality sound at a reasonable price.

• Power: 150W.
• Frequency band: 35 - 50,000 Hz.
• Sensitivity: 89 dB.
• Resistance: 8 ohms.

DESCRIPTION

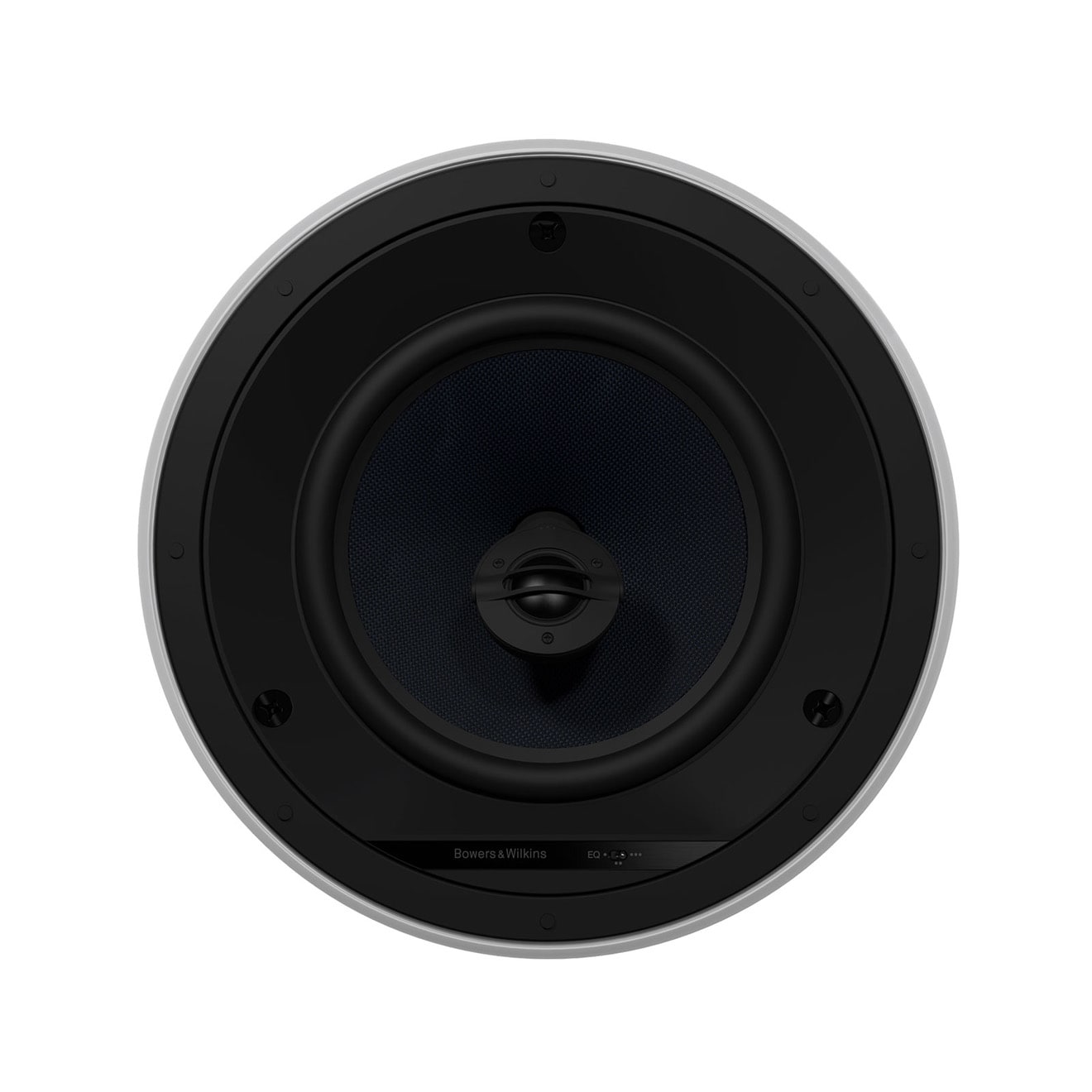

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Aramid Fiber cone bass/midrange driver and an aluminum dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminum tweeter's housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off-axis response. The bass/midrange driver's diecast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Aramid Fiber cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

TECHNICAL DATA

SPECIFICATIONS

• 1x 25 mm aluminum dome tweeter with Nautilus tube technology
• 1x 200mm Kevlar cone woofer
• Frequency range: 35 - 50,000 Hz
• Peak SPL: 89dB
• Impedance: 8 Ohms
• Recommended amplifier power: 25 - 150 W
• Frame diameter: 290 mm
• Ceiling cutout diameter: 250 mm
• Depth (from the surface): 133 mm
• Distance to the surface: 4 mm
• Color: Black

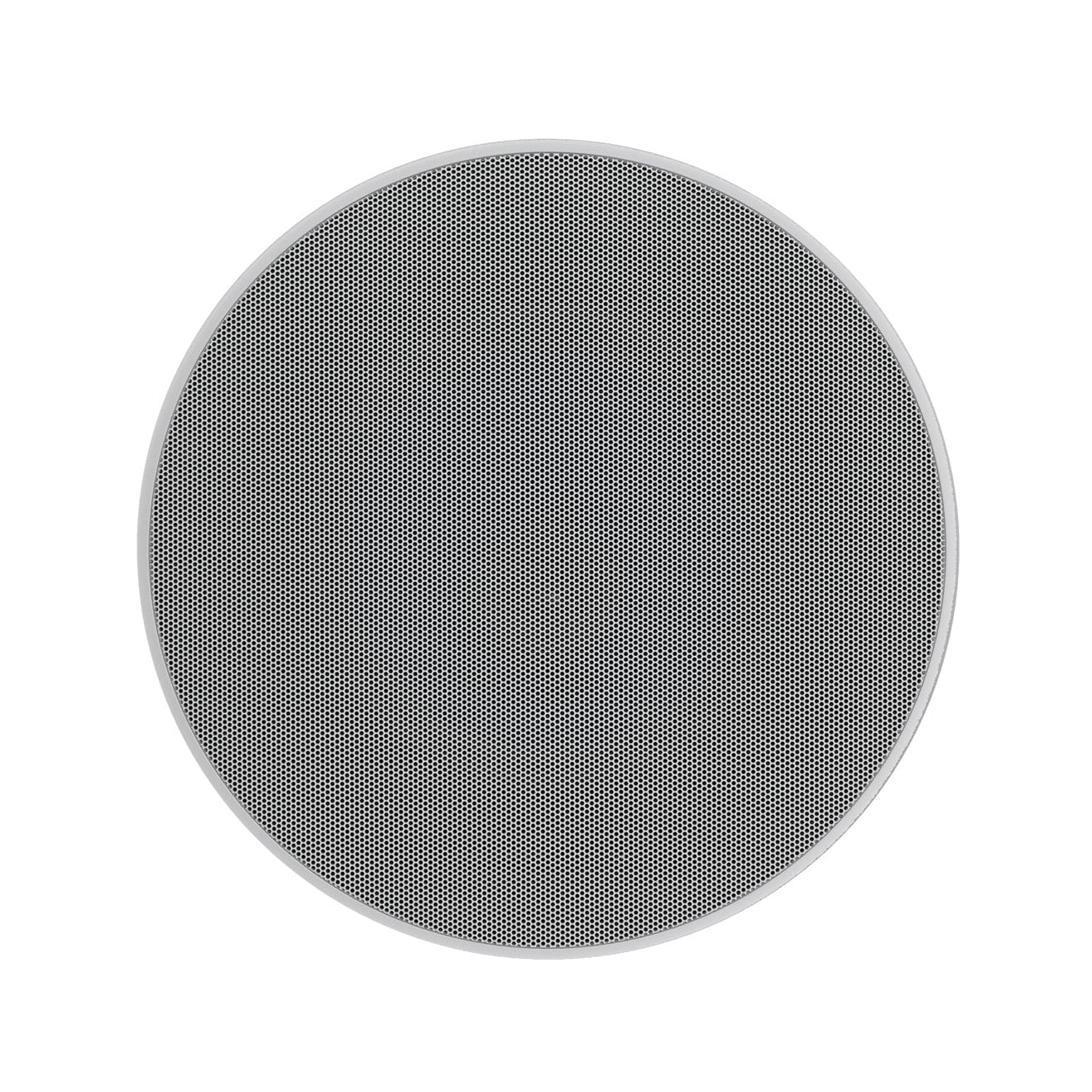

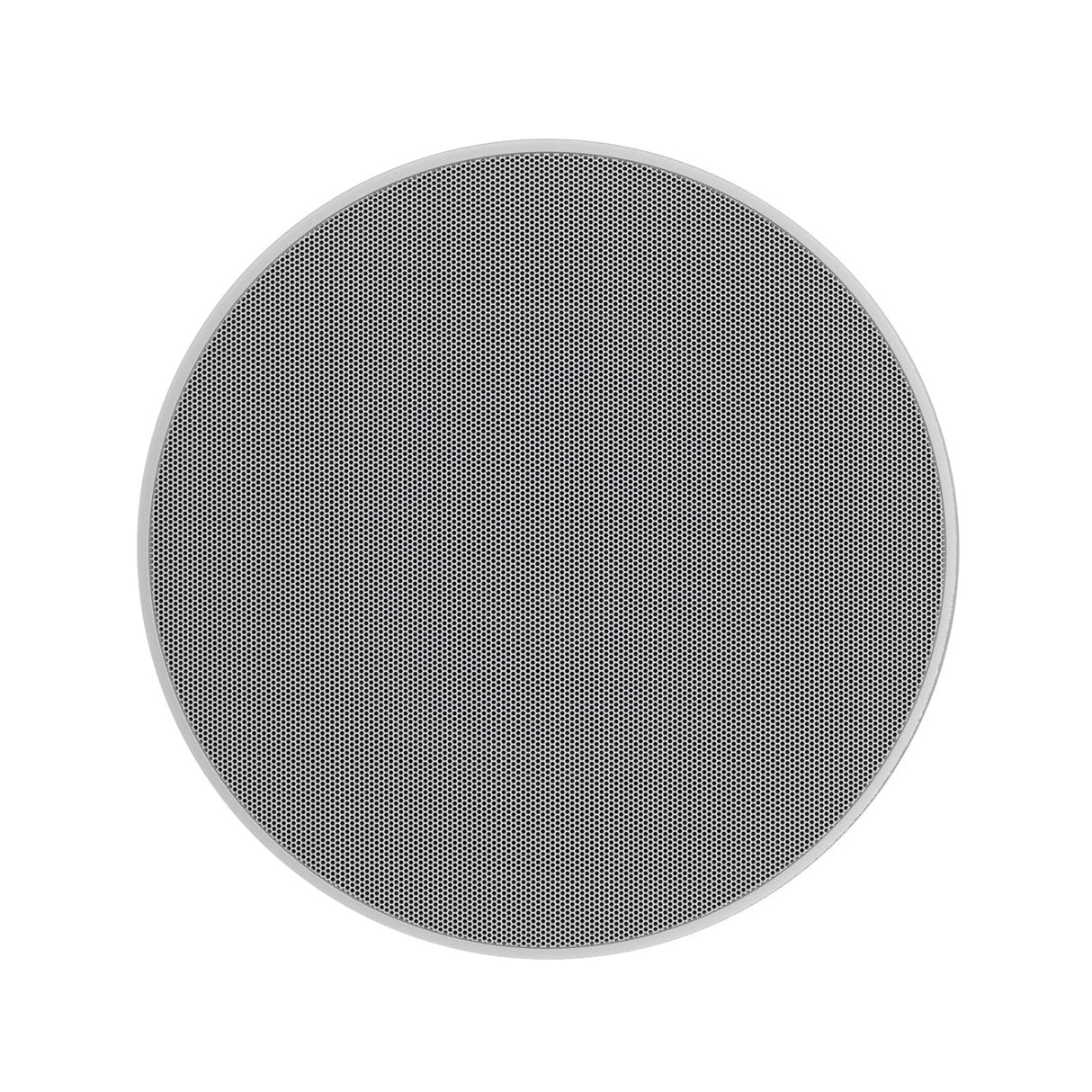

• White grille included

DOCUMENTS

User Manual (EN).
