Brax

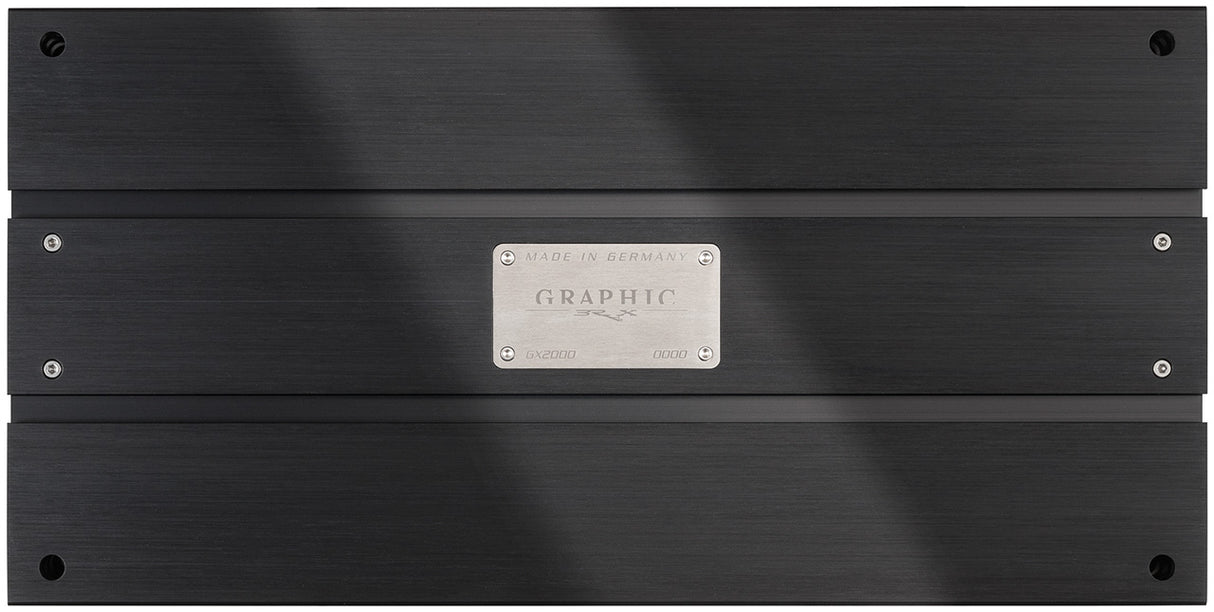

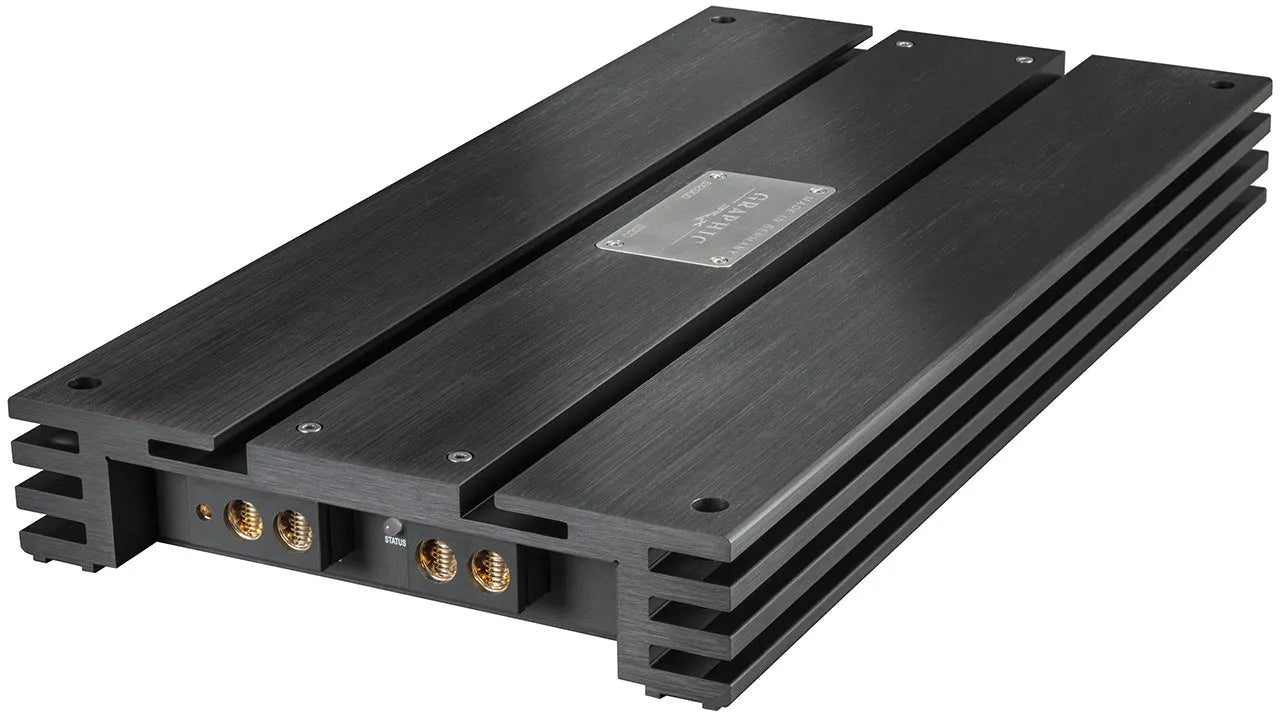

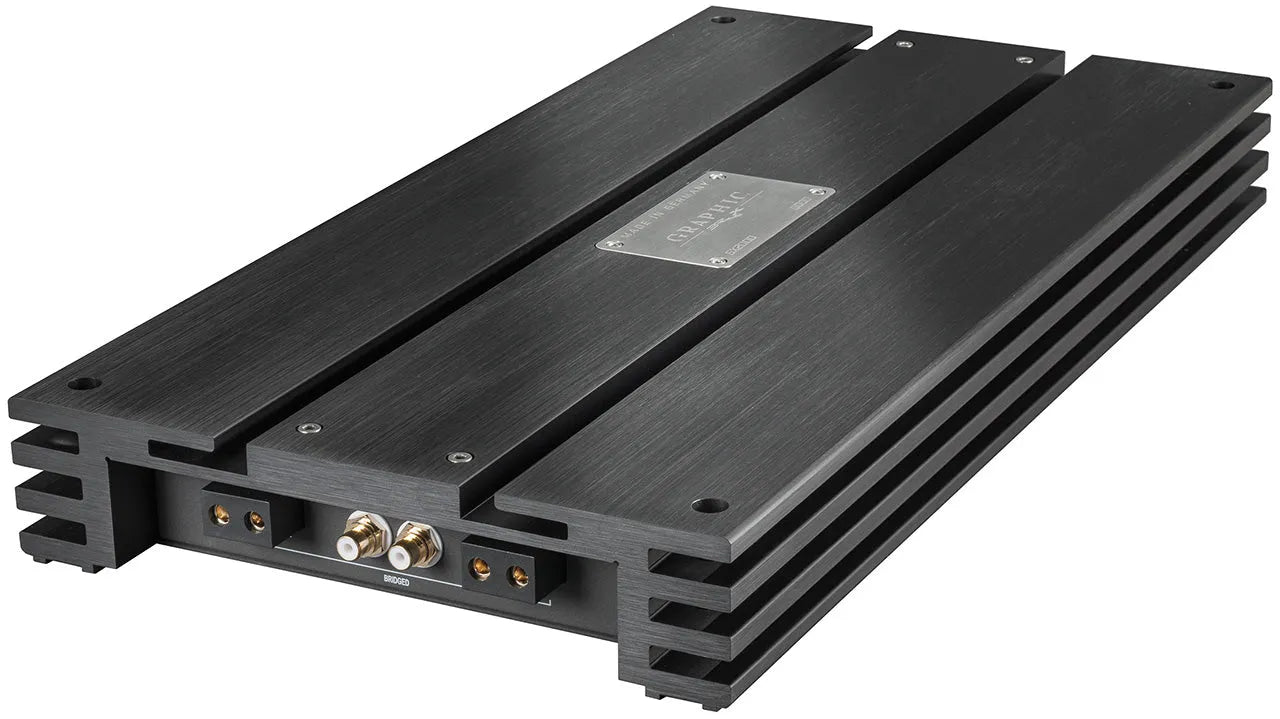

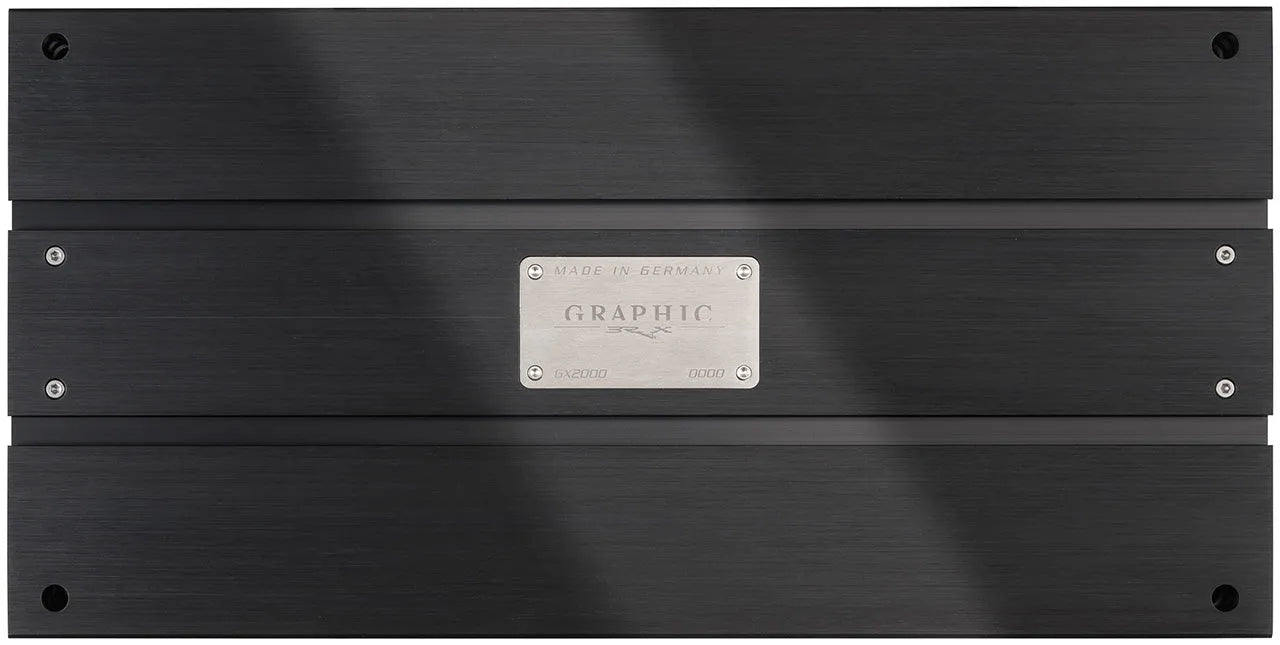

BRAX GX2000, car audio amplifier (various colors)

One of the most powerful and technologically advanced sound amplifiers for your car.
2 700,00 €
Color: Black
Heatsink Version

BRAX GX2000, car audio amplifier (various colors) - Black / Short - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • We install at our service centre in Kaunas. Book installation
  • Pay in instalments available
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.

Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

View allCar amplifiers.

INFORMACIJA

These are the first BRAX amplifiers that are not inferior to the competition!

  • Power: 2 x 530W.
  • Frequency band: 10 Hz - 80 kHz.
  • AB Class.
  • Resistance: 10 kOhms.

DESCRIPTION

BRAX GX2000

With our first BRAX amplifiers, the X2000 & X2400, we set a milestone in the history of high-end car audio. Now, the brand new successors BRAX GX2000 and BRAX GX2400 ignite an exciting new era of audiophile innovation. Both amplifiers combine elegant, puristic design with state-of-the-art Class AB technology.

This generation comes without any crossovers and filter functions. The sophisticated layout of the circuit board combined with short signal paths and handpicked components "made in Germany" ensure a pristine listening experience and underline the puristic design as well as the high-end philosophy of the amplifiers and the most discerning of audiophiles.

To achieve our high quality requirements, we only use hand-selected transistors for the production of each GX-amplifier in order to avoid even the smallest power variations, in turn, we can eliminate the need for manufacturing tolerances, perfection is the only tolerance accepted . The transistors are subject to placement in more than 300 categories; this is possible because of in-house developed measuring equipment, it really is that important to us!

In addition, the solid terminals that are gold-plated will accommodate cables up to 50mm², as well as a separate terminal for connecting a BRAX IPC Capacitor directly to the switching transistors. Put simply, the GX2000 and GX2400 can only be described as truly high-end amplifiers, for precise and natural sound reproduction.

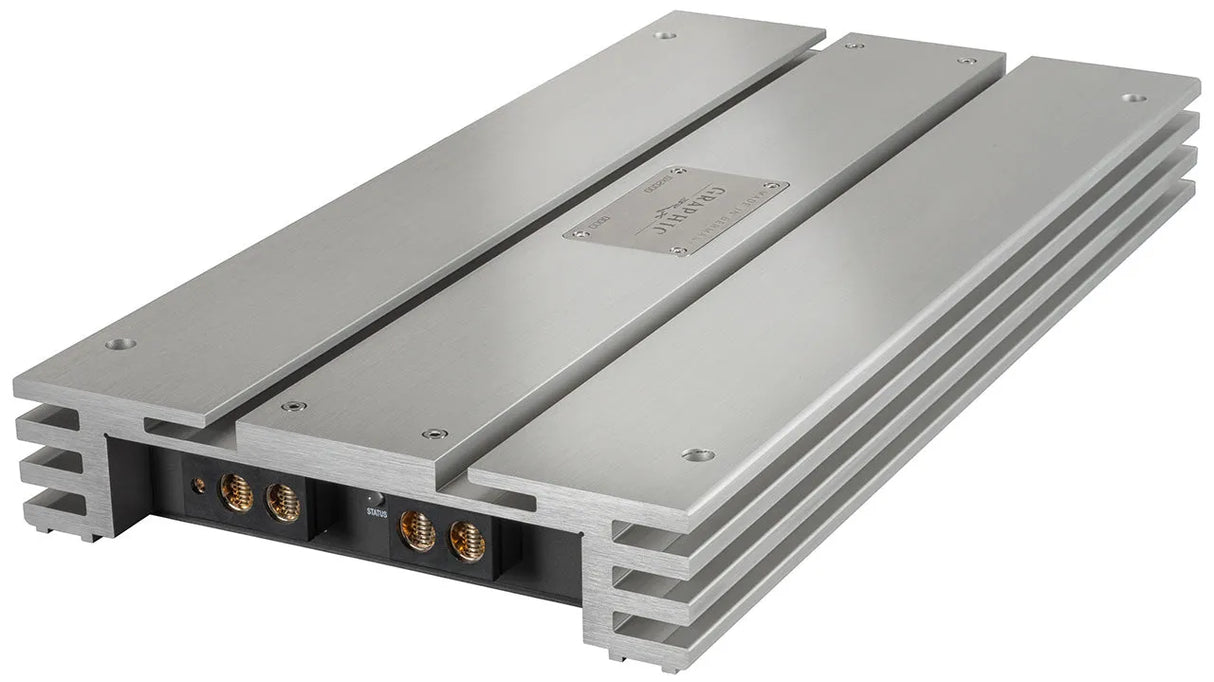

Each amplifier is available in black or silver finish, either with a short or extended heatsink.

Features

  • Low internal resistance due to solid gold-plated terminals for power cables up to 50 mm²/ gauge 1 and speaker cables up to 6 mm²/ gauge 6
  • Separate terminal to connect a BRAX IPC directly to the switching transistors
  • Signal inputs with high-end signal capacitors for a perfect and pure sound quality
  • Each amplifier is available in black or silver finish either with a short or extended heatsink
  • Specially developed transformers with high-efficiency core materials guarantee a total output power of more than 1,000 Watts
  • Solid heatsink made of special aluminum alloy for a perfect cooling of the transistors in the power supply and output stage
  • 32 hand-selected high-end MOSFET transistors for brilliant sound
  • The level controls for the input sensitivity adjustment are placed under the name plate, thus the amplifier has a clean and puristic design
  • Adjustment range 1.0 V to 8.0 V
  • Handcrafted in Germany

TECHNICAL DATA

SPECIFICATIONS

Output power RMS
- @ 4 Ohms 2 x 290 Watts
- @ 2 Ohms 2 x 530 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms 1 x 1,060 Watts
- bridged @ 2 Ohms -
Amplifier technology Class AB
Inputs 2 x Cinch
1 x Remote In
Input sensitivity RCA / Cinch 1.0 - 8.0 Volts
Input impedance RCA / RCA 10 kOhms
Input impedance high level -
Outputs 2 x Speaker output
Output voltage RCA / RCA -
Signal converter for digital input -
Frequency response 10 Hz - 80 kHz
Bass boost -
Highpass -
Lowpass -
Bandpass -
Subsonic -
Phase -
Slope high- / lowpass -
Slope subsonic / lowpass -
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input > 120 dB (A-weighted)
Distortion (THD) < 0.0009%
Damping factor > 1000
Operating voltage 9 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 3.5 A
Fuse 4 x 30 A LP-Mini-fuse (APS)
Additional features Color Protection System, BRAX Power Stabilizer connector, Start-Stop capability
Dimensions (H x W x D) Heatsink "Short": 53 x 237.5 x 433 mm /
2.09 x 9.35 x 17.05"
Heatsink "Long": 53 x 237.5 x 473 mm /
2.09 x 9.35 x 18.62"
Even weight Heatsink "Short": 8.1 kg
Heatsink "Long": 8.5 kg

WHAT'S IN THE PACKAGE?

1 x High-End Amplifier BRAX GRAPHIC GX2000
1 x BRAX GRAPHIC T-shirt
3 x Allen keys
1 x Instruction manual

DOCUMENTS

INSTRUCTION

User Manual (EN).
