Brax  |  Bar code: 4057204125936

Brax MATRIX ML28 PRO, tweeters


The elegant stainless steel body, 24K gold-plated connectors, and impeccable acoustic engineering make this model an exceptional choice for the most demanding music lovers.
Frequency range:1,800 – 25,000 Hz
Sensitivity:93 dB @ 2.83V/1m, 90 dB @ 1W/1m


Regular price 990,00 €
Delivery of this item within 4–8 business days

Brax MATRIX ML28 PRO, tweeters - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • We install at our service centre in Kaunas. Book installation
  • Pay in instalments available
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.


Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

INFORMATION

Brax MATRIX ML28 PRO - high-end car tweeters designed for true music lovers. They combine innovative design, advanced materials and handcrafted precision to reproduce transparent, natural and detailed high frequencies.

Power: 120 W RMS / 170 W max. (highpass > 3,000 Hz at 12 dB/Oct.)
Impedance: 4 Ω
Frequency range: 1,800 – 25,000 Hz
Sensitivity: 93 dB @ 2.83V/1m, 90 dB @ 1W/1m

The price is for 2 pcs.

DESCRIPTION

The evolution of an icon
Icons can only be surpassed by themselves. This is also true of the BRAX MATRIX series, which is setting another milestone in the world of audiophile-quality car audio speakers with the new ML28 PRO high-end tweeter.

Innovation and first-class quality
As you would expect from BRAX, the ML28 PRO combines cutting-edge innovation with superior materials to provide an unparalleled, pristine sound experience. Equipped with a 28mm high-end silk dome tweeter coated on both sides with visco-elastic Acronal, it guarantees brilliant, smooth high frequency reproduction. In addition, an innovative coating process was used to reduce the weight of the dome for improved dynamics and impulse response. The coupling volume, dampened with the finest merino wool, has been optimized for a low resonance frequency and flawless sound quality.

Form and function in perfection
Of course, form and function perfectly harmonize here as well. In terms of design and technology, the BRAX philosophy is continued without exception: The solid machined stainless steel housing not only impresses with its highly exclusive and extraordinary appearance, but also ensures ideal heat dissipation. In addition, the innovative inward-flanged design optimizes sound dispersion and achieves a superior frequency response. Linearity of magnetic flux and minimal distortion are achieved by a high-efficiency neodymium magnet equipped with 8-port ventilation. The inward-facing stainless steel phase plug eliminates unwanted reflections within the coupling volume for focused sound reproduction while the 24-carat gold-plated terminals guarantee maximum conductivity and optimal signal transmission.

Seamless integration in the BRAX speaker lineup
Thanks to its standardized installation diameter, the BRAX ML28 PRO fits seamlessly into the well-thought-out, integration-friendly speaker lineup of the BRAX family. This dimension is the same as that of the GRAPHIC GL1 MK2 and the GL2, ensuring consistent compatibility and flexible installation options across the current tweeters and midrange drivers of the BRAX MATRIX & GRAPHIC series. While the included grilles in two exclusive, interchangeable designs offer protection, are optimized for perfect sound reproduction and complete the high-end look, grilles from other BRAX loudspeakers with the same standardized dimensions can also be used if required.

Each pair of speakers is unique
In order to meet our high quality requirements and to reach perfect tonal interaction, each speaker set is hand-selected and paired according to its acoustic parameters. Only after selection, each speaker set receives its unique serial number which is recorded in a service database. The exclusive wooden box packaging completes this high-end product and emphasizes once again the philosophy of BRAX.

Features
High-End 28 mm silk dome – provides brilliant, smooth treble with visco-elastic Acronal coating on both sides
Enhanced coupling volume – dampened with merino wool for low resonance and perfect sound quality
Innovative inward-flanged design – superior frequency response thanks to improved sound dispersion
Solid machined stainless steel housing – highly exclusive, extraordinary design with optimum heat dissipation
High-efficiency neodymium magnet – with 8-port ventilation for ideal linearity of the magnetic flux ensuring lowest possible distortion
Inward-facing stainless steel phase plug – prevents unwanted reflections within the coupling volume for focused sound reproduction
Standardized mounting diameter – matches installation diameter of MATRIX ML50 PRO, GRAPHIC GL2 and GL1 MK2

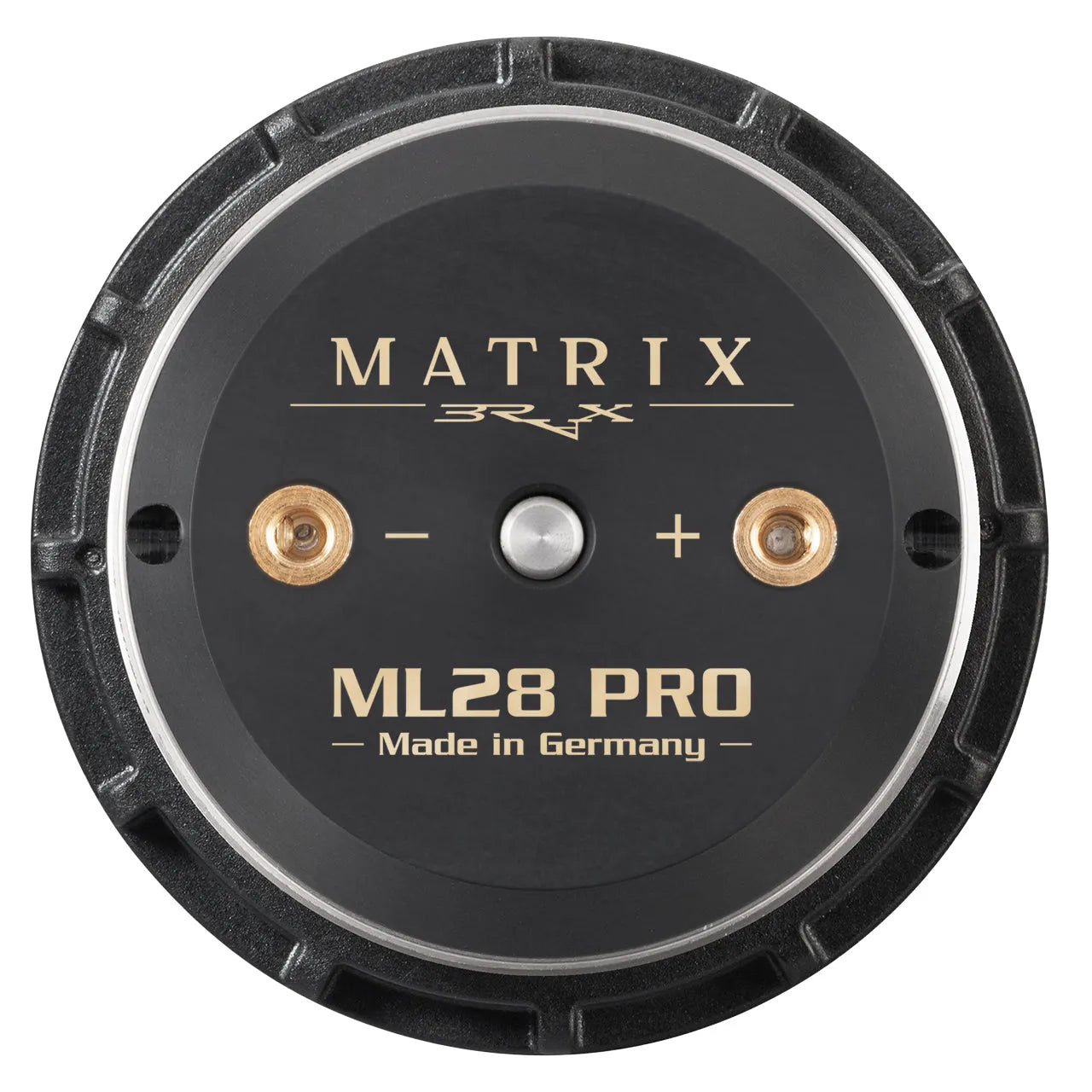

24 carat gold-plated terminals - guarantee maximum conductivity for optimal signal transmission

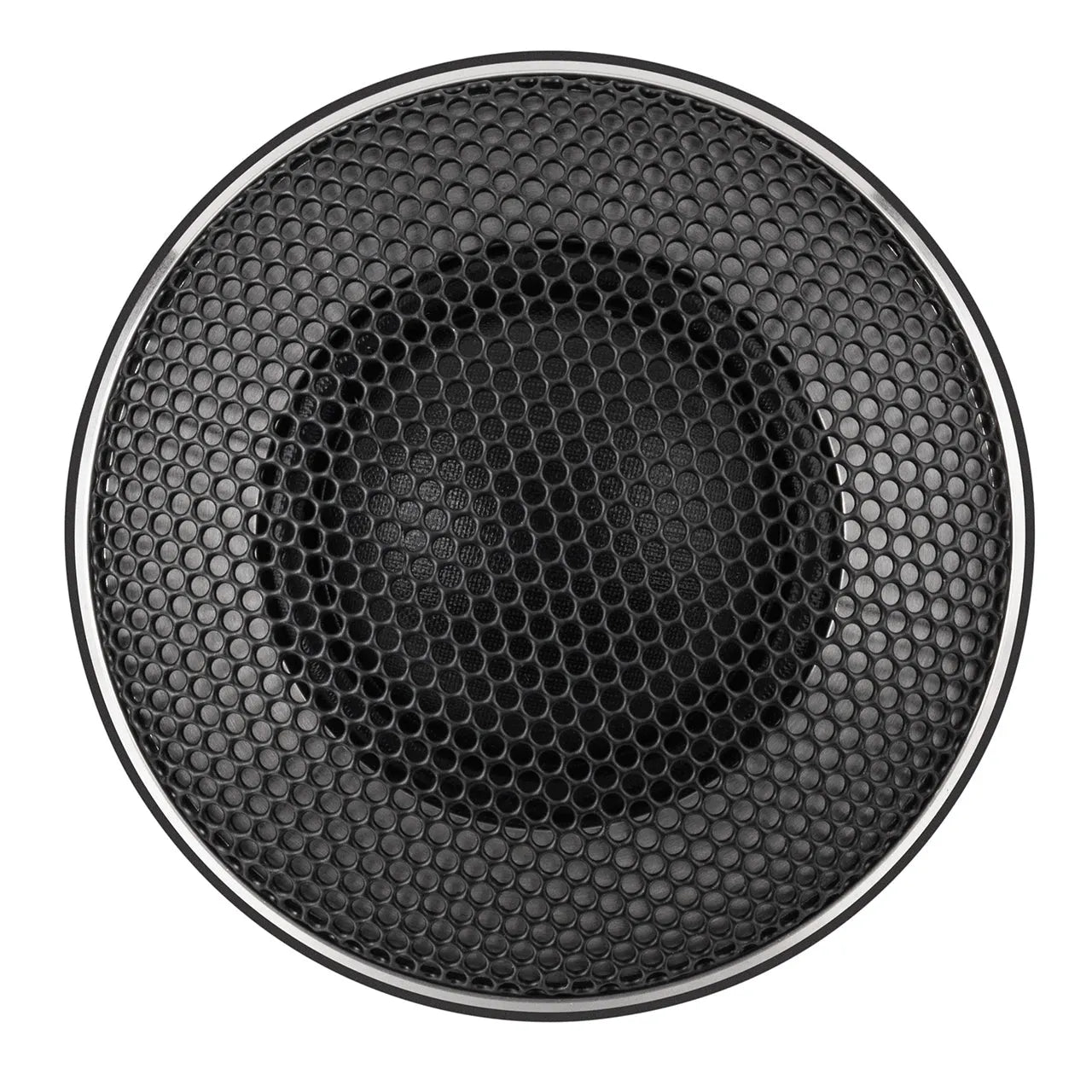

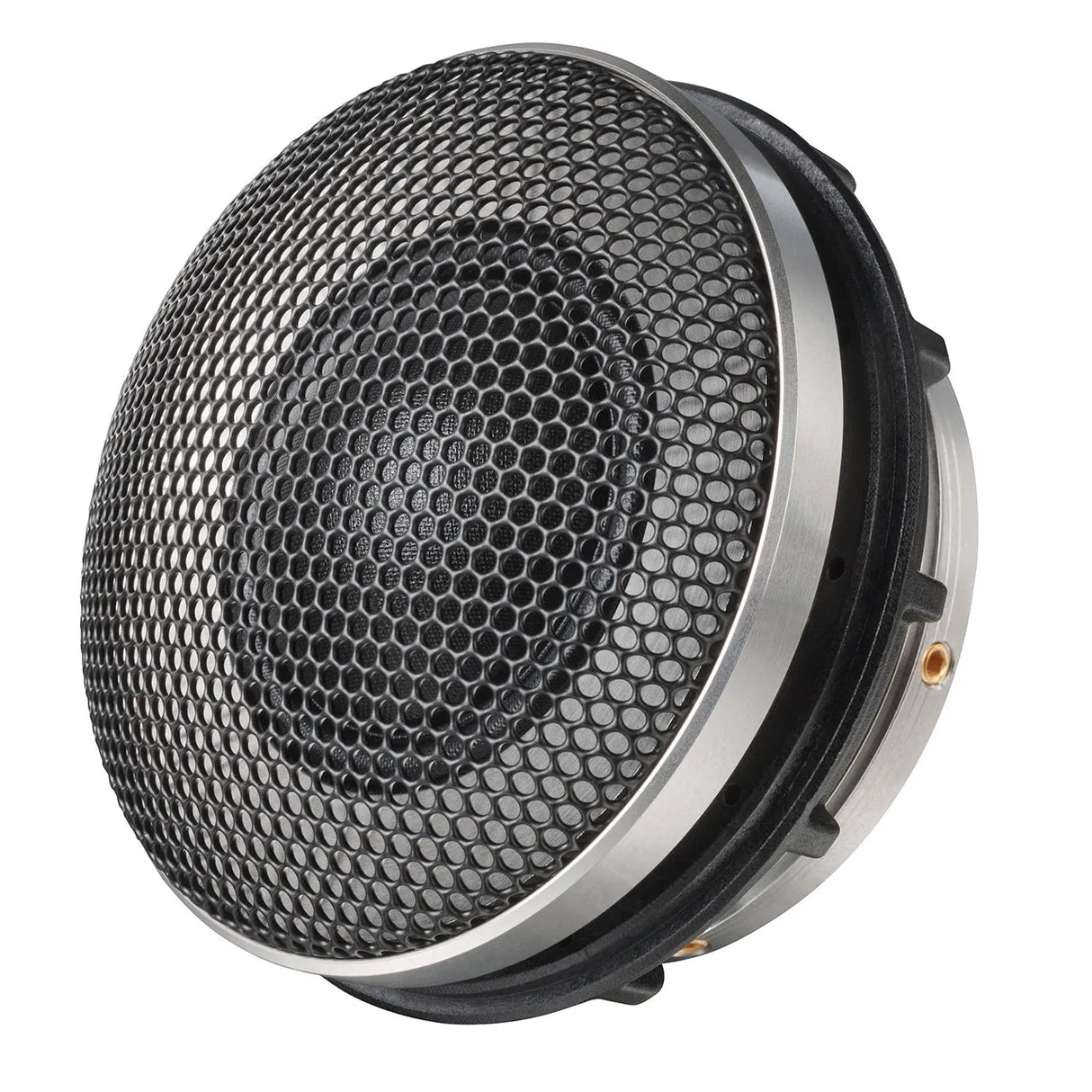

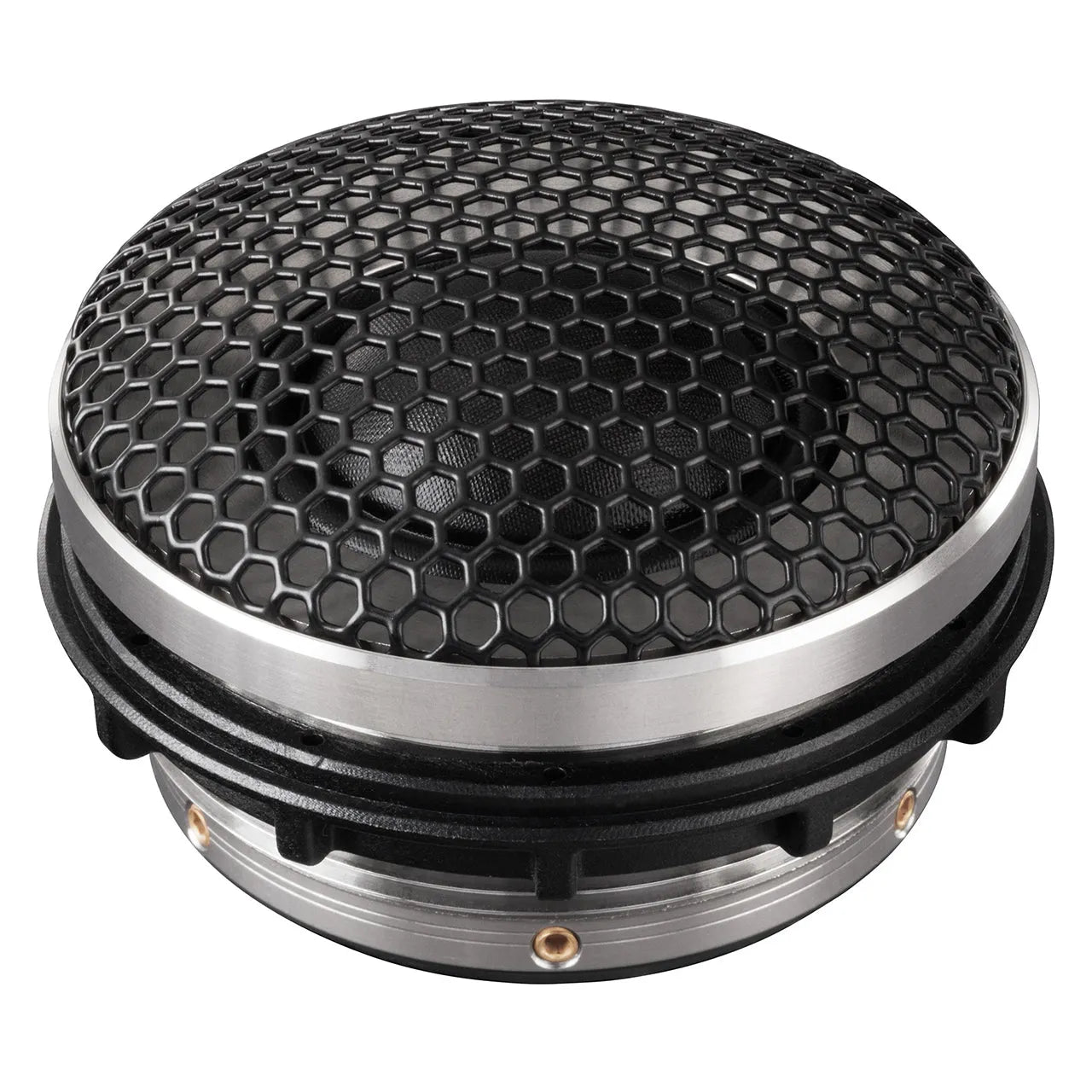

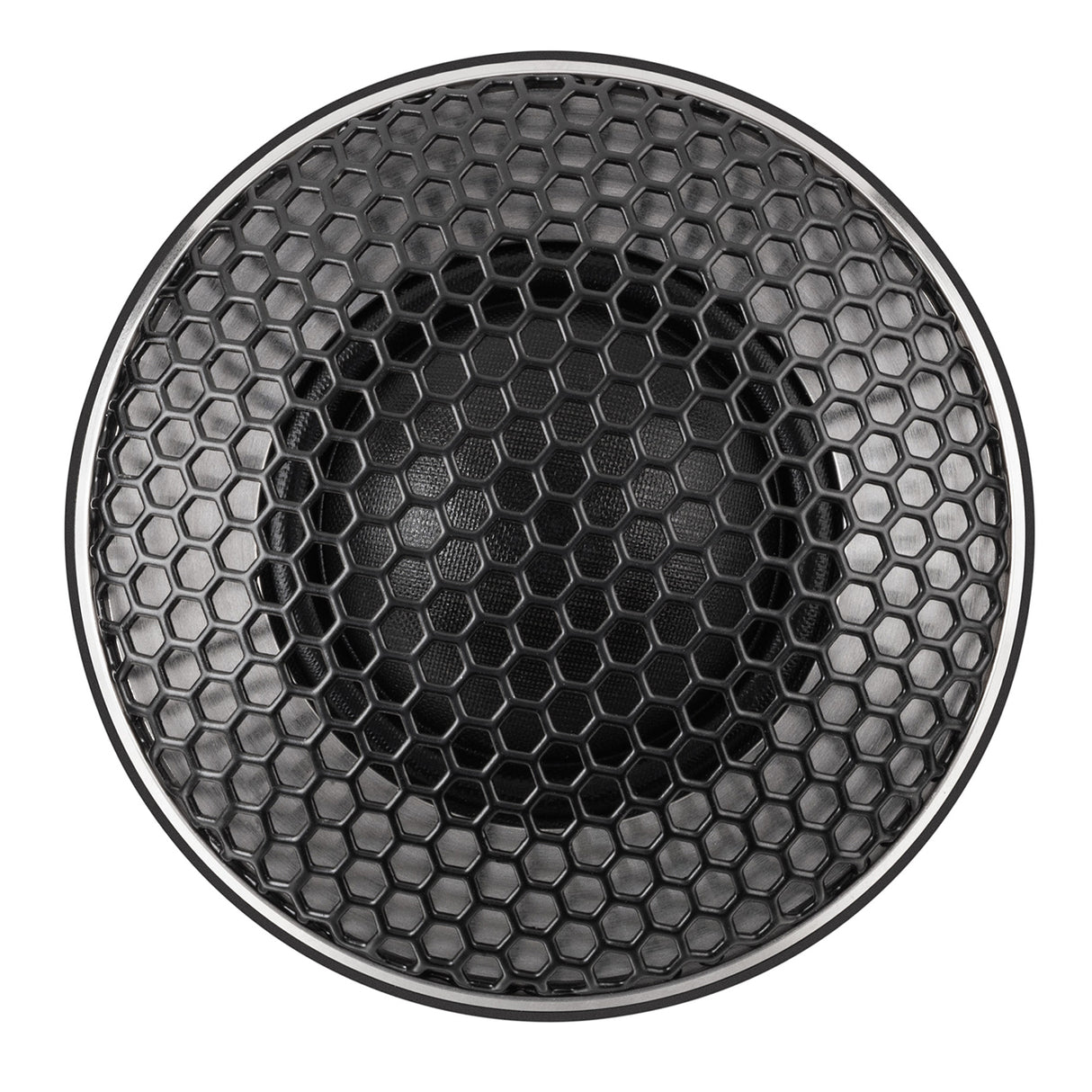

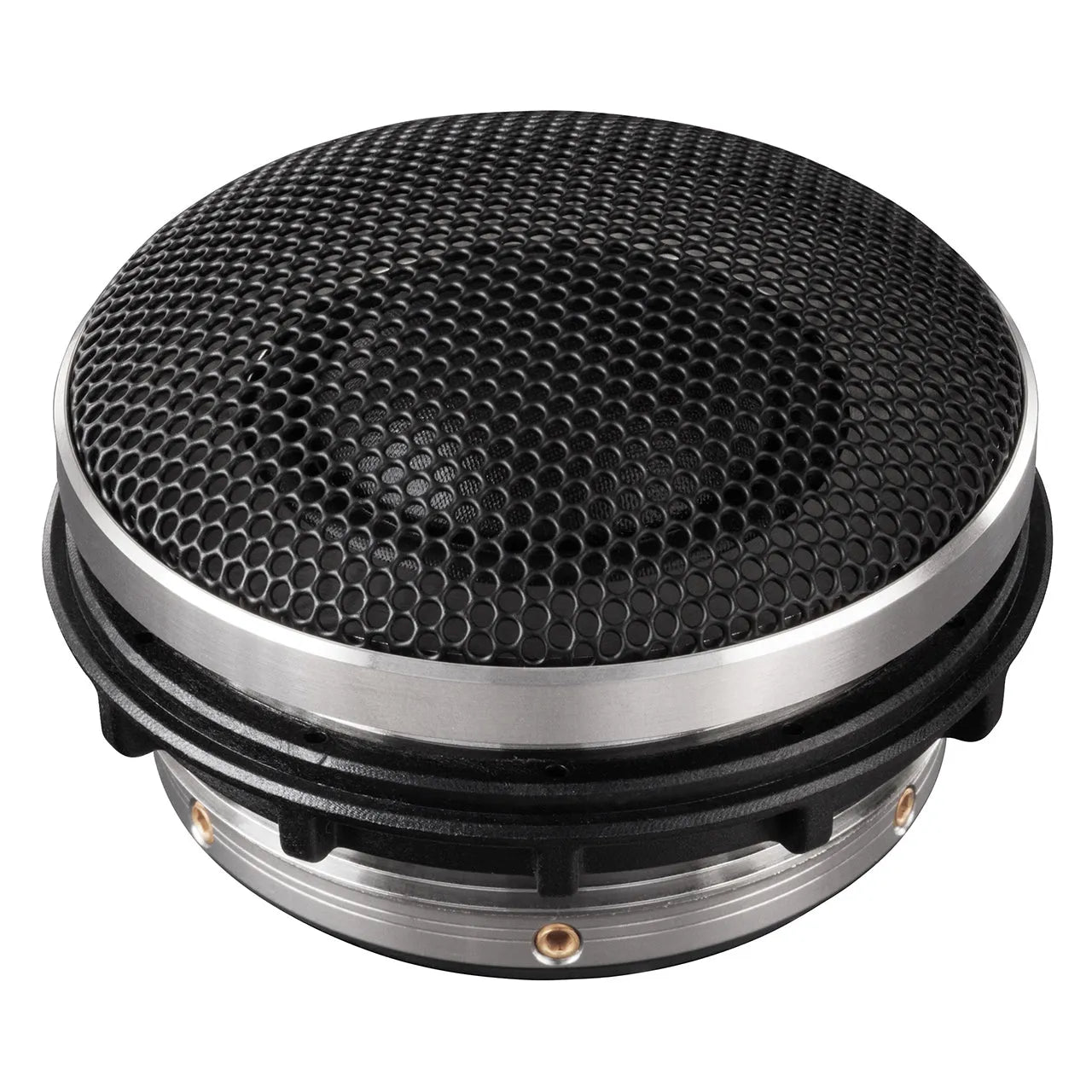

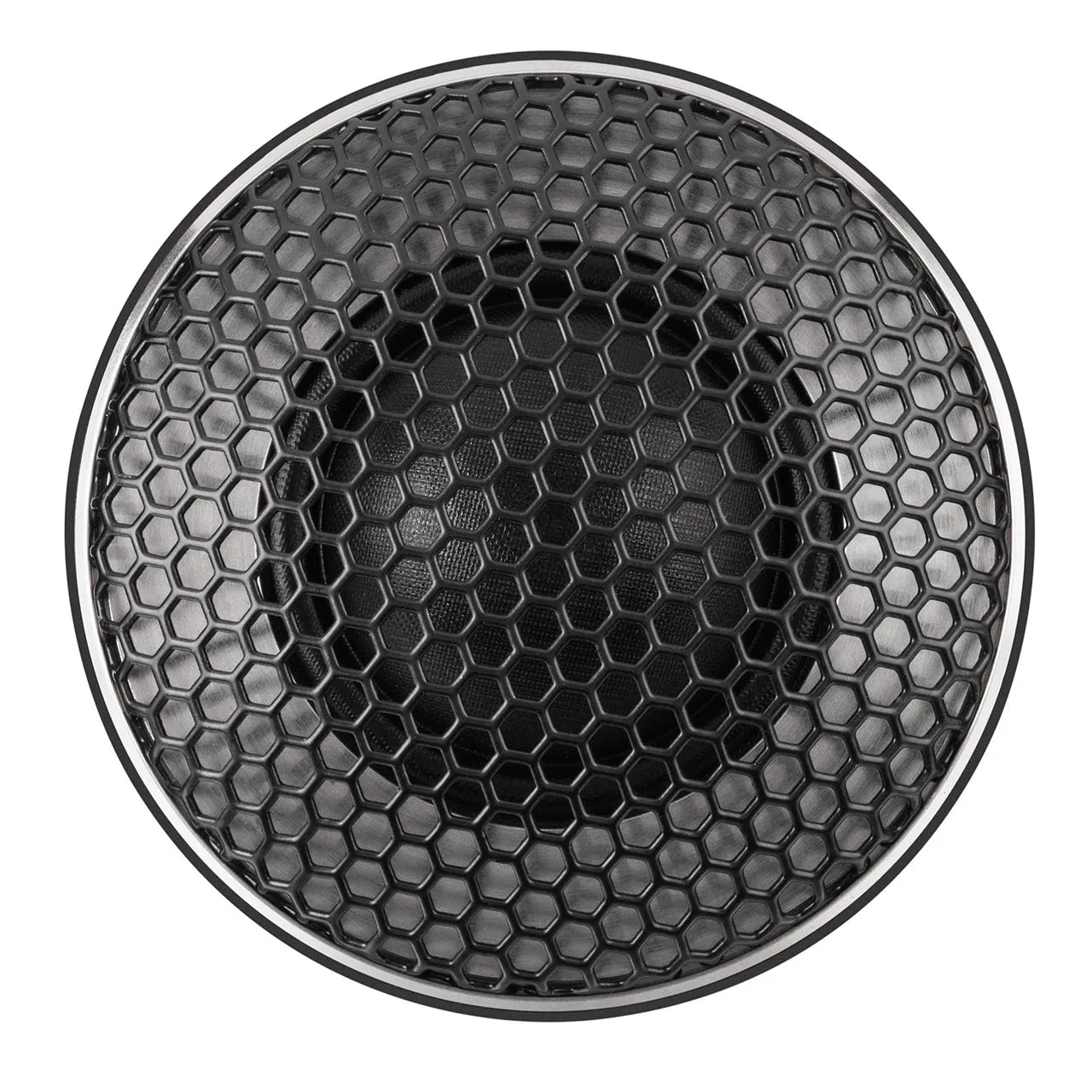

Cover grilles included in two exclusive, swappable designs – optimized for perfect sound performance.

TECHNICAL DATA

Power RMS / max. P 120 / 170 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 1,800 - 25,000 Hz
Resonance frequency Fs 760 Hz
Sensitivity SPL
93 dB @ 2.83V / 1m
90dB @ 1W/1m

Voice coil diameter ø 28 mm / 1.10"
Cone area Sd 6.2 cm²
Moving mass Mms 0.32 g
Cone material Silk dome with a visco-elastic Acronal coating on both sides
Outer diameter ø 60 mm / 2.4"
Installation diameter ø 52 mm / 2.1"
Installation depth 25 mm / 1.0"

Recommended crossover frequencies for the highpass
Slope
Minimum crossover frequency
6 dB/Octave 3,500 Hz
12 dB/Octave > 2,500 Hz
24 dB/Octave > 1,800 Hz
Scope of delivery
2 x High-End Tweeter BRAX MATRIX ML28 PRO
2 x Mounting ring
4 x Grill
1 x Allen key
1 x Certificate
1 x Data sheet
