Brax Matrix ML80 PRO, 8 cm Car Midrange Speakers
Brax Matrix ML80 PRO, 8 cm Car Midrange Speakers - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
- Free delivery in Lithuania from 100 €: courier or parcel locker
- Pick up at our showroom in Kaunas, Armatūrininkų g. 1
- We install at our service centre in Kaunas. Book installation
- Pay in instalments available
- 14-day returns
▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.
Delivery
Delivery
In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.
Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.
Pick up in store
Pick up in store
You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.
We recommend calling before you arrive: +370 683 90000
Opening hours: Mon-Fri 9:00-18:00
INFORMATION

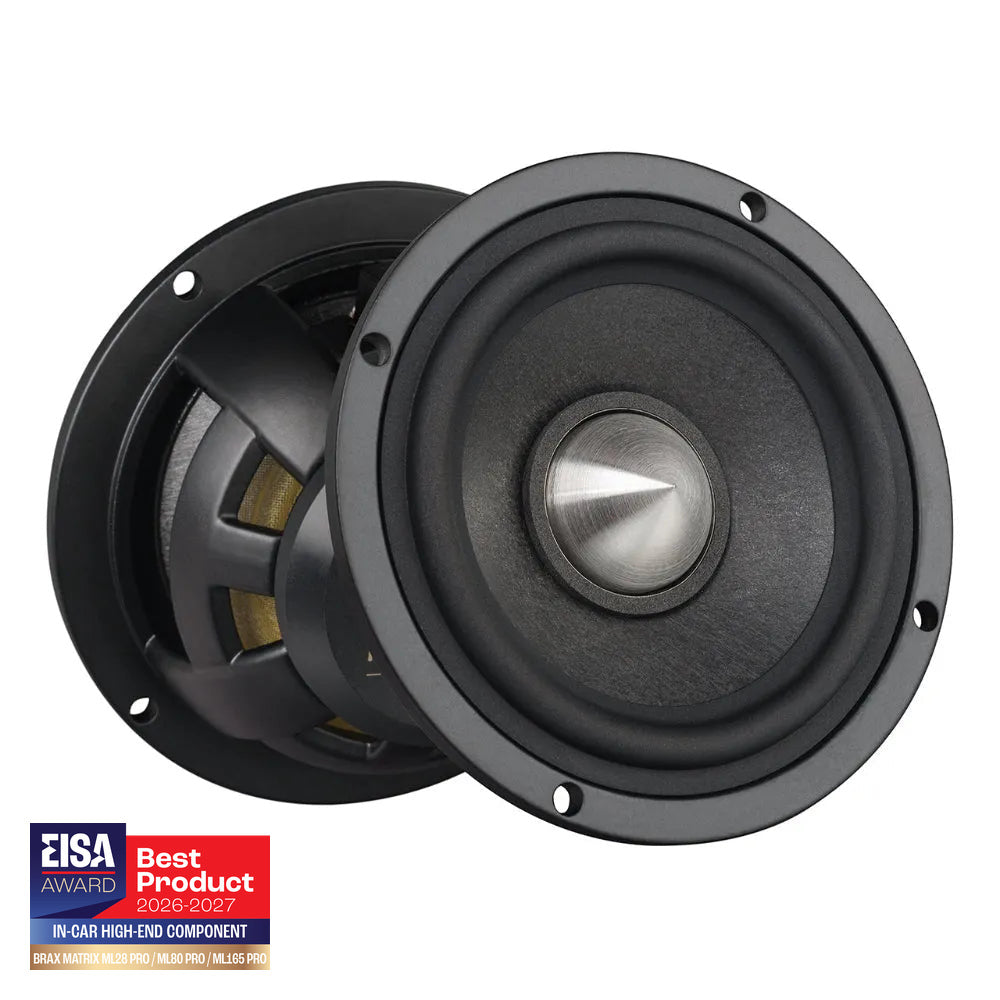

Brax Matrix ML80 PRO - a high-end midrange speaker, designed for extremely precise and natural music reproduction. The multi-layer carbon cone, neodymium magnet system, and stainless steel construction ensure detailed, dynamic, and exceptionally clean midrange reproduction. Hand-crafted Made in Germany production and precise construction guarantee the highest level of Hi-End sound quality for car audio systems.
Power (RMS / Max): 100 / 150 W
Impedance: 4 Ω
Frequency response: 250 Hz – 6000 Hz
Sensitivity: 91 dB (2.83V / 1m)
Price is for a pair.
DESCRIPTION
A new chapter in precision and natural sound
With the MATRIX ML80 PRO, BRAX elevates midrange reproduction to an entirely new level. As the completely re-engineered successor to the MATRIX ML3, it continues the same uncompromising philosophy – yet with an all-new concept, state-of-the-art materials, and meticulous attention to detail.
The result is a midrange speaker that reproduces music with absolute purity, dynamics, and emotional depth.
Carbon fleece multilayer cone – light, rigid, and resonance-free
The newly developed carbon fleece multilayer cone of the ML80 PRO was designed and manufactured in close collaboration with renowned specialist Dr. Kurt Müller. Its layered carbon structure combines extreme stiffness with minimal mass, effectively reducing unwanted resonances.
A specially shaped reinforcement collar on the rear – directly at the transition to the surround – significantly increases torsional stiffness and prevents deformation even at high excursion levels. The straight cone geometry at the voice coil former optimizes power transfer and ensures exceptionally precise and controlled sound radiation.
The finely textured front coating with a closed-pore surface gives the cone an elegant, silk-matte appearance with a refined tactile feel while guaranteeing maximum dimensional stability and long-term durability.
Fascinating soundstage through stainless-steel phase plug
The solid stainless-steel phase plug optimizes the dispersion characteristics of the ML80 PRO and minimizes interference within the midrange. The result is an even sound dispersion that enables precise, linear reproduction across the entire frequency range.
High-damping butyl surround for maximum precision
The high-damping surround is made from premium butyl rubber. Thanks to its excellent damping properties, it effectively suppresses unwanted resonances in the surround area and significantly enhances the overall performance of the driver. In addition, the material’s outstanding temperature resistance ensures reliable performance and long-term durability, even under demanding conditions.
Perfection down to the finest detail
The aerodynamically shaped aluminum die-cast basket ensures ideal voice coil ventilation and minimizes airflow turbulence within the chassis. The compact and powerful push-pull neodymium magnet system offers outstanding magnetic linearity and extremely low distortion – the foundation for ultimate control, accurate dynamics, and impressive power handling.
The high-strength Nomex spider provides consistently precise centering and long-term mechanical stability thanks to its exceptionally rigid and form-stable fabric.
Exclusive design and uncompromising manufacturing quality – Made in Germany
Like all loudspeakers of the BRAX MATRIX series, the ML80 PRO is manufactured with the highest precision, individually measured and paired, and assigned a unique serial number documented in the BRAX database.
The optional BRAX MATRIX MR3 stainless-steel support ring with matching grille offers an elegant and secure mounting solution for perfect system integration.
Each ML80 PRO is meticulously handcrafted Made in Germany – a statement of uncompromising manufacturing quality and genuine passion for perfect sound. Every pair is delivered in an elegant, tailor-made wooden box, emphasizing the exclusive character of these exceptional loudspeakers down to the very last detail.
Features
Ultra-lightweight carbon fleece multilayer cone – combines superior stiffness-to-weight ratio with reduced resonance for precise, natural and highly dynamic sound reproduction
Integrated solid stainless-steel phase plug – ensures perfectly controlled dispersion and precise midrange reproduction
Newly developed high-damping rubber surround – crafted from premium butyl rubber for maximum cone control, reduced distortion and exceptionally sound reproduction
Aerodynamically shaped aluminum die-cast basket – allows ideal voice coil ventilation while minimizing airflow noise for consistently high performance even at demanding levels
High-strength Nomex spider – crafted from meta-aramid fabric to ensure exceptional shape stability and long-term reliability even under demanding conditions
Ultra-precise machined push-pull neodymium magnet system – ensures excellent magnetic linearity for minimal distortion, clean dynamics and maximum control at high output levels
Vented spider – enhances airflow between spider and magnet system for consistent performance even at high sound pressure levels
24-carat gold-plated terminals - guarantee maximum conductivity and signal quality
Optional stainless-steel support ring with grille (MR3) – adds a refined aesthetic and provides a secure, elegant mounting solution
Made in Germany – developed and manufactured for uncompromising sound quality at reference level
TECHNICAL DATA
Power handling RMS / max. P 100 / 150 Watts
(highpass > 300 Hz at 24 dB/Oct.)
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response 250 Hz - 6,000 Hz
Resonance frequency Fs 114 Hz
Mechanical Q factor Qms 1.71
Electrical Q factor Qes 0.46
Total Q factor Qts 0.36
Compliance Cms 640 μm/N
Equivalent air volume Vas 1.15 L
Force factor B*I 4.0 Tm
Sensitivity SPL 91 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 35 cm²
Moving mass Mms 3.0g
Cone material Carbon fleece multilayer cone
Mechanical resistance Rms 1.26 kg/s
Voice coil diameter ø 25 mm / 0.75"
Voice coil winding height 6 mm / 0.24"
Max. linear excursion Xlin +/- 1.5 mm
Max. mechanical excursion Xmax +/- 4.0 mm
Outer diameter ø 92 mm / 3.6"
Installation diameter ø 76 mm / 3.0"
Installation depth 34 mm / 1.4"
Recommended installation options
a. Infinite baffle
Recommended highpass filter 300 Hz / 24 dB/Octave
“Linkwitz-Riley”
b. Sealed box
Net volumes Recommended DSP / amplifier highpass filter
0.4 liter (System resonance: 200 Hz) 350 Hz / 24 dB/Octave
“Linkwitz-Riley”
0.8 liter (System resonance: 155 Hz) 300 Hz / 24 dB/Octave
“Linkwitz-Riley”
1.2 liter (System resonance: 140 Hz) 250 Hz / 24 dB/Octave
“Linkwitz-Riley”
Note: The enclosure should always be filled with appropriate damping material.
Scope of delivery
2 x High-End Midrange Speaker BRAX MATRIX ML80 PRO
1 x Allen key
1 x Certificate
1 x Data sheet
