RVC NTSC CMOS 170°, rear camera

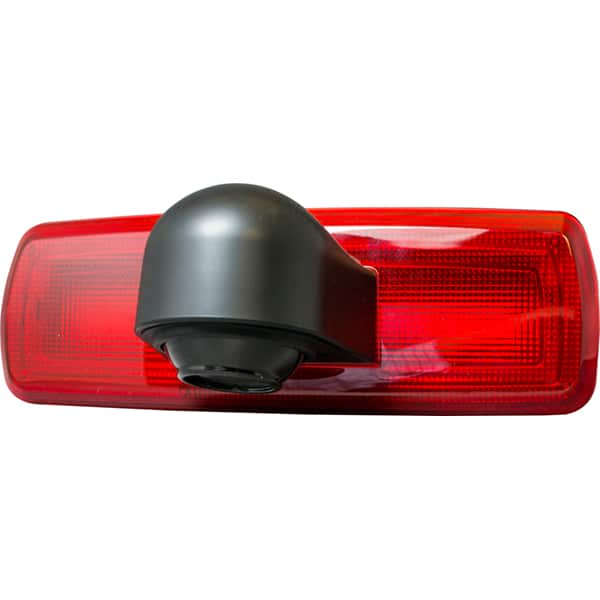

The rear camera is built into the brake light.
€145.00 EUR

RVC NTSC CMOS 170°, rear camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The rear camera is built into the brake light. Suitable for Renault Traffic, Opel Vivaro and Nissan NV300 models from 2014.

  • Sensor: 1/4 inch CMOS.
  • Resistance standard IP 68.
  • Resolution: 762 x 504.
  • Cable length: 10 m.
  • Video RCA connector adapter.


DESCRIPTION

Vehicle-specific exchange brake light illumination-glass with rear-view camera. Easy assembling by replacing the factory brake plate illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNICAL DATA

TECHNICAL DATA

  • Camera with vehicle-specific exchange brake light illumination-glass
  • Sensor-type 1/4 inch CMOS
  • PAL format (580 TV lines)
  • Resolution: 762 x 504 pixels
  • Aperture F2.0
  • Min illumination: 0.1 LUX
  • 9 night vision LEDs
  • Angle horizontal 170°
  • Protection class IP 68
  • Camera color: black
  • 10m extension cable (4pin-KO) with adapter-cable to RCA



Compatibility


Mature Model
Renault Traffic III since MY 2014
Opel Vivaro B since MY 2014




Dimensions


Brake light illumination-glass 234 x 78 (W x H)
Overhang length camera
(from brake light)		 67 mm
Installation opening 205 x 46mm (W x H)
Installation opening depth
 62 mm


NOTICE: Please make sure to check if the size of the camera fits the vehicle!




Specifications


Operating voltage 12V DC (10~15V)
Current consumption <150mA
Weight incl. cable approx. 318 g
