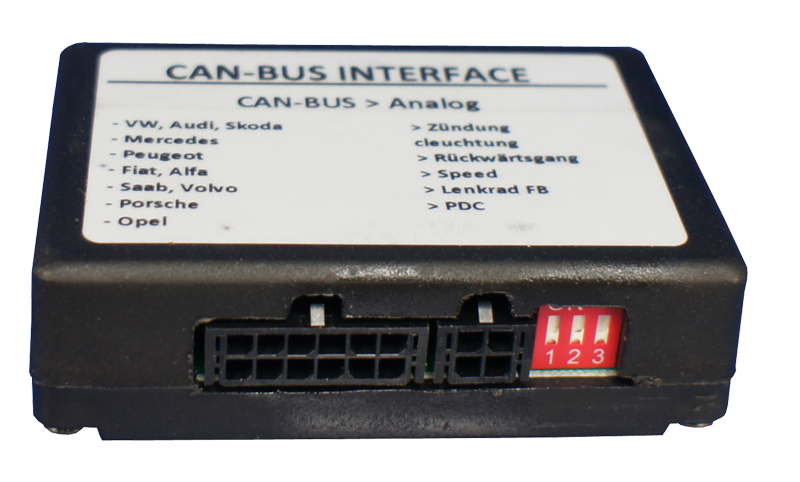

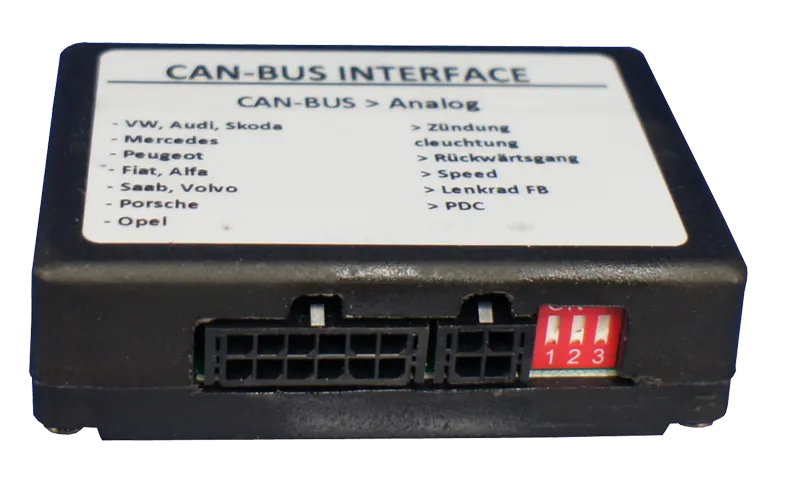

CAN-bus CX-401, Interface

CAN-bus interface with many functions, depending on the vehicle, provides analog ACC (I), speed signal (S), reverse (R), lights (L) and parking distance control acoustic signal (PDC, together with CX - LS) and remotely activates compatible factory sound systems triggered by the CAN bus (SS).
€64.00 EUR

CAN-bus CX-401, Interface - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Light signals.
  • ACC control.
  • Operating voltage: 10.5 - 14.8V.
  • Power consumption: 0.07 - 40W.

DESCRIPTION

CAN-bus interface with numerous functions, depending on the vehicle, it provides analogue ACC ( I ), speed signal ( S ), reverse ( R ), lights ( L ) and acoustic signal of park distance control ( PDC , in combination with CX -LS) and remotely turns on compatible factory sound-systems which are triggered by CAN-Bus ( SS ).

On vehicles with CAN steering-wheel ( MS ) depending on the vehicle it is possible in combination with device specific ARC-10x to control after-market devices of Alpine, Blaupunkt, Clarion, Digitaldynamic, JVC, Kenwood, Pioneer, Sony and Zenec by steering wheel.

IMPORTANT: To use CX-401, on the vehicle side a universal harness CX-010 or device-specific harness CX-0xx is required. If the CAN-bus steering wheel control buttons shall be used, a device-specific cable ARC-10x is required additionally.

TECHNICAL DATA

Compatibility

For a detailed compatibility of vehicle and vehicle-specific harness see:

Capacitance

ACC (15r) max. 1.5A
Reverse Gear max. 1.5A
Lights (58) max. 0.1A



Specifications (Interface box)

Operating voltage 10.5 - 14.8V
Stand-by power drain <1mA
Operation power drain ∼50mA
Power consumption 0.07 - 40W
Temperature range -30°C to +80°C
Weight 38 years
Measurements
 71 x 22 x 50 mm (W x H x D)
