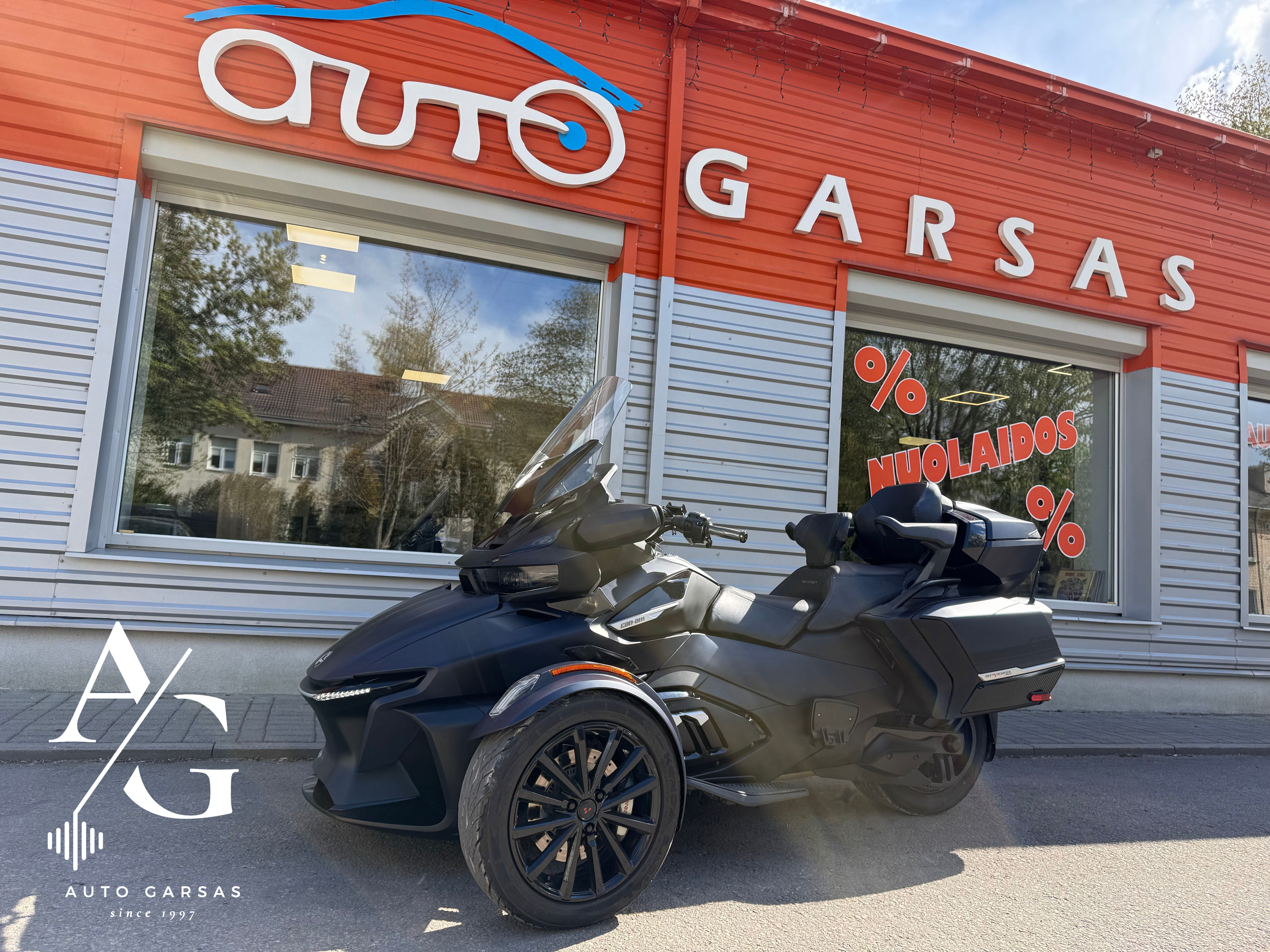

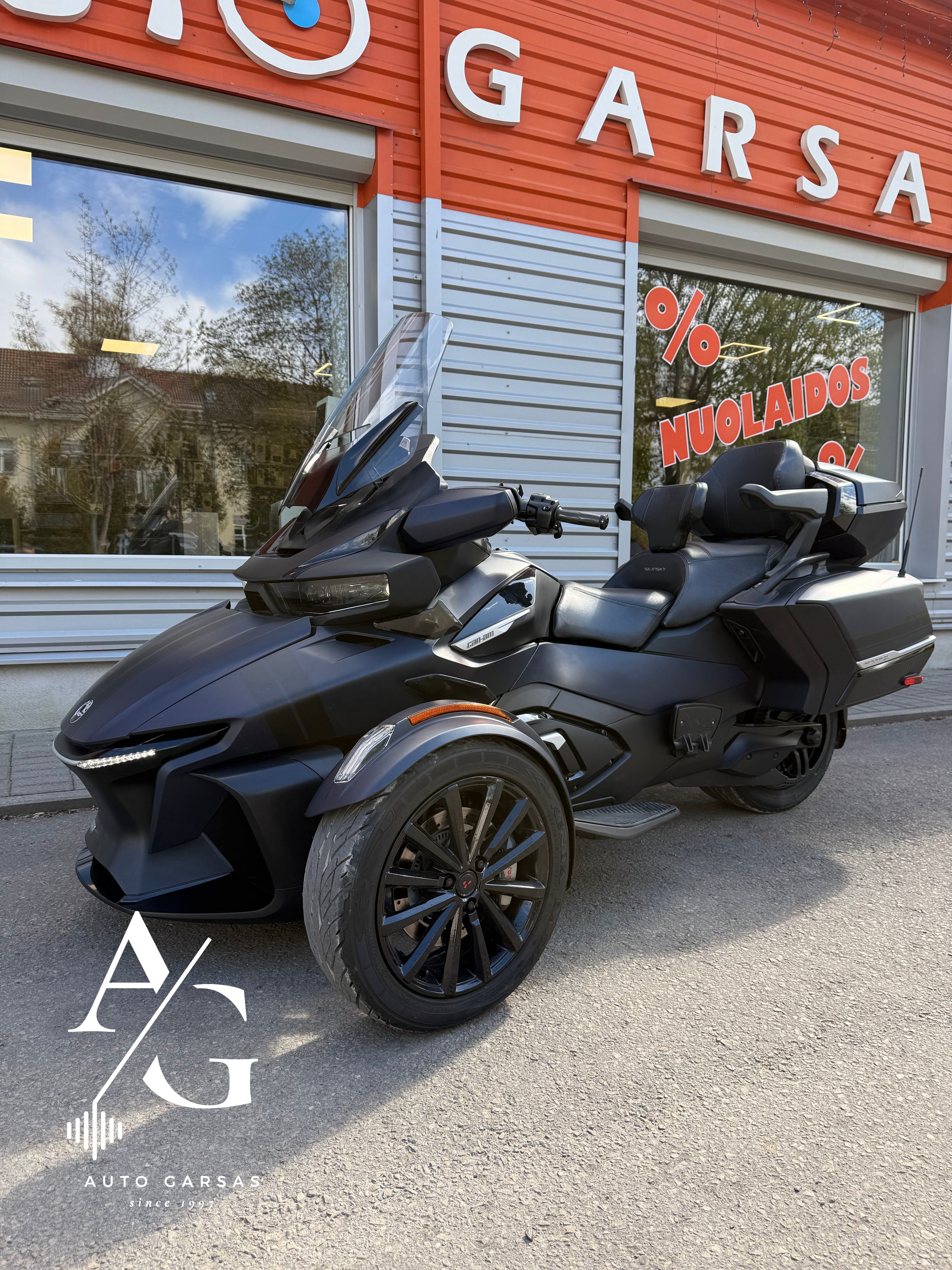

CANAM SPYDER (2020), motorcycle audio system project

A custom high-end audio system was created for the CANAM SPYDER motorcycle, focused on powerful and high-quality sound for open-air riding.

▪️ Do you have questions about the work we do?
If you are interested in our services, please contact us. We can consult by phone.
+370 683 90000 or come to our showroom at Armatūrinininkų g. 1, Kaunas .

View the full motorcycle gallery.

INFORMACIJA

A custom high-end audio system was created for the CANAM SPYDER motorcycle, focused on powerful and high-quality sound for open-air riding.

Work performed:

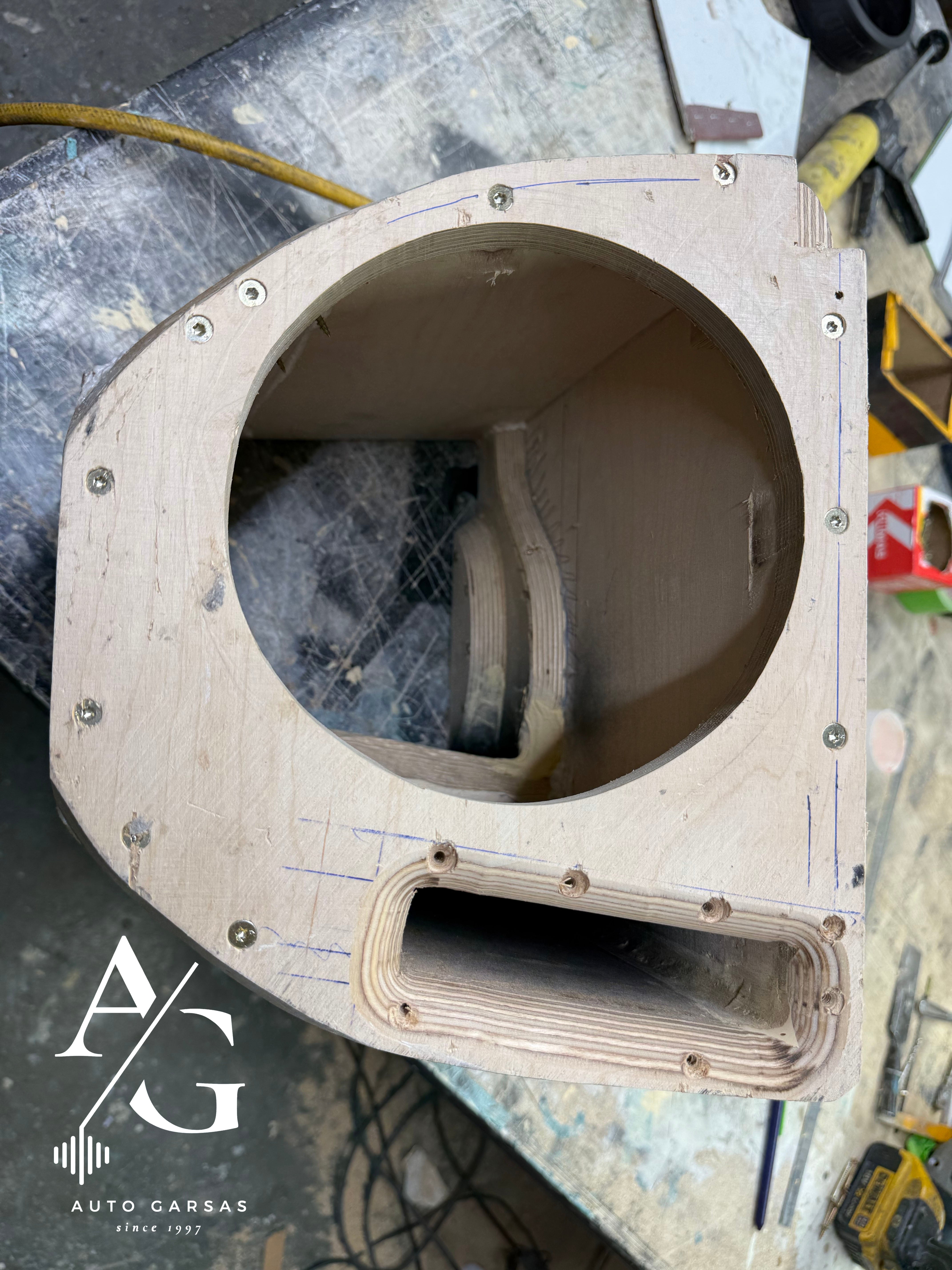

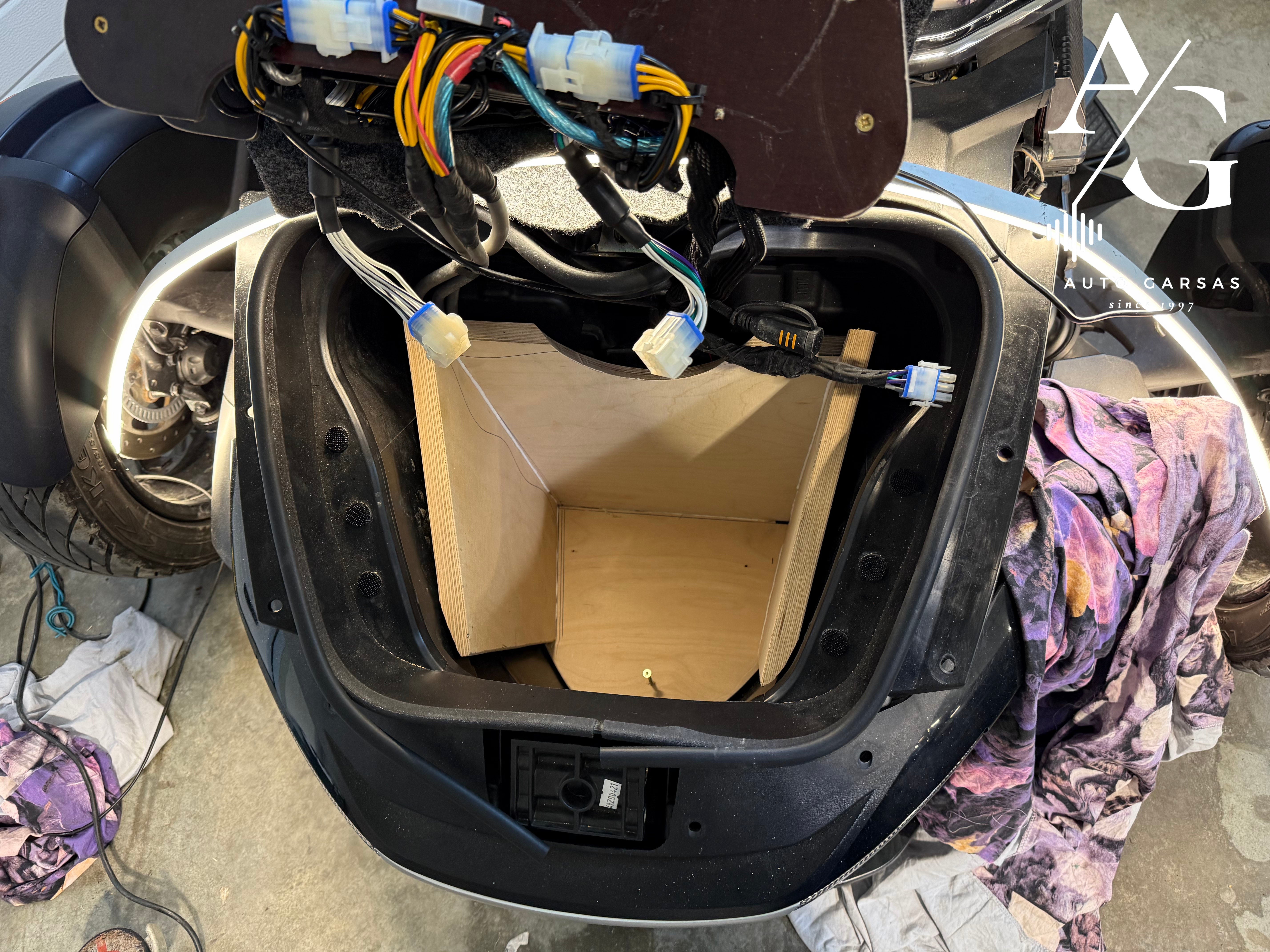

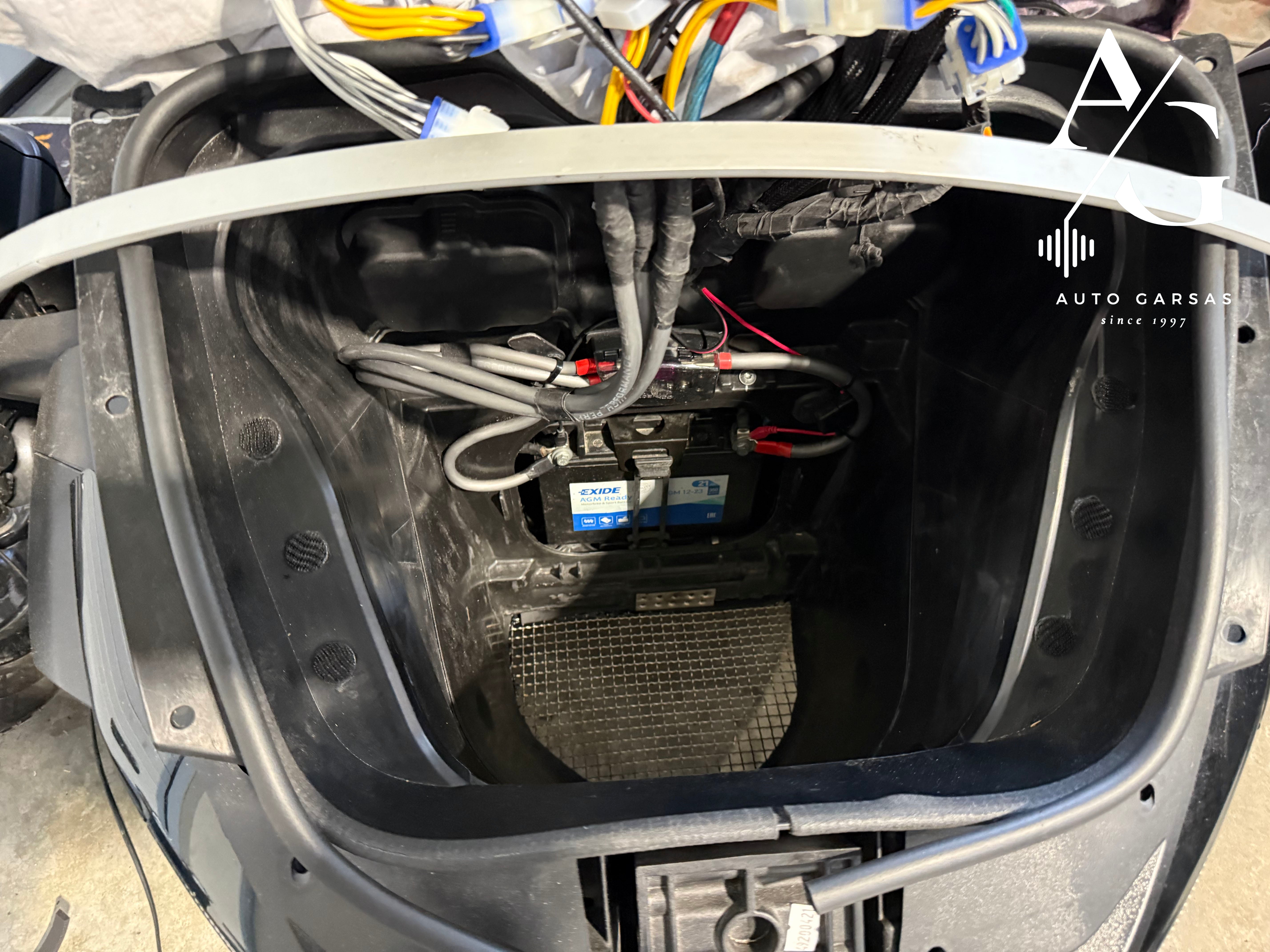

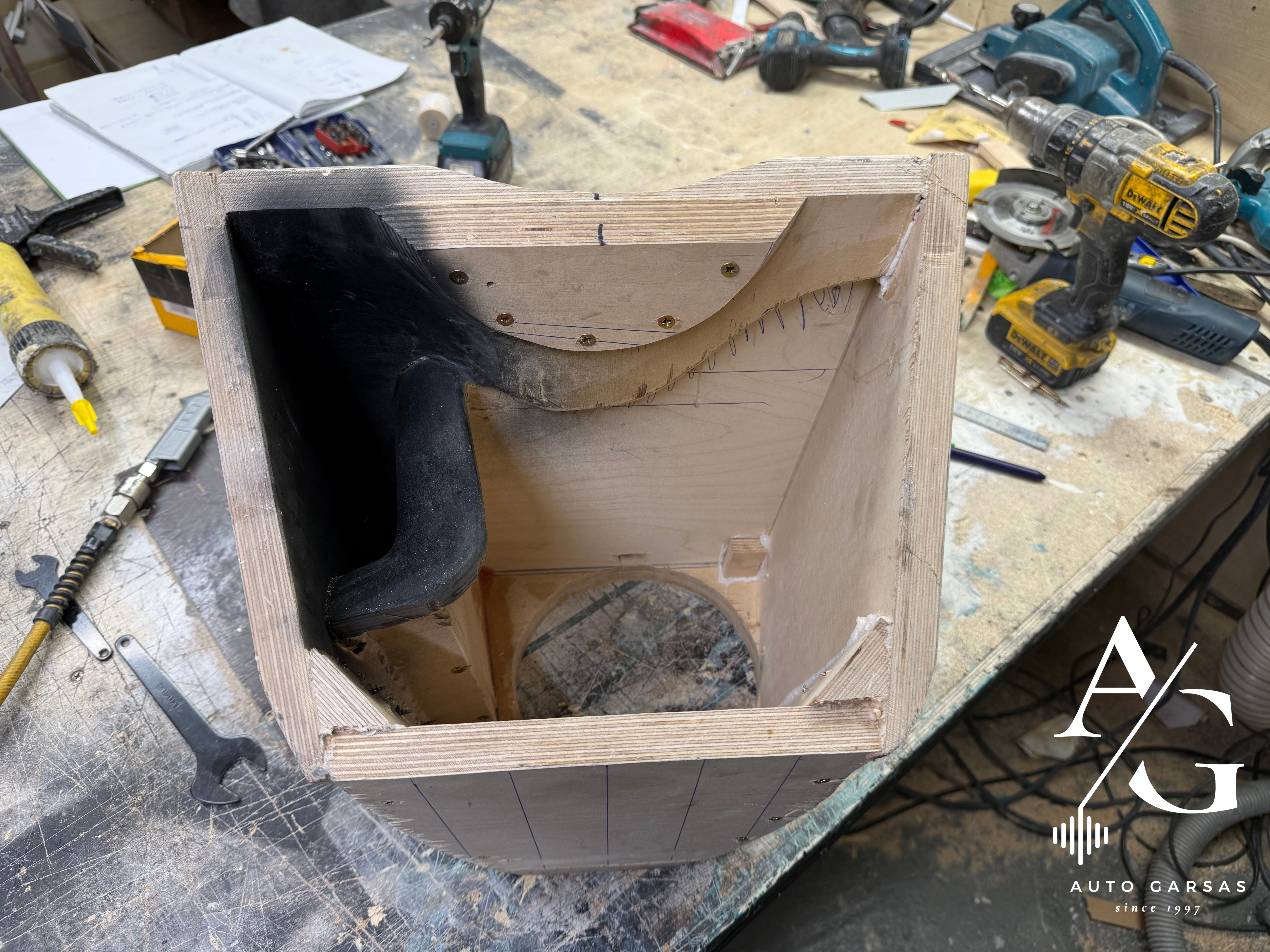

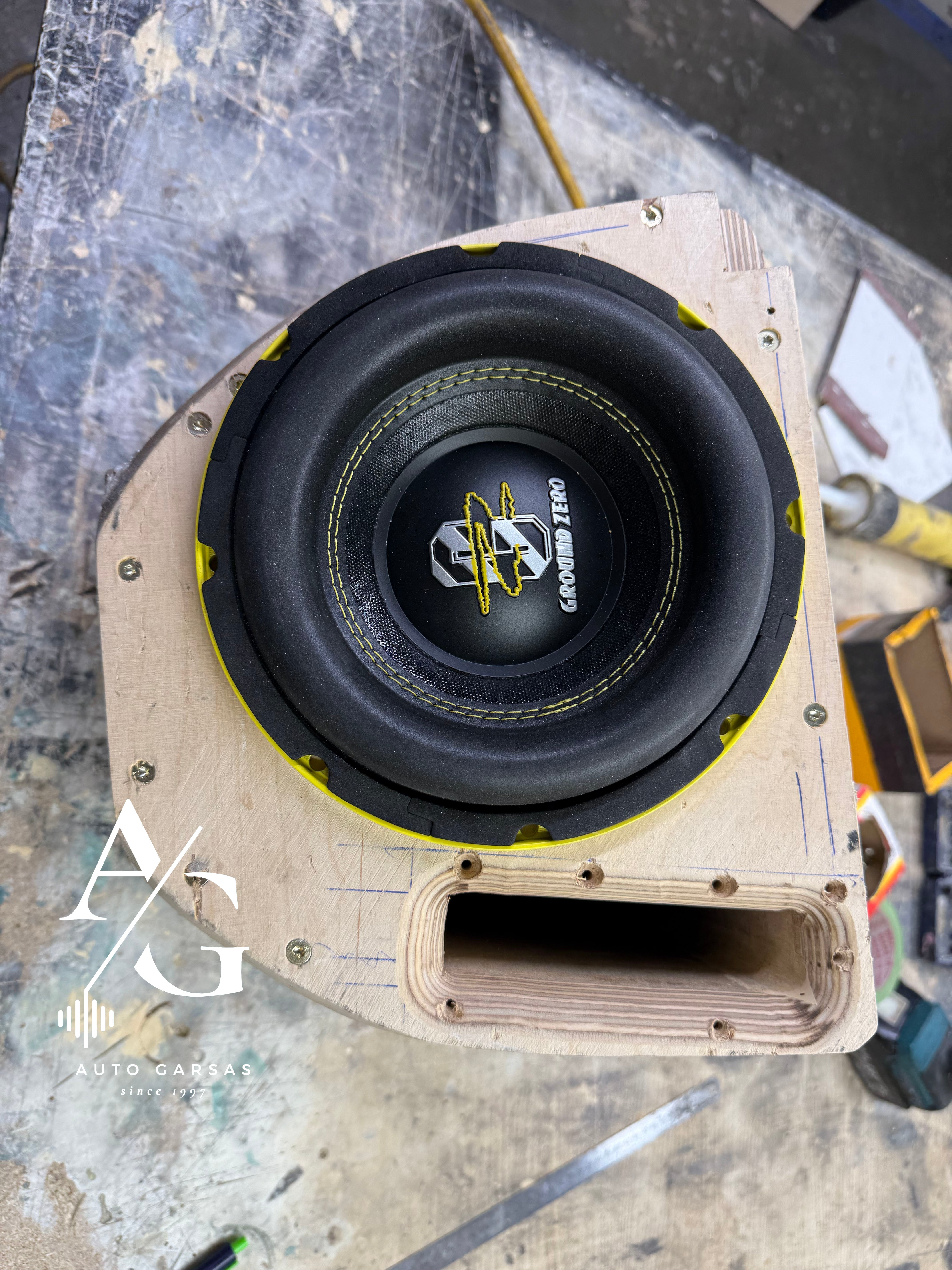

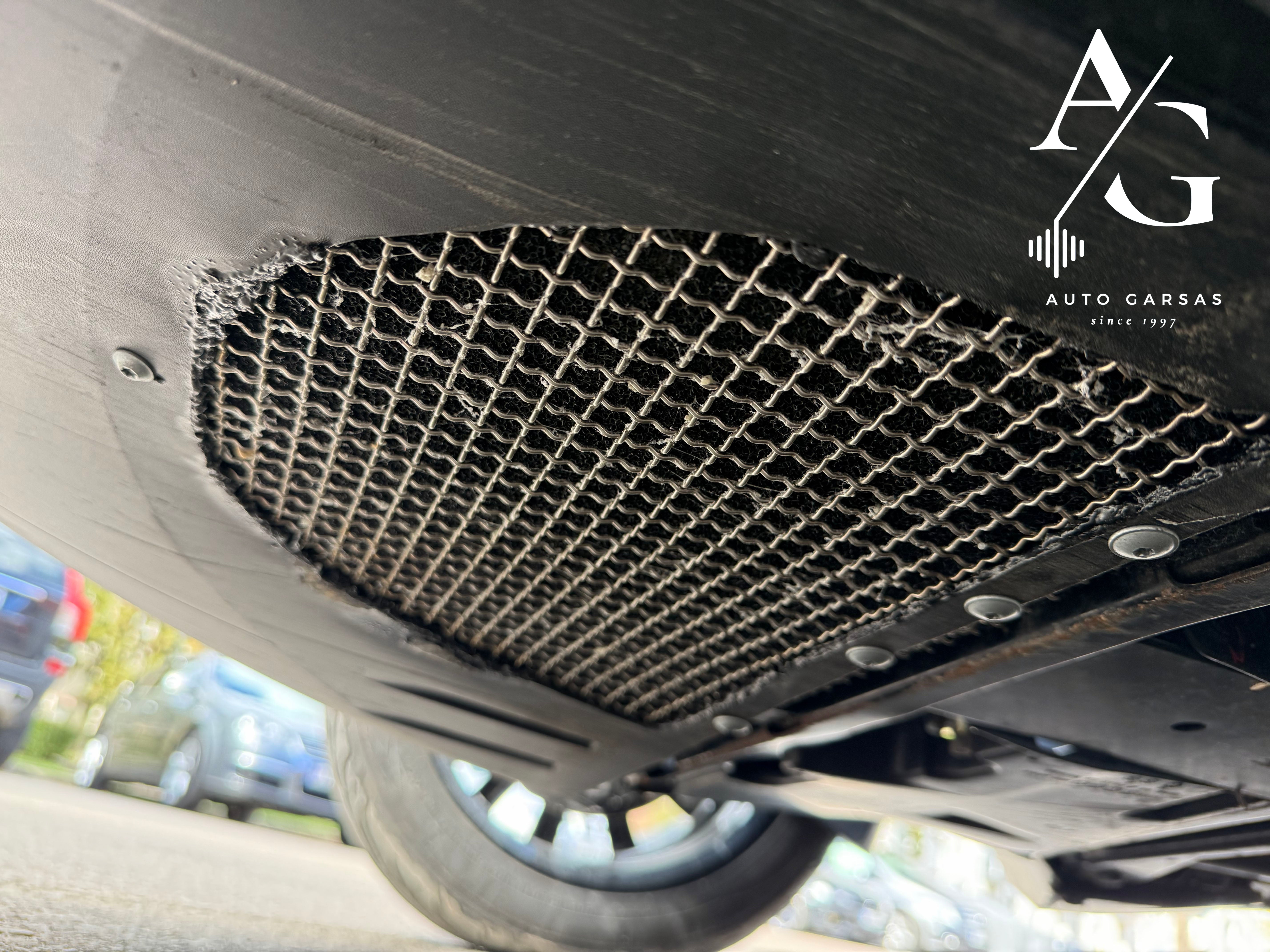

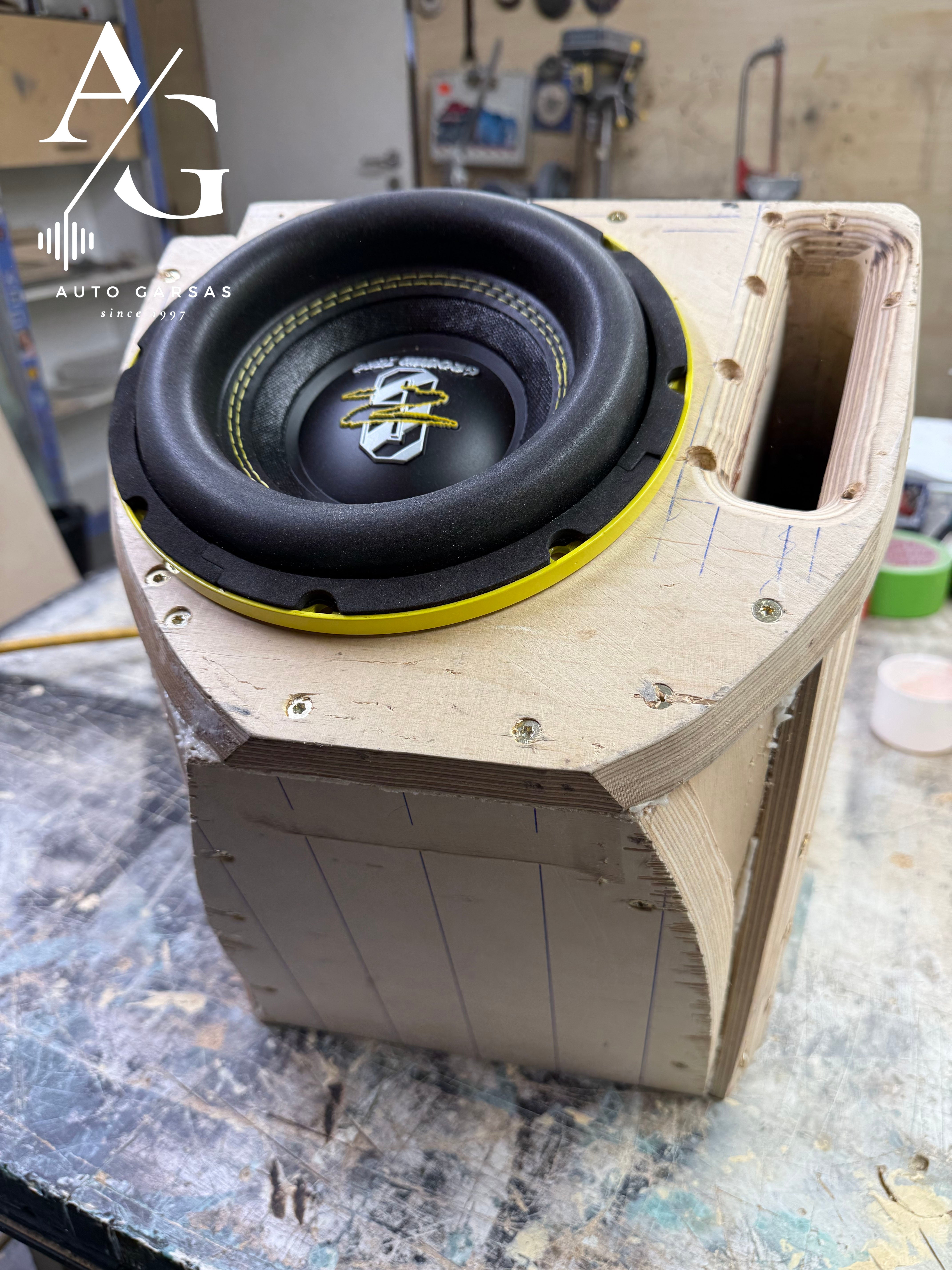

  • A special bass box with a phase inverter was manufactured - the bottom of the storage compartment was cut out so that the low-frequency sound is directed outwards through the bottom. Special splash guards, a protective debris filter, and a stainless steel mesh were also manufactured.

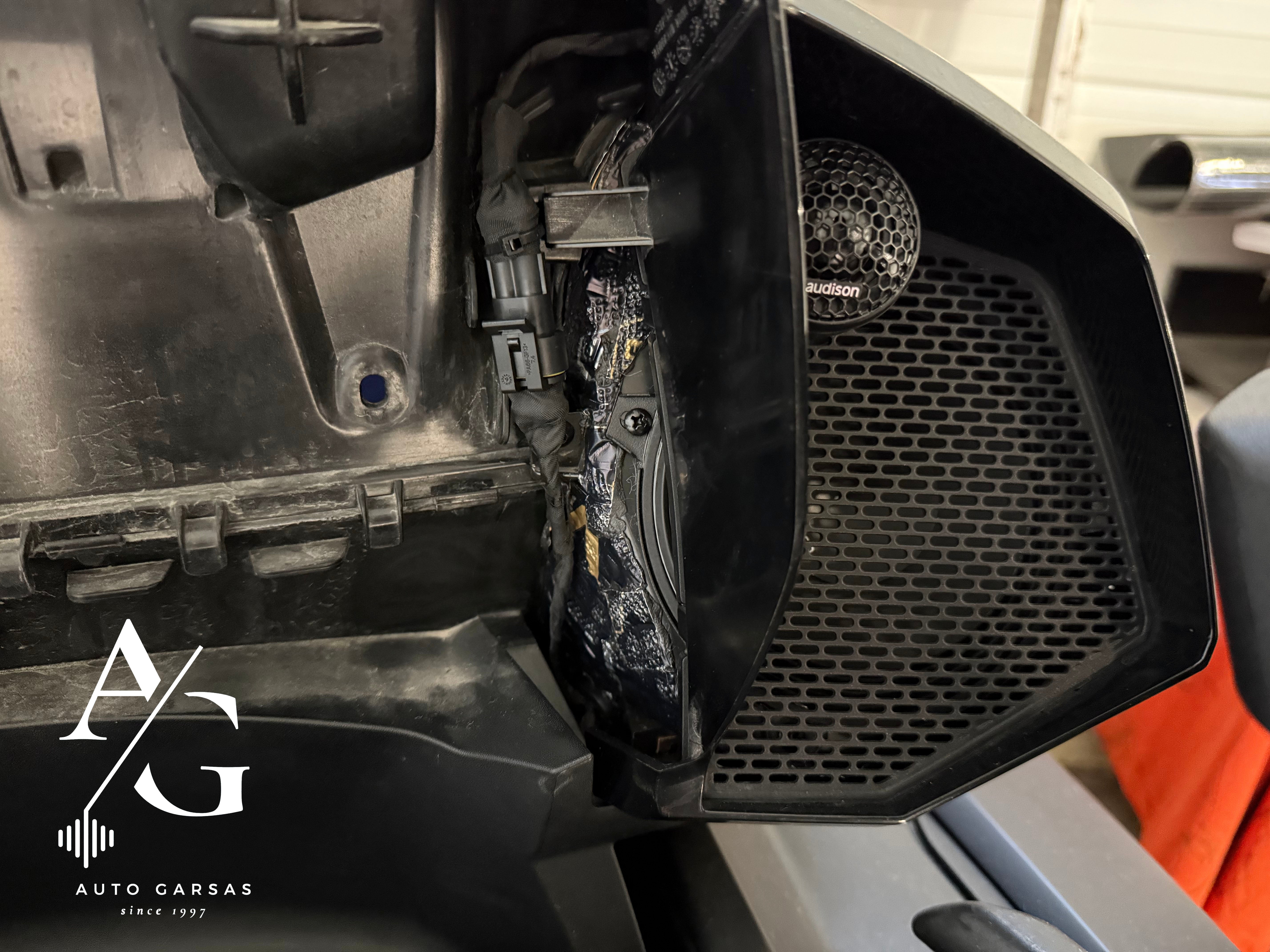

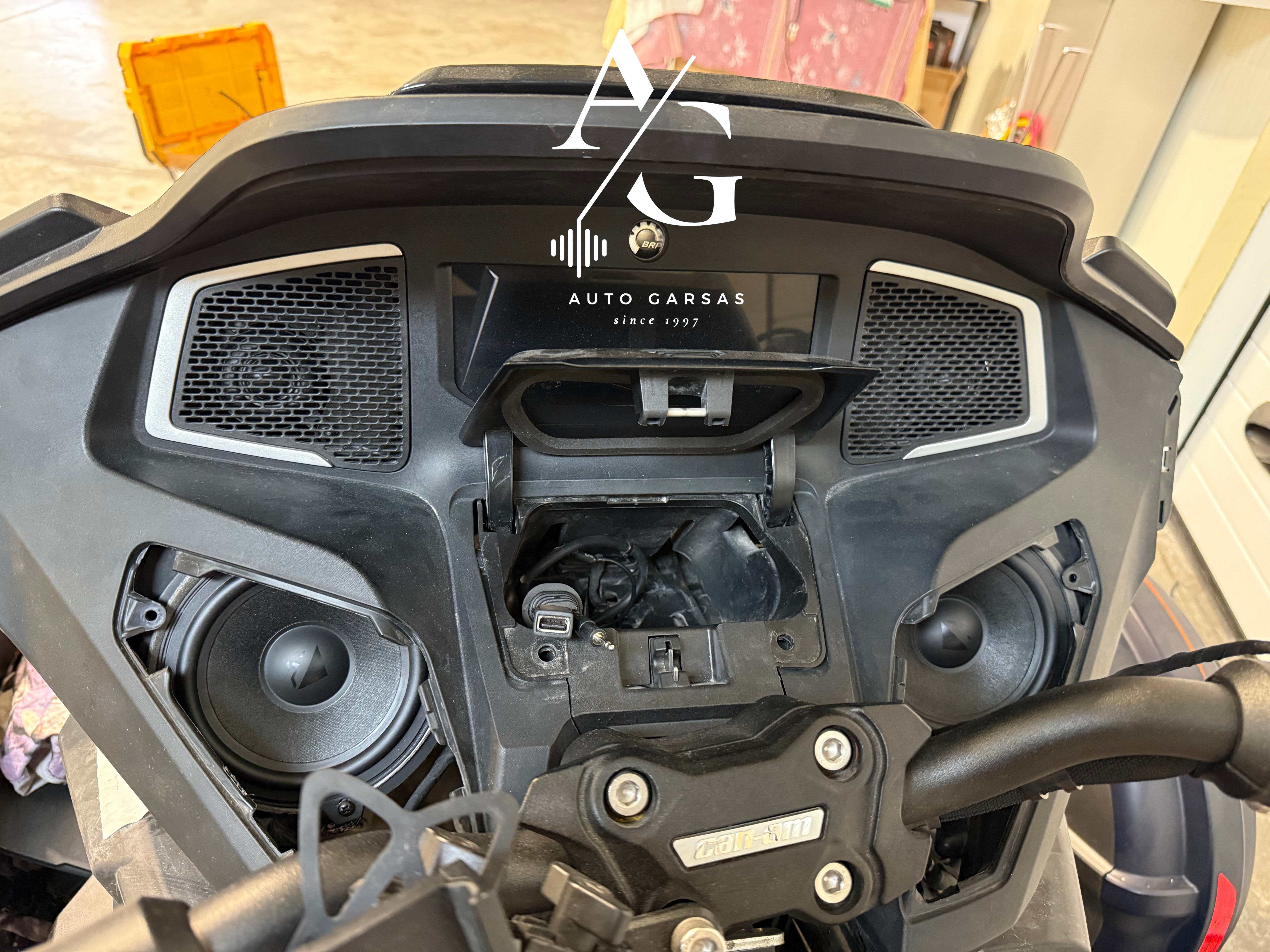

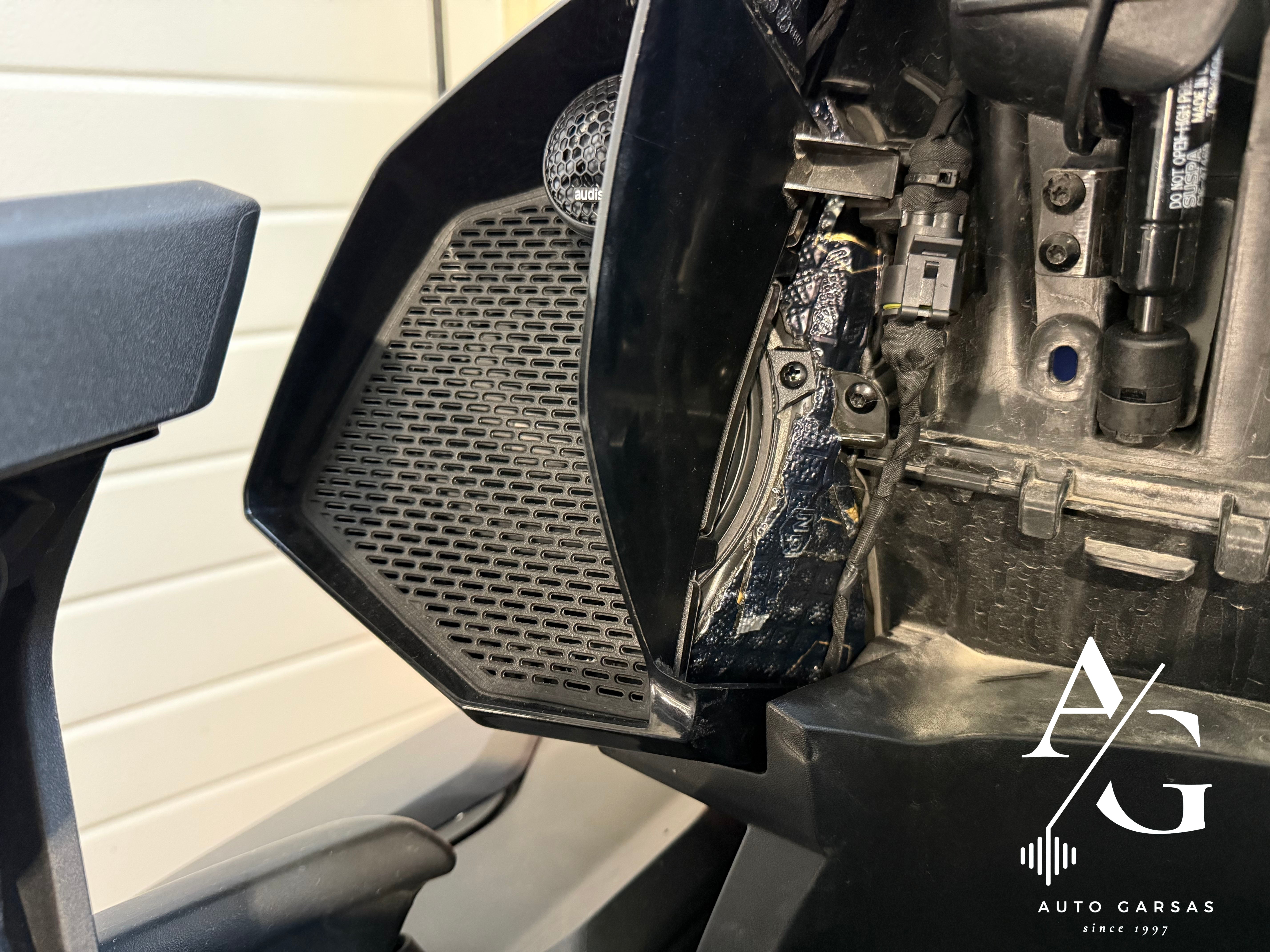

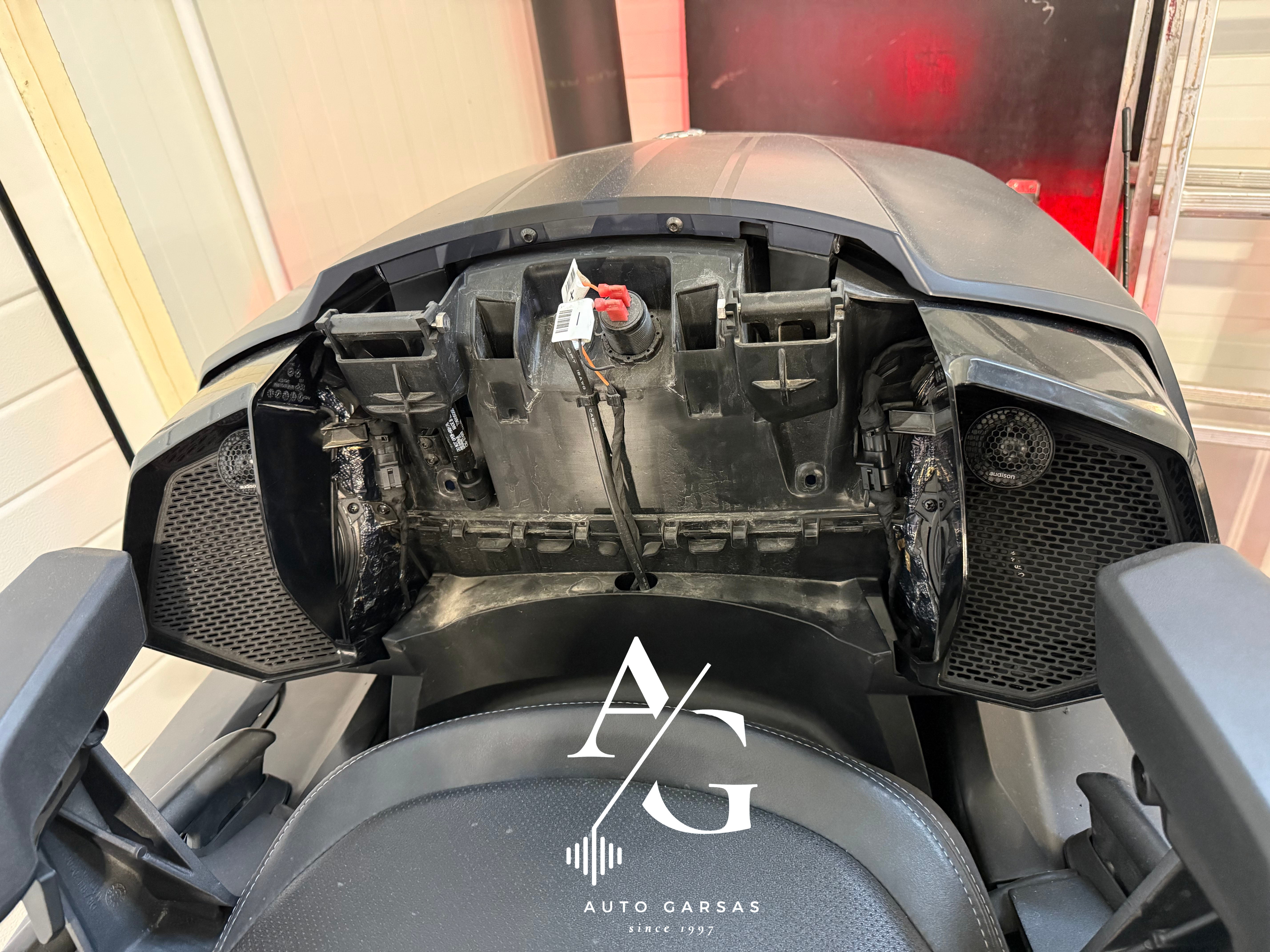

  • Vibration insulation was performed in all speaker mounting locations so that the system plays cleanly and without extraneous rattles even at high volume.

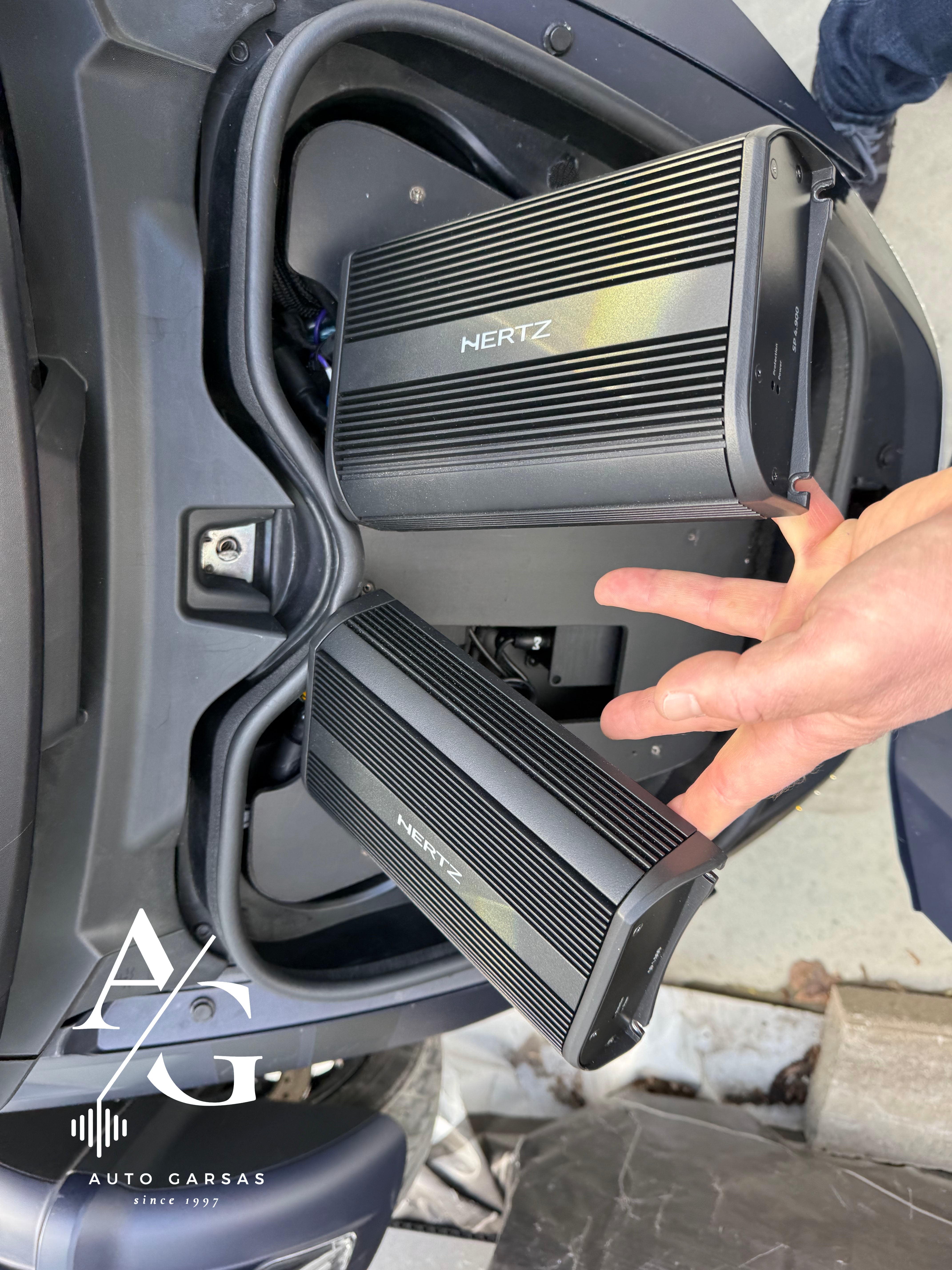

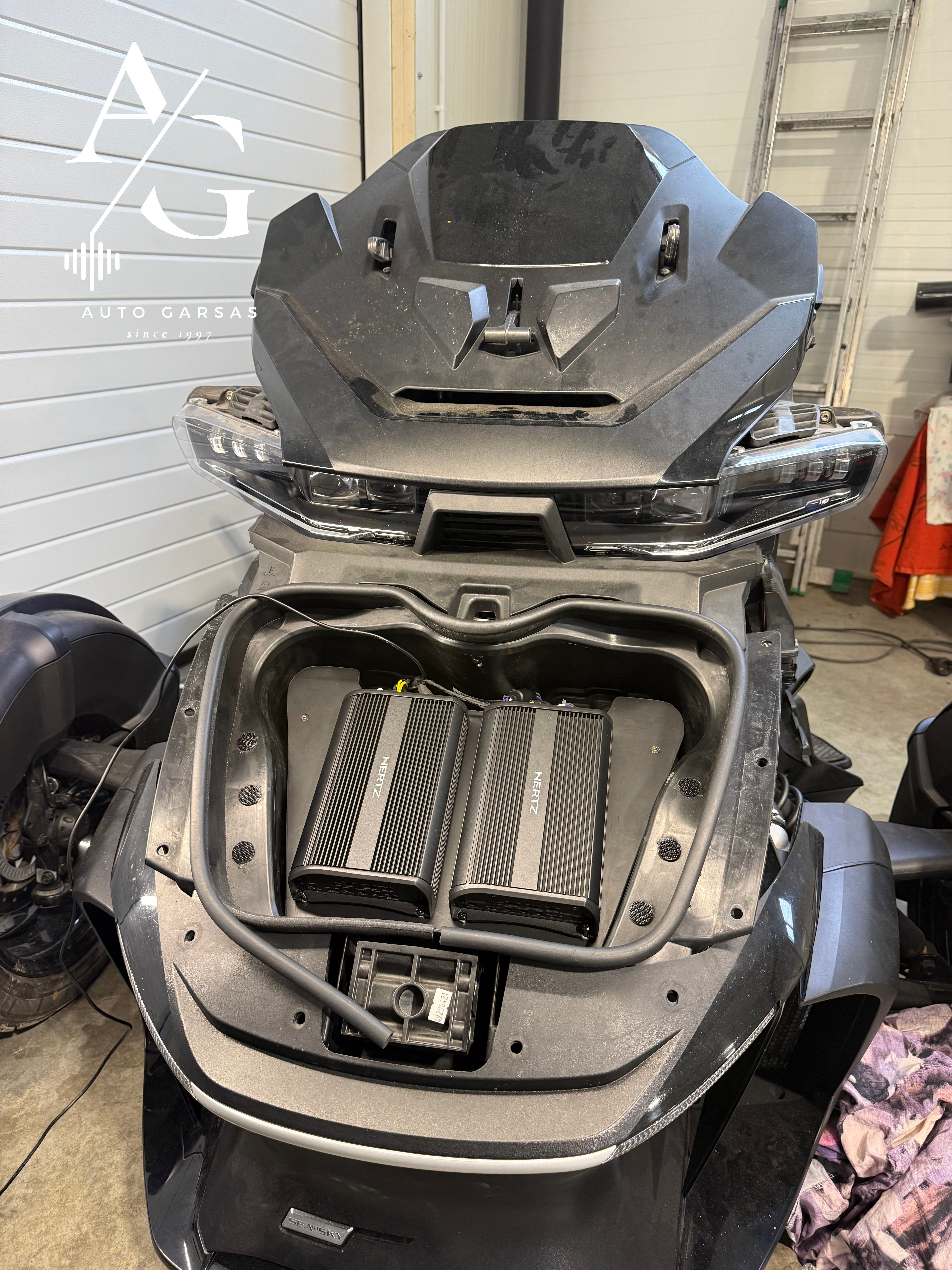

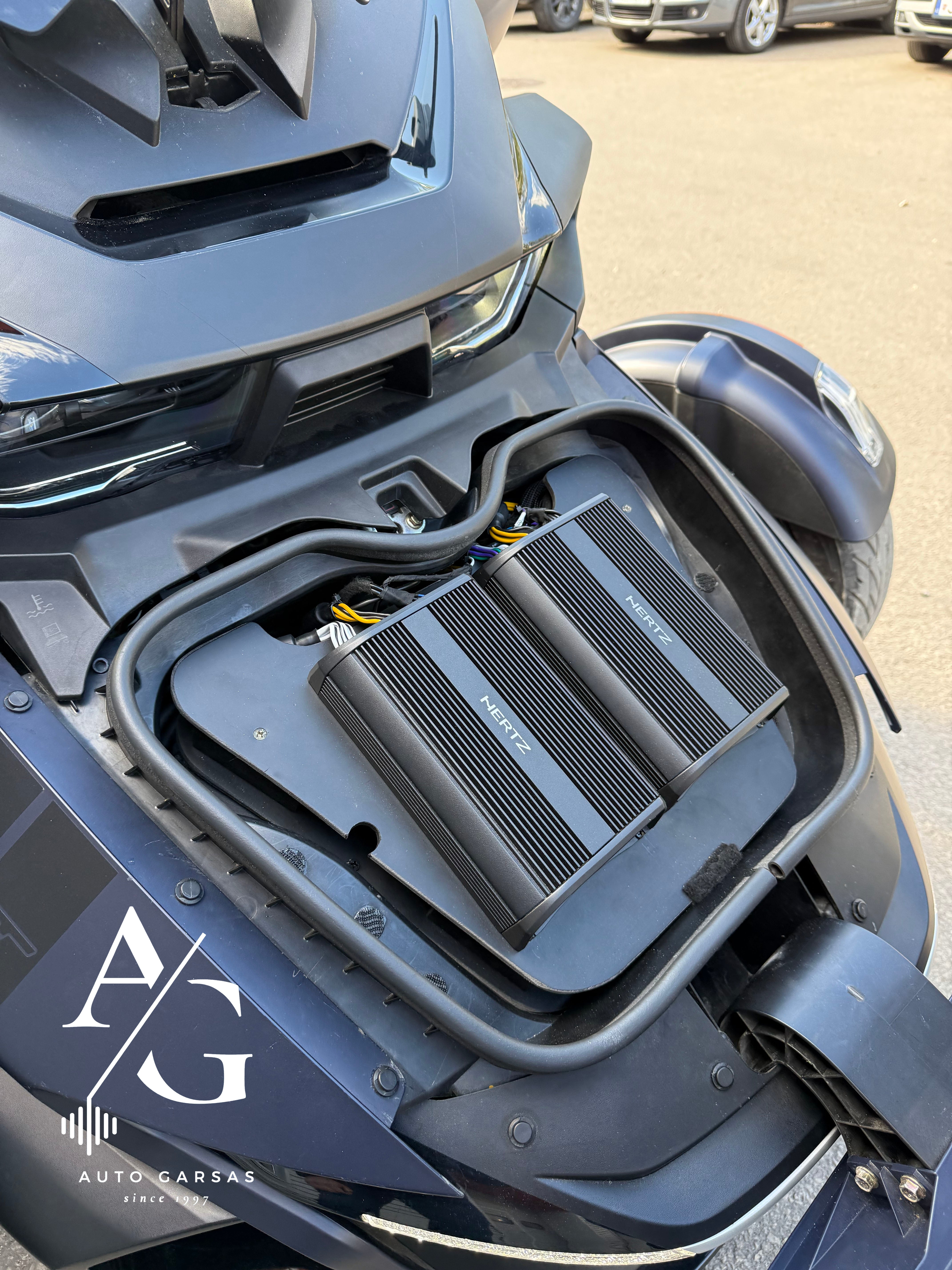

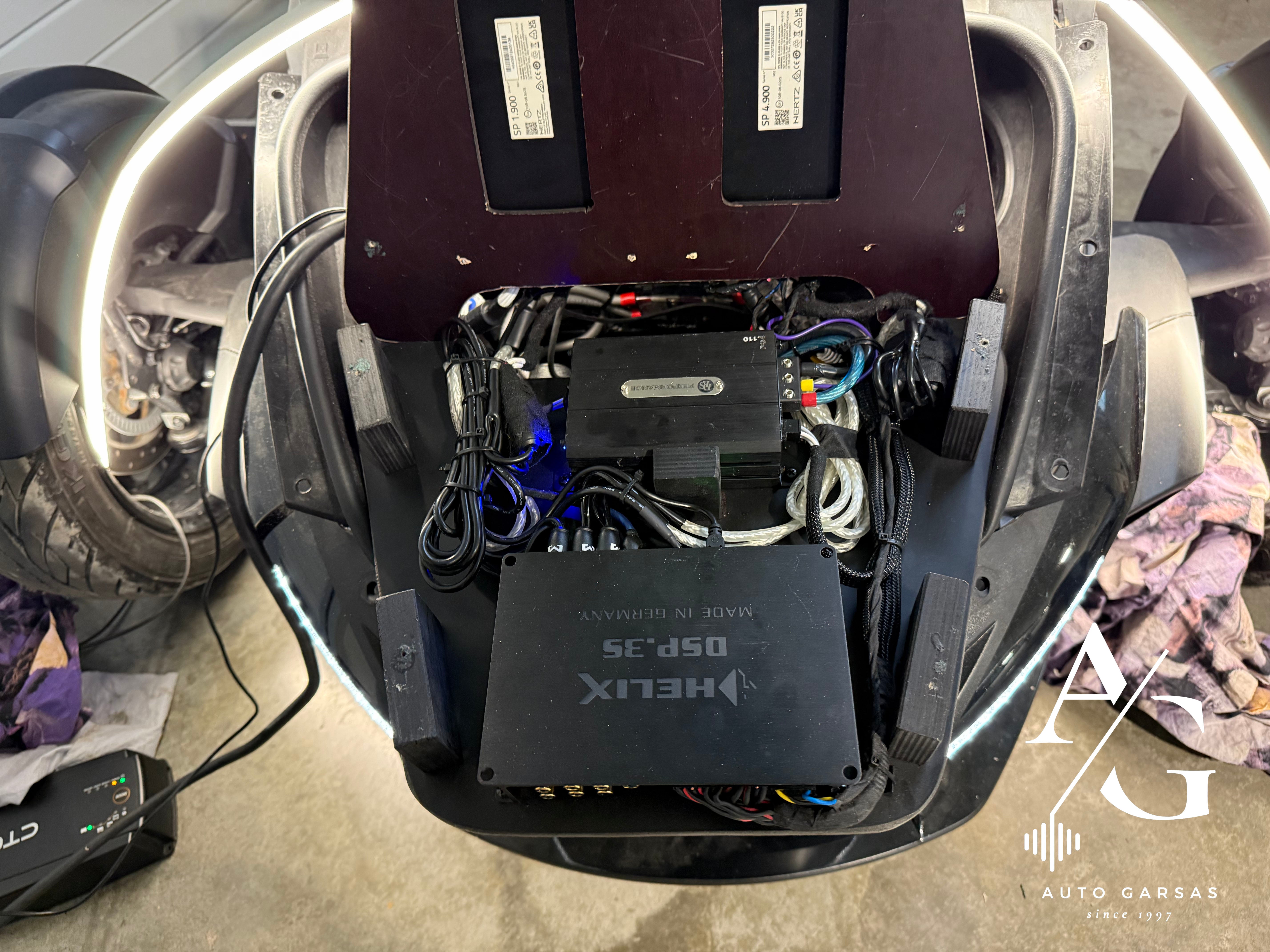

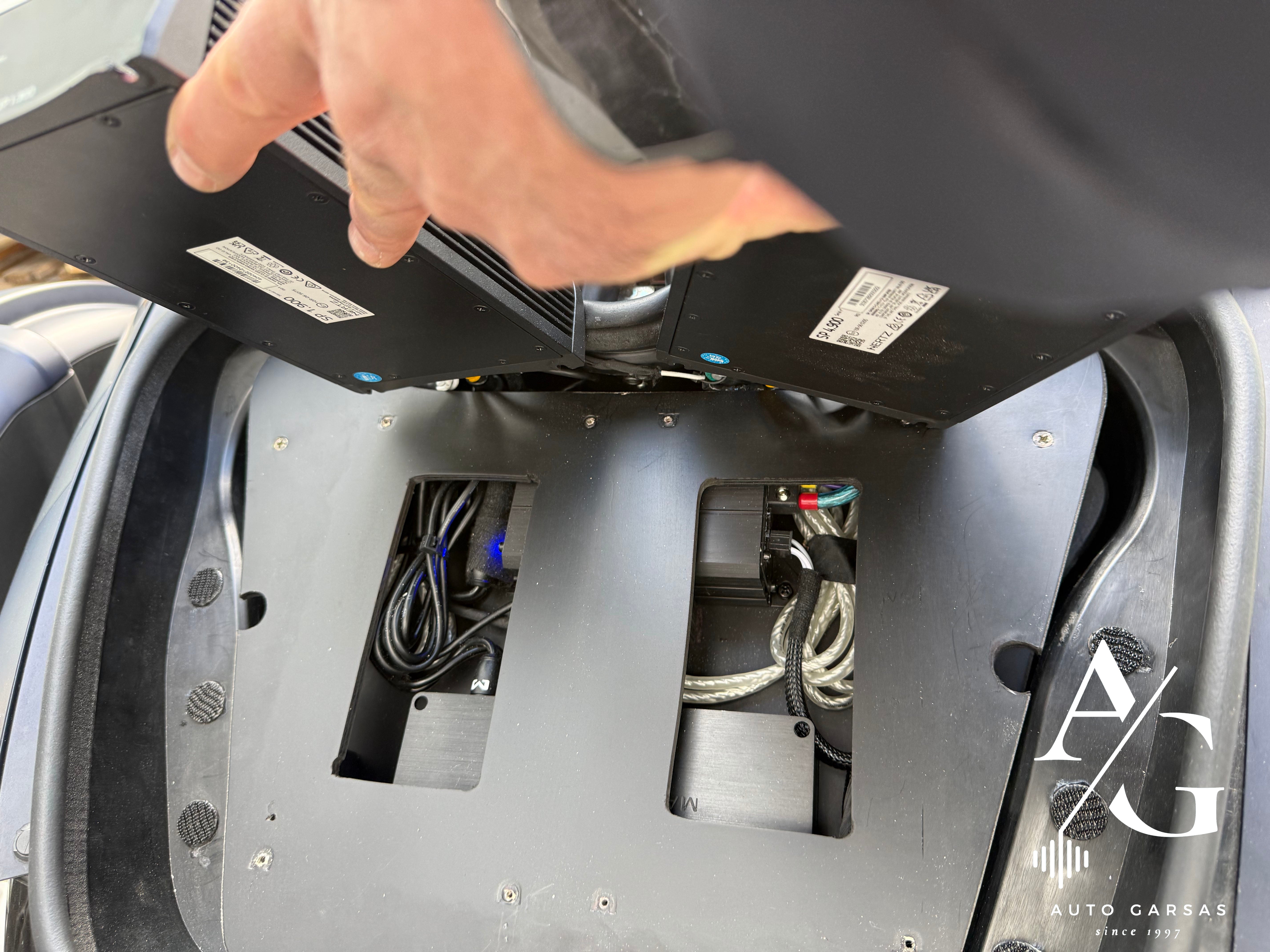

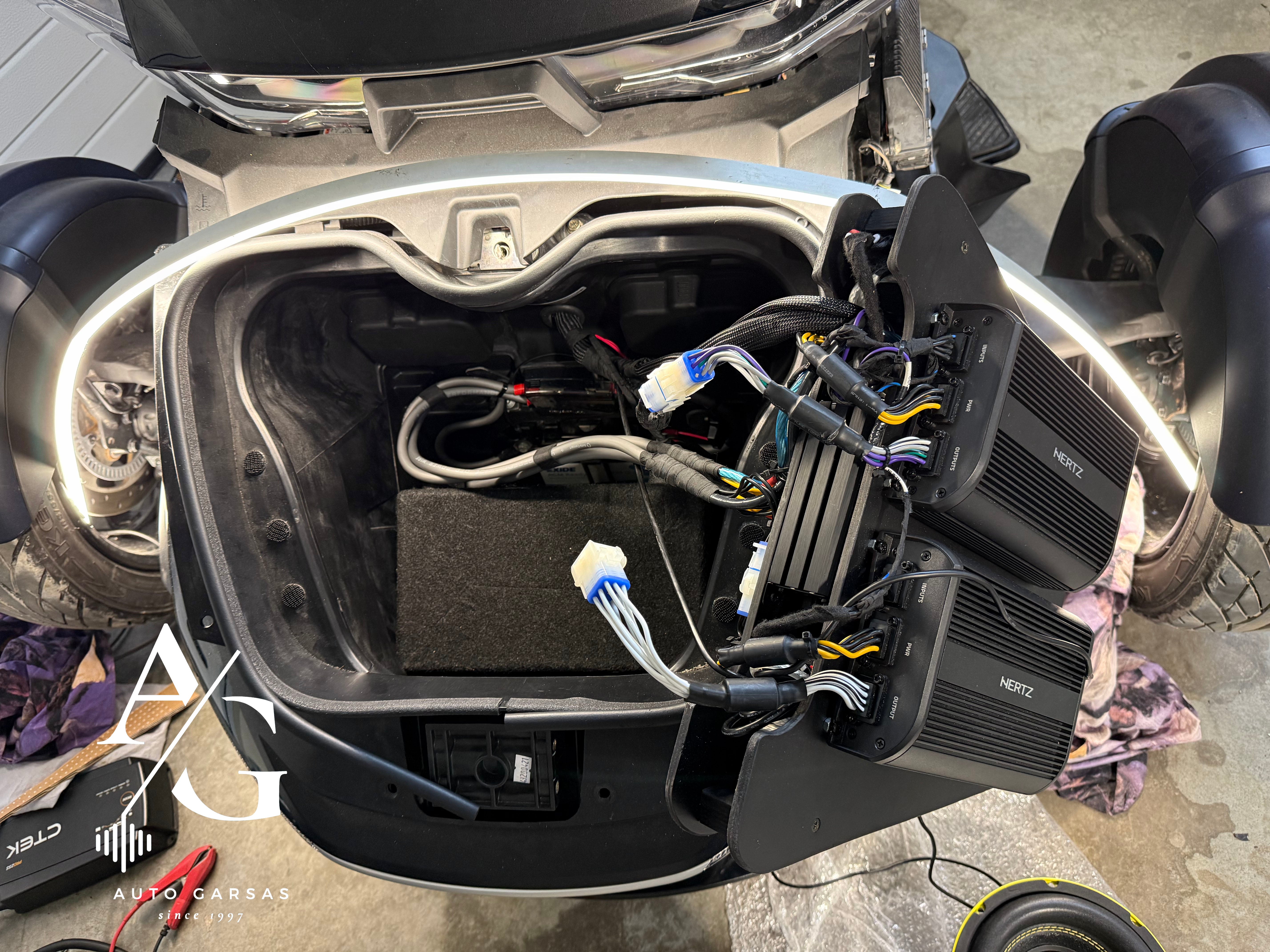

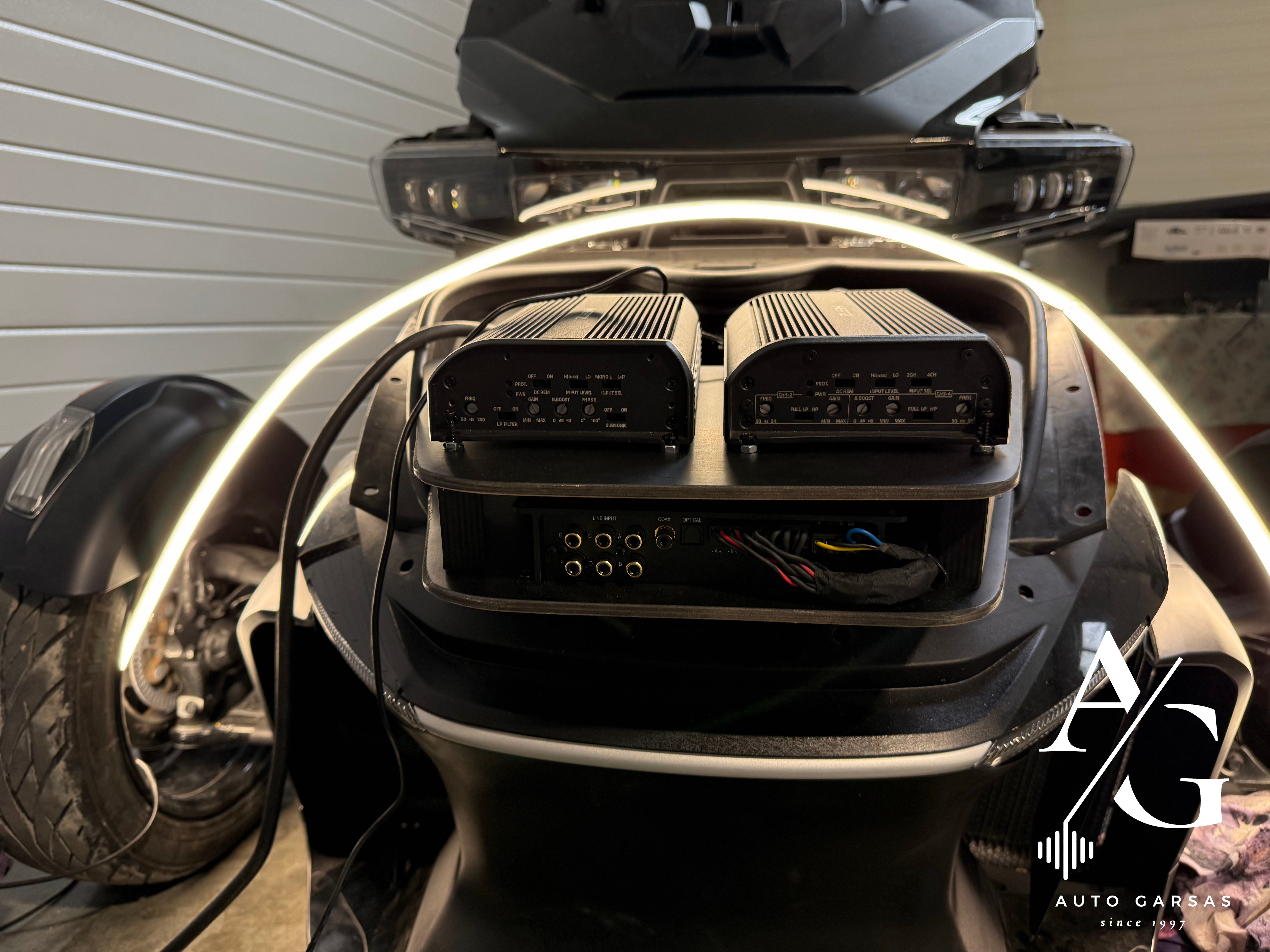

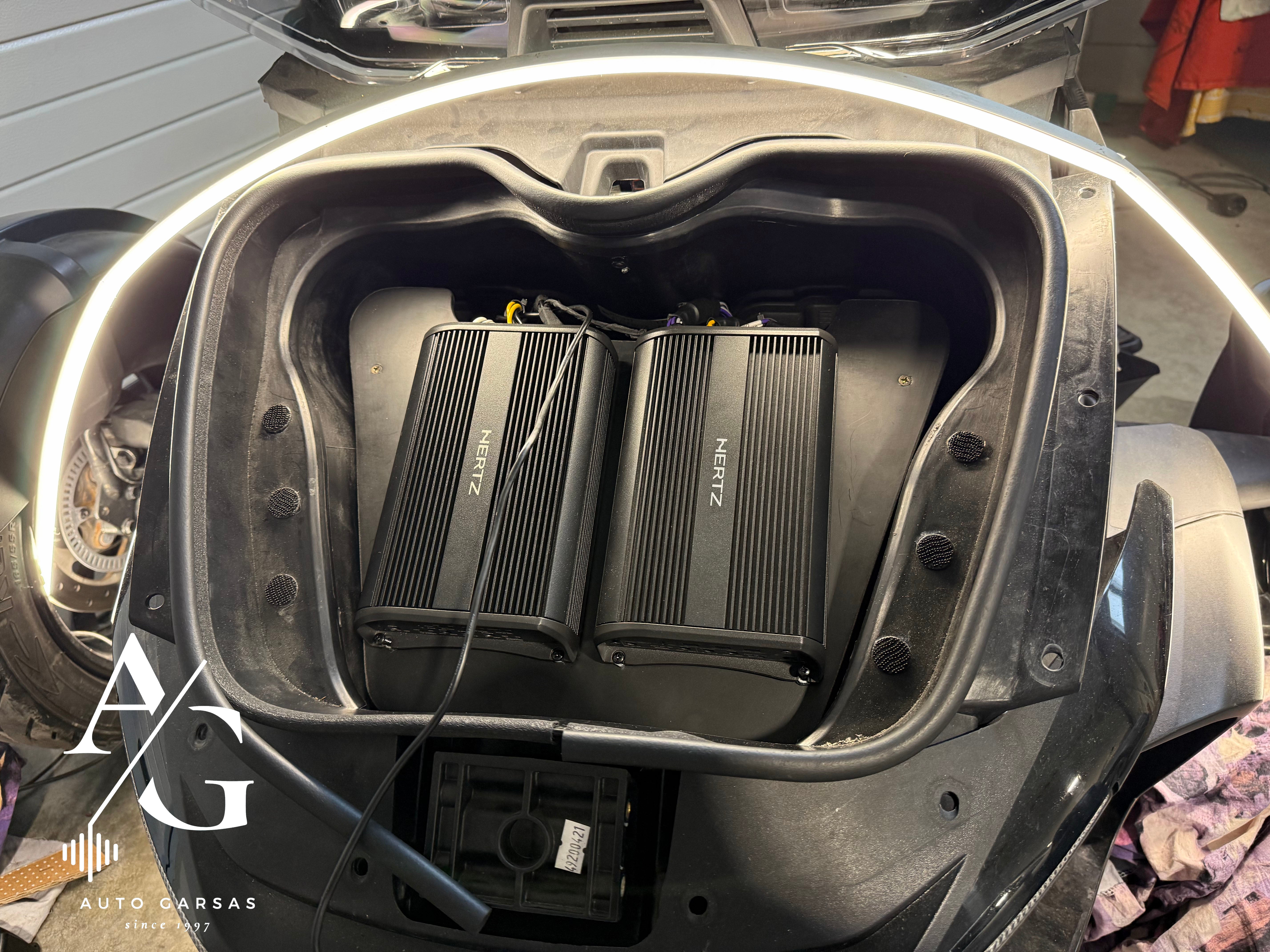

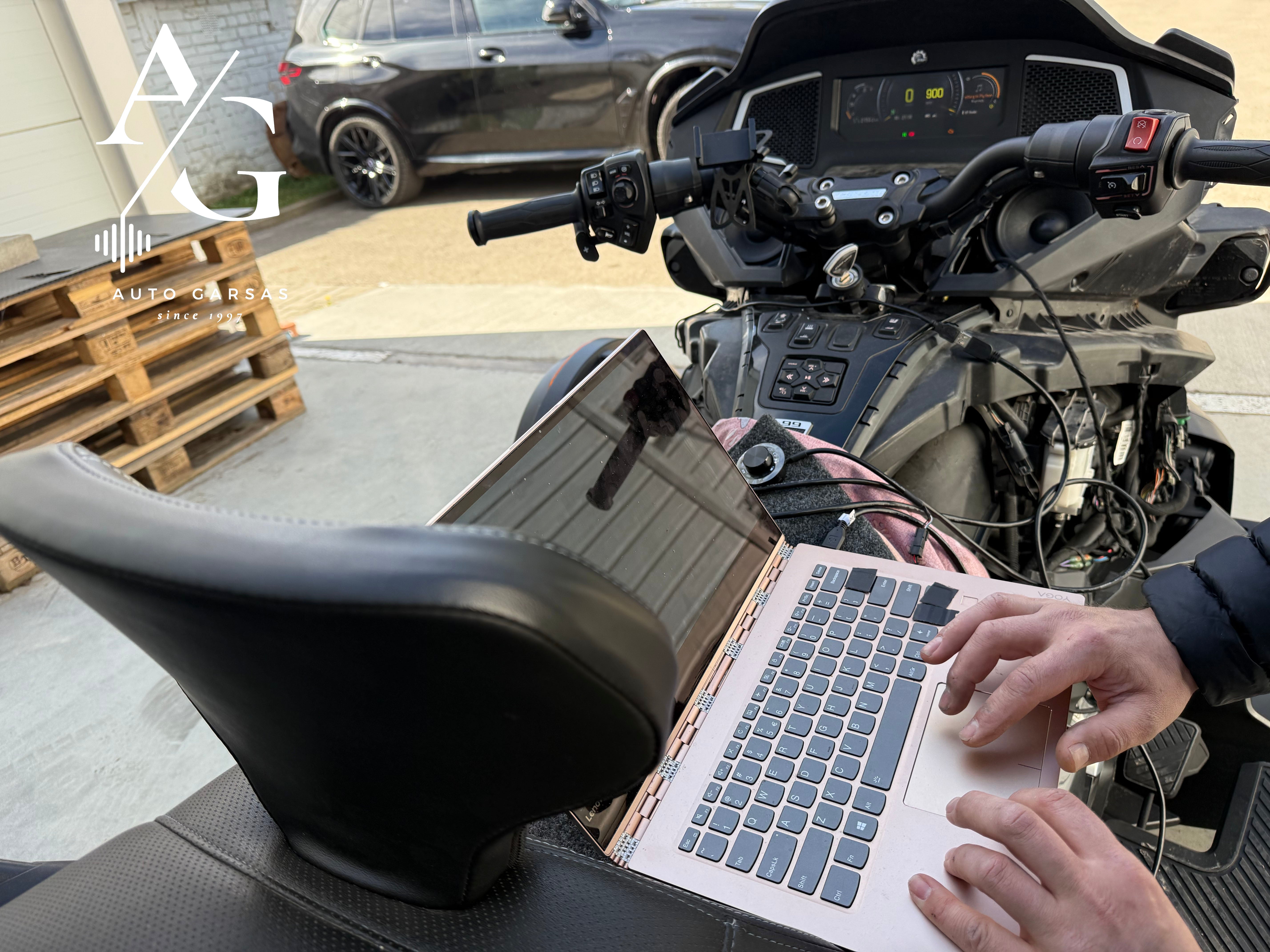

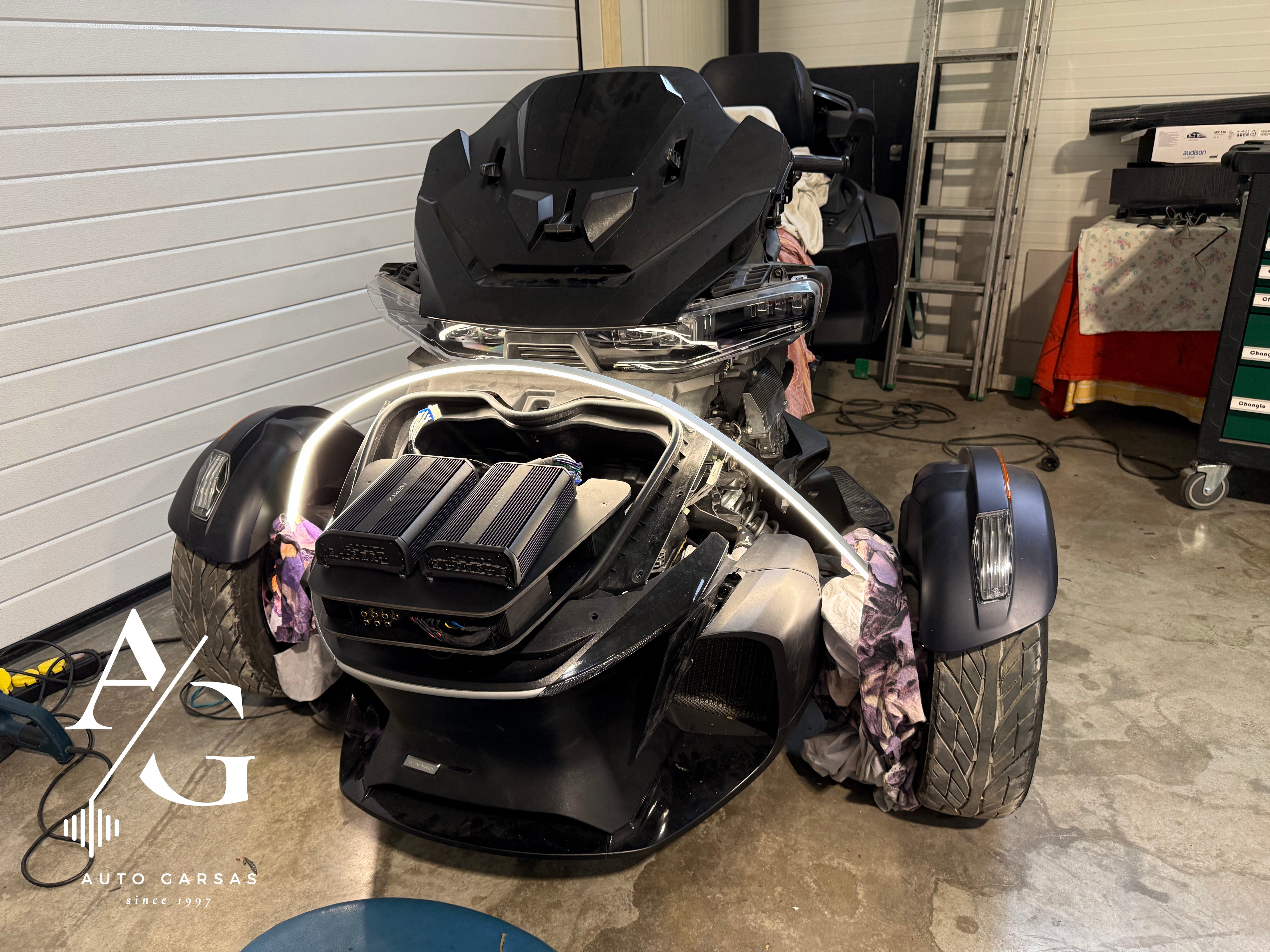

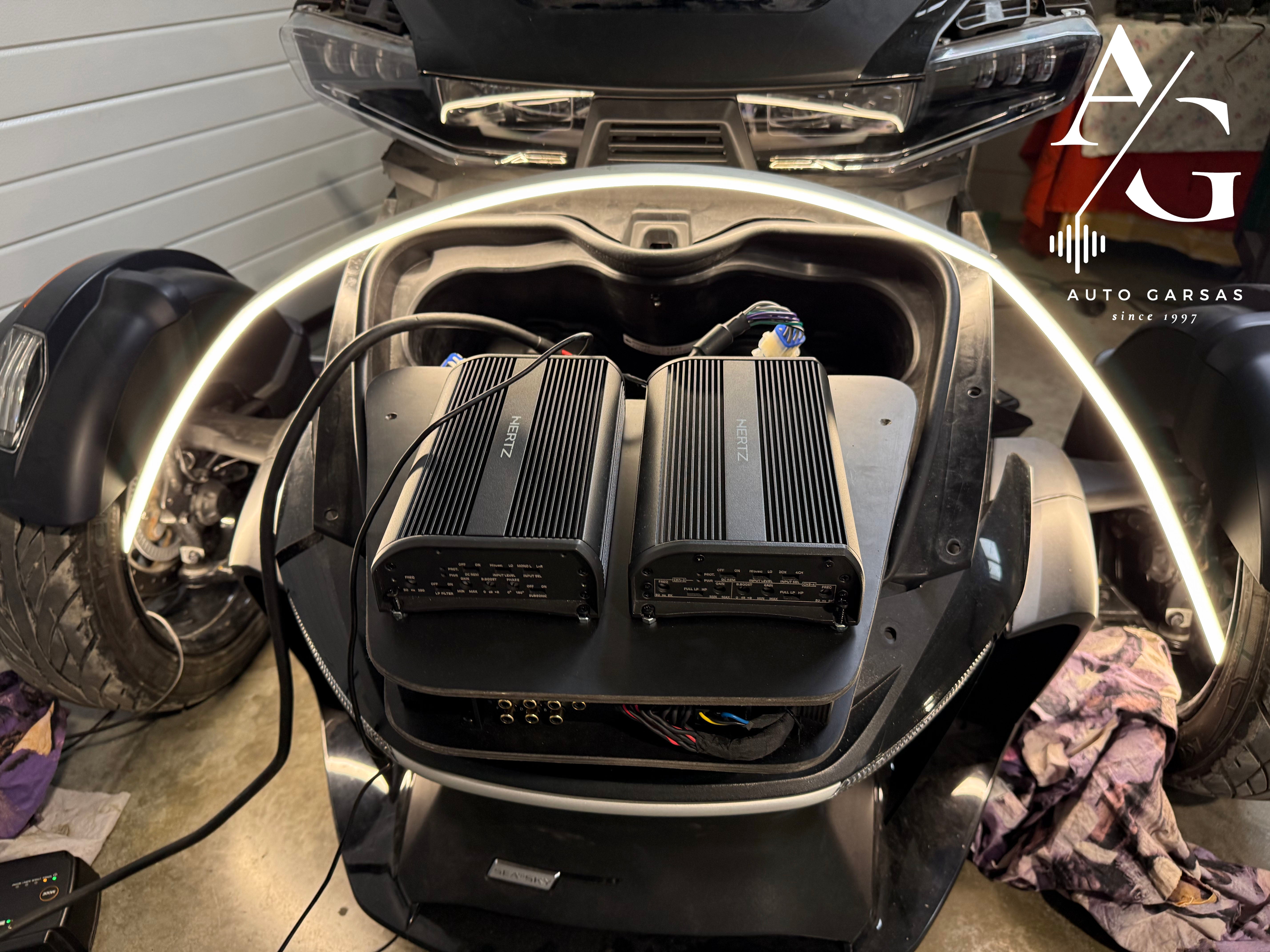

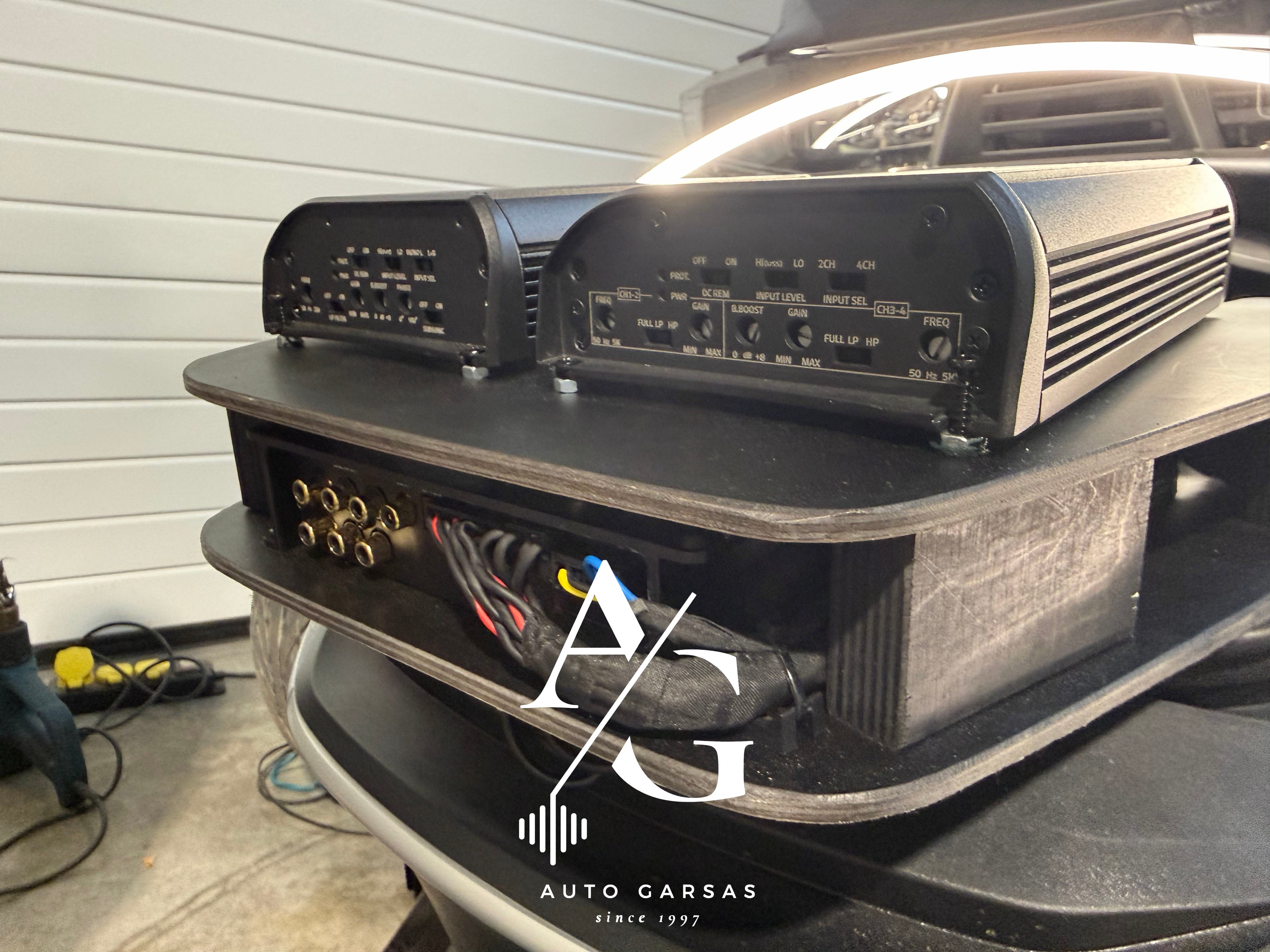

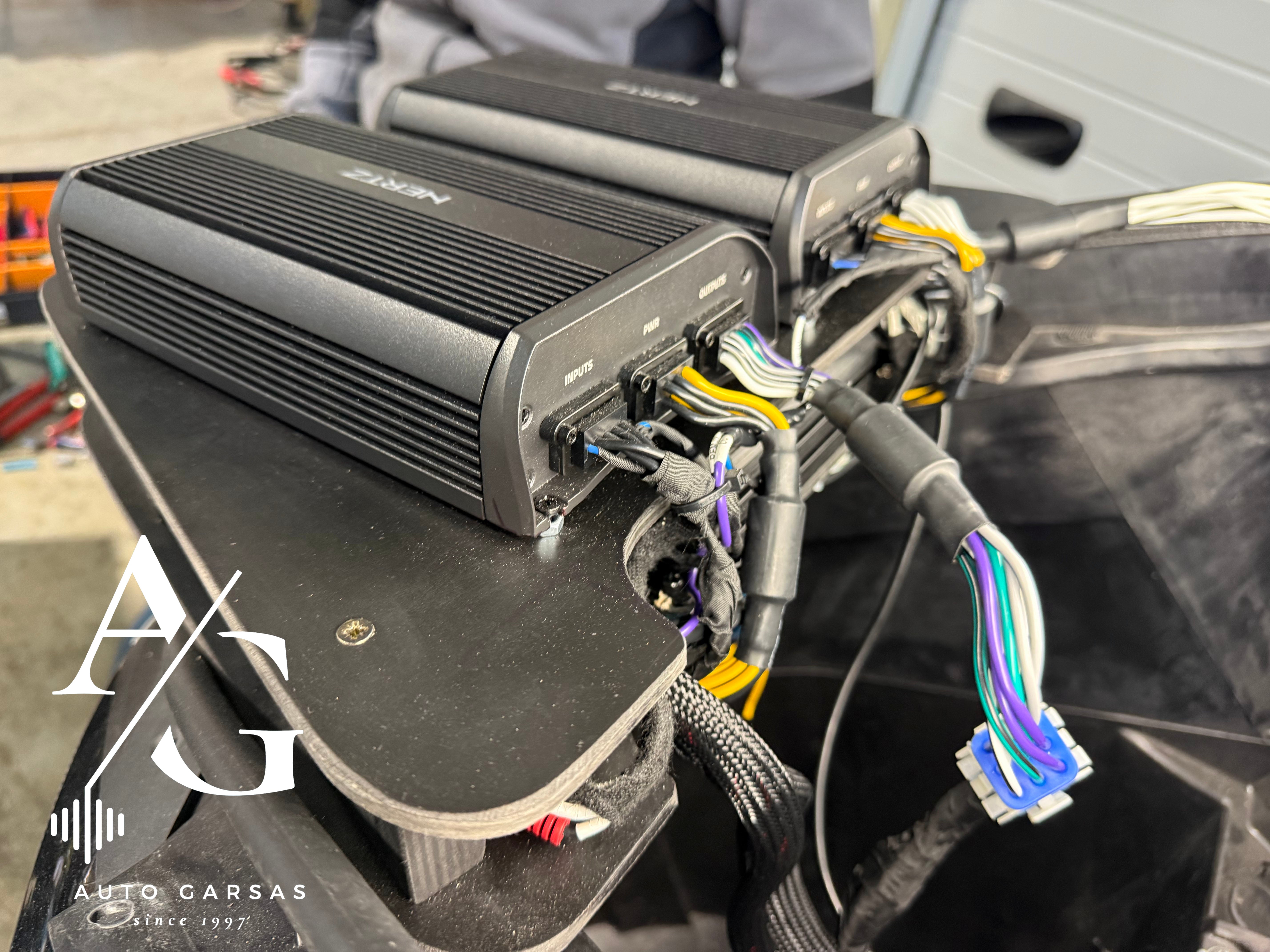

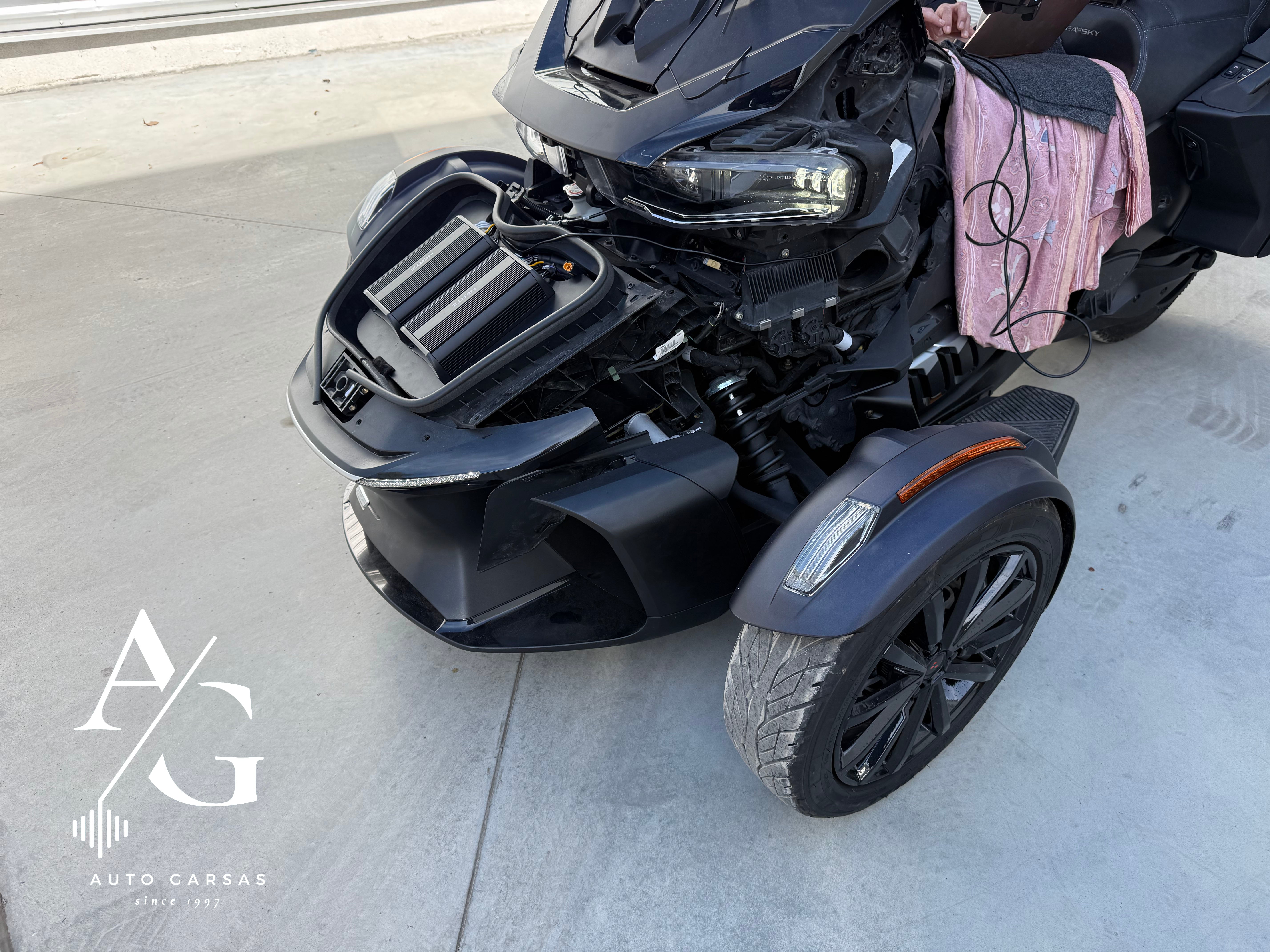

  • Two-tier audio amplifiers were installed, and the entire system is controlled via a processor, which allows all speakers to operate actively from separate channels. Thanks to this solution, the frequency response can be adjusted very precisely to achieve exactly the sound required by a high-end audio system.

Items installed:

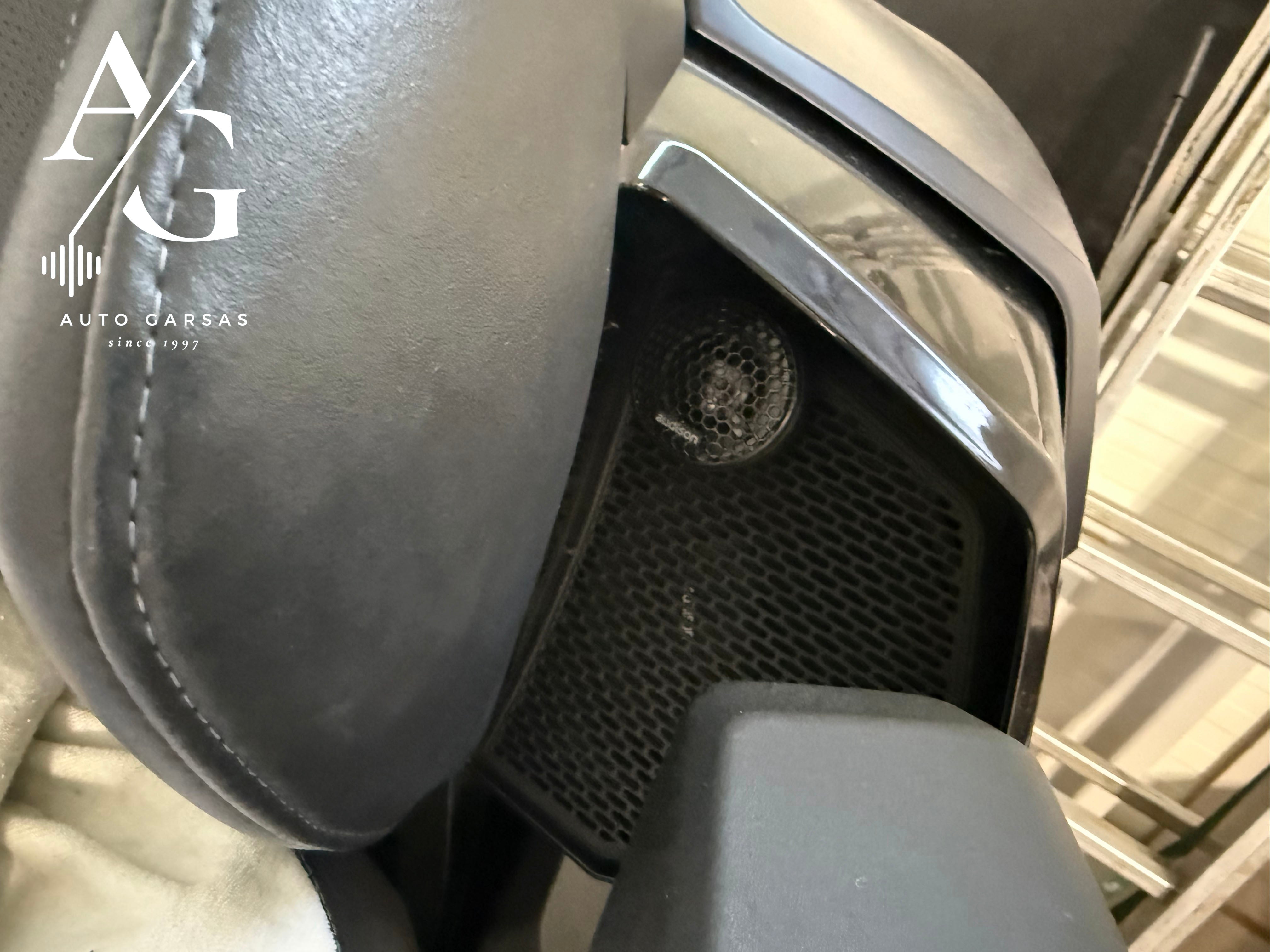

  • Helix Compose Ci7 T20FM-SC, tweeters
  • Helix Compose Ci7 W130-S3, 180W, 13cm mid-bass speakers
  • Hertz SP 4.900, 4-channel car audio amplifier 1000W
  • Hertz SP 1.900, mono car audio amplifier 1000W
  • Audison APK 130, Component speakers 225W

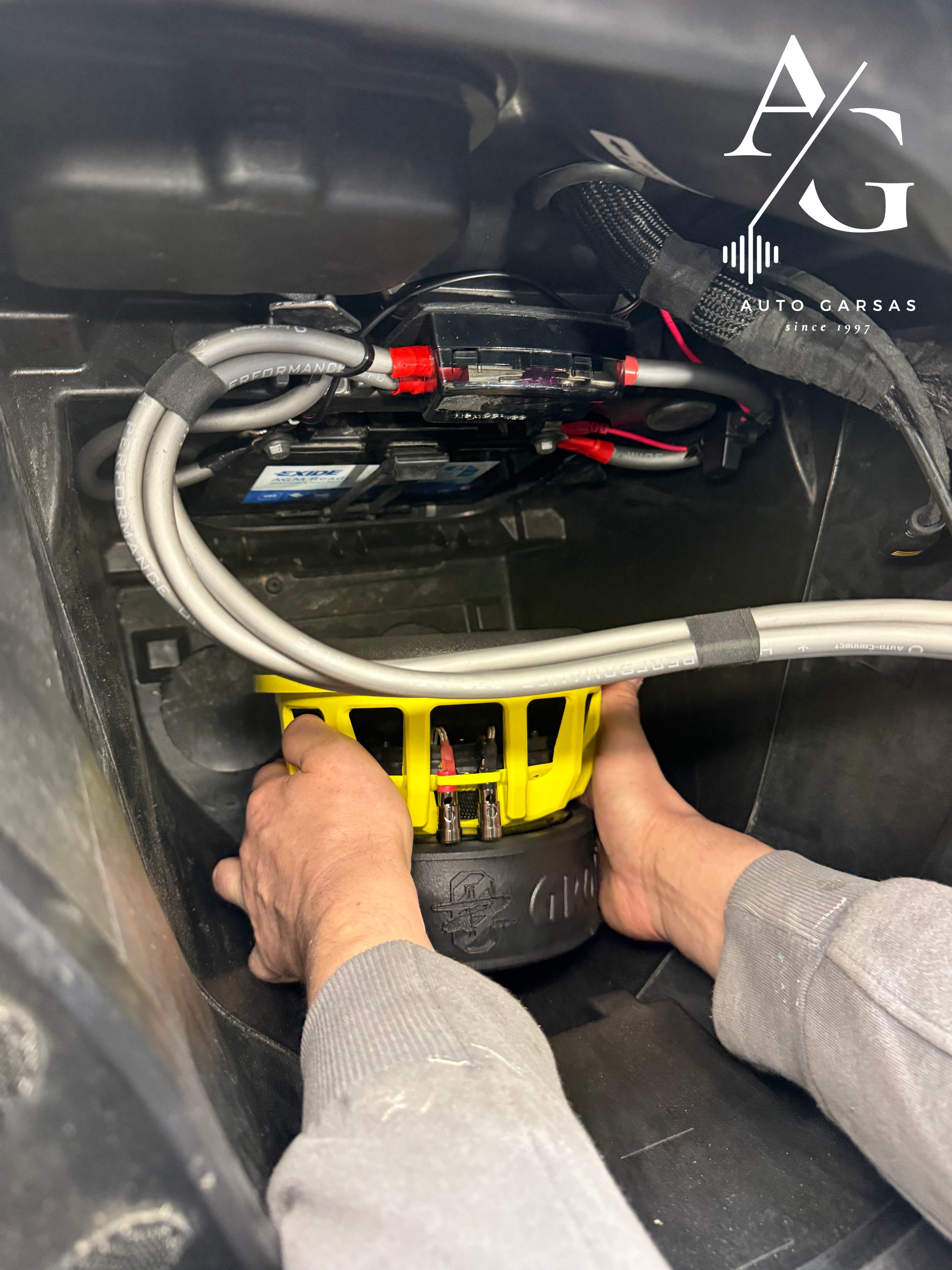

  • Ground Zero GZHW 20XSPL-D2, car subwoofer
  • DLS Performance PS4.110, 4-channel audio amplifier
  • Helix DSP.3S, 8-channel car audio processor
  • And other accessories

Result - a solid, powerful, and precisely tuned audio system, sounding great when riding a motorcycle.
