Citronic

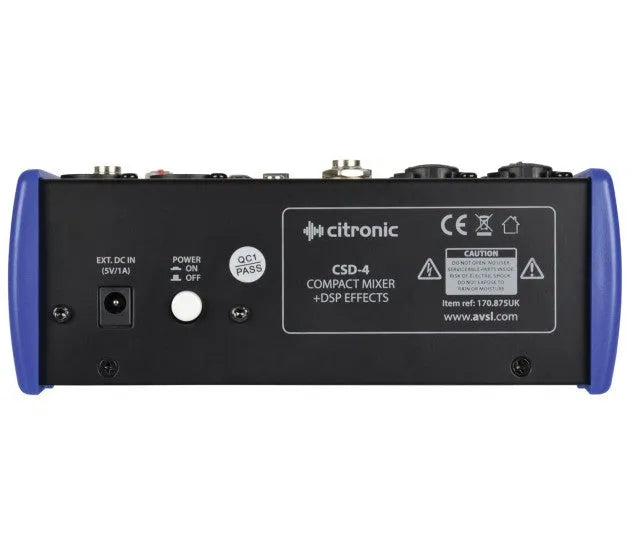

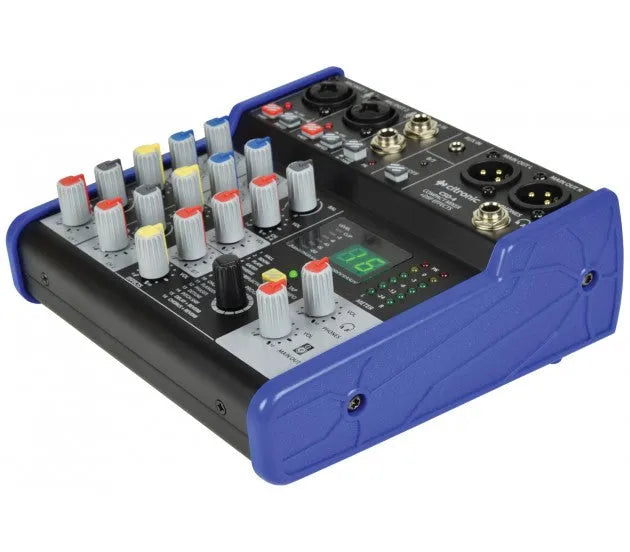

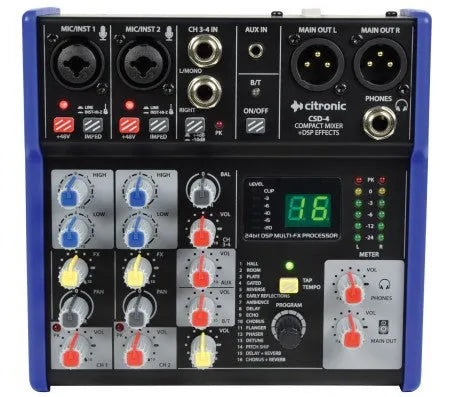

Citronic CSD-4, compact mixer BT / AUX

Compact format audio mixer with 2, 4 or 6 mono channel input and Stereo output.

€112.00 EUR 120.00 €

Citronic CSD-4, compact mixer BT / AUX - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Bluetooth support.
  • DSP support (24-bit).
  • 16 programs.
  • DC power adapter.

DESCRIPTION

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The B/T pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • B/T wireless pairing for smartphone or tablet
  • 16 programs, 24-bit DSP effects engine
  • Individually switchable +48V phantom power
  • Supplied with DC power adapter

TECHNICAL DATA

SPECIFICATIONS

  • Power supply: 5Vdc 1A (adaptor included)
  • Power consumption max.: 5W
  • EQ: low: ±15dB @ 80Hz
  • EQ: high: ±15dB @ 12kHz
  • Phantom power: +48V individually switchable (XLR inputs only)
  • Effects: 16 program DSP (24-bit sigma-delta, 40kHz)
  • Audio source: B/T wireless receiver
  • B/T wireless version: 2.1 + EDR
  • Input impedance: mic: 2k Ohms
  • Input impedance: instrument: 1M Ohms
  • Input impedance: line: 20k Ohms
  • Frequency response: 20Hz - 20kHz (±0.5B)
  • THD +N: <0.03% @ 1kHz
  • Dynamic range: 102dB
  • Crosstalk: stereo: 92dB
  • Output: Left + Right balanced XLR
  • Output impedance: 120 Ohms
  • Max. output level: 3Vrms
  • Inputs: 2 x combo XLR/jack + stereo jack
  • Dimensions: 171 x 166 x 66mm
  • Weight: 0.92 kg
  • CSD series compact mixer
  • 5Vdc power adapter
