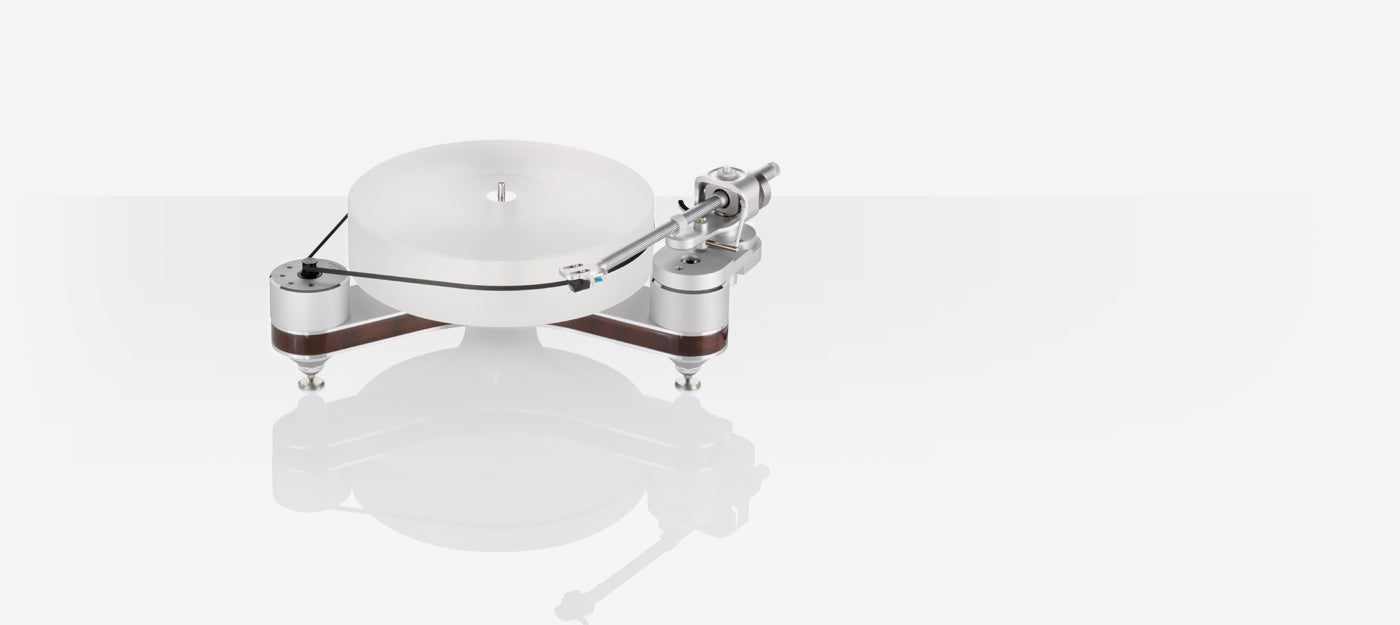

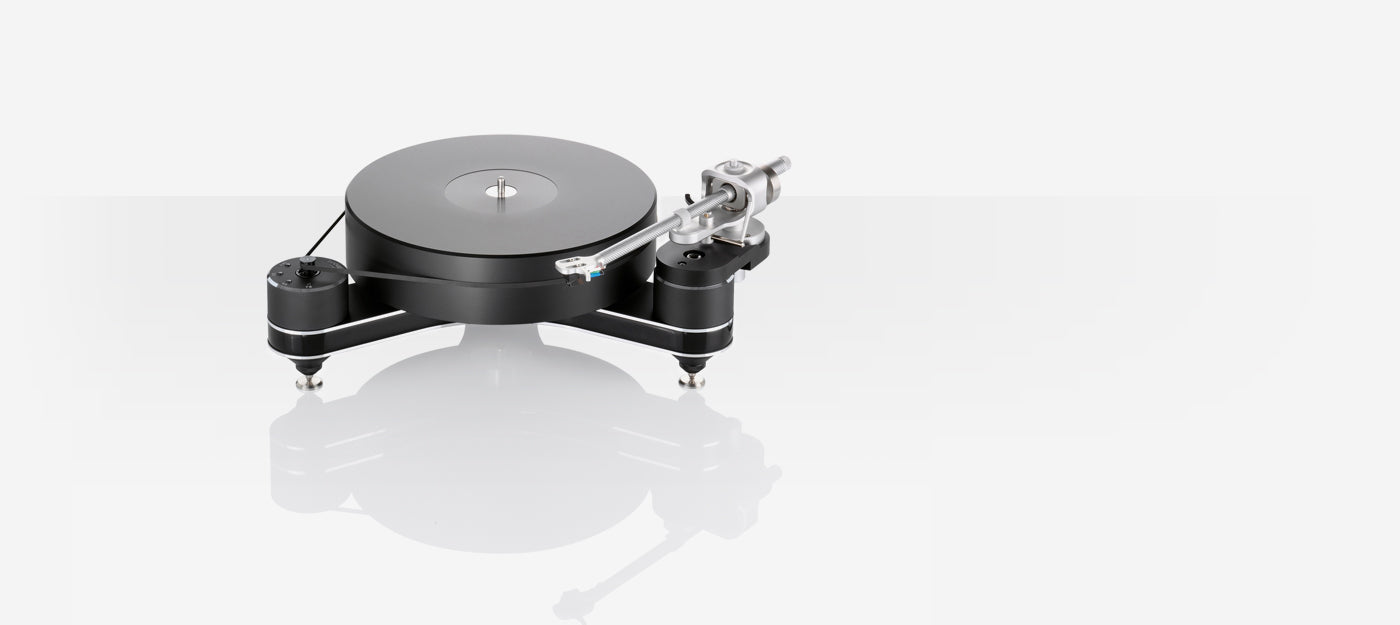

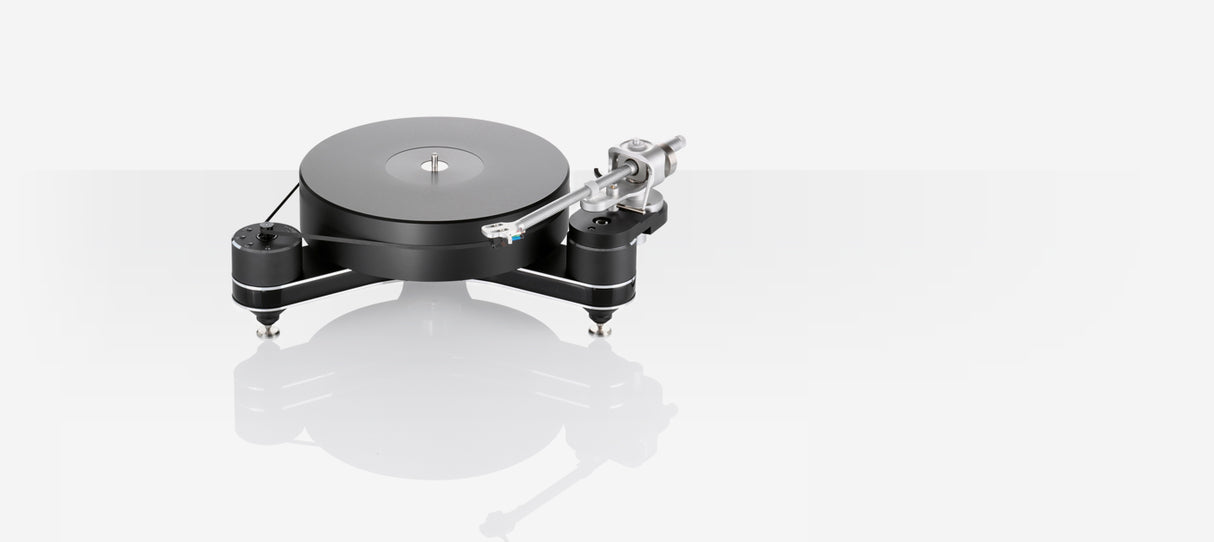

Clearaudio Innovation Compact, turntable (various colors)

The Clearaudio Innovation Compact is a compact yet highly advanced high-end turntable that offers exceptional accuracy, stability and durability. Thanks to Optical Rotation Control (OSC), this model achieves extremely precise rpm values.

Speed ​​ranges: 33 ⅓, 45 and 78 rpm
Speed ​​accuracy (measured): < ± 0.08%
The ability to install a second tonearm provides more flexibility and variety.
Body: Made of panzerholz ("armored" wood) and aluminum - very sturdy, resistant to resonances.

The Innovation Compact turntable with its very efficient design is nothing less than an audiophile revelation. Thanks to optical speed control (OSC), speed stability values ​​are obtained that lift this turntable into the global high-end class.

Perfectly matched materials meet patented Clearaudio technology. The 70mm-thick platter of the Innovation Compact consists of dynamically balanced polyoxymethylene (POM) and is powered by a high-torque DC motor with precision bearings, developed exclusively for Clearaudio.

The optimally designed chassis keeps resonances out of the audible range and guarantees maximum stability in a housing made of a massive panzerholz (bulletproof wood) and aluminum sandwich. Timeless design with quality built to last for decades. The option to mount a second tonearm makes it possible to play a rich variety of music from across the decades.

Construction details:
Resonance-optimized chassis shape
Made of bullet proof wood and aluminum with precision CNC machined surface

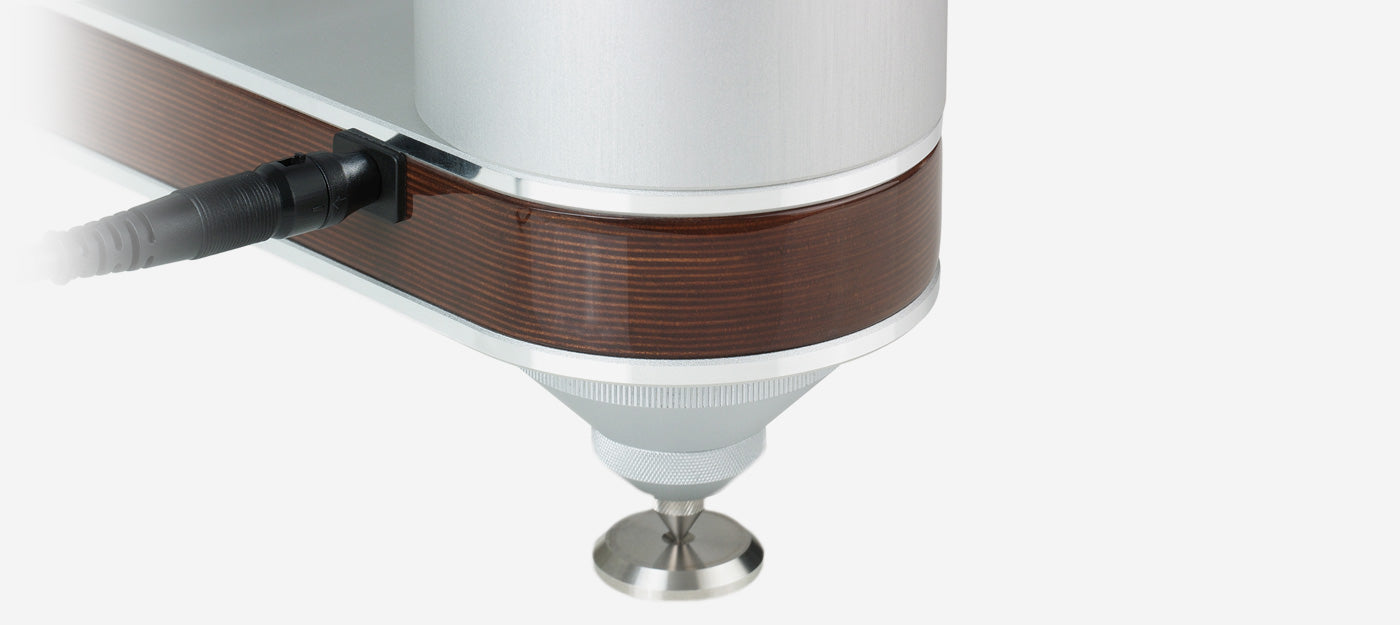

All turntable feet are finely adjustable

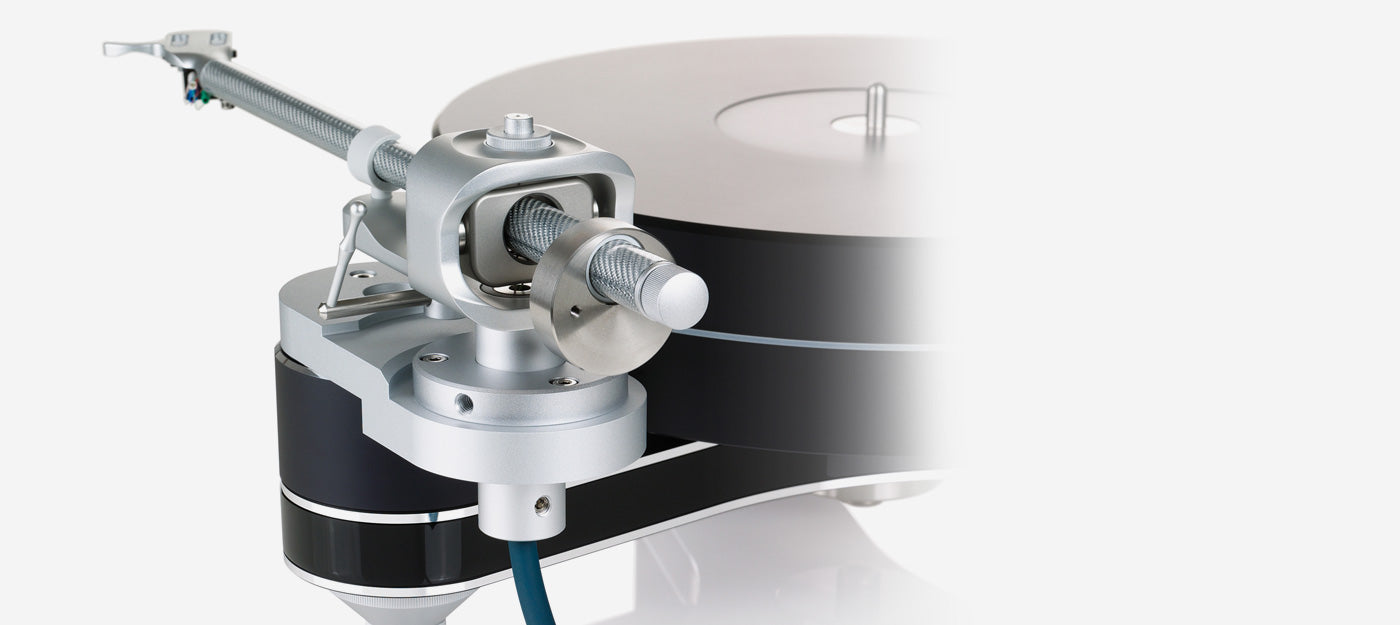

Playback with two tonearms possible
Speed ​​options: 33 ⅓, 45, 78rpm
Drive unit:

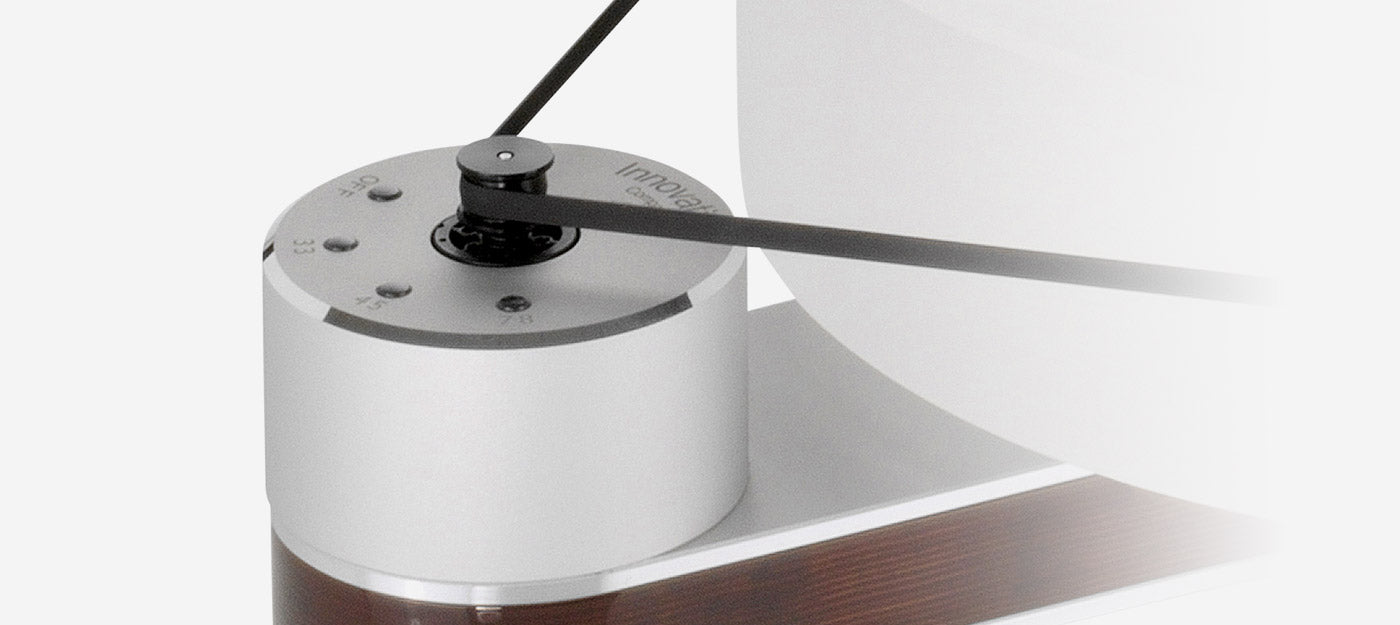

High torque 24V DC motor exclusively made for Clearaudio; Optical Speed ​​Control (OSC) in real time through infrared sensor
Decoupled DC motor in chassis; resonance damping device; belt-drive
Bearing: Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
Platter: 70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimensional stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
Speed ​​accuracy (measured): < ± 0.08%
Power consumption: Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
Total weight: Approx. 12kg (without tonearm and power supply)
Dimensions (W/D/H): Approx. 18.11 × 19.09 × 6.18 inches (with tonearm base, without tonearm)
Dimensions (W/D/H): Approx. 460 × 485 × 157mm (with tonearm base, without tonearm)
