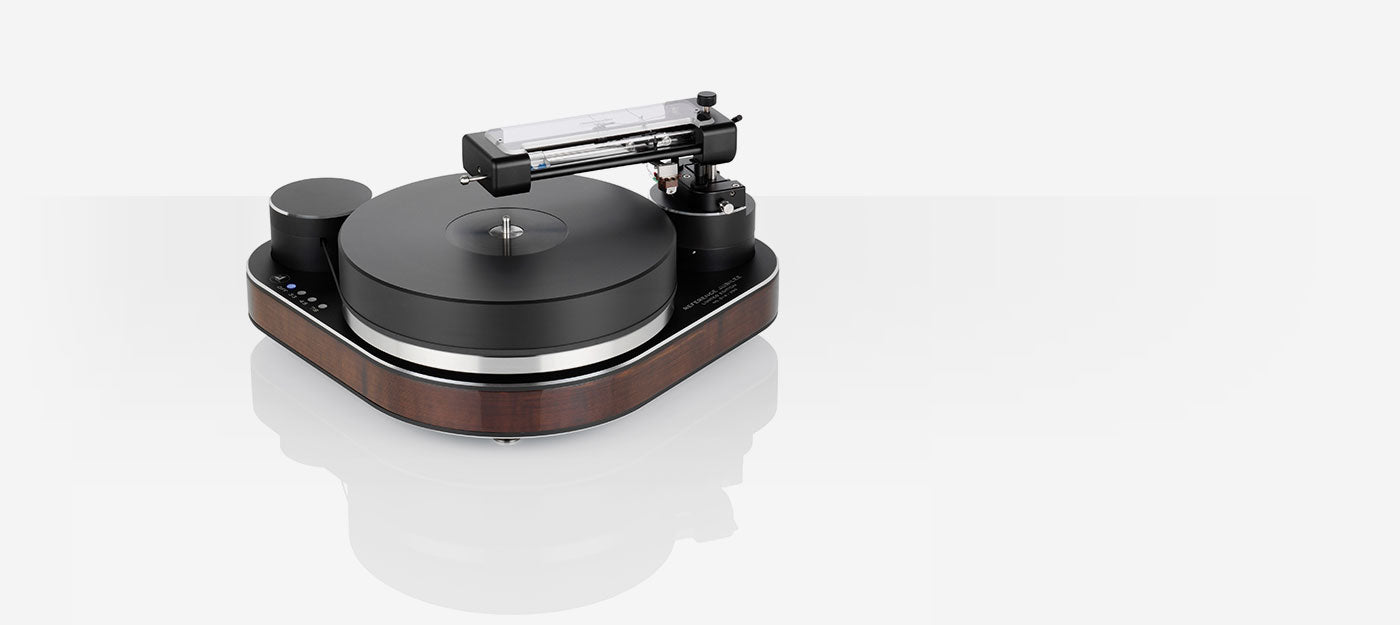

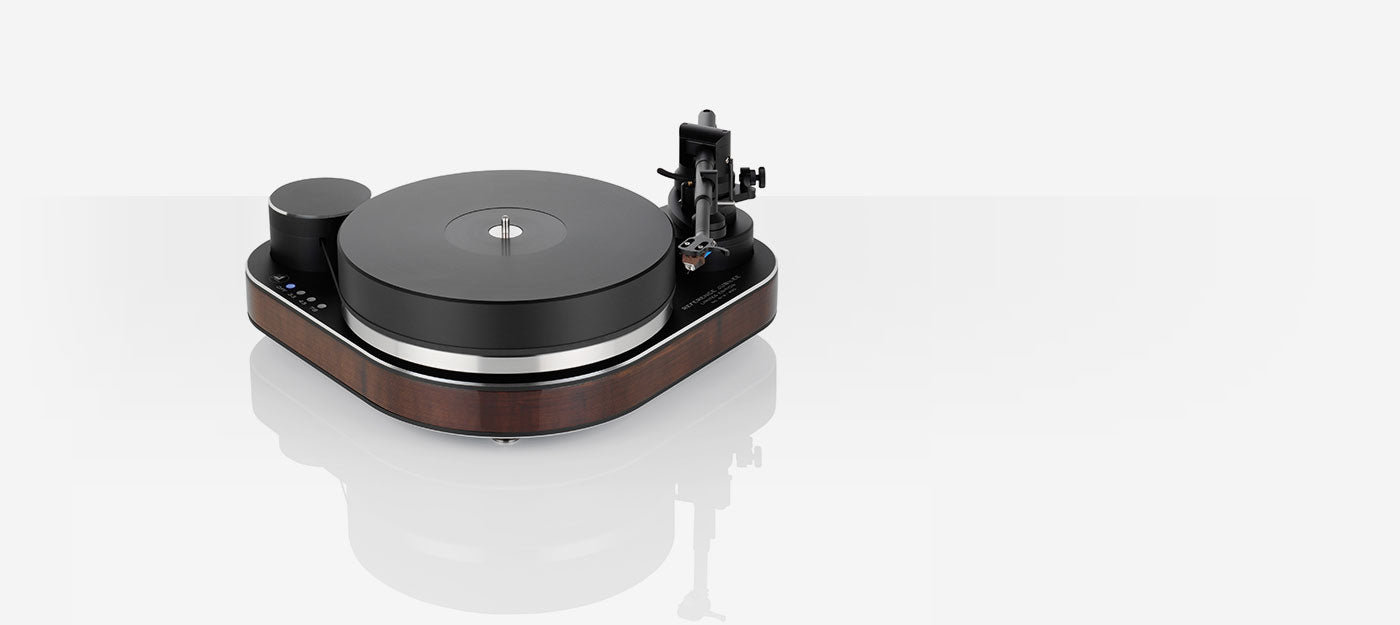

The Clearaudio Reference Jubilee is a premium analog turntable that combines innovation, tradition and precision craftsmanship. This turntable is designed to deliver ideal sonic accuracy and stability, using cutting-edge technology and a distinctive design. The Reference Jubilee reflects Clearaudio's philosophy of combining aesthetics and technology, while also ensuring long-term precision performance.
Construction: Laminated wood and aluminum, CNC machining, adjustable legs. Drive unit: High torque 24V DC motor with belt drive Speed options: 33 ⅓, 45, 78 rpm Bearings: Clearaudio CMB ceramic magnetic bearing. Plate: 50mm thick main plate made of high-density synthetic material, 5mm stability, precision CNC machined surface, solid stainless steel plate, dynamically balanced. Speed accuracy: ± 0.05%
DESCRIPTION
New Clearaudio Reference Jubilee Turntable: where the best of the past, present and future meet for a new era of analogue precision
The new Reference Jubilee turntable marries the best of 'Clearaudio past, present and future' to usher in a new era of analogue precision. It delivers lifelong synchronized rotational speed, astonishingly low levels of both resonance and friction, and a breathtaking moment of torque.
Its 6cm-thick main platter is constructed from highly damped polyoxymethylene (POM) and, as you might expect with any Clearaudio turntable, the platter rotates on a special variation of the brand's own patented ceramic magnetic bearing (CMB). The motor housing is elaborately decoupled from the chassis by an elaborate network of rubber 'tightropes'.
While Clearaudio has earned a considerable reputation for innovation in all things analogue, here the design team has expertly married digital and analogue technology to achieve a new level of precision and consistency of rotational speed. A 12-bit DAC generates the drive motor's voltage; the DAC has exceptionally high resolution and zero fluctuations or 'drift' in response to either time or temperature. What's more, it has been cleverly designed to work in tandem with Clearaudio's optical speed control system. Every three seconds, an optical sensor takes a reading of the 8.5kg stainless steel sub-platter's rotational speed, and delivers that reading to a control unit; the control unit then immediately regulates the slightest deviations by adjusting the motor's voltage via an operational amplifier.
The Reference Jubilee's brand new air-core (non-magnetic) 24-volt DC motor, which runs unbelievably quietly, ensures that the listener remains blissfully unaware of the whole process.
TECHNICAL DATA
Construction details: Resonance-optimized chassis shape Made of laminated wood and aluminum with precision CNC machined surface All turntable feet are fine adjustable Optical Speed Control (OSC) IMS - Innovative Motor Suspension (Suspension design of the motor using 18 O-rings) Speed options: 33 ⅓, 45, 78rpm Drive unit: High torque 24V DC motor with belt drive Fully automatic self-calibration of the speed by a push of a button Hybrid engine control: A high resolution 12 bit digital-to-analog converter (DAC) generates a motor reference voltage, which is fed into the purely analog motor control. Automatic compensation of friction and temperature changes on the platter bearings and belts. The speed remains in the perfect range at all times. Bearing: Clearaudio CMB ceramic magnetic bearing in main platter. Inverted bearing in lower drive platter. Platter: 50mm / 1.97 inch main platter, made out of synthetic material with high-density and excellent dimension. // 15mm / 0.59 inch stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced. Speed accuracy (measured): ± 0.05% Power consumption: Max. consumption: 5.0 watts Consumption in operation: 2.1 watts Off mode: 1.8 watts Total weight: approx. 22kg (without tonearm and power supply) Dimensions (W/D/H): Approx. 495 × 343 × 180mm (with tonearm base, without tonearm) Dimensions (W/D/H): Approx. 19.49 × 13.50 × 7.09 inches (with tonearm base, without tonearm)
