Monitor Audio Climate Garden CLG-W12 outdoor subwoofer

INFORMACIJA

Passive outdoor ground-mounted subwoofer

• Recommended amplifier power: 100 - 250W
• 30.5 cm high displacement speaker.
• Frequency range: 30 Hz - 100 Hz
• Maximum SPL: 110 dBA
• Sensitivity: 85 dB
• Nominal resistance: 4 ohms

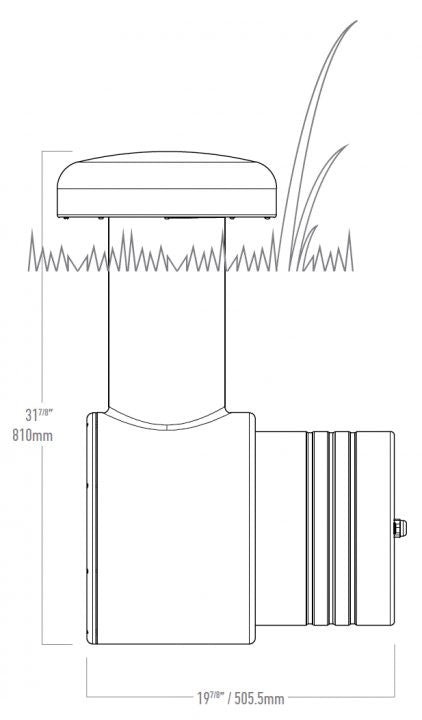

• Dimensions (xpxg): 75 x 38 x 50.55 cm / Weight – 19.5 kg

DESCRIPTION

From this little 'chimney' powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140 satellites for punchy and articulate full-range garden sound.

The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100 volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

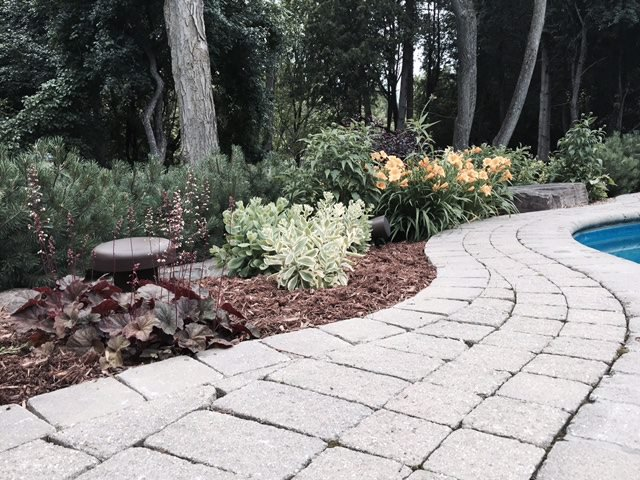

When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30 Hz to 30 kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio's CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.

DOCUMENTS

User manual (EN)

Climate Garden system

TECHNOLOGY

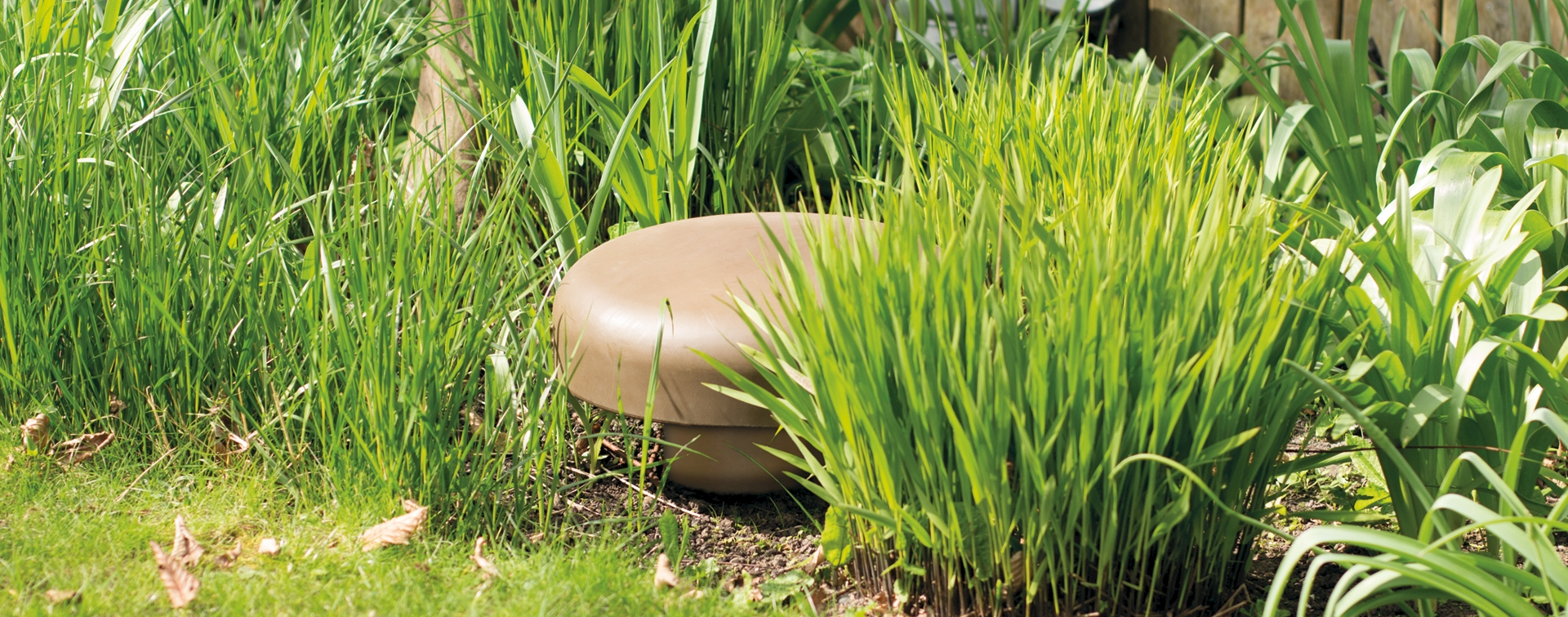

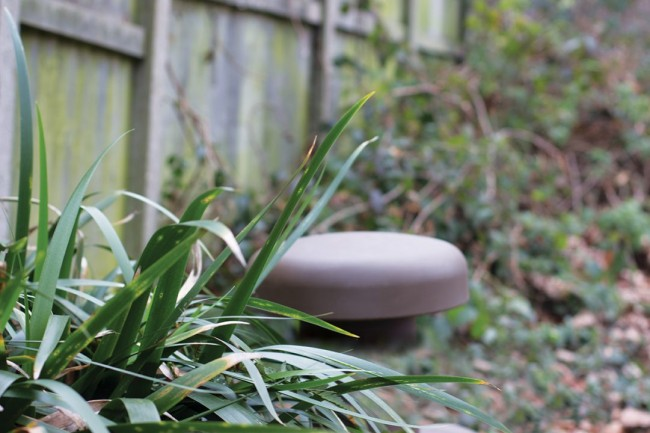

• Below ground garden installation. On patios or decks will install within a suitably sized planter
• Extended response down to 30 Hz
• Long throw 12" sub-woofer driver featuring C-CAM cone technology and rigid die-cast chassis
• Bandpass cabinet enclosure delivers high efficiency and punchy, extended bass
• 70/100 V and 4 ohm tap for flexible system design: additional units can be added and 'daisy-chained' together

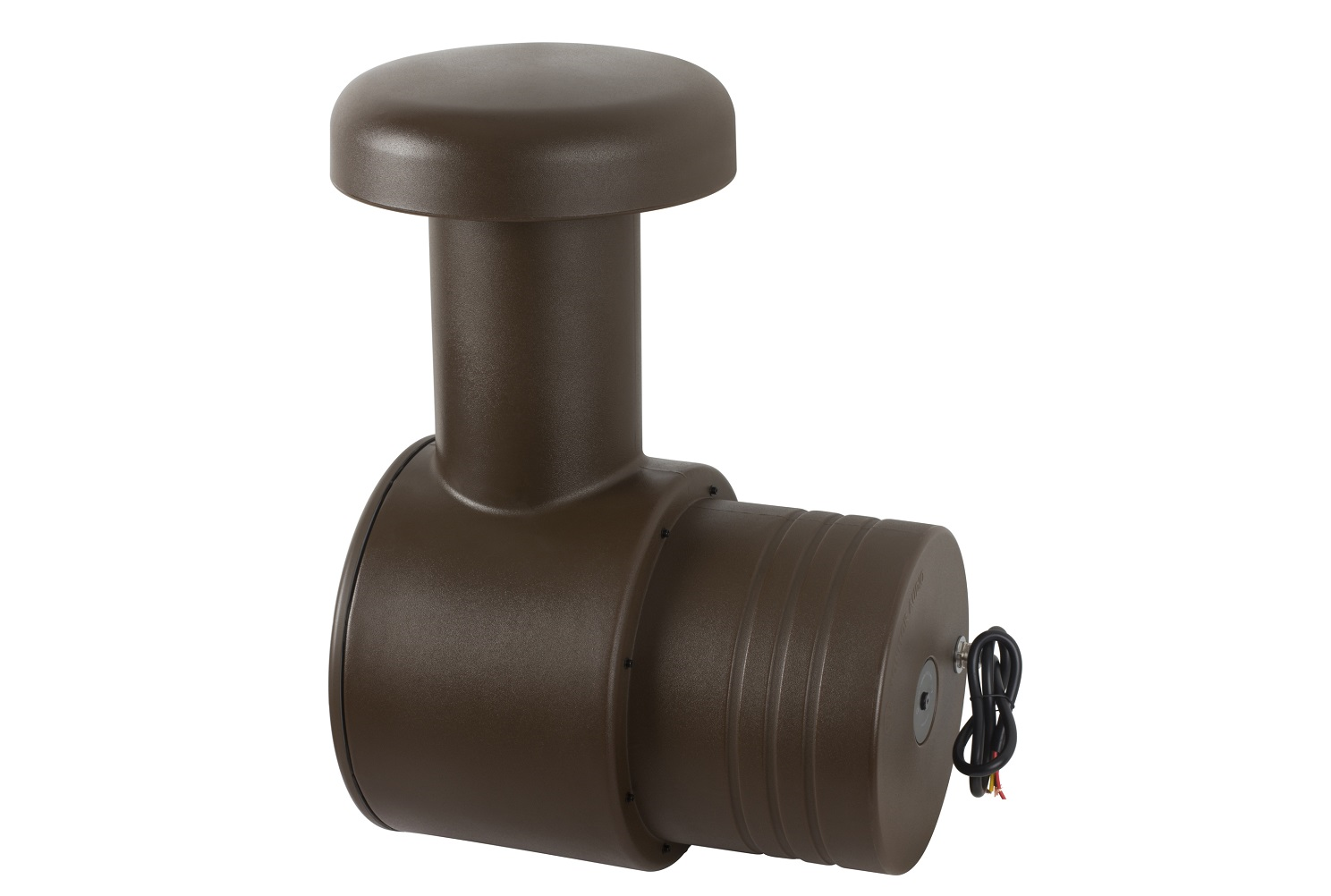

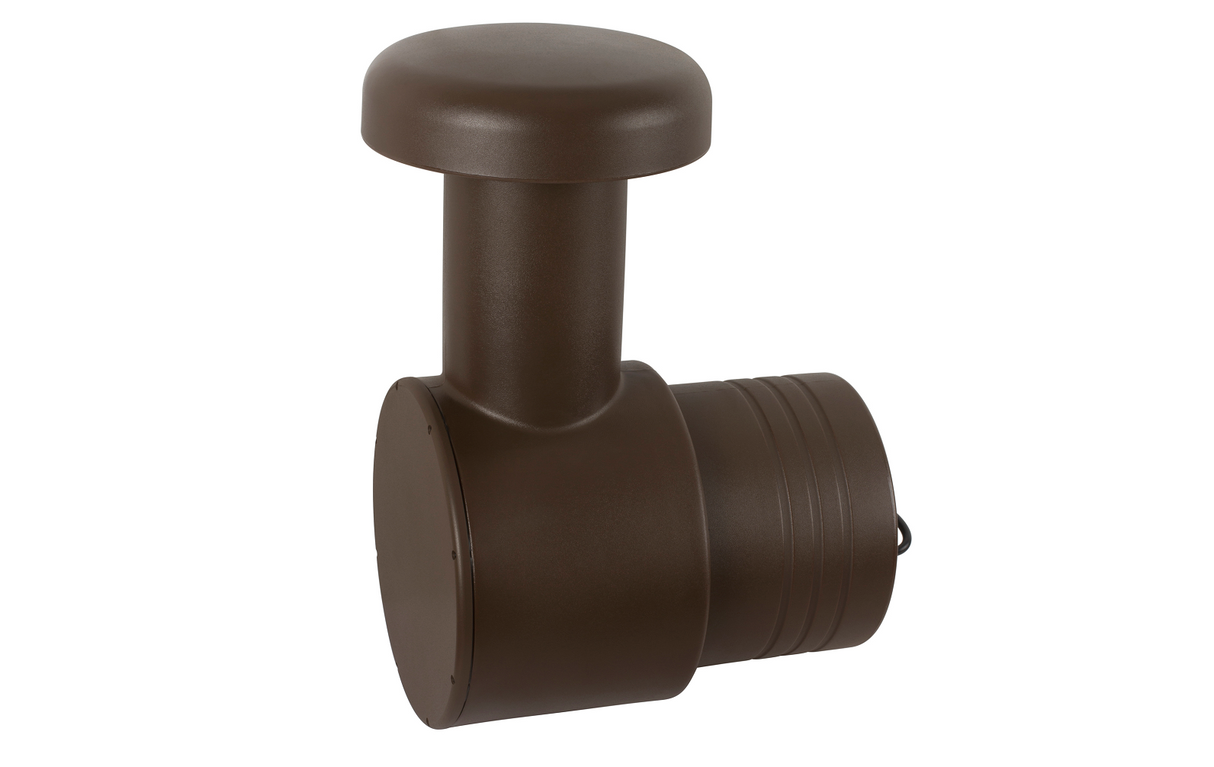

• Robust molded cabinet: strong and waterproof with fewer joints to compromise structural integrity
• Certified to IP54 Ingress Protection rating
• Dark brown finish blends with garden colors
• Applications: garden, deck and patio, theme parks
