Pioneer  |  Bar code: -

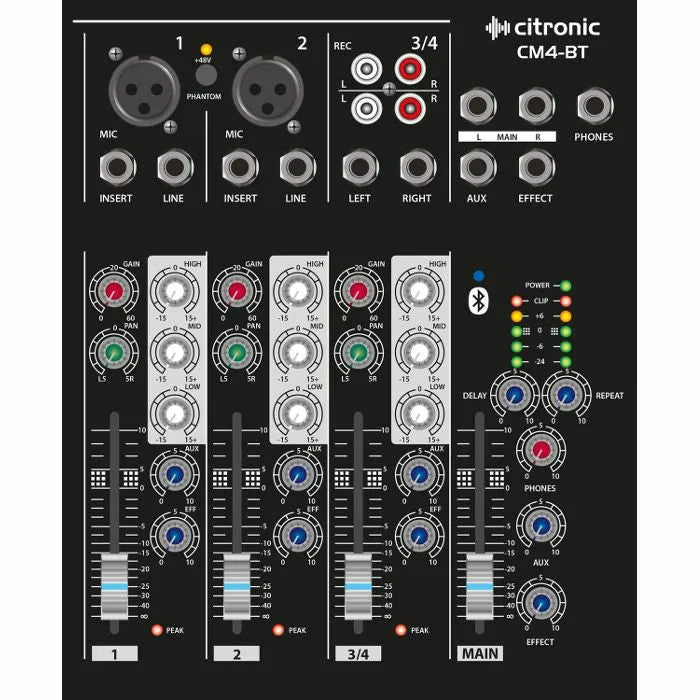

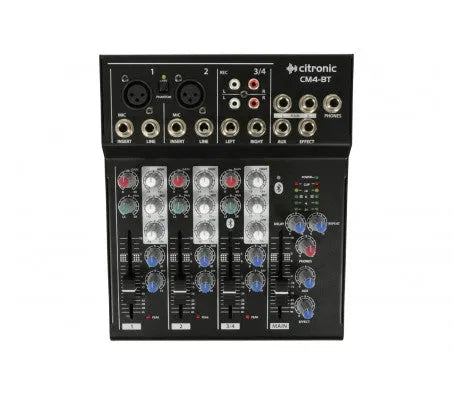

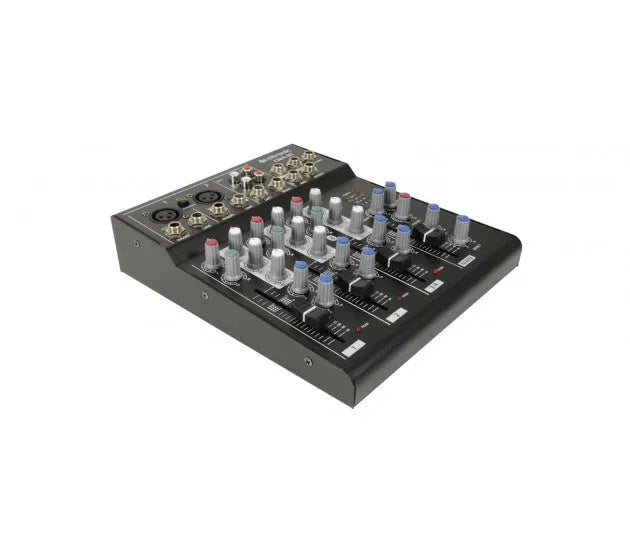

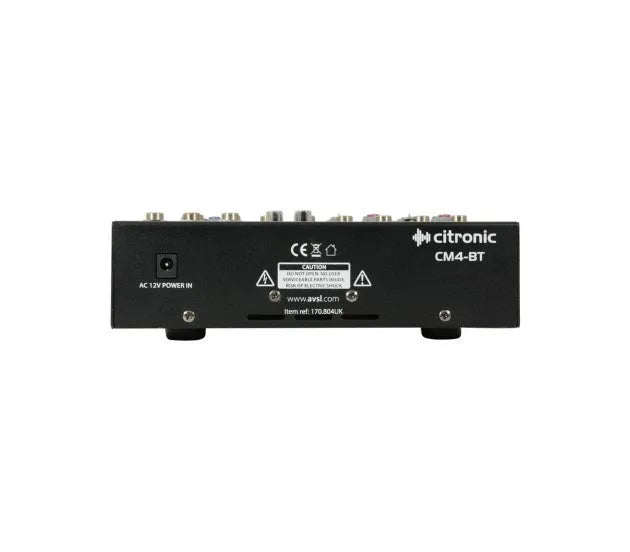

CM4-BT Mixer Console with Bluetooth

Compact format mixing console with 2 mic/line inputs (jack/XLR) and a stereo line channel, which can be paired to a smart device via an internal Bluetooth receiver.
€109.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Mic/line channels have individual inserts and all channels have 3-band EQ, Aux and Effect controls. Phantom power of +48V is switchable to the XLR inputs for condenser microphones. Applications range from sub-mixing to main live PA console.

  • Compact, accessible design
  • Internal Bluetooth receiver
  • Built-in delay effect for vocals
  • Channel inserts for Mic/line inputs
  • 3-band EQ for each channel
  • Switchable +48V phantom power

TECHNICAL DATA

  • Power supply: 12Vac 1000mA (included)
  • Phantom power: Switchable +48V (XLR inputs)
  • Bluetooth version: 2.1
  • Frequency response: inputs 20Hz-20kHz
  • Stereo input: 6.3mm jack/RCA (-8 to +15dB / +13 to +60 parallel)
  • Mic/line channel inputs: 2 x balanced XLR/jack
  • SNR : mic inputs: 120dB EIN
  • SNR : line inputs: 95dB EIN
  • SNR : stereo input: 96dB EIN (or 104dB EIN in parallel)
  • EQ: high 10kHz, ±15dB
  • EQ: mid 700Hz, ±15dB
  • EQ: low 50Hz, ±15dB
  • Outputs: main (L+R) 6.3mm jack (+28dBu balanced / +22dBu unbalanced)
  • Phones output: +15dBu stereo 6.3mm jack
  • Dimensions: 230 x 190 x 60mm
  • Weight: 2.09kg

Contents

  • CM4-BT compact mixing console
  • 12Vac 1000mA power supply
