Dahua

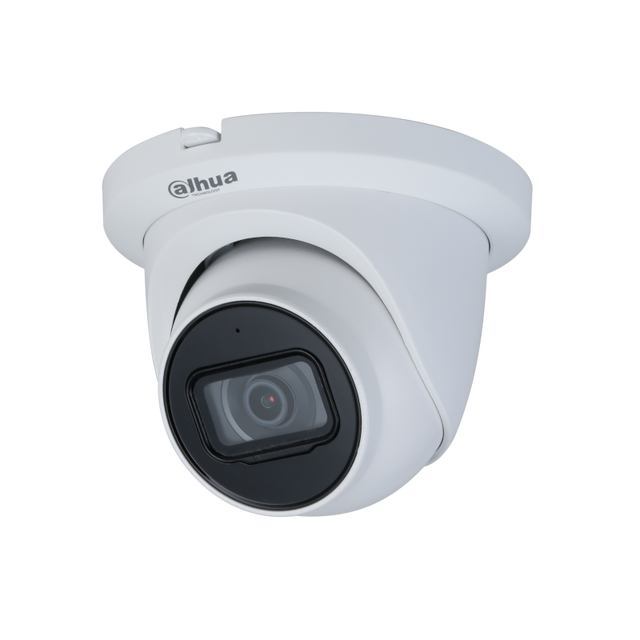

Dahua IPC-HDW3441TM-AS, dome IP video camera

P cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks.

€179.00 EUR

Dahua IPC-HDW3441TM-AS, dome IP video camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. For these reasons, they dominate the supply of CCTV solutions.

  • 4MP IP dome camera with AI features.
  • STARLIGHT technology.
  • 1/3” 4MP CMOS sensor.
  • ROI, SMART H.264+/H.265+ flexible coding.
  • Max. 30fps@4Mp(2688×1520).

DESCRIPTION

4 MP IP dome video camera, fixed focal length lens 2.8 mm, IR illumination up to 50 m.

IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For these reasons, they dominate the supply of CCTV solutions.

The camera comes with built-in AI functions :

  • Perimeter protection : defined zone, intrusion (distinguishing whether a person or a vehicle crossed the zone);
  • Smart Search : Using smart recorders (NVRs), you can achieve great search results by extracting and viewing the events you need.

TECHNICAL DATA

SPECIFICATIONS

Camera

Image Sensor

1/2.7” 4 Megapixel progressive CMOS

Effective Pixels

2688(H)×1520(V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s - 1/100000 s

Min. Illumination

0.005 Lux@F1.6

IR Distance

50 m (164.0 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

2 (IR LEDs)

Pan/Tilt/Rotation Range

Horizontal: 0°-360°; vertical: 0°–78°; rotation: 0°–360°

Lens

Lens Type

Fixed focus

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 103°; vertical: 55°; diagonal: 122°
3.6 mm: Horizontal: 84°; vertical: 45°; diagonal: 100°
6mm: Horizontal:52°; vertical: 28°; diagonal: 61°

Iris Type

Fixed aperture

Close Focus Distance

2.8mm: 0.9m (3.0ft)
3.6mm: 1.6m (5.3ft)
6mm: 3.2m (10.5ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

56.0 years

(183.7 ft)

22.4 years

(73.5ft)

11.2 years

(36.8ft)

5.6 years

(18.4ft)

3.6 mm

80.0 years old

(262.5 ft)

32.0 years old

(105.0 ft)

16.0 years old

(52.5ft)

8.0 years

(26.3ft)

6 mm

120.0 m (393.7 ft)

48.0 years

(157.5 ft)

24.0 years

(78.7 ft)

12.0m (39.4ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos

Videos

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (2688 × 1520@1-25/30 fps)
sub stream (704 × 576@1-25/30 fps)
third stream (1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704×576/704×480); VGA (640x480); CIF (352×288/352×240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNA

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64M)

Edge Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

iOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<7.7W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/ less than≤95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Metal + Plastic

Dimensions

99.1mm × Φ121.9mm (3.9" × Φ4.8")

Even Weight

480 g (1.05 lb)

Gross Weight

660 g (1.45 lb)

Characteristics

Lens 2.8 mm
Resolution 4MP
Camera type dome
Product class LITE
AND lighting ≤ 50 years
AI features WizSense (Lite AI)
Advantages Supports MicroSD up to 256GB
Advantages Starlight
Advantages Built-in microphone
