Dahua

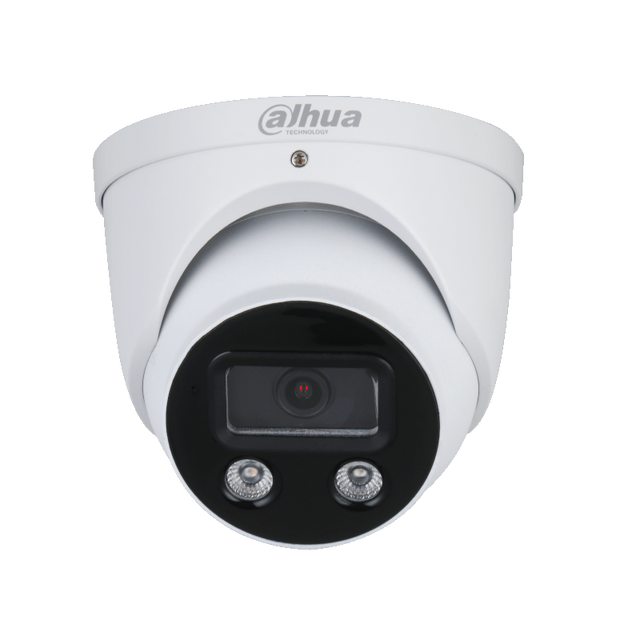

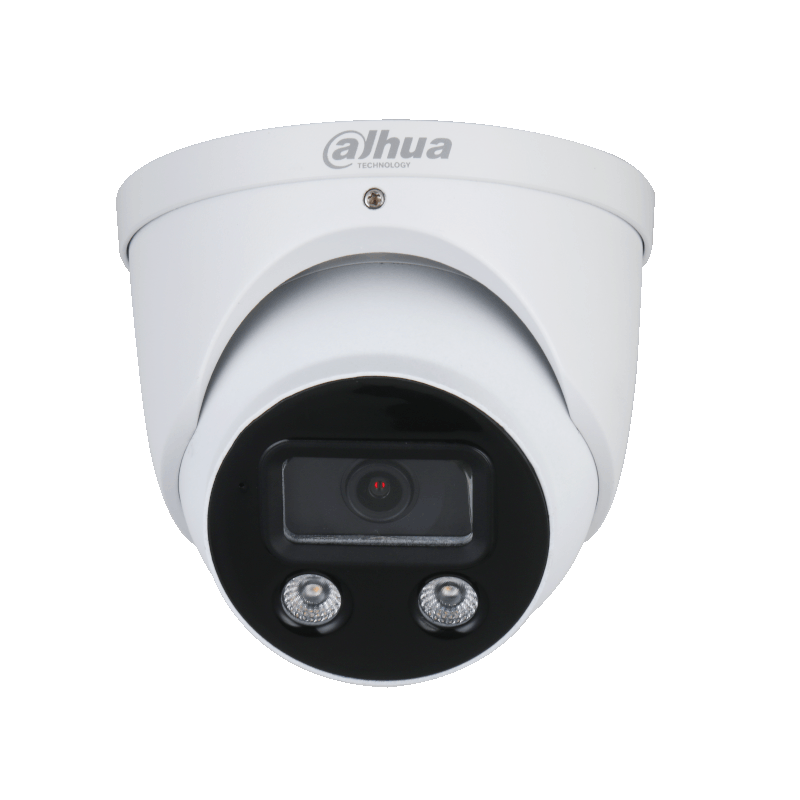

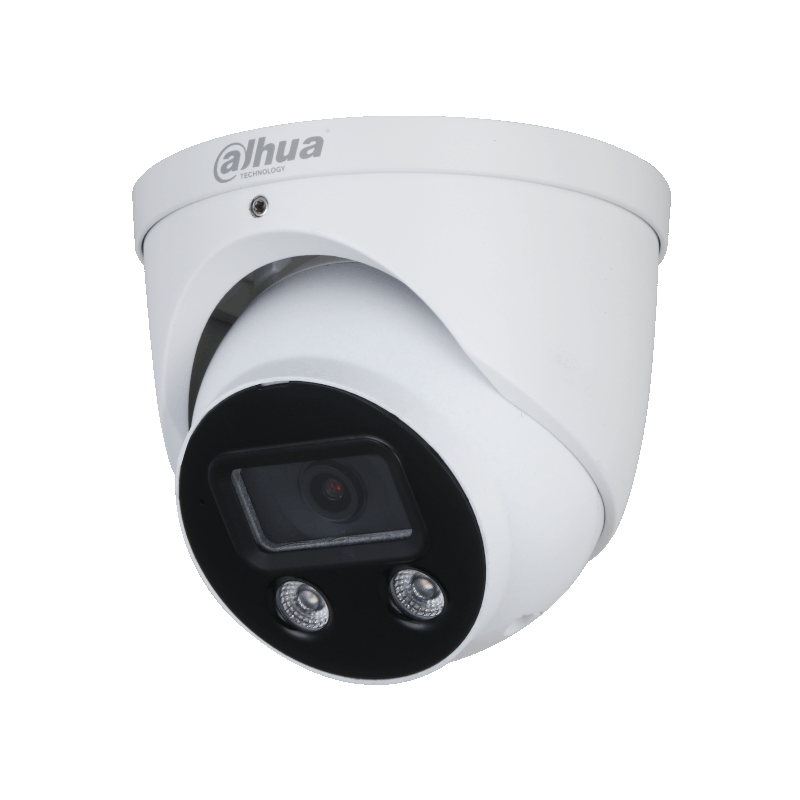

Dahua IPC-HDW5541H-ASE-PV, dome IP video camera

5MP IP dome video camera, 2.

Regular price €354.00 EUR

Dahua IPC-HDW5541H-ASE-PV, dome IP video camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.8mm fixed focal length lens, Starlight, built-in illumination up to 50m.

  • 1/2.7” 5MP CMOS sensor;
  • ROI, SMART H.264+/H.265+ flexible coding
  • Max. 5MP (2592 × 1944)@20 fps and 2688 × 1520 (2688 × 1520)@25/30 fps;
  • WDR, 3D DNA, HLC, BLC;
  • 2.8mm fixed focal length lens;
  • Integrated warm lighting and IR LED, distance up to 50 m;
  • Disabling the alarm with one click;
  • SMD Plus;
  • ePoE, IP67.
  • Micro SD card support up to 256GB.

DESCRIPTION

5MP IP dome video camera, 2.8 mm fixed focal length lens, Starlight, integrated illumination up to 50 m.

The uniqueness of this camera is the ability to use it to scare off intruders, it can activate a movement-triggered siren and beacons (warm furniture LED light) that can scare unwanted guests. These alarms are usually disabled via the app, as well as activated and configured.

The camera is also characterized by Full-Color: intelligent double illumination technology . About this read more about the technology here .

The siren can be replaced by a recorded voice warning or other sound.

IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For these reasons, they dominate the supply of CCTV solutions.

WizMind This camcorder comes with built-in AI (artificial intelligence) functions. WizMind is a family of products developed by Dahua Technology that implement award-winning deep learning algorithms. Wizmind products are focused on solutions for more complex security projects. You can find out what these functions are and in what video surveillance situation they can be used in the article about WizMind technologies .

Camera with AI (artificial intelligence) features:

  • Face detection , captures images of faces;
  • Perimeter, zone protection : captures intrusion (recognizes whether a person or a vehicle is moving), capture of fast movement, lurking, parking, gathering of people.
  • People accounting : calculates by crossing the line, zone, queue of people. Supports calculation of 4 different zones.
  • Temperature map (convenient to track people's habits).

IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For these reasons, they dominate the supply of CCTV solutions.

    TECHNICAL DATA

    SPECIFICATIONS

    Camera

    Image Sensor

    1/2.7" CMOS

    Max. Resolution

    2592 (H) × 1944 (V)

    ROM

    128 MB

    RAM

    512 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual 1/3 s - 1/100,000 s

    Min. Illumination

    0.005 Lux@F1.6 (Color, 30IRE)

    0.0005 Lux@F1.6 (B/W, 30IRE)

    0 Lux (Illuminator on)

    S/N Ratio

    > 56 dB

    Illumination Distance

    2.8mm: 20m (65.6ft)
    3.6mm: 30m (98.4ft)
    6mm: 50m (164.0ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    2 (IR light); 2 (warm light)

    Pan/Tilt/Rotation Range

    Pan: 0°-360°
    Tilt: 0°-78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm; 6 mm

    Max. Aperture

    2.8mm: F1.6
    3.6mm: F1.6
    6mm: F1.6

    Field of View

    2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
    3.6 mm: Horizontal 80° × Vertical 58° × Diagonal 107°
    6.0 mm: Horizontal 50° × Vertical 37° × Diagonal 64°

    Iris Control

    Fixed

    Close Focus Distance

    2.8mm: 1.1m (3.6ft)
    3.6mm: 1.6m (5.2ft)
    6.0 mm: 3.1 m (10.2 ft)

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    2.8 mm

    63.6 years old

    (208.7 ft)

    25.4 years

    (83.3ft)

    12.7 years

    (41.7ft)

    6.4 years

    (21.0ft)

    3.6 mm

    79.4 years

    (260.5 ft)

    31.8 years

    (104.3 ft)

    15.9 years

    (52.2ft)

    7.9 years

    (25.9ft)

    6 mm

    120.0 m (393.7 ft)

    48.0 years

    (157.5 ft)

    24.0 years

    (78.7 ft)

    12.0 years

    (39.4ft)

    Smart Event

    IVS

    Abandoned object; missing object

    Heat Map

    Yes

    Professional, intelligent

    IVS (Perimeter Protection)

    Intrusion; tripwire; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

    Face Detection

    Face detection; track; optimization; snapshot face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

    People Counting

    Support the counting of enter number, leave number

    and pass number, and displaying and outputting

    annual/monthly/daily reports

    Support the counting of numbers in area, and 4 rules configuration. Count number of people and stay time, and link alarm

    Support queue management, and 4 rules configuration. Count number of people and stay time, and link alarm

    Smart Search

    Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos

    Videos

    Video Compression

    H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

    Smart Codec

    Smart H.265+; Smart H.264+

    Video Frame Rate

    Main stream: (2592 × 1944@1-20 fps)
    (2688 × 1520@1-25/30 fps)
    (1920 × 1080@1-50/60 fps)
    Sub stream: (704 × 576@1-50 fps/704 × 480@1-60 fps)
    Third stream: (1920 × 1080@1-25/30 fps)

    *The values ​​above are the max. frame rates of each stream; for multiple streams, the values ​​will be subjected to the total encoding capacity.

    Stream Capability

    3 streams

    Resolution

    5M (2592 × 1944); 4M (2688 × 1520); 4M (2560×1440); 3M (2304 × 1296); 1080p (1920 × 1080);

    1.3M (1280 × 960); 720p (1280×720);

    D1 (704×576/704×480); VGA (640x480);

    CIF (352×288/352×240)

    Bit Rate Control

    CBR/VBR

    Video Bit Rate

    H.264: 32 kbps - 8192 kbps

    H.265: 12 kbps to 8192 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Yes

    HLC

    Yes

    WDR

    120 dB

    Scene Self-adaptation

    Yes

    White Balance

    Car; natural; street lamps; outdoor; manual; regional custom

    Gain Control

    Car; manual

    Noise Reduction

    3D NO

    Motion Detection

    OFF/ON (4 areas, rectangular)

    Region of Interest (RoI)

    Yes (4 areas)

    Smart Illumination

    Yes

    Defog

    Yes

    Image Rotation

    0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

    Mirror

    Yes

    Privacy Masking

    4 areas

    Audio

    Built-in MIC

    Yes

    Audio Compression

    PCM; G.711a; G.711Mu; G.726; G.723

    Alarm

    Alarm Event

    No SD card; SD card full; SD card error; service life warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; people counting in area; stay alert; people counting; people No. exception detection; safety exception; light alarm; sound alarm (21 built-in sounds and custom voices importing)

    Network

    Network Port

    RJ-45 (10/100 Base-T)

    SDK and API

    Yes

    Cyber ​​Security

    Video encryption; firmware encryption; configuration encryption; digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

    Network Protocol

    IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

    Interoperability

    ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec

    User/Host

    20 (Total bandwidth: 80 M)

    Storage

    FTP; SFTP; Micro SD card (support max. 256 G); NAS

    Browser

    IE: IE8; IE9; IE11
    Chrome
    Firefox

    Management Software

    Smart PSS; DSS; DMSS

    Mobile Client

    iOS; Android

    Certification

    Certifications

    CE-LVD: EN62368-1

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    FCC: 47 CFR FCC Part 15, Subpart B

    UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

    Port

    Audio Input

    1 channel (RCA port)

    Audio Output

    1 channel (RCA port)

    Alarm Input

    1 channel in: 5mA 3V–5V DC

    Alarm Output

    1 channel out: 300mA 12V DC

    Power

    Power Supply

    DC 12V (±30%)/PoE (802.3af)/ePoE

    Power Consumption

    Basic power consumption: 1.9W (12V DC); 2.4W (PoE)

    Max. power consumption (WDR + face recognition + light and sound alarm + IR LED intensity): 8.3W (12V DC); 8.7W (PoE)

    Environment

    Operating Temperature

    –40°C to +60°C (–40°F to +140°F)

    Operating Humidity

    ≤ 95%

    Storage Temperature

    –40°C to +60°C (–40°F to +140°F)

    Protection

    IP67

    Structure

    Casing

    Metal

    Product Dimensions

    Φ122mm × 110.9mm (Φ4.8" × 4.4")

    Even Weight

    756 g (1.7 lb)

    Gross Weight

    940 g (2.1 lb)

    Characteristics

    Lens 2.8 mm
    Color White
    Resolution 5MP
    Camera type dome
    Product class PRO
    Night lighting ≤ 50 years
    AI features WizMind (Pro AI)
    Advantages Siren and beacons
    Advantages Built-in microphone
    Advantages Starlight
    Advantages Supports MicroSD up to 256GB

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
