Dahua NVR2108-I Lite AI, 8-channel recorder

Professional 8-channel network video recorder (NVR).
€147.62 EUR

Dahua NVR2108-I Lite AI, 8-channel recorder - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

With face recognition.

  • 8-channel, 1U NVR recorder with face recognition function.
  • AI features.
  • H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 video compression.
  • 1 channel for face detection and recognition or 2 channels for perimeter protection; or 4 channels for SMD function.
  • object search function by type (person, car).

DESCRIPTION

With face recognition.

Detection and processing of faces that are not in the database (stranger detection). Search for up to 8 target faces simultaneously. It is also possible to create 10 face databases with photos and information (up to 5000 faces in total). Video recording up to 12MP resolution is supported. Video monitoring via the Internet and mobile phone through the application.

New generation recorders are not only able to store and display video material, but also support smart functions and video analytics, which takes CCTV security solutions to a higher level.

    TECHNICAL DATA

    SPECIFICATIONS

    System

    Main Processor

    Industrial-grade embedded processor

    Operating System

    Embedded Linux

    Operation Interface

    Web/operating in local GUI

    Videos

    Access Channel

    8 channels

    Network Bandwidth

    80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.

    Resolution

    12M/8M/5M/4M/3M/2M/720P/D1

    Decoding Capability

    1ch 8MP@30fps

    4ch 1080P@30fps

    Video Output

    1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K

    Multi-screen Display

    1/4/8/9

    Third Party Camera Access

    Onvif, RTSP

    Compression

    Videos

    H.264/.H265/Smart H.264+/Smart H.265+/MJPEG

    Audio

    PCM/G711A/G711U/G26/AAC

    Network

    Network Protocol

    HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS

    Mobile Phone Access

    Android, iOS

    Interoperability

    ONVIF (profile T/profile S/profile G), CGI, SDK

    Browser

    Chrome, IE9 or above, Firefox

    Record Playback

    Multi-channel Playback

    Up to 8 channels playback

    Record Mode

    Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording

    Storage

    Local HDD and network

    Backup

    USB device

    Playback Function

    1. Play, pause, stop, fast forward, fast backward, rewind, play by frame

    2. Full screen, backup (cut/file), partially enlarge, audio on/off

    SMD Plus

    Performance

    4 channels

    AI Search

    Search by target classification (Human, Vehicle)

    Face Recognition

    Performance

    Max 8 face pictures/second processing

    1 channel video stream face recognition

    Stranger Mode

    Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.

    AI Search

    Up to 8 target face images search at the same time, similarity threshold can be set for each target face image.

    Database Management

    Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries® ions and state can be added to each face picture.

    Database Application

    Each database can be applied to video channels independently.

    Trigger Events

    Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

    Alarm Linkage

    Video recording, snapshot, log, preset, tour

    Perimeter Protection

    Performance

    2 channels

    Object classification

    Human/Vehicle secondary recognition for tripwire and intrusion

    AI Search

    Search by target classification (Human, Vehicle)

    Alarm

    General Alarm

    Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

    Anomaly Alarm

    Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly

    Alarm Linkage

    Video recording, snapshot, log, preset, tour

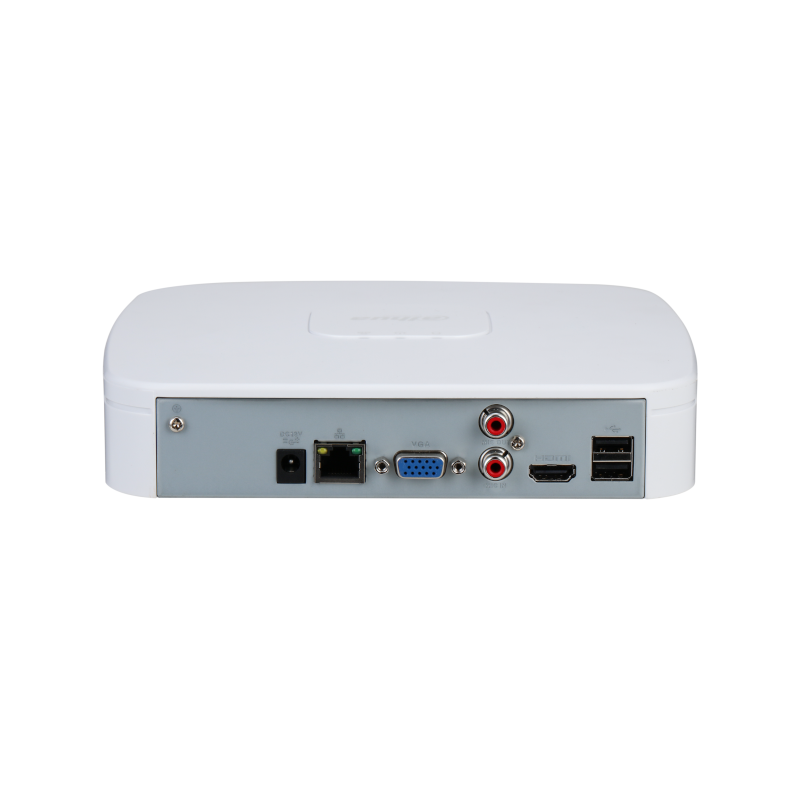

    External Port

    HDD

    1 SATA port, up to 6 TB. The maximum HDD capacity varies with ambient temperature

    USB

    2 rear USB 2.0 ports

    HDMI

    1

    VGA

    1

    Network

    1 RJ-45 port (10/100 Mbps)

    RCA Input

    1

    RCA Output

    1

    General Parameter

    Power Supply

    DC12V, 1.5A

    Power Consumption

    Total output of NVR is ≤ 10W (without HDD)

    Even Weight

    0.45 kg (0.99 lb)

    Gross weight

    1.07 kg (2.36 lb)

    Product Dimensions

    204.6 mm × 206.4 mm × 48.1 mm (W × L × H)
    8.06 inch × 8.13 inch × 1.89 inch (W × L × H)

    Package Dimensions

    96 mm × 364 mm × 261 mm (W × L × H)
    3.78 inch × 14.33 inch × 10.28 inch (W × L × H)

    Operating Temperature

    -10°C to 50°C (+14°F to +113°F)

    Storage Temperature

    0°C to 40°C (+32°F to +104°F)

    Operating Humidity

    10%-93%

    Storage Humidity

    30%-85%

    Operating Altitude

    3000 m (9843 ft)

    Installation

    Desktop mounting

    Certifications

    CE/FCC

    Characteristics

    Number of channels 8
    Product class LITE
    Number of hard drives 1 HDD
    Data bandwidth 80 Mbps
    AI features WizSense (Lite AI)
    Advantages Face recognition
    Advantages SMD Plus
    Advantages Perimeter protection
