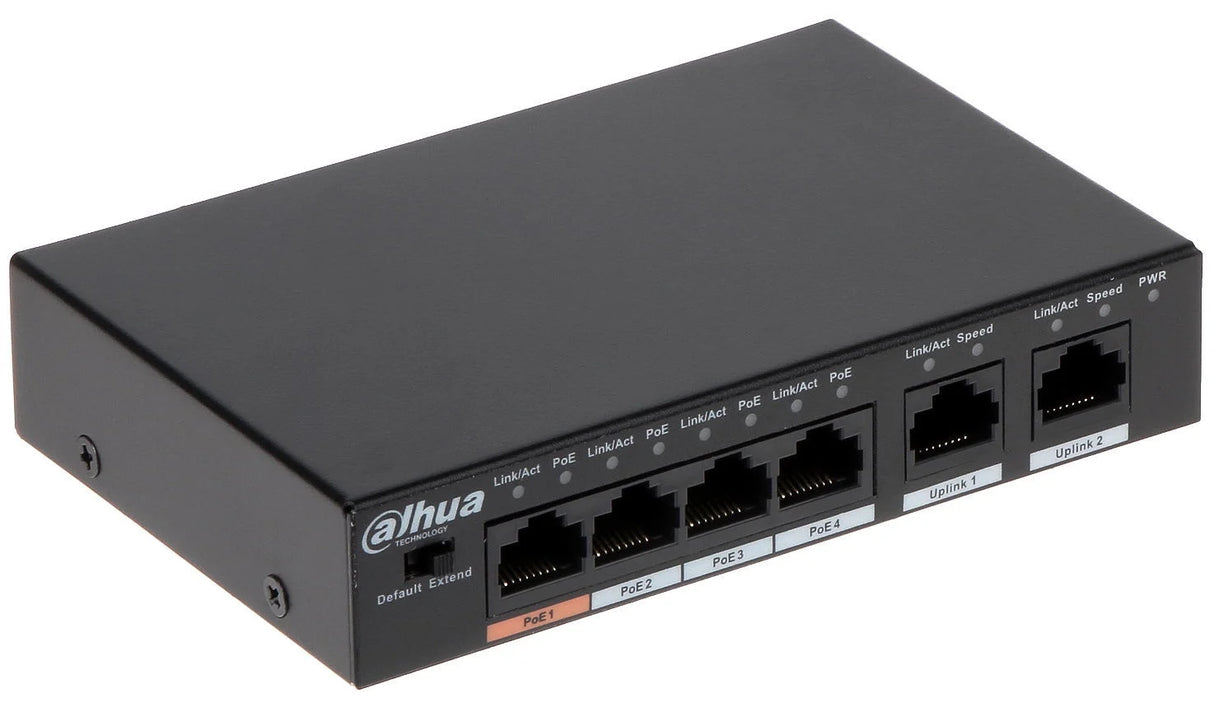

Dahua PFS3006-4ET-60, 4 Port 4 PoE Switch

€85.99 EUR

Dahua PFS3006-4ET-60, 4 Port 4 PoE Switch - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
TECHNICAL DATA

INFORMACIJA

4-port PoE 10/100Mbps switch +2 10/100Mbps.

MAC address list 2K.
Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards.
Supports IEEE802.3af and IEEE803.3at standards.
Hi-PoE 60W is supported.
Expansion mode: 10 Mbps each channel, PoE distance up to 250 m.

TECHNICAL DATA

SPECIFICATIONS

Technical Speciﬁcation

Model

PFS3006-4ET-60

Ethernet Port

2*10/100Mbps Uplink ports

4*10/100 Mbps PoE ports

PoE Power Consumption

Port1≤60W, Port2-4≤30W, Total≤60W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

890kpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

Flow Control

Enabled by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

290 g

Dimension(W×D×H)

130mm×85mm×26mm
