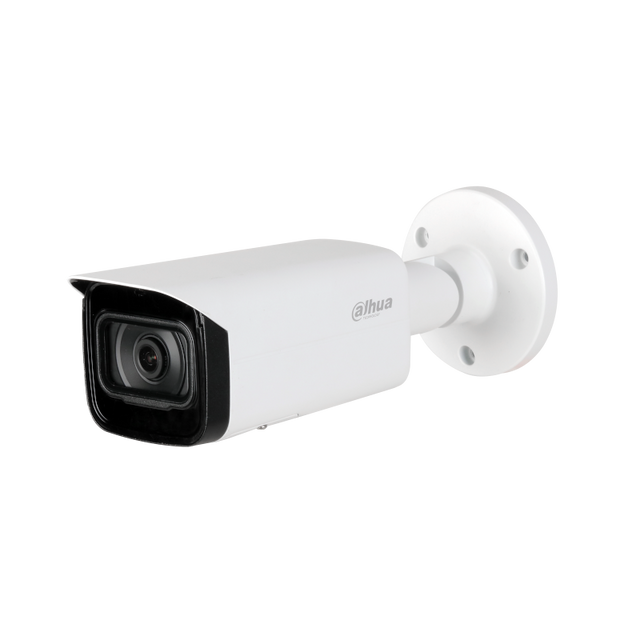

Dahua Technology IPC-HFW5442T-ASE, IP video camera

4 MP IP cylindrical video camera, fixed focal length lens 2.
€298.87 EUR

Dahua Technology IPC-HFW5442T-ASE, IP video camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.8 mm, IR illumination up to 50 m, anti-vandal. Camera with AI (artificial intelligence) features:

  • Face detection , captures images of faces;
  • Perimeter, zone protection : captures intrusion (recognizes whether a person or a vehicle is moving), capture of fast movement, robbery, parking, gathering of people.
  • People accounting : calculates by crossing the line, zone, queue of people. Supports calculation of 4 different zones.

DESCRIPTION

.8 mm, IR illumination up to 50 m, anti-vandal. Camera with AI (artificial intelligence) features:

  • Face detection , captures images of faces;
  • Perimeter, zone protection : captures intrusion (recognizes whether a person or a vehicle is moving), capture of fast movement, robbery, parking, gathering of people.
  • People accounting : calculates by crossing the line, zone, queue of people. Supports calculation of 4 different zones.

IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For this reason, they dominate the supply of CCTV solutions. You can find the relevant separately available parts in the list of related products below.



TECHNICAL DATA

SPECIFICATIONS

Technical characteristics:

Camera

Image Sensor

1/1.8” 4Megapixel progressive scan CMOS

Effective Pixels

2688(H)×1520(V)

RAM/ROM

512MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3s - 1/100000s

Minimum Illumination

0.002 Lux@F1.6

IR Distance

Distance up to 50 m (164 ft)

IR On/Off Control

Auto/Manual

AND LEDs

4

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8mm, 3.6mm, 6.0mm

Max. Aperture

F1.6

Angle of View

H: 113°, W: 60°/H: 89°, W: 48°/H: 56°, W: 31°

Aperture Type

Fixed

Close Focus Distance

1.3m (4.27ft)/1.9m (6.23ft)/3.8m (12.47ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

58m(190ft)

23m(75ft)

12m(39ft)

6m(20ft)

3.6 mm

72m (236ft)

29m(95ft)

14m(46ft)

7m(23ft)

6 mm

113m (371ft)

45m(148ft)

23m(75ft)

11m(36ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚-360˚; Tilt: 0˚-90˚; Rotation: 0˚–360˚

Artificial Intelligence

Face Detection

Support face image capture

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queuing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Videos

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Resolution

2688×1520/2560×1440/2304×1296/1080P (1920×1080)/1.3M (1280×960)/720P (1280×720)/D1 (704×576/704×480)/VGA (640×480) )/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 2688 × 1520 (1 fps - 25/30 fps)

2560 × 1440 (1 fps - 25/30 fps)

1920 x 1080 (1 fps - 50/60 fps)

Sub Stream: D1 (1 fps - 25/30 fps)

D1 (1 fps - 50/60 fps)

Third Stream: 1080P (1 fps - 16 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps to 8192 Kbps

H.265: 19 Kbps to 8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (140dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNA

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a , G.711Mu , G.726 , AAC , G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE; 802.1x; SNMP

Interoperability

ONVIF ( Profile S/Profile G/Profile T ) , CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS; FTP; SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V ( ±30% ), PoE (802.3af) (Class 0)

Power Consumption

<9.5W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/Less than 95% RH

Storage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Vandal Resistance

IC10

Construction

Casing

Metal

Dimensions

244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)

Even Weight

0.815 kg (1.80 lb)

Gross Weight

1.08 kg (2.38 lb)

Characteristics

Lens 2.8 mm
Resolution 4MP
Camera type Cylindrical (bullet)
Product class PRO
AND lighting up to 50 years
AI features Through AI
Advantages Supports MicroSD up to 256GB
