Dahua Technology

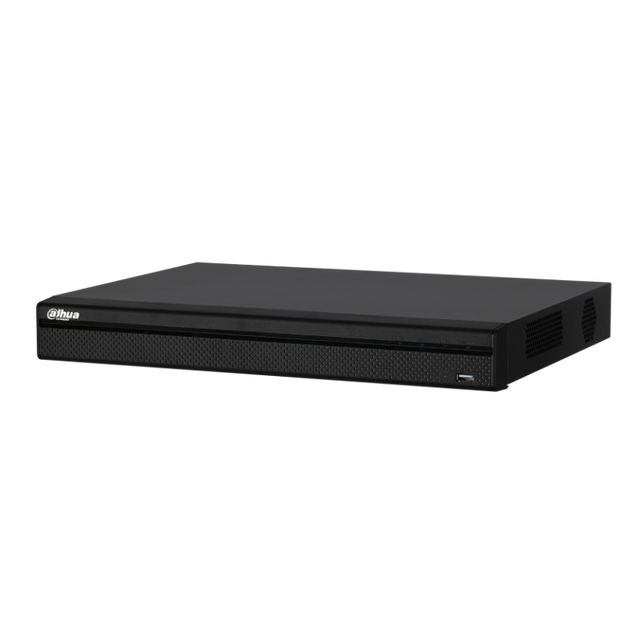

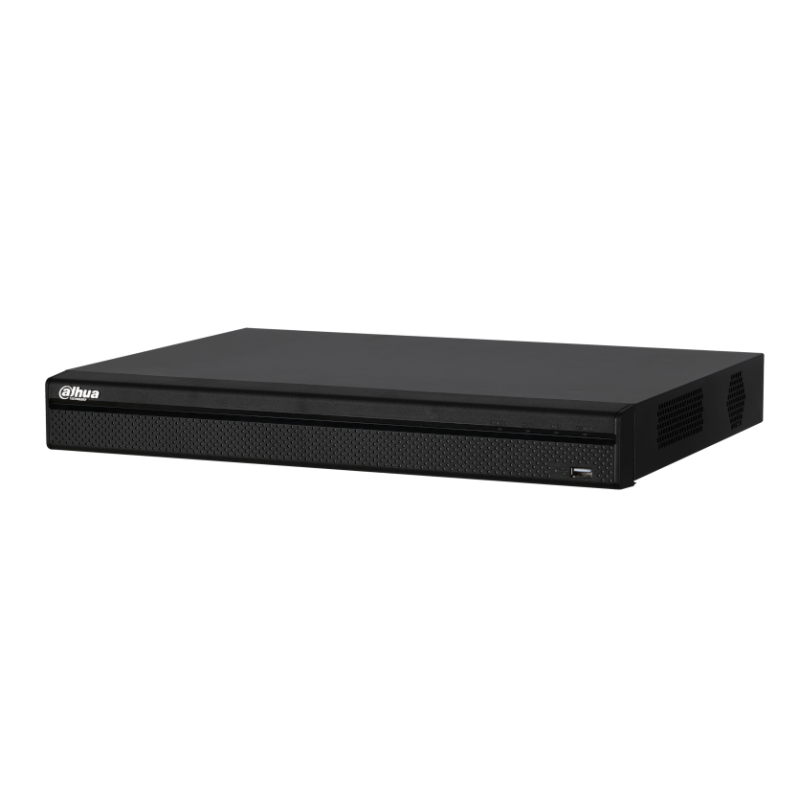

Dahua Technology NVR5216-4KS2, IP video camera recorder

Professional 16 channel network video recorder (NVR).

€434.39 EUR

Dahua Technology NVR5216-4KS2, IP video camera recorder - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Up to 12Mpx (4K) video recording. Video monitoring via the Internet and mobile phone through the application.

  • 1U, 16-channel, 4K NVR video recorder.
  • up to 12Mp resolution viewing/video playback.
  • max. 320Mbps incoming traffic.
  • HDMI/VGA video outputs.

DESCRIPTION

Professional 16 channel network video recorder (NVR). Up to 12Mpx (4K) video recording. Video monitoring via the Internet and mobile phone through the application. The new generation recorders are not only able to store and display video material, but also support smart functions and video analytics, which takes CCTV security solutions to a higher level. Additional inputs and interfaces of the network recorder allow the video surveillance system to be connected with other control, security and automation systems.


TECHNICAL DATA

SPECIFICATIONS

Technical characteristics:

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

8/16/32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280×720 , 1024×768

VGA: 1920 × 1080 , 1280 × 1024,

1280×720 , 1024×768

Decoding Capability

4-ch@8MP(30fps), 16-ch@1080P(30fps)

Multi-screen Display

8CH: 1/4/8/9

16CH: 1/4/8/9/16

32CH: 1/4/8/9/16/25/36

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

4 Channel

Relay Output

2 Channel

Playback and Backup

Sync Playback

8CH: 1/4/9

16/32CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Port (10/100/1000Mbps)

PoE

N/A

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, CIS, etc.), Easy4IP

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

2 SATA III Ports, Up to 10 TB capacity for each HDD

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 Rear USB 3.0, 1 Front USB 2.0)

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Electrical

Power Supply

Single, DC12V/4A

Power Consumption

<9.5W (Without HDD)

Fan

Smart fan, automatically adjust running speed

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 375mm x 281.5mm x 56mm ;

(14.8" x 11.1" x 2.2")

Even Weight

1.6kg (3.5lb) (without HDD)

Gross Weight

3.2kg (7.1lb) (without HDD)

Certifications

CE

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1

Characteristics

Number of channels 16
Product class PRO
Number of hard drives 2 HDDs
Data bandwidth
