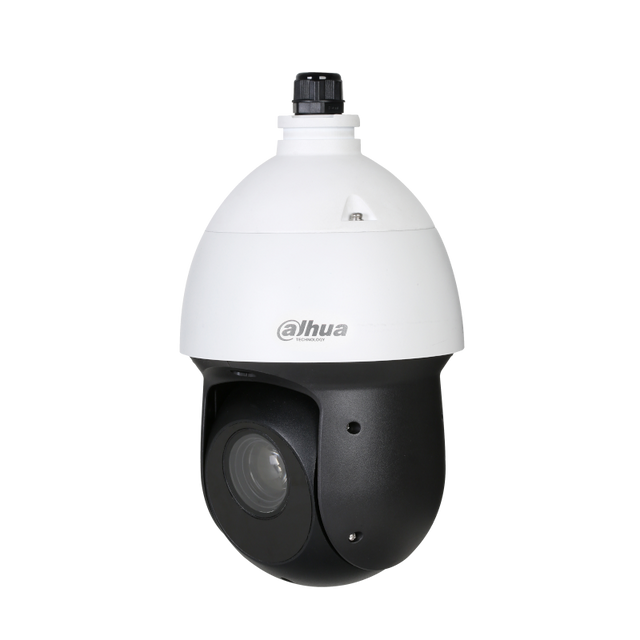

Dahua Technology SD49225XA-HNR, Controlled IP video camera

2 MP controllable IP dome video camera, variable focal length lens (4.

€589.27 EUR

Dahua Technology SD49225XA-HNR, Controlled IP video camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.8 mm - 120 mm), optical zoom up to 25x, IR illumination up to 100 m.

  • Perimeter protection: defined zone, intrusion (distinguishing whether a person or a vehicle crossed the zone). False alarms caused by animals, moving leaves, lights, etc. are filtered out;
  • SMD Plus is supported;
  • Face detection is supported;
  • Data: Capture and store images of detected people, motor and non-motor vehicles.

DESCRIPTION

2 MP controllable IP dome video camera, variable focal length lens (4.8 mm - 120 mm), optical zoom up to 25x, IR illumination up to 100 m. IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For this reason, they dominate the supply of CCTV solutions. You can find the relevant separately available parts in the list of related products below.

With built-in artificial intelligence (AI) features:
  • Perimeter protection : defined zone, intrusion (distinguishing whether a person or a vehicle crossed the zone). False alarms caused by animals, moving leaves, lights, etc. are filtered out;
  • SMD Plus is supported;
  • Face detection is supported;
  • Data : images of detected people, motor and non-motor vehicles are recorded and stored.



TECHNICAL DATA

Technical characteristics:

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Effective Pixels

2MP

Max. Resolution

1920(H)×1080(V)

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/1s to 1/30,000s

Scanning System

Progressive

Min. Illumination

Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux@F1.6 (IR light on)

IR Distance

100 m (328.08 ft)

IR On/Off Control

Zoom Prio/Manual/SmartIR

IR LEDs Number

6

Lens

Focal Length

4.8 mm - 120 mm

Max. Aperture

F1.6 to F4.4

Field of View

H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m - 1.5 m (0.33 ft - 4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1613 m (5291.99 ft)

646 m (2119.42 ft)

323 m (1059.71 ft)

161 m (528.22 ft)

PTZ

Pan/Tilt Range

Pan: 0°-360° (endless)
Tilt: -15°–90° (auto flip 180°)

Manual Control Speed

Pan: 0.1°-200°/s
Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern Number

5

Scanning Number

5

Speed ​​Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Artificial Intelligence

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD Plus

Support

Face Detection

Support

Video Metadata

Support human, motor vehicle and non-motor vehicle image capture.

Videos

Compression

H.265+/H.265/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576/704×480); CIF (352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P (1-50/60fps)
Sub stream 1: D1/CIF (1-25/30fps)
Sub stream 2: 1080P/1.3M/720P/D1/CIF (1-25/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.265/H.264: 3kbps to 20480kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

Ultra DNA (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization

Support

Electronic Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas, and up to 8 areas in the same view

Audio

Compression

G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPoE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Interoperability

ONVIF Profile S&G; CGI

Streaming Method

Unicast/Multicast

User/Host

19

Edge Storage

NAS; Local PC; Micro SD card (256G)

Browser

IE7 and newer versions
Chrome 45 and newer versions
Firefox 52 and earlier versions
Safari (no version restrictions)

Management Software

Smart PSS; DSS; DMSS

Smart Phone

IOS/Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Port

Audio In

1

Audio Out

1

Alarm Port

2/1

Power

Power Supply

DC 12V/3A
PoE+ (802.3at)

Power Consumption

13W
22W (IR on)

Environment

Operating Temperature

-40°C to +70°C (-40°F to +158°F)

Operating Humidity

≤95%

Ingress Protection

IP66; TVS 6000V lightning proof; Surge protection

Structure

Casing

Aluminum alloy ADC12

Dimensions

Φ160mm × 295mm (6.30" × 11.61")

Even Weight

3 kg (6.61 lb)

Gross Weight

4.8kg (10.58lb)

Characteristics

Lens Motorized lens
Resolution 2MP
Camera type Controlled (PTZ)
Product class LITE
AND lighting more than 80 years
AI features Lite AI
Advantages Supports MicroSD up to 256GB
