Dahua Technology

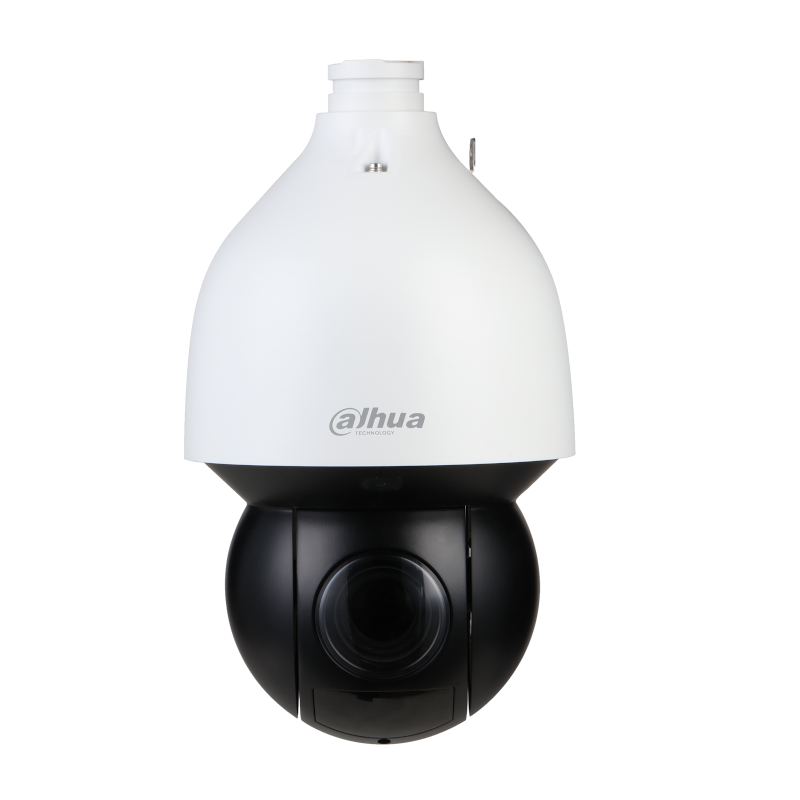

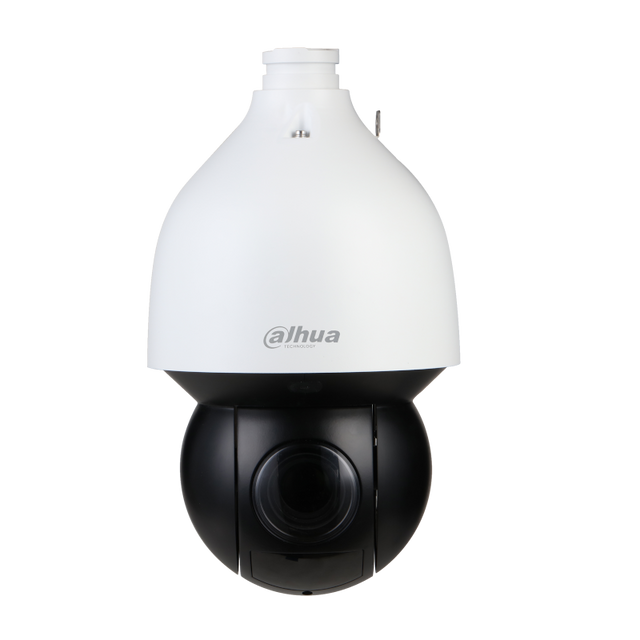

Dahua Technology SD5A445XA-HNR, Controlled IP video camera

4 MP controllable IP dome video camera, variable focal length lens (3.
€1,510.08 EUR

Dahua Technology SD5A445XA-HNR, Controlled IP video camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.95 mm - 177.7 mm), optical zoom up to 45x, IR illumination up to 150 m.


  • Perimeter protection: triggering an alarm selectively according to relevance (person or vehicle). Filtering of false alarms caused by animals, moving trees, lights (SMD Plus).
  • Automatic capture of events.
  • Face detection.
  • Optional saving of images of people, motor/non-motor vehicles.


DESCRIPTION

4 MP controllable IP dome video camera, variable focal length lens (3.95 mm - 177.7 mm), optical zoom up to 45x, IR illumination up to 150 m.

Additional smart features:

  • Perimeter protection: triggering the alarm selectively according to relevance (person or vehicle). Filtering false alarms caused by animals, moving trees, lights (SMD Plus).
  • Automatic capture of events.
  • Face detection.
  • Optional saving of images of people, motor/non-motor vehicles.


IP cameras are characterized by good image quality, video analytics, and easy integration in TCP/IP ethernet networks. For this reason, they dominate the supply of CCTV solutions. You can find the relevant separately available parts in the list of related products below.


TECHNICAL DATA

SPECIFICATIONS

Technical characteristics:

Camera

Image Sensor

1/2.8" STARVIS™ CMOS

Pixel

4MP

Max. Resolution

2560(H)×1440(V)

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/3 to 1/30000s

Scanning System

Progressive

Min. Illumination

Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux (IR light on)

Illumination Distance

150 m (492.13 ft)

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR

Illuminator Number

4

Lens

Focal Length

3.95 mm - 177.7 mm

Max. Aperture

F1.6 to F4.95

Field of View

H: 70.3°–1.8°; W: 37°-1°; D: 69.3°–2°

Optical Zoom

45x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.01 m - 3 m

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

3176

(10419.95 ft)

1270 m (4166.67 ft)

635 m (2083.33 ft)

317 m (1040.03 ft)

PTZ

Pan/Tilt Range

Pan: 0°-360°; Tilt: -15° to +90°

Manual Control Speed

Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s

Preset Speed

Pan: 400°/s; Tilt: 300°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed ​​Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D(Auto recognition)

General Intelligence

Event Trigger

Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.

IVS

Object Abandoned/Missing

Artificial Intelligence

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD Plus

Support

Auto Tracking

Support

Face Detection

Support

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Videos

Compression

H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream)

Streaming Capability

3 Streams

Resolution

4M (2560×1440); 3M (2048×1536); 1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576/704×480); CIF (352×288/352×240)

Frame Rate

Main stream: 4M/3M(1-25/30fps), 1080P/1.3M/720P(1-25/30fps)
Sub stream 1: D1/CIF(1-25/30fps)
Sub stream 2: 1080P(1-20/11fps),

1.3M/720P(1-25/30fps), D1/CIF(1-25/30fps)

Bit Rate Control

Variable/Constant

Bit Rate

H.264: 32 Kbps to 8192 Kbps
H.265: 32 Kbps to 8192 Kbps

Day/Night

Support

BLC

Support

WDR

120dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest (RoI)

Support

Image Stabilization

Electronic

Defog

Electronic

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014

Audio

Compression

G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2

Port

Audio Input

1 (LINE IN; bare wire)

Audio Output

1 (LINE OUT; bare wire)

Alarm I/O

2/1

Network

Ethernet

1 RJ-45 Port 10/100Base-T

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 48M)

Storage

FTP; Micro SD card (256G); P2P

Browser

IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari

Management Software

Smart Player
Smart PSS
DSS
Easy4ip

Mobile Phone

IOS/Android/Windows Phone

Power

Power Supply

AC24V/3A±25%
PoE+(802.3at)

Power Consumption

11W
20W (IR light on)

Environment

Operating Conditions

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤95%RH

Protection

IP67; IK10; TVS 6000V lightning protection;

surge protection

Structure

Dimensions

Φ190mm×332mm (7.48"×13.07")

Weight

Net Weight: 4.7 kg (10.36 lb)

Gross Weight: 8 kg (17.64 lb)

Casing

Metal

Characteristics

Lens Motorized lens
Resolution 4MP
Camera type Controlled (PTZ)
AND lighting more than 80 years
AI features Lite AI
Advantages Supports MicroSD up to 256GB
