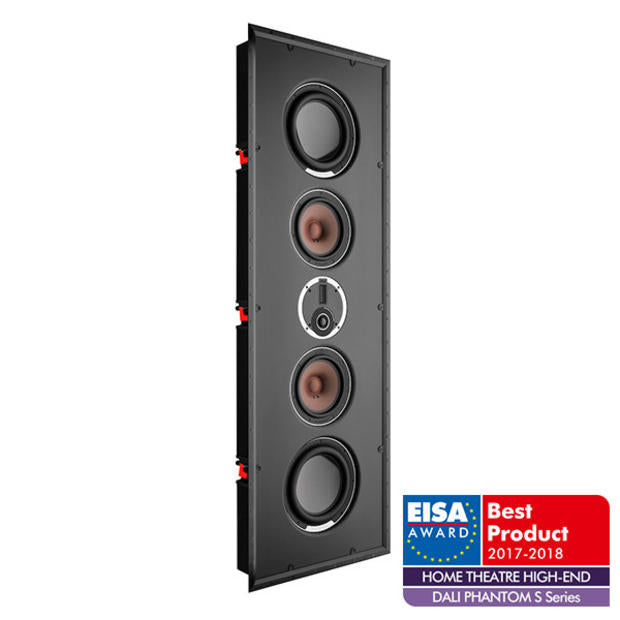

Dali PHANTOM S-280, built-in sound column

INFORMACIJA

True Dali sound.

• Recommended amplifier power: 40-400 W
• Frequency range: (±3 dB): 48 - 25,000 Hz.
• Sensitivity (2.83 V/1 m): 89 dB.
• Resistance: 8 Ohms.
• product dimensions: 527 x 1527 x 110 mm

VIDEO

DESCRIPTION

• - The DALI PHANTOM S-280 offers the ultimate performance when it comes to custom installing loudspeakers - without sacrificing valuable living room space. With the use of proven speaker technologies, such as our characteristic wood fiber cones, low-loss rubber surround, solid MDF front baffle, and superior magnet design - combined with our latest innovation including a SMC pole piece and our signature hybrid tweeter module - it delivers a no compromise in-wall audio performance out of this world.
• - The two primary 8" woofers are optimized for both bass and mid-range performance, and to further enhance the bass performance, we have paired them with two 10" passive woofers. This results in a full frequency response similar to that of a boxed floorstanding speaker, which ensures that the PHANTOM S-280 really stands out from the crowd.
• - The ultra slim cabinet design fits into almost any standard wall. All models are built around a rotatable hybrid tweeter module making them easy to install for any audio use – be it stereo, center channel or surround.

TECHNICAL DATA

SPECIFICATIONS

• - Frequency Range (±3 dB): 48 - 25,000 Hz
• - Sensitivity (2.83 V/1 m): 89 dB
• - Nominal Impedance: 8 Ohm
• - Maximum SPL: 112 dB
• - Recommended Amplifier Power: 40 - 400 W
• - Crossover Frequency: 3,000 / 15,000 Hz
• - Hybrid tweeter module, High frequency driver: 1 x 17 x 45 mm
• - High frequency driver: 1x 29 mm
• - Low frequency driver: 2x 8"
• - Low frequency passive driver: 2x 10"
• - Enclosure type: Closed Box With Dual Passive Radiators
• - Connection Input: Single Wire
• - Recommended Placement: In-Wall, Center / Soundbar
