DD Audio  |  Bar code: 0850054251657

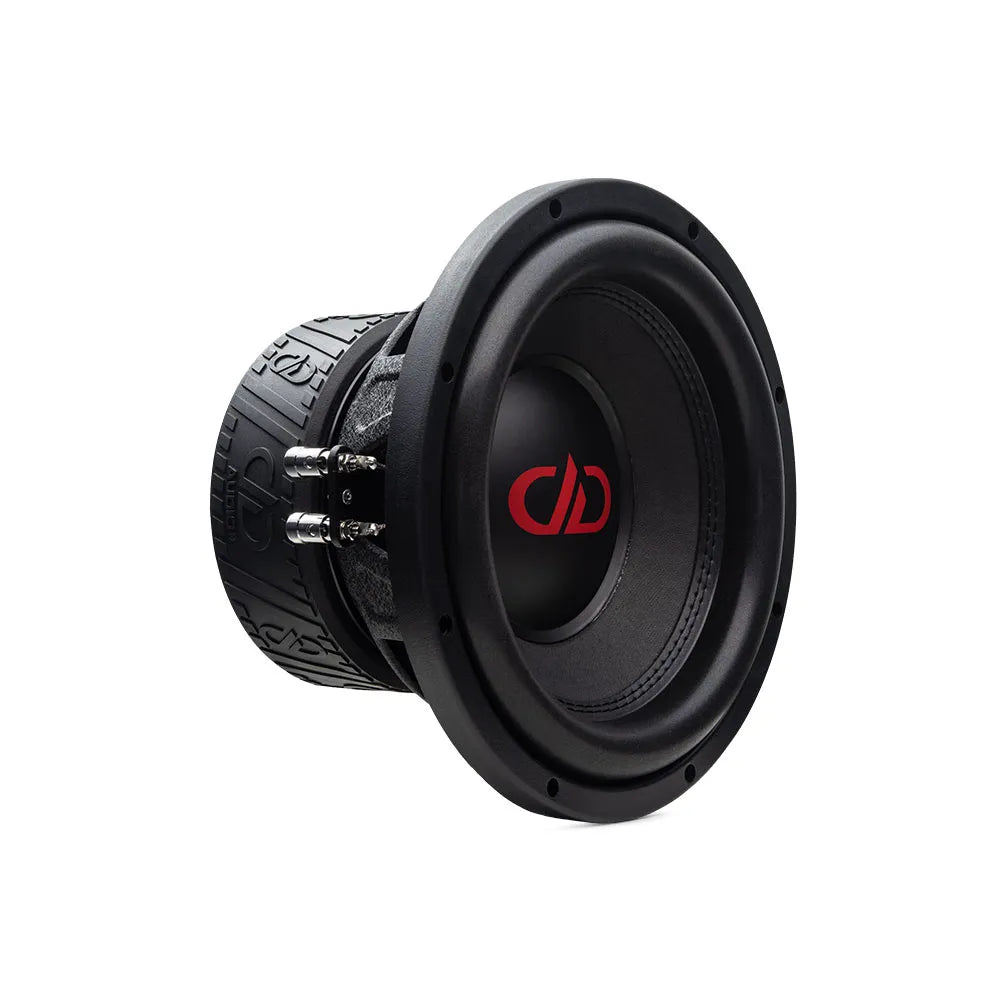

DD Audio 310e-D4

Naujoji 300 serijos „e“ versija su 10 colių garsiakalbiu suteikia galingą bosą ir didesnį efektyvumą. Patobulinta konstrukcija užtikrina aukštą kokybę ir ilgaamžiškumą

€139.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The all-new 300 Series “e” versions introduce 10” and 12” models with 2.5” voice coils and 100oz magnetic motors. These new speakers feature increased sensitivity, Xmax, and excursion control to deliver powerful bass from more efficient enclosures using 250 to 500 Watts RMS. Updates to this series include fiberglass-loaded non-pressed treated paper cones, taller and thicker EROM surrounds with black stitching, heavier double-layer spiders with integrated tinsel leads, and new baskets and motor boots that enhance cosmetics with DD branding.

Free Flow Cooling System
High-temp Voice Coil
Dual Layer Spider System With Integrated Tinsel Leads
Extended Pole Piece
DD Logo Basket
Double Stitched EROM Surrounds
Fiberglass Loaded Non-Pressed Cones
Embossed DDesign Magnet Boot
500W RMS

Technical specifications

Speaker Size (In): 10
Watts RMS: 500
Watts Peak: 1500
Impedance: D4
VCD (In): 2.5
Fs (Hz): 39
Qms: 5.18
Qes: 0.688
Qts: 0.61
Vas (Liters): 11.43
BL (TM): 25
Xmech (MM): 30
Xmax (MM): 14
Frame OD (In): 11.17
Frame OD w/ Gasket (In): 12.125
Mounting Diameter (In): 11.02
Mounting Depth (In): 6.53
Motor Diameter (In): 6.14
Motor Depth (In): 2.59
Magnet Weight (Oz): 100
Woofer Displacement (CuFt): 0.07
Ported Enclosure (CuFt): 1.25 - 1.5
Shipping Weight (Lbs): 17.5
