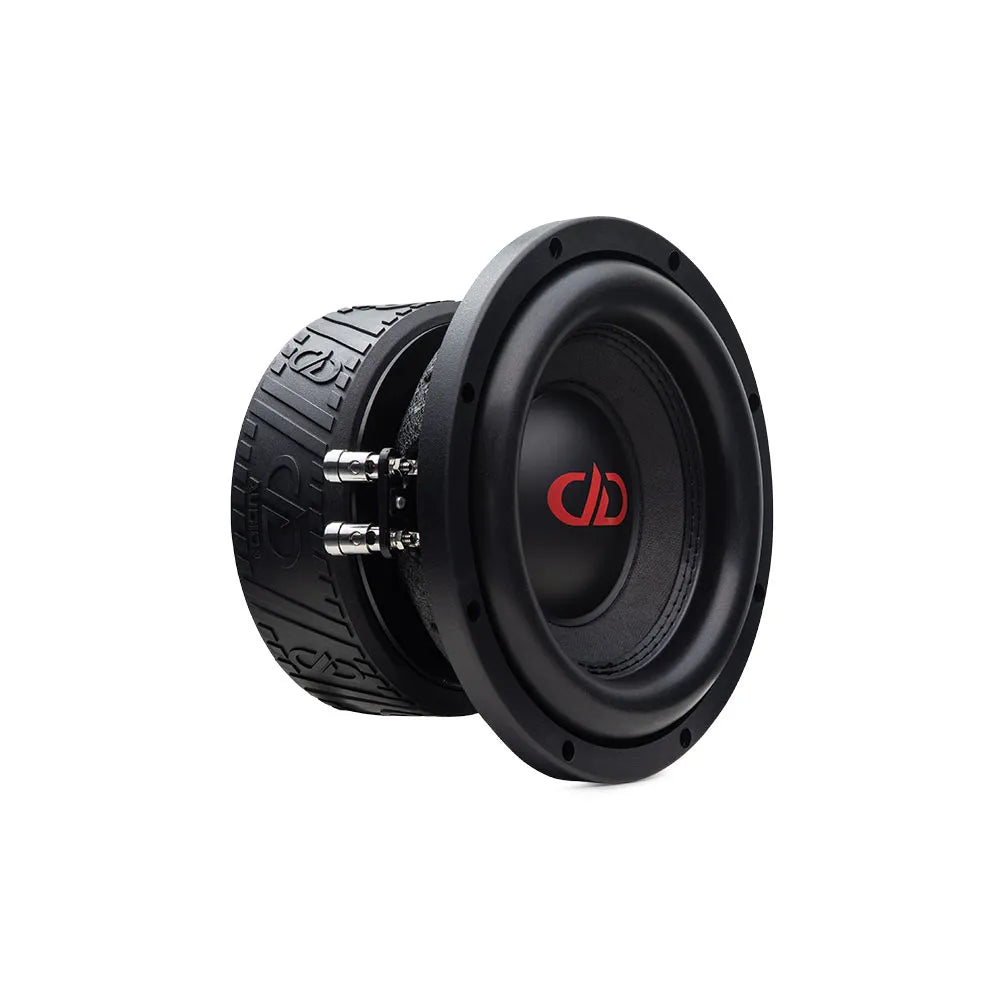

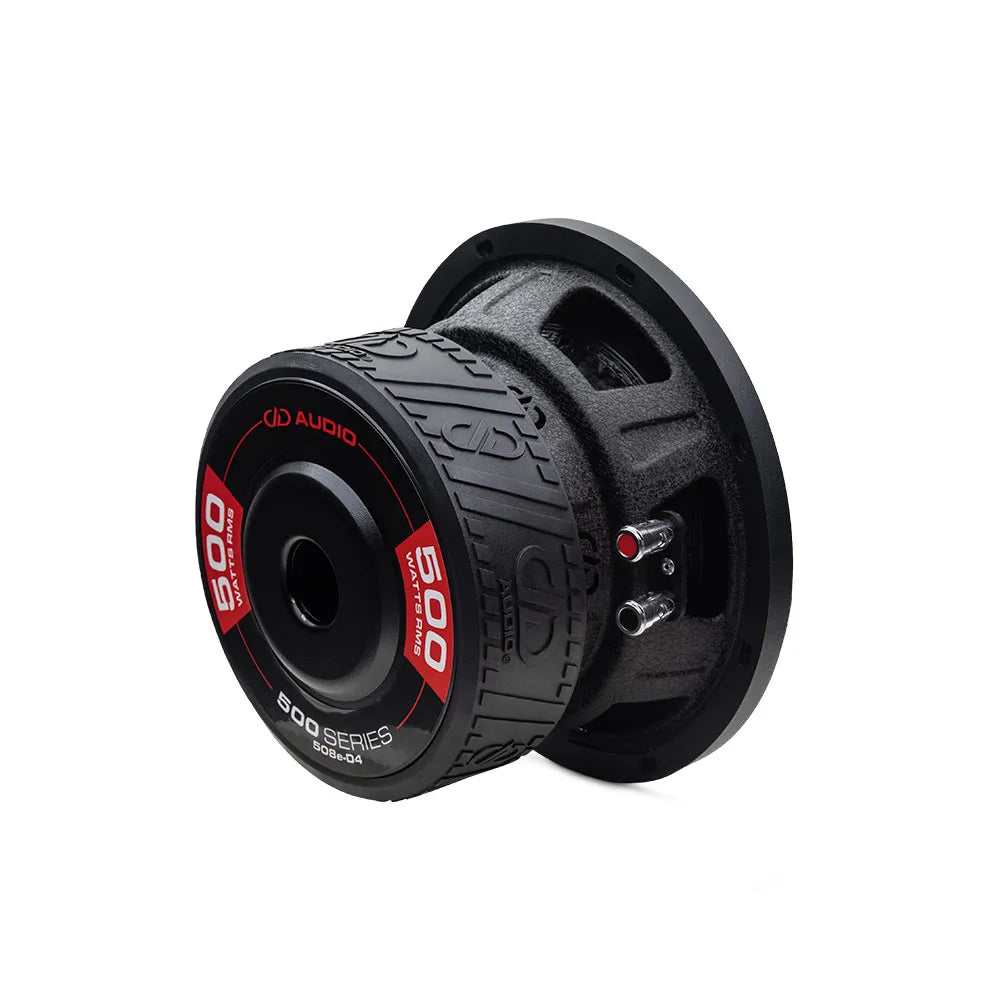

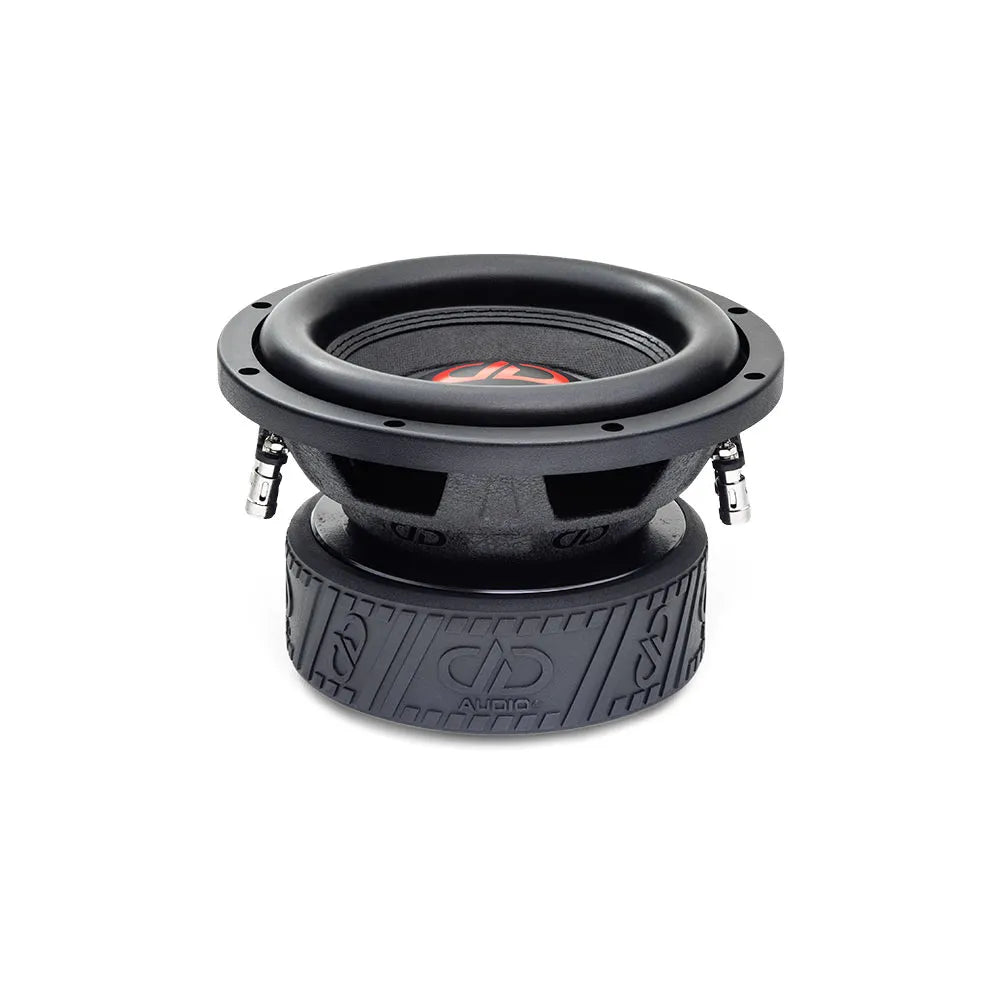

DD Audio 508e-D4

The new 500 Series “e” version with an 8-inch model and increased Xmax provides 50% more power. The speaker features an improved design and high-quality components.

€129.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The all-new 500 Series “e” version introduces an 8” model featuring 2.5” voice coils and a 100oz magnet, as well as 10”, 12”, and 15” models with 3” voice coils and 120oz motor systems. These new speakers include a 12mm top plate and longer coil windings, resulting in a 50% increase in Xmax. Power handling is increased to 500W for the 508 model and 700W for the 510, 512, and 515 models. Updates to this series include a cone with fiberglass-reinforced non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual-layer spiders with integrated tinsel leads, and new baskets and motor boots that enhance cosmetics with DD branding.

- Free Flow Cooling System
- High-temp Voice Coil
- Dual Layer Spider System With Integrated Tinsel Leads
- Extended Pole Piece
- DD Logo Basket
- Double Stitched EROM Surrounds (508e)
- Fiberglass Loaded Non-Pressed Cones
- Embossed DDesign Magnet Boot
- 700W RMS (500W RMS 508e)

Specifications

Speaker Size (In): 8
Watts RMS: 500
Watts Peak: 1500
Impedance: D4
VCD (In): 2.5
Fs (Hz): 44
Qms: 5.01
Qes: 0.82
Qts: 0.71
Vas (Liters): 4.19
BL (TM): 24
Xmech (MM): 22
Xmax (MM): 14
Frame OD (In): 8.25
Frame OD w/ Gasket (In): 8.375
Mounting Diameter (In): 7.125
Mounting Depth (In): 4.875
Motor Diameter (In): 6.125
Motor Depth (In): 2.5
Magnet Weight (Oz): 100
Woofer Displacement (CuFt): 0.04
Ported Enclosure (CuFt): 0.5 - 1.0
Shipping Weight (Lbs): 14
