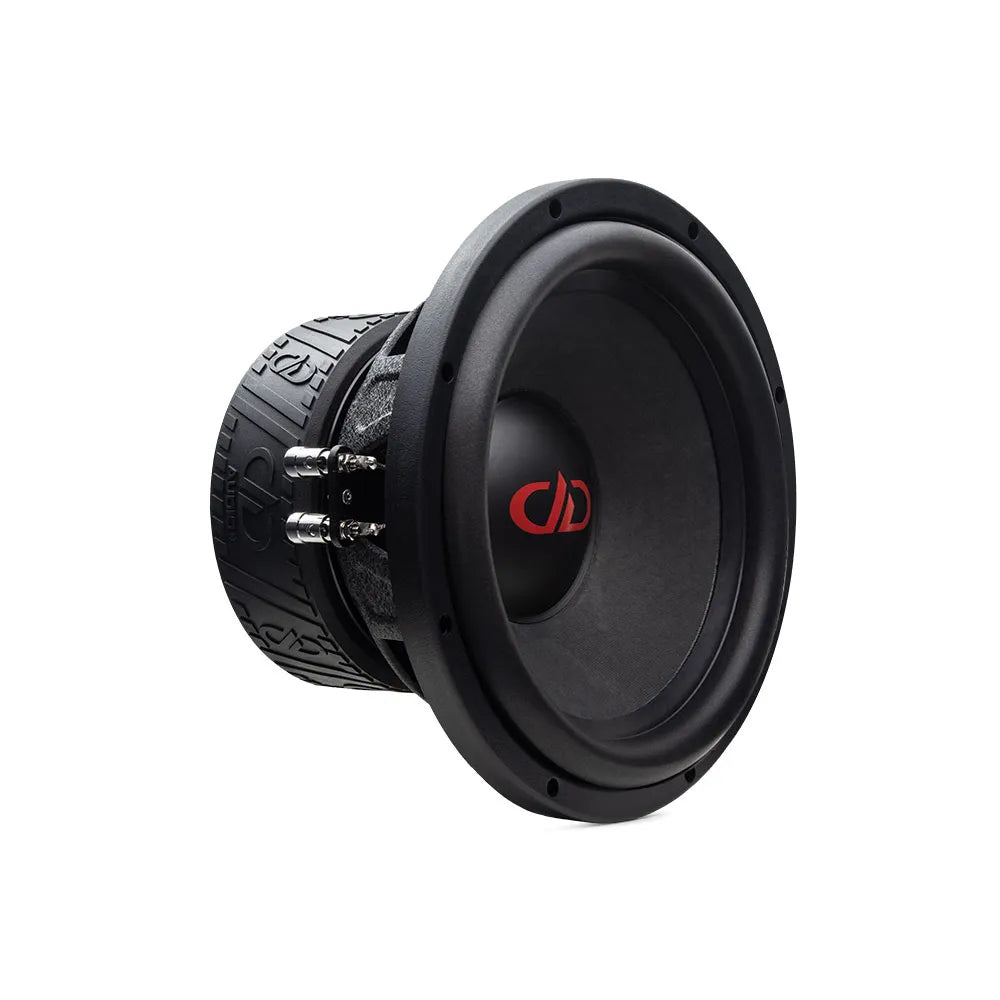

DD Audio 510e-D4

INFORMACIJA

The completely new 500 series "e" version introduces an 8” model with 2.5” voice coils and a 100oz magnet, as well as 10”, 12”, and 15” models with 3” voice coils and 120oz magnetic motors. These new speakers feature a 12mm top plate and longer coil windings, which provide a 50% Xmax increase. Power increases to 500W for the 508e model and 700W for the 510, 512, and 515 models. Updates to this series include cones with fiberglass-reinforced non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier double-layer spiders with integrated tinsel leads, and new baskets and motor covers that improve cosmetics with DD branding.

- Free Flow Cooling System
- High-temp Voice Coil
- Dual Layer Spider System With Integrated Tinsel Leads
- Extended Pole Piece
- DD Logo Basket
- Double Stitched EROM Surrounds (508e)
- Fiberglass Loaded Non-Pressed Cones
- Embossed DDesign Magnet Boot
- 700W RMS (500W RMS 508e)

Specifications

Speaker Size (In): 10
Watts RMS: 700
Watts Peak: 2100
Impedance: D4
VCD (In): 3
Fs (Hz): 38
Qms: 4.96
Qes: 0.76
Qts: 0.65
Vas (Liters): 37.1
BL (TM): 25
Xmech (MM): 30
Xmax (MM): 18
Frame OD (In): 10
Frame OD w/ Gasket (In): 10.4
Mounting Diameter (In): 8.93
Mounting Depth (In): 5.9
Motor Diameter (In): 7
Motor Depth (In): 2.375
Magnet Weight (Oz): 120
Woofer Displacement (CuFt): 0.7
Ported Enclosure (CuFt): 1.25 - 1.5
Shipping Weight (Lbs): 14
