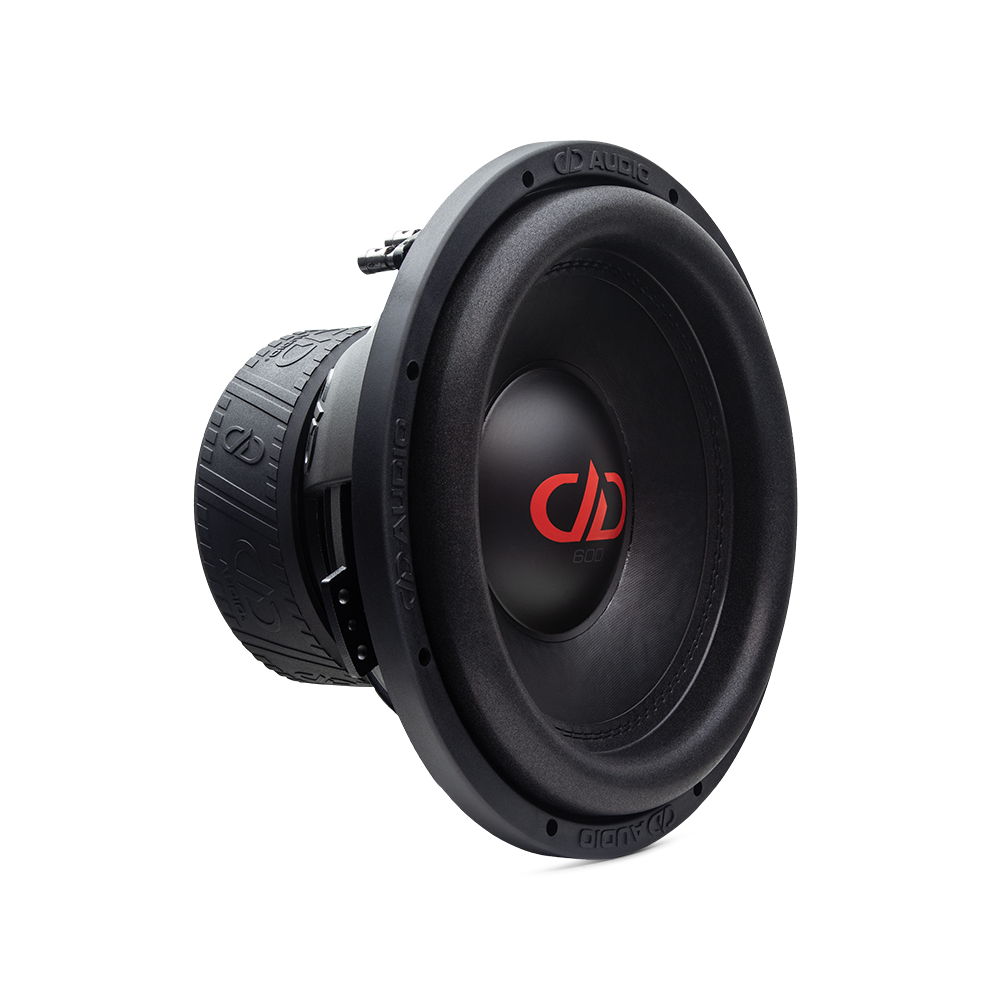

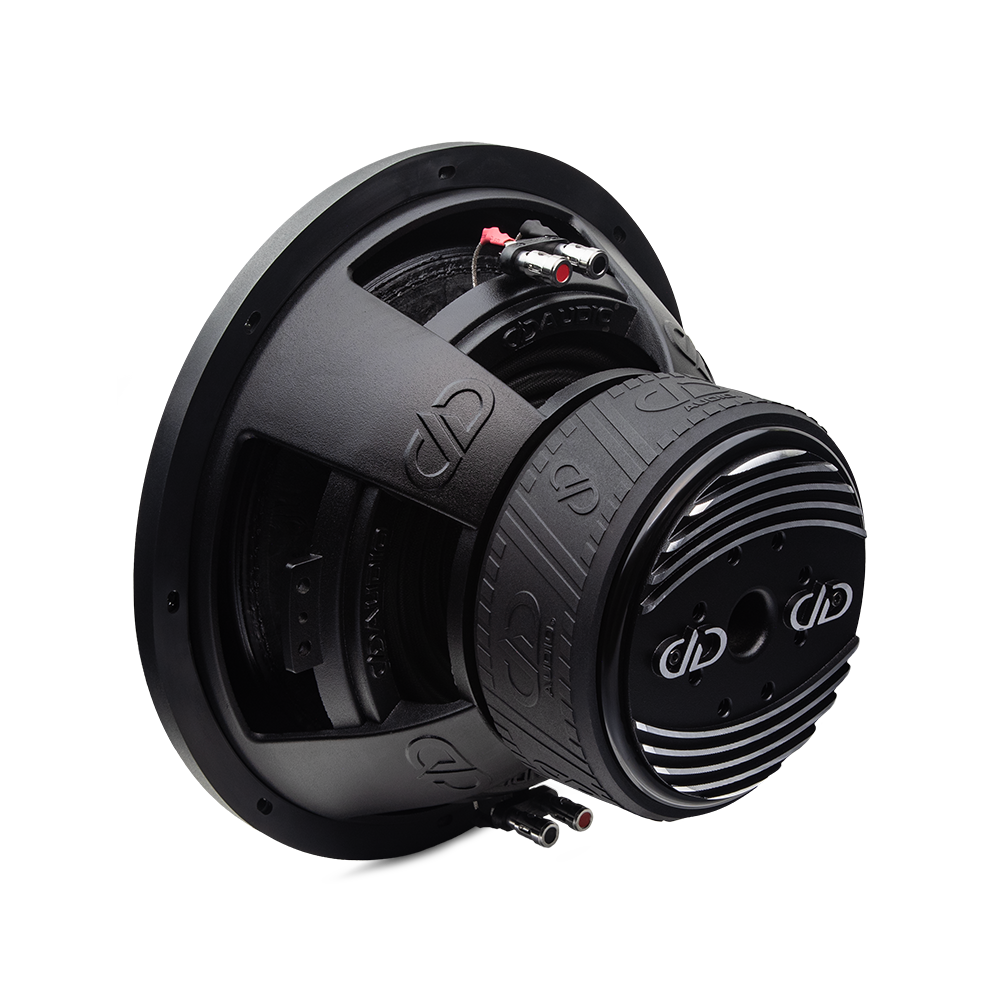

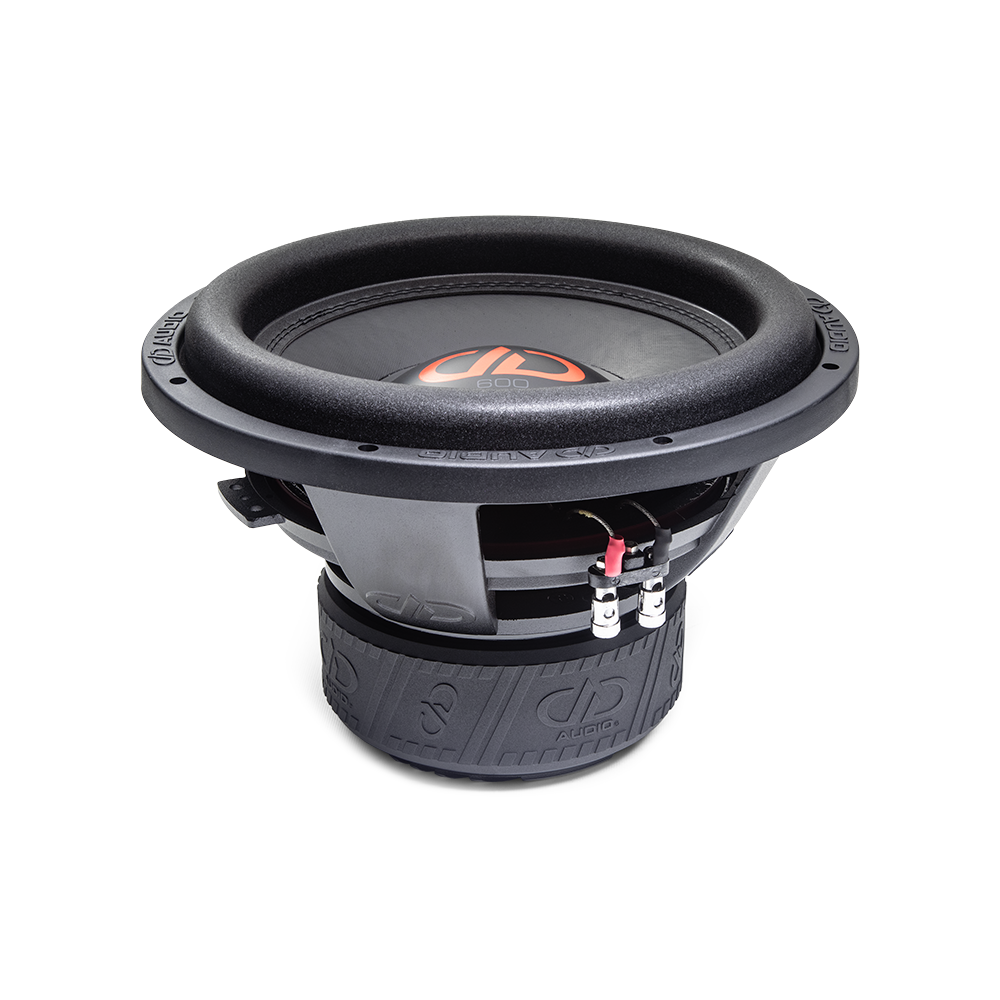

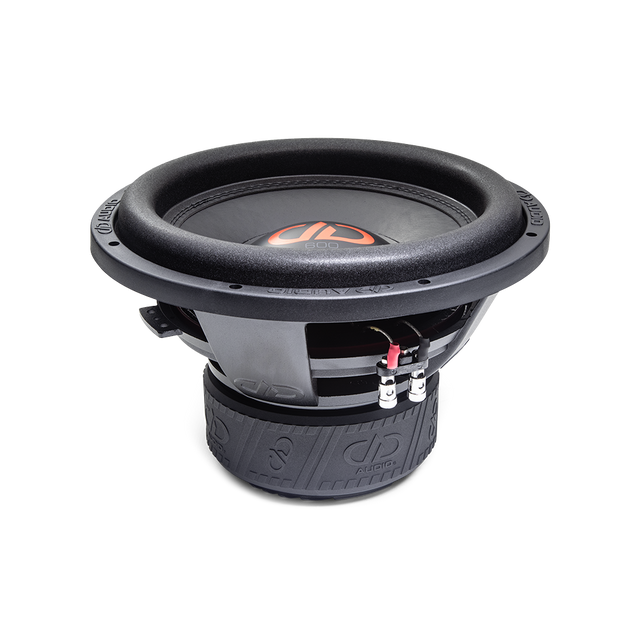

DD Audio 612f-D4

INFORMACIJA

The 600f series offers a wide range of DD AUDIO's most popular Power Tuned subwoofers, designed for exceptional power handling to become the daily choice for serious bassheads.


REVISION 'F'
Previous revisions of the 600, 700, and 800 series subwoofers made them bigger and better, and in this latest "f" revision, they received precisely engineered thermal cooling enhancements that make a significant difference, along with some design solutions that are simply advanced.

THERMAL TRANSFER
The "f" revision subwoofers were specifically designed to ensure better thermal transfer. A two-stage aluminum heat dissipation system works to transfer heat from the soft components to open chambers where a free air cooling system pushes cooler air to dissipate this heat.

INCREASED XMAX
As the top plate thickness was increased, the voice coil winding was extended so that more of the coil wire remains within the gap. More coil wire surrounding both the motor steel and billet aluminum draws more heat.

Specifications

- 12″ subwoofer
- 2.5″ voice coil wound of Made in USA wire
- 2x 4 ohms
- alucast frame with dd-logos
- power handling 1000 W RMS, 3000 W Peak
- weight: N/A
- mounting diameter: 292.1mm
- mounting depth: 187 mm
- x-mech: 60 mm
- x-max: +- 22 mm
- fs: 31 Hz
- qts: 0,4075
- vas: 81.16 Liter
- recommended ported enclosure: 49-78 liter ( NET )
- recommended sealed enclosure: N/A
