DD Audio  |  Bar code: 0850054251336

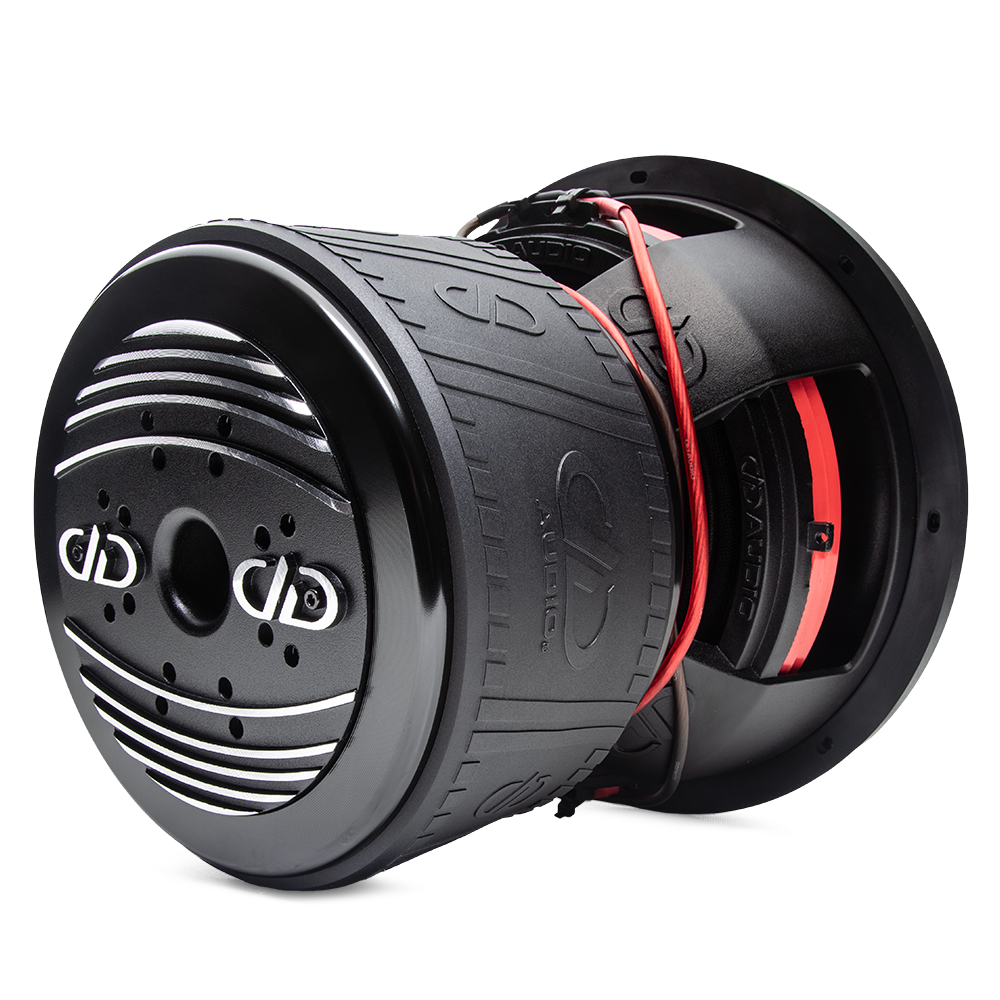

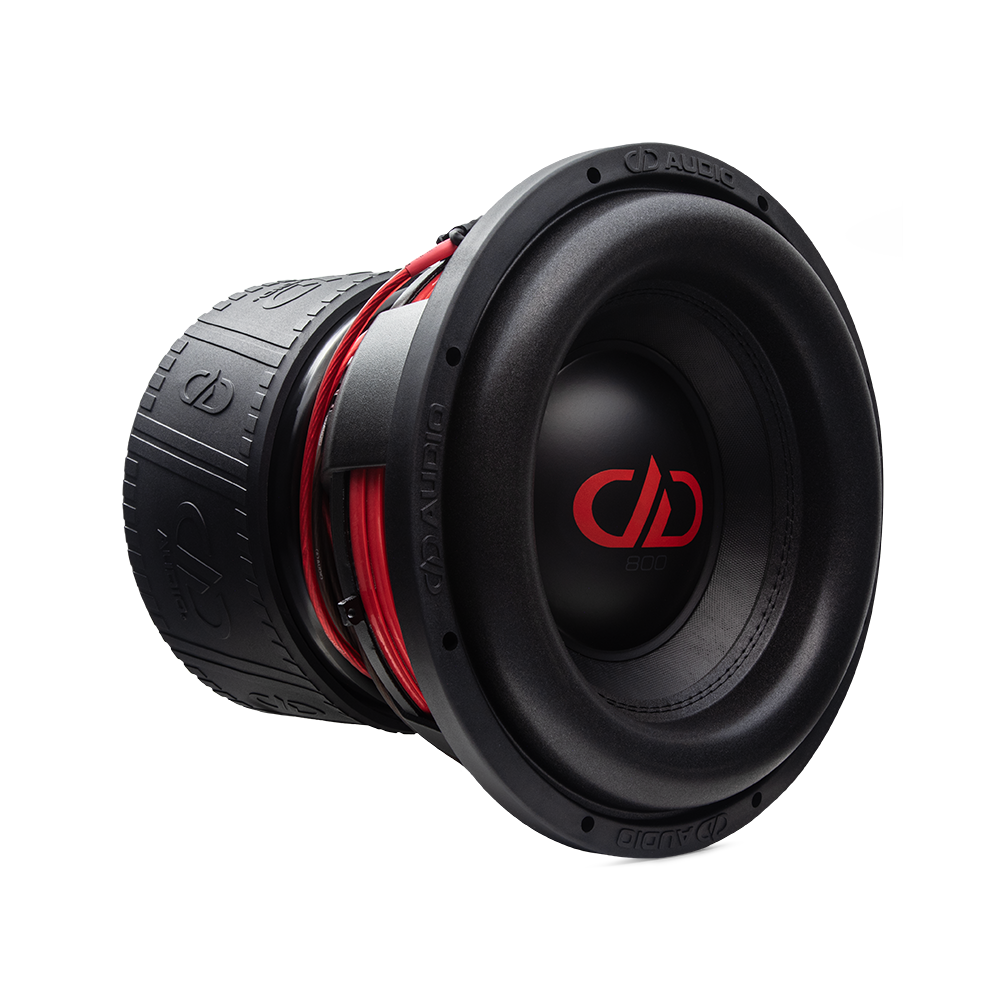

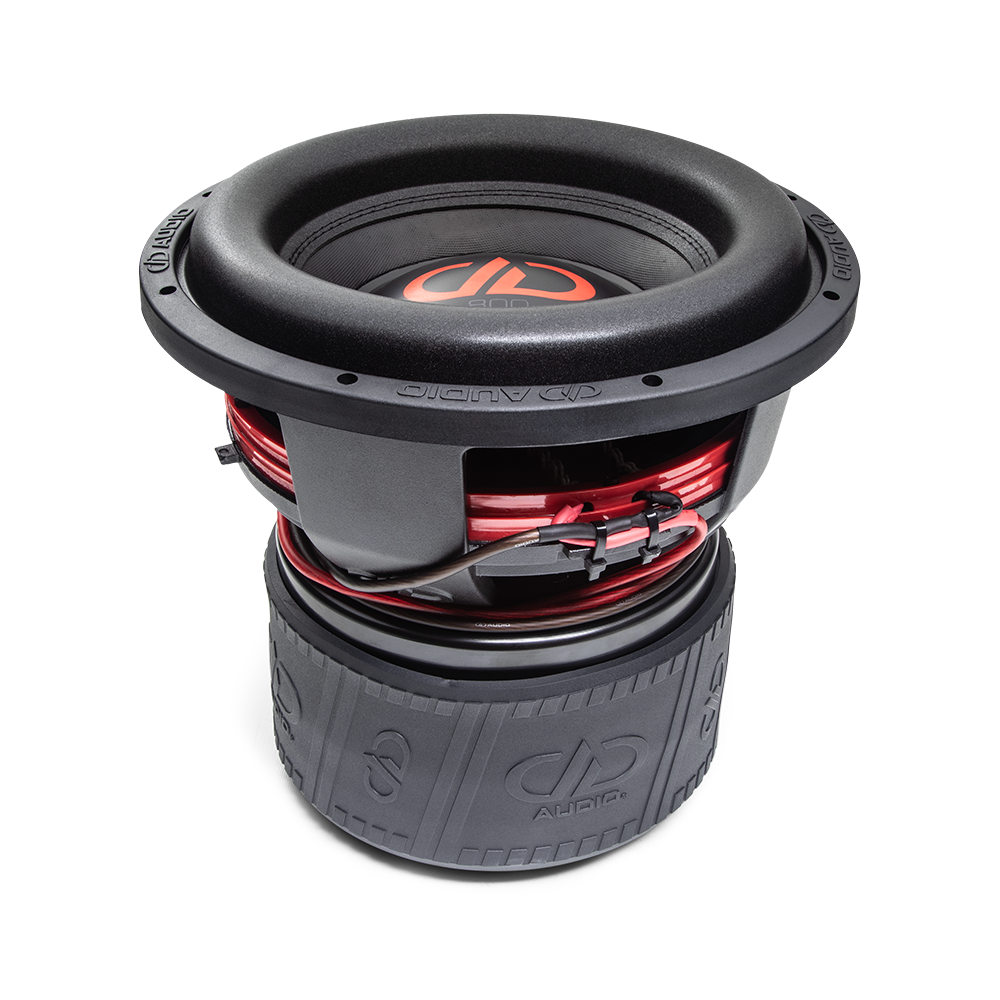

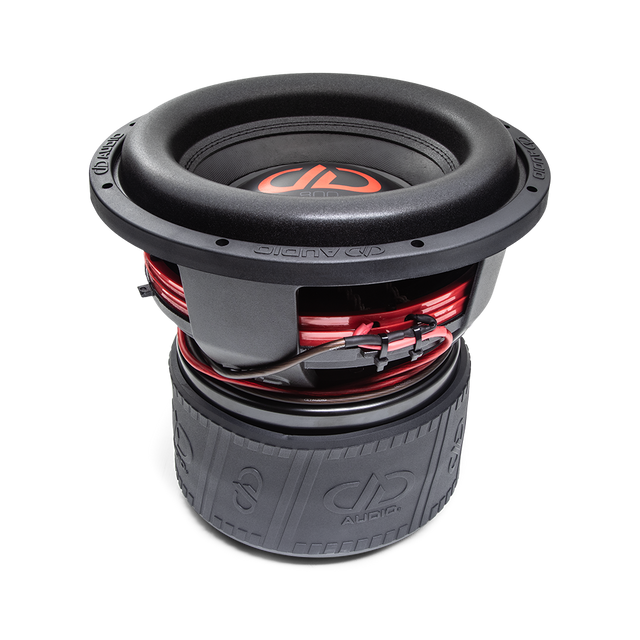

DD Audio 812f-D1

Powerful 800-series subwoofer designed for extreme sound and exceptional power handling. The latest 'f' revision with advanced thermal cooling solutions and increased Xmax ensures an unparalleled experience.

€799.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The 800 Series offers some of DD AUDIO's most extreme Power Tuned subwoofers, engineered for exceptional power handling with competitive bassheads in mind.

REVISION 'F'
Previous revisions of the 600, 700, and 800 series subwoofers made them bigger and better, and in this latest "f" revision, they received precisely engineered thermal cooling improvements that make a significant difference, along with some design solutions that are simply advanced.

THERMAL TRANSFER
The "f" revision subwoofers were specifically designed to provide better thermal transfer. A two-stage aluminum heat dissipation system works to transfer heat from the soft components to open chambers where a free-air cooling system pushes cooler air to displace this heat.

INCREASED XMAX
As the top plate thickness was increased, the coil winding was lengthened to keep more coil wire within the gap. More coil wire surrounding both the motor steel and billet aluminum draws more heat.

Specifications

- 12″ subwoofer
- 4″ voice coil wound of Made in USA wire
- 2x 1 ohms
- alucast frame with dd-logos
- power handling 2500 W RMS, 7500 W Peak
- weight: N/A
- mounting diameter: 288 mm
- mounting depth: 279.4 mm
- x-mech: 100 mm
- x-max: +- 31 mm
- fs: 34 Hz
- qts: 0.548
- vas: 18.84 Liter
- recommended ported enclosure: 49-85 liter ( NET )
- recommended sealed enclosure: N/A
