DD Audio  |  Bar code: 0850054251350

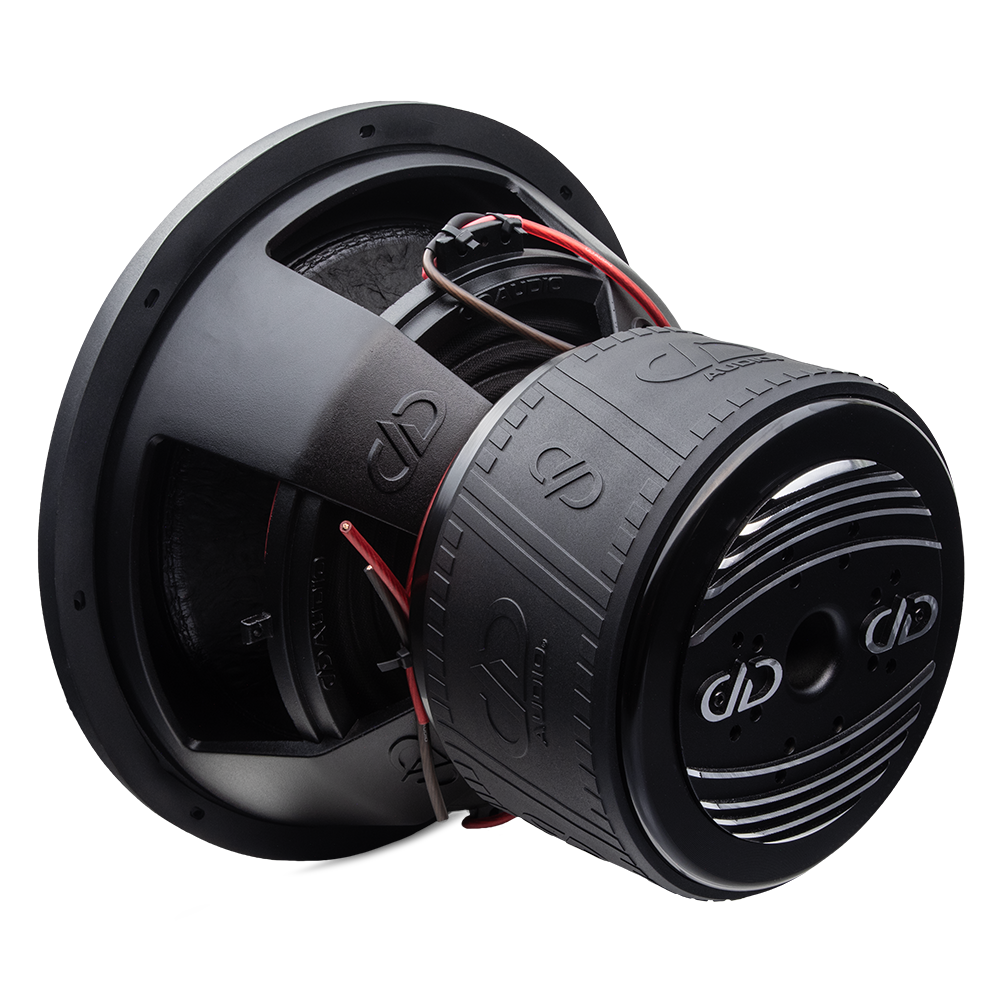

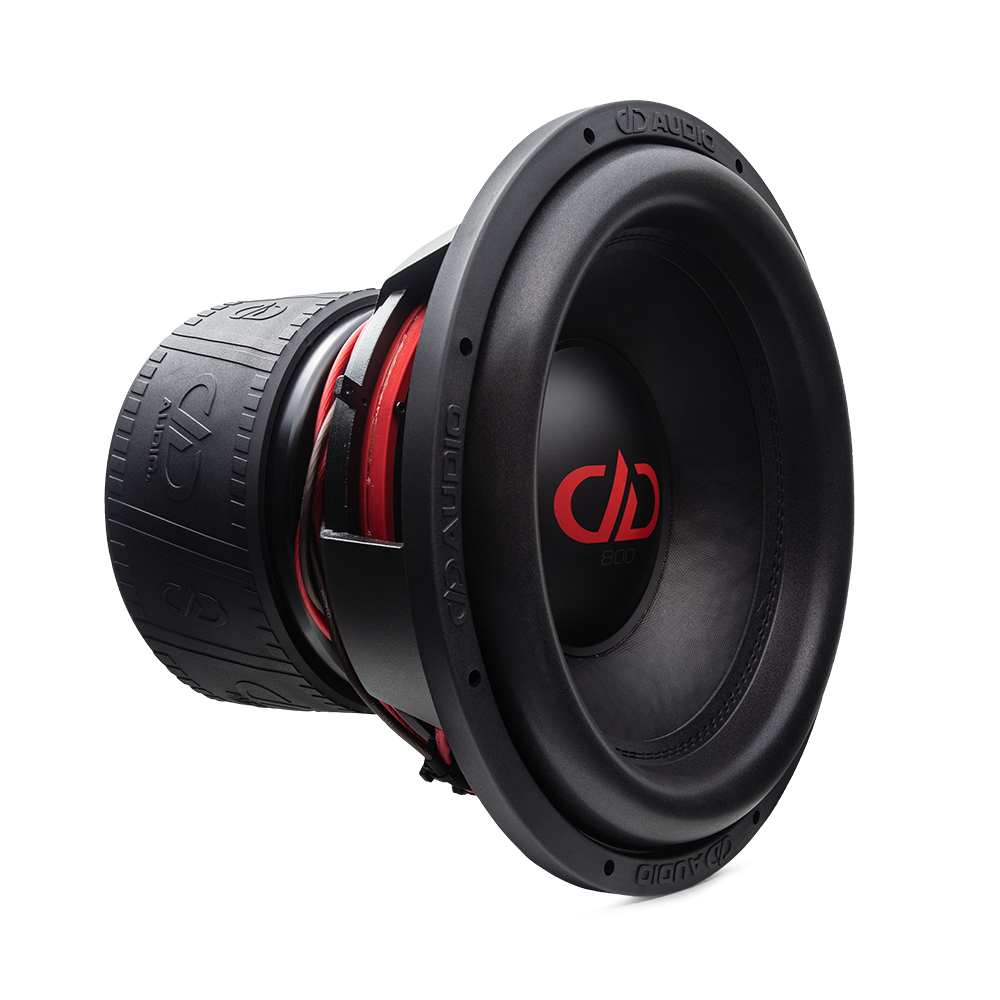

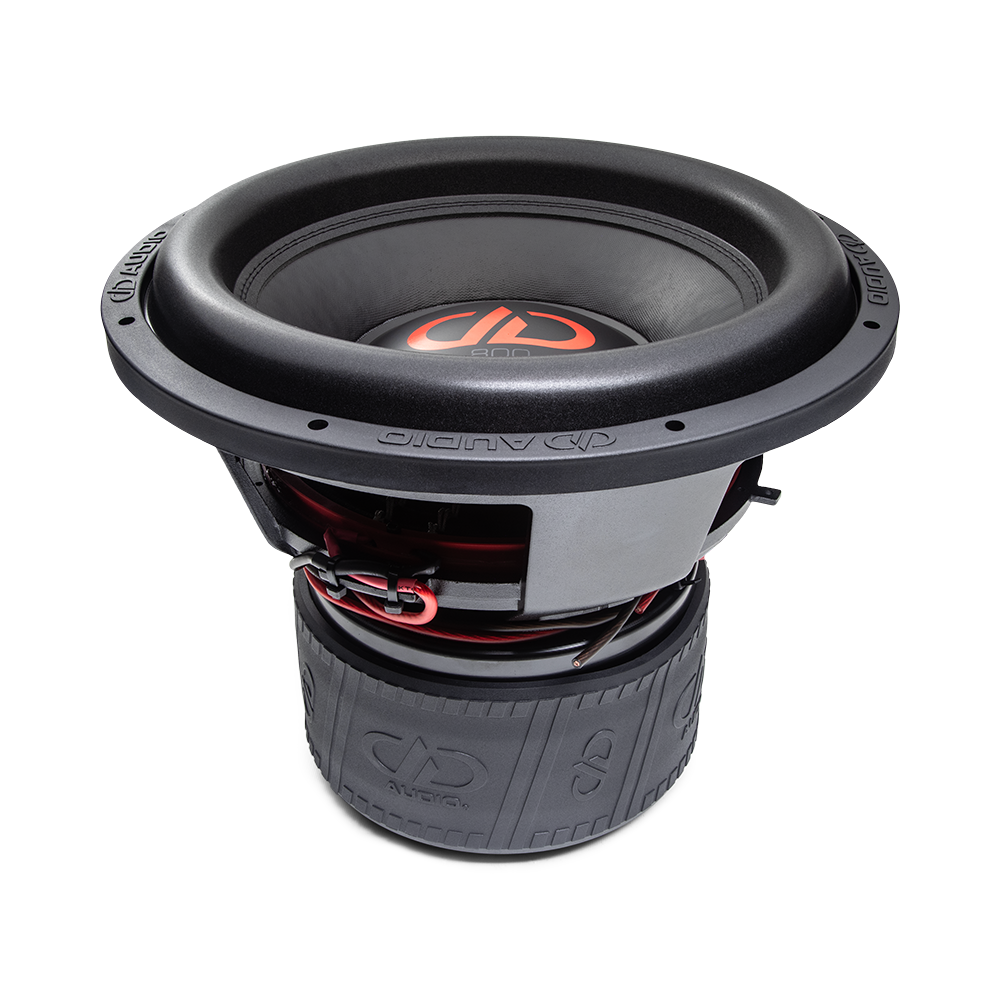

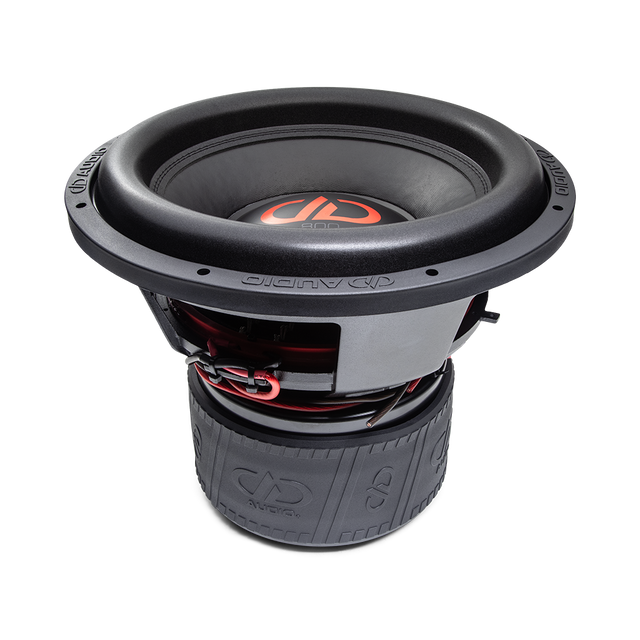

DD audio 815f-D1

Powerful subwoofer with an advanced cooling system and extended excursion, designed for extreme sound. Ideal for those seeking exceptional power and durability.

€899.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The 800 series offers some of DD AUDIO's most extreme Power Tuned subwoofers, designed for exceptional power handling with competitive bassheads in mind.

REVISION ‘F’
Previous revisions of the 600, 700, and 800 series subwoofers have made them bigger and better, and in this latest 'f' revision, they've received precision-engineered, impactful thermal cooling enhancements, along with some design solutions that are simply advanced.

THERMAL TRANSFER
The 'f' revision subwoofers have been specifically designed to provide improved thermal transfer. A two-stage aluminum heatsink system works to transfer heat from the soft components to open chambers, where a free-air cooling system pushes cooler air to dissipate this heat.

INCREASED XMAX
As the top plate thickness was increased, the coil winding was extended to keep more coil wire within the gap. More coil wire surrounding both the motor steel and billet aluminum draws more heat.

Specifications

- 15″ subwoofer
- 4″ voice coil wound of Made in USA wire
- 2x 1 ohms
- alucast frame with dd-logos
- power handling 2500 W RMS, 7500 W Peak
- weight: N/A
- mounting diameter: 350 mm
- mounting depth: 292.1 mm
- x-mech: 100 mm
- x-max: +- 31 mm
- fs: 34 Hz
- qts: 0,608
- vas: 62.66 Liter
- recommended ported enclosure: 85-170 liter ( NET )
- recommended sealed enclosure: N/A
