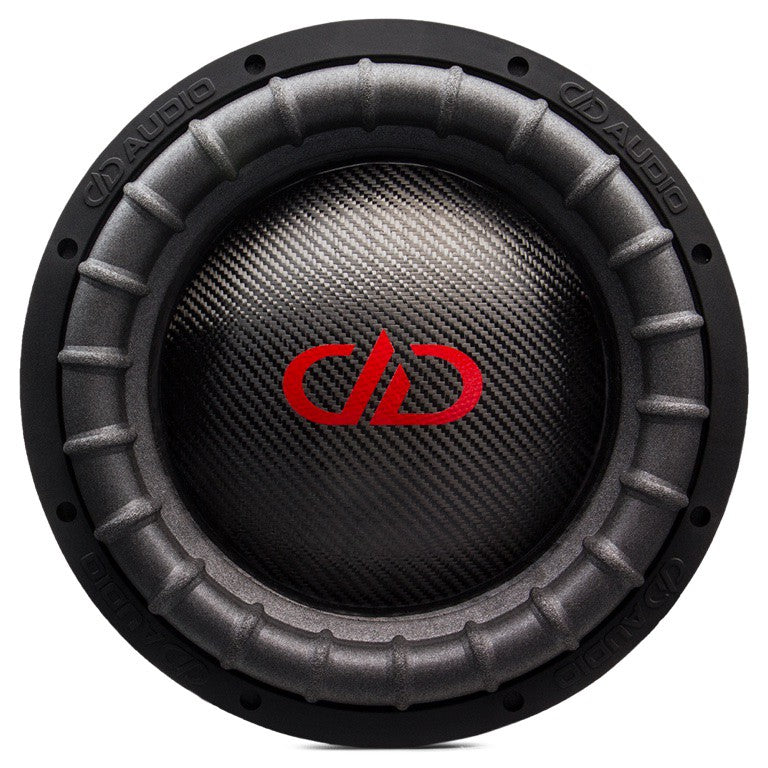

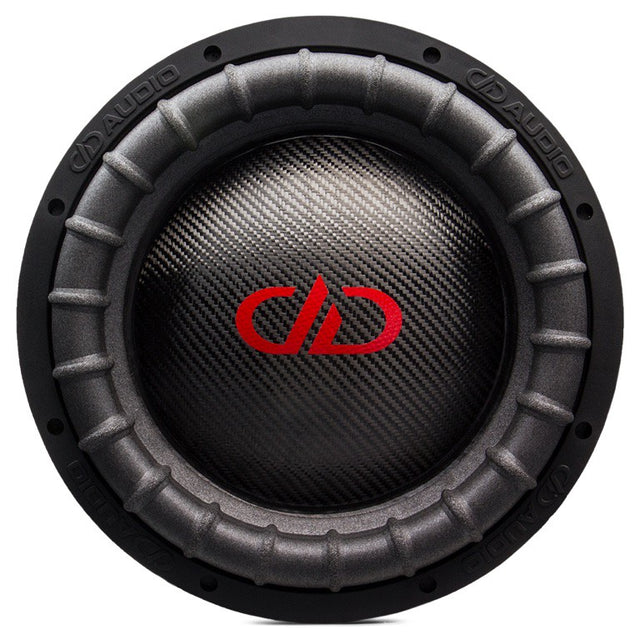

DD Audio 9510K D2 ESP

INFORMACIJA

Often imitated but never duplicated, the 9500 has long been the mainstay of our subwoofer line and has been used in many of the world's most famous systems. These subwoofers can easily handle 1000-2000 watts of continuous power and bursts up to 8000 watts. As expected, these powerful subwoofers are equipped with all sorts of amazing features such as EROM and V-ROM surrounds, Free Flow motor cooling, dual slit-style vents, eight-layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, stiff non-pressed cones, and our multi-layered spider system.

The 9500 series features our Evolution Subwoofer Package (ESP). Speakers equipped with ESP have larger diameter surrounds and deeper frames than standard subwoofers, and exclusive surround and cone designs. ESP subwoofers are truly built for maximum performance within their intended size class.

The 9500 series comes standard with a large dry black composite dustcap, red logo, and treated cellulose cone, but can be optioned with alternate composite dustcaps, composite cones, powder coating, supercharging, and a variety of logo options to give your subwoofer a custom look and/or additional performance for a specific application.

Technical data

-10″ subwoofer
- cast frame
- 2 x 2 ohm voicecoil
- 3.35″ voice coil diameter
- driver displacement: 5.4 liter
- recommended ported enclosure 35-43 liters ( NET )
- power handling 2000 W RMS
- peak power handling 8000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0,431
- Fs: 37,68 Hz
- Vas: 18,943 liters
- mounting depth 223 mm
- cutout diameter 359 mm.
