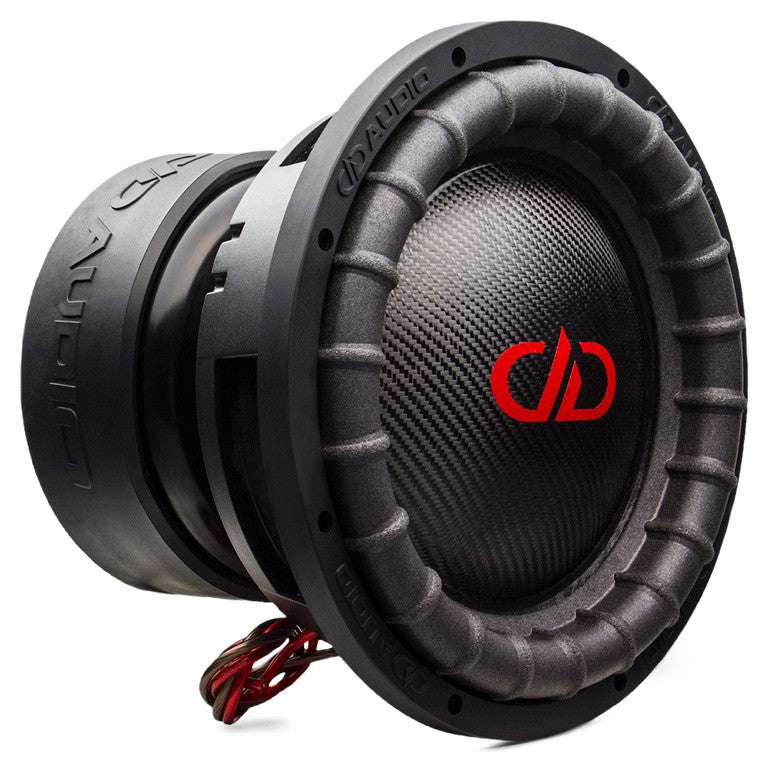

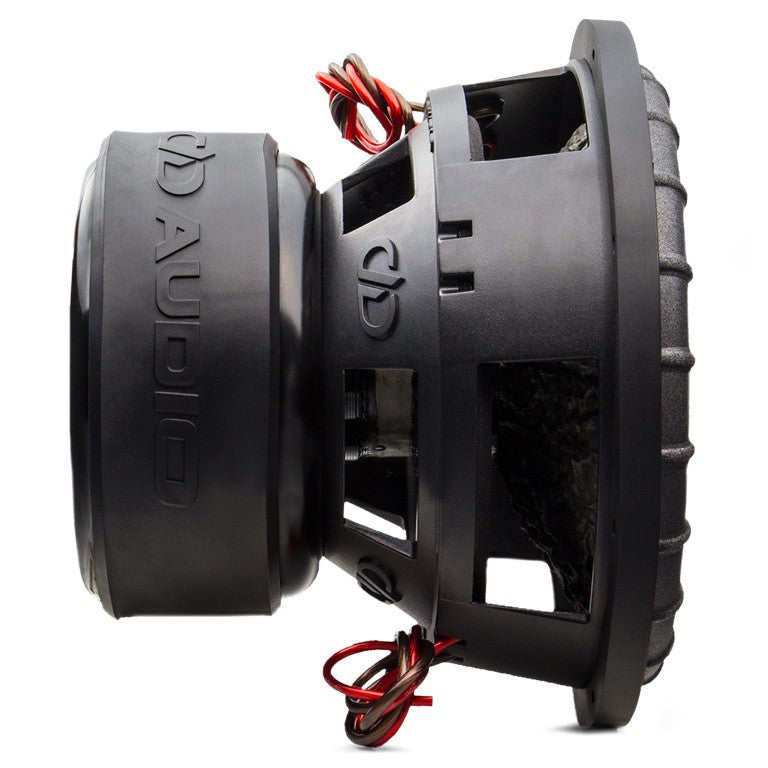

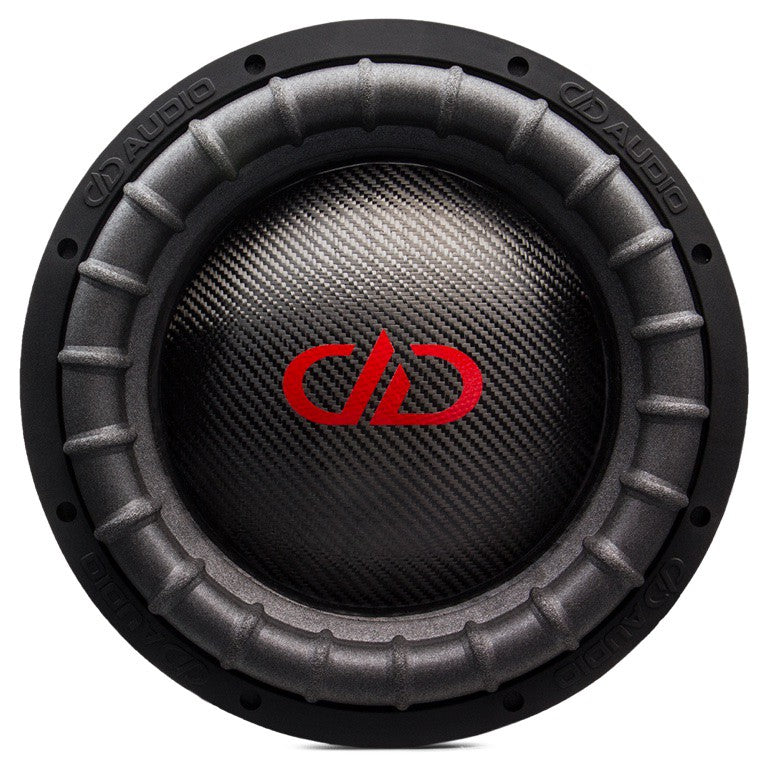

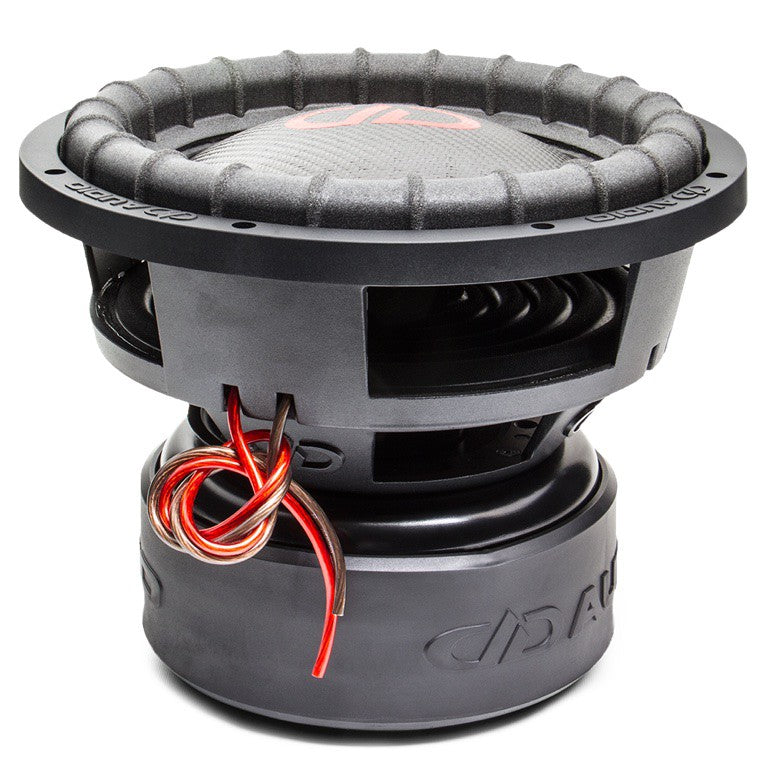

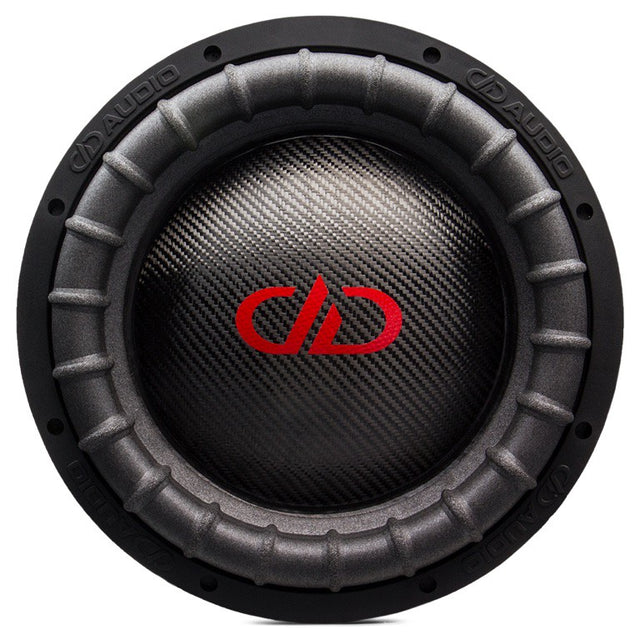

DD Audio 9512K D1 ESP

INFORMACIJA

Often imitated but never replicated, the 9500 has long been the backbone of our subwoofer line and has been used in many of the world's most famous systems. These subwoofers can easily handle 1000-2000 watts of continuous power and bursts up to 8000 watts. As expected, these powerful subwoofers are equipped with all sorts of amazing features such as EROM and V-ROM surrounds, Free Flow motor cooling, dual slit-shaped, eight-layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, rigid non-pressed cones, and our multi-layered spider system.

The 9500 series features our Evolution Subwoofer Package (ESP). ESP equipped speakers feature larger diameter spiders and deeper frames than standard subwoofers and exclusive surround and cone designs. ESP subwoofers are truly built for maximum performance in their intended size class.

The 9500 series comes standard with a large dry black composite dust cap, red logo, and treated cellulose cone, but can be ordered with alternative composite dust caps, composite cones, powder coating, supercharging, and a variety of logo options to give your subwoofer a custom look and/or additional performance for a specific application.

Specifications

-12″ subwoofer
- cast frame
- 2 x 1 ohm voicecoil
- 3.35″ voice coil diameter
- driver displacement: 7.9 liter
- recommended ported enclosure 50-77 liters ( NET )
- power handling 2500 W RMS
- peak power handling 8000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0,662
- Fs: 37,68 Hz
- Vas: 26,31 liters
- mounting depth 248 mm
- cutout diameter 310 mm.
