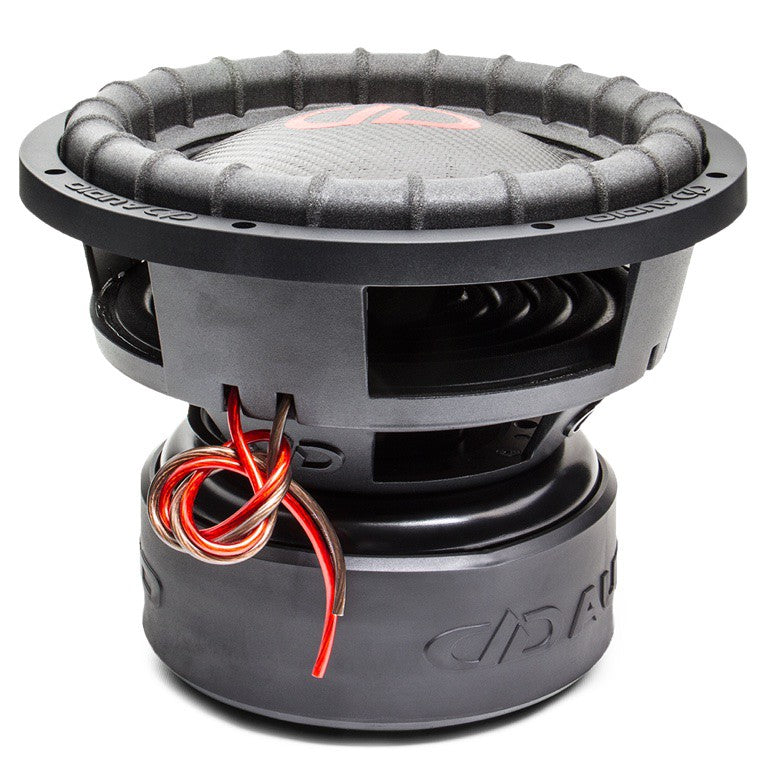

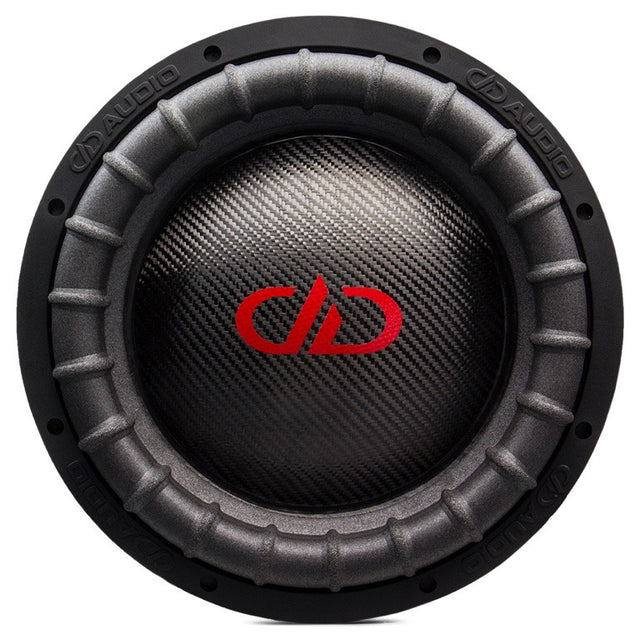

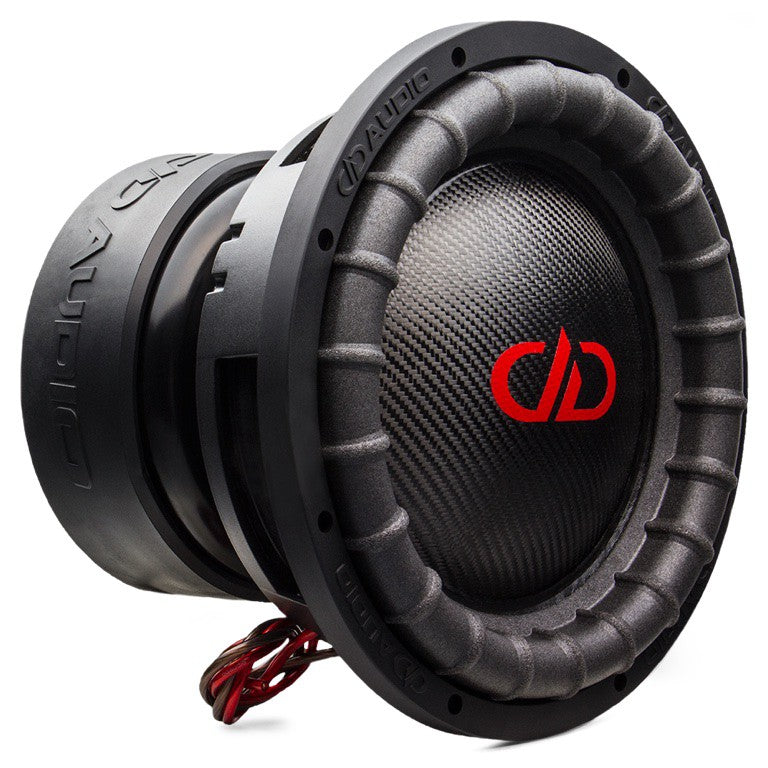

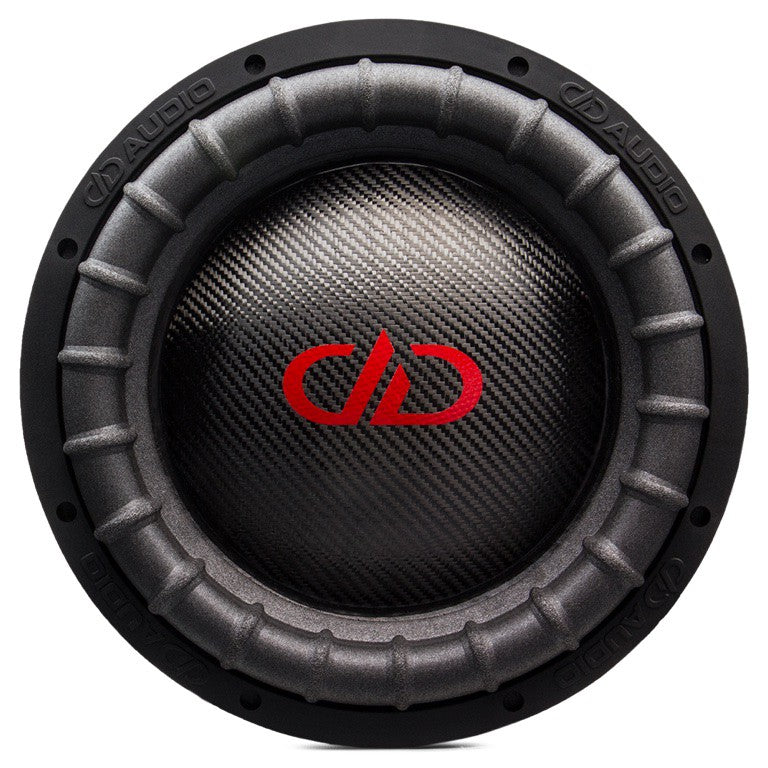

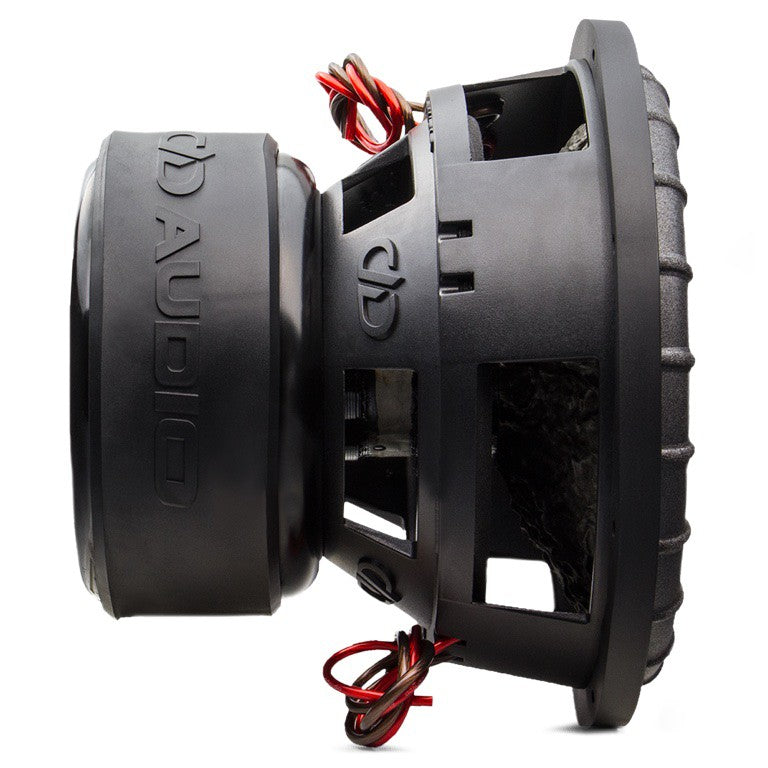

DD Audio 9515K D1 ESP SuperCharged

INFORMACIJA

Often imitated but never duplicated, the 9500 has long been the cornerstone of our subwoofer line and has been featured in many of the world’s most acclaimed systems. These subwoofers effortlessly handle 1000-2000W of continuous power and bursts up to 8000W. As expected, these potent units are packed with a host of awesome features such as EROM and V-ROM surrounds, Free Flow motor cooling, dual split spiders, eight-layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, rigid non-pressed cones, and our multi-layer spider system.

The 9500 Series features our Evolution Subwoofer Package (ESP). ESP units incorporate larger diameter suspensions and deeper frames than standard subs, along with exclusive surround and cone designs. ESP subs are truly engineered to maximize performance in their size class.

The 9500 Series comes standard with a large dry black composite dust cap, red logo, and treated cellulose cone, but can be ordered with alternative composite dust caps, composite cones, powder coated frames, supercharging, and a multitude of logo options to give your sub a custom look and/or provide additional performance for a specific application.

Specifications

-15″ subwoofer
- cast frame
- 2 x 1 ohm voicecoil
- magnet weight 31,7 kg
- 4″ voice coil diameter
- driver displacement: 9.3 liter
- recommended ported enclosure 85-170 liters ( NET )
- power handling 2500 W RMS
- peak power handling 7000 watts
- x-max: +- 22 mm
- xmech: 100 mm
- qts: 0,666
- Fs: 39,03 Hz
- Vas: 52,97 liters
- mounting depth 264 mm
- cutout diameter 386 mm.
