- DD Audio ATC-250

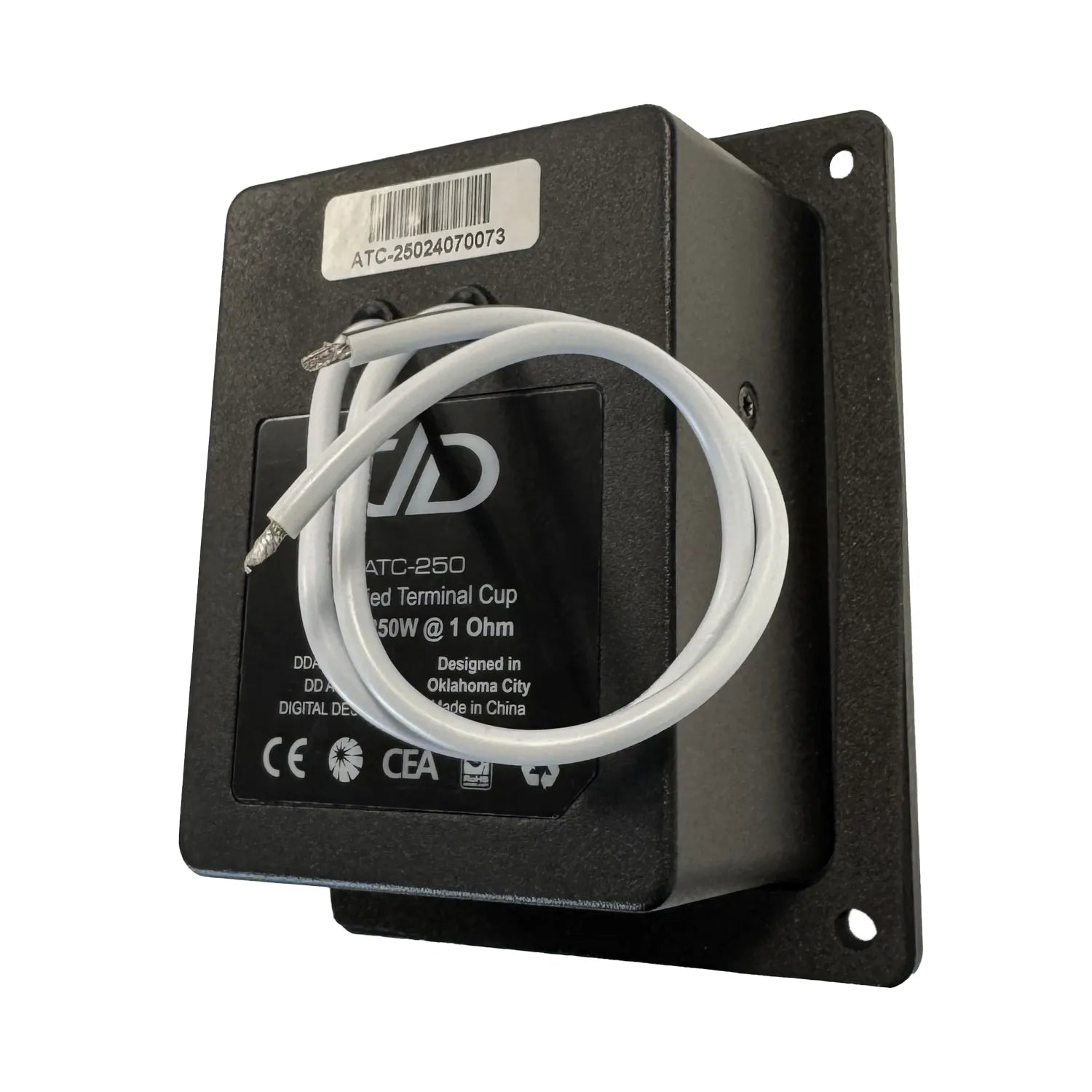

- DD Audio ATC-250 - Galinė panelė su laidais ir užrašais

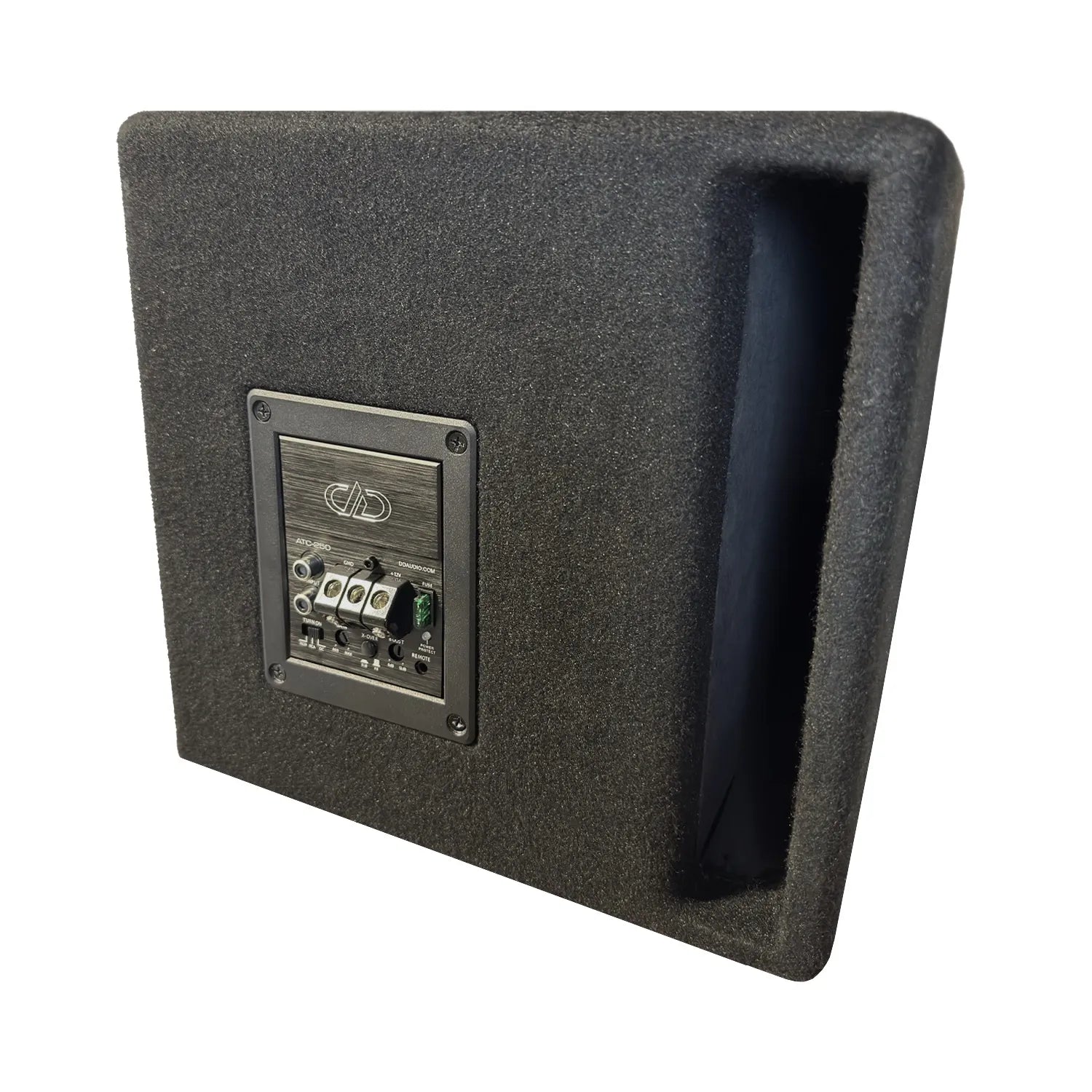

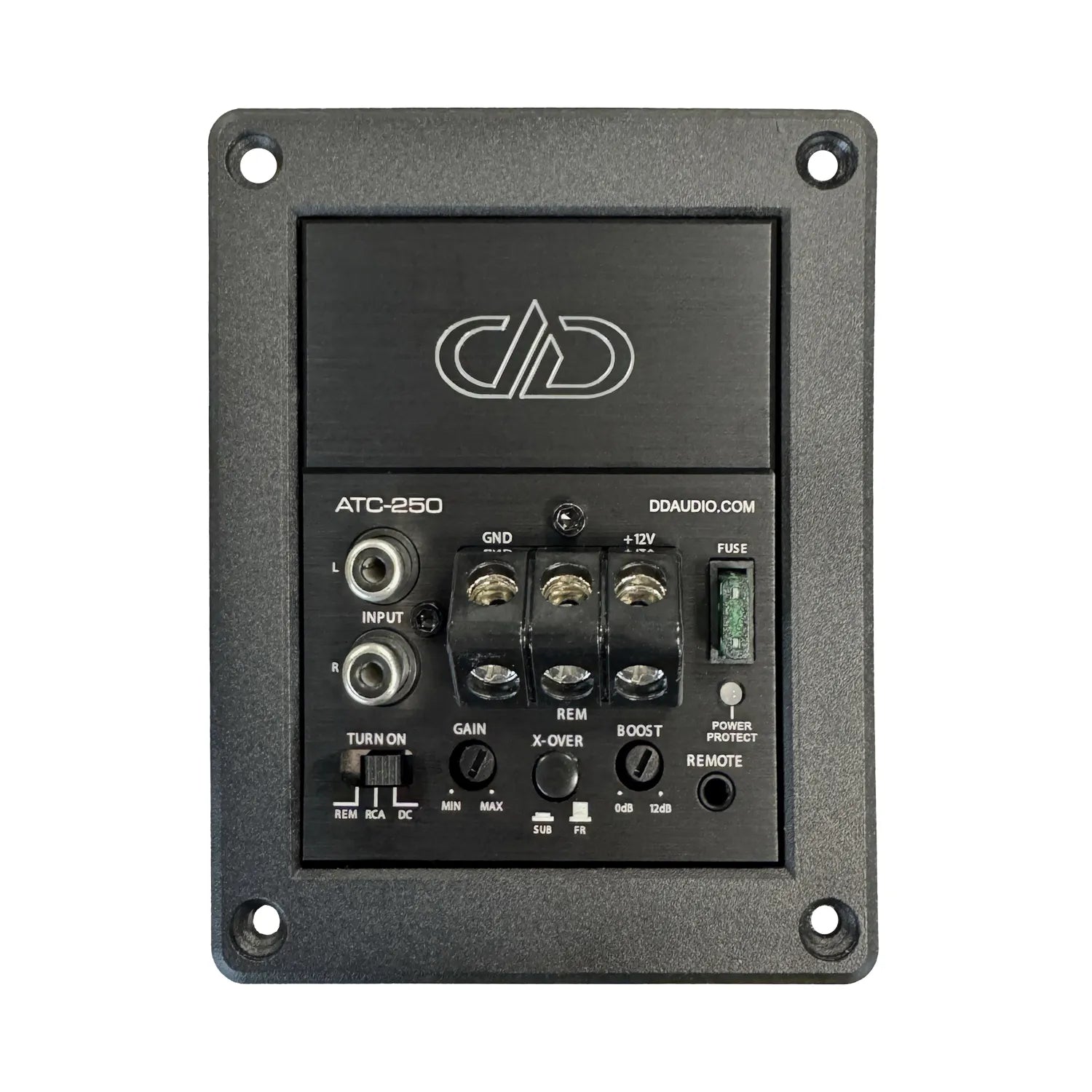

- DD Audio ATC-250 - Galinė panelė su jungtimis ir valdikliais

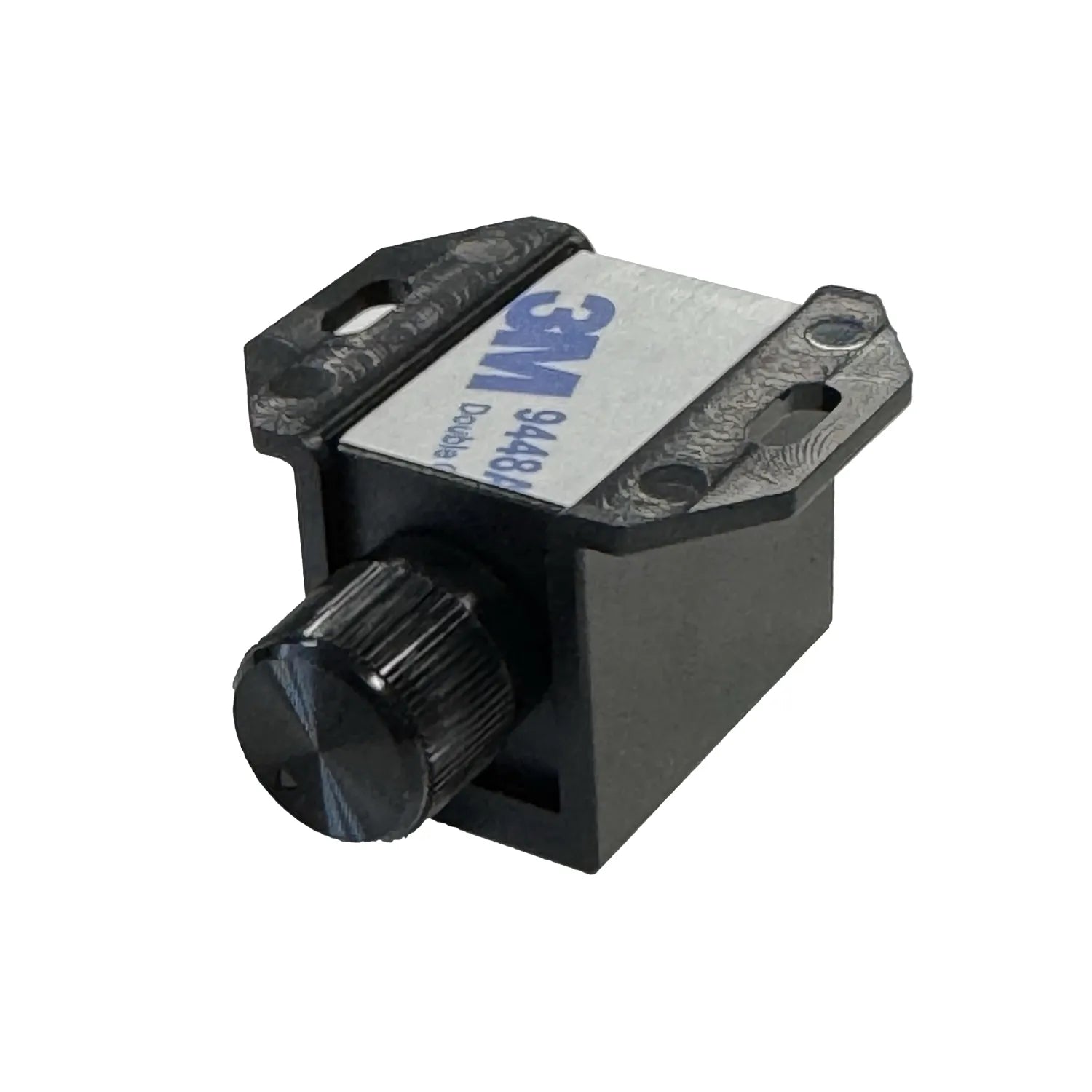

- DD Audio ATC-250 - juodas reguliavimo ratukas su 3M lipduku

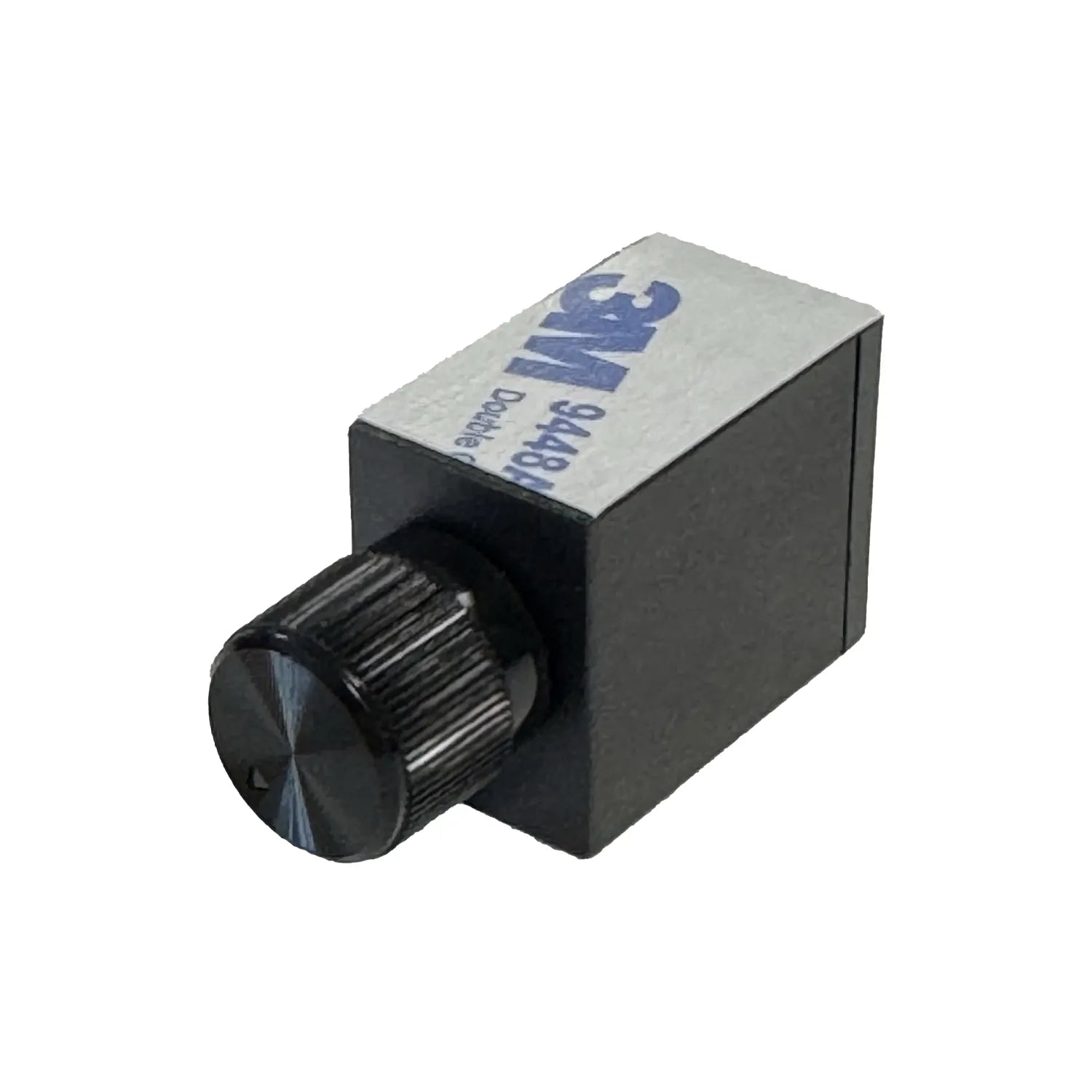

- DD Audio ATC-250 - juodas valdymo ratukas su 3M lipduku
DD Audio ATC-250
DD Audio ATC-250 - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
The DD Audio ATC-250 is a terminal amplifier designed to replace the original terminal in DD Audio LE series enclosures.
Installation is very simple: remove the original terminal and cut or disconnect the wire from it. Then connect the enclosure wires to the ATC-250 speaker wires (we recommend welding the wires together and using heat shrink tubing to protect them), after which you can screw the amplifier to the enclosure.
The DD Audio ATC-250 amplifier has two filter selection options: SUB (SUBWOOFER) and FR (FULL RANGE). With the SUB option, the available frequency bands are 30-80 Hz, and with the FR option, the available frequency bands are 80 Hz - 25 KHz.
The ATC-250 has a remote switch: with the REM setting, it uses a traditional trigger cable, with the RCA setting, the device wakes up when it receives a signal to the RCA connectors.
A wired bass level controller is included in the package.
(Note! The amplifier is al
Specifications
Operating Voltage: 8 - 16
Test Voltage: 14.4
Output Channel(s): 1
Continuous Wattage @4ohm: 100
Continuous Wattage @2ohm: 225
Continuous Wattage @1ohm: 325
Dynamic Wattage: 500
Max Current Draw (Amps): 40
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 100
Damping Factor: 150
THD: 1%
Frequency Response (Hz): SUB: 30 - 80 / FR: 80 - 20k
High Pass Filter: 80
Sub-Sonic Filter: 30
Low-Pass Filter: 80
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 2.93 x 3.75 x 2
Dimensions (MM): 74.5 x 95.5 x 52.2
