DD Audio

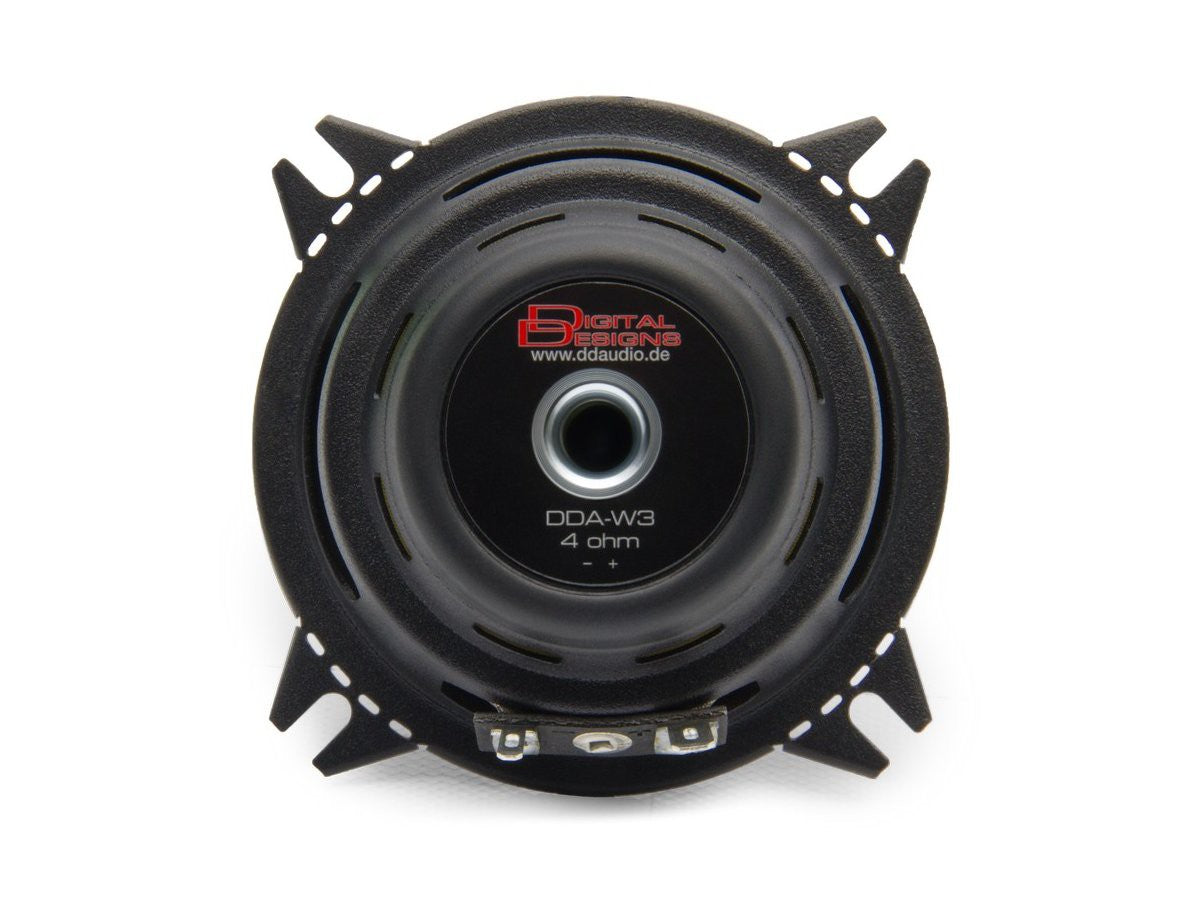

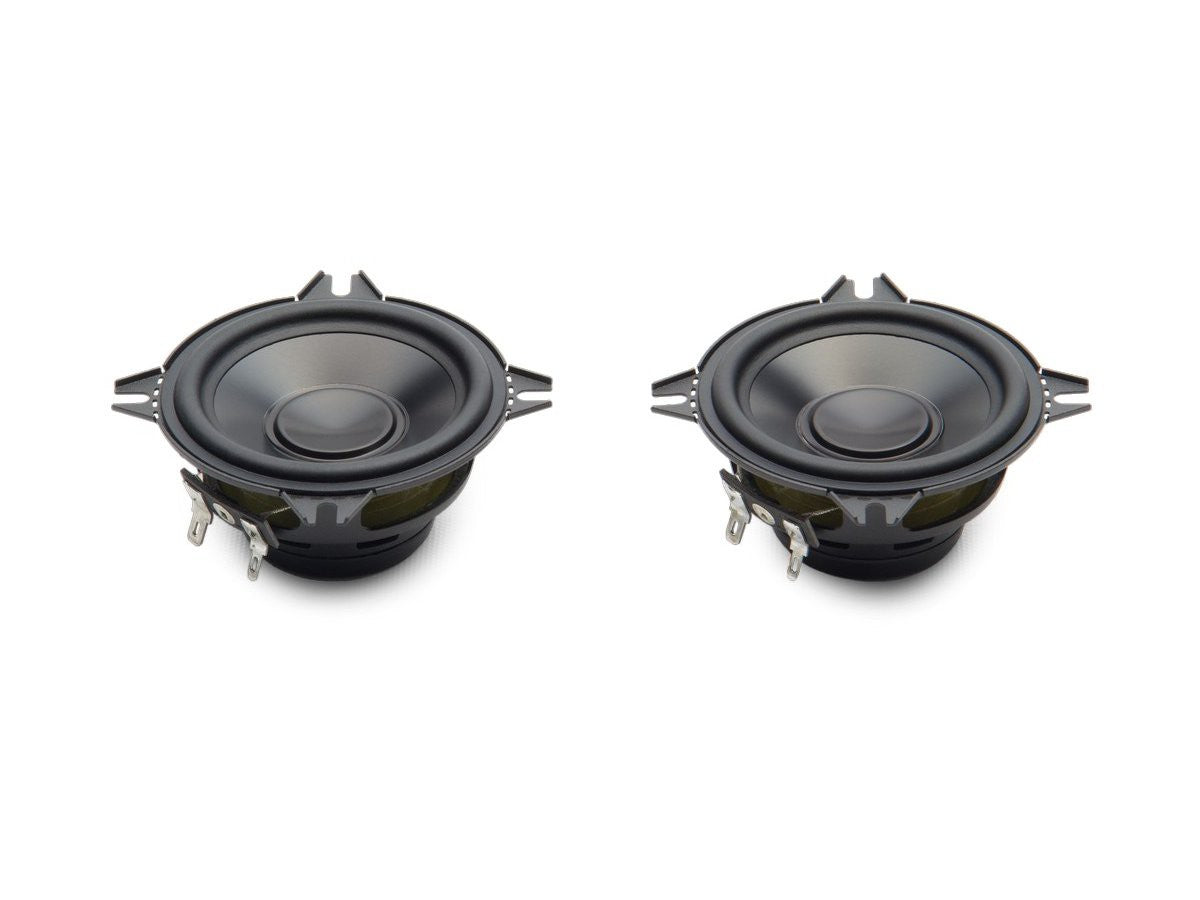

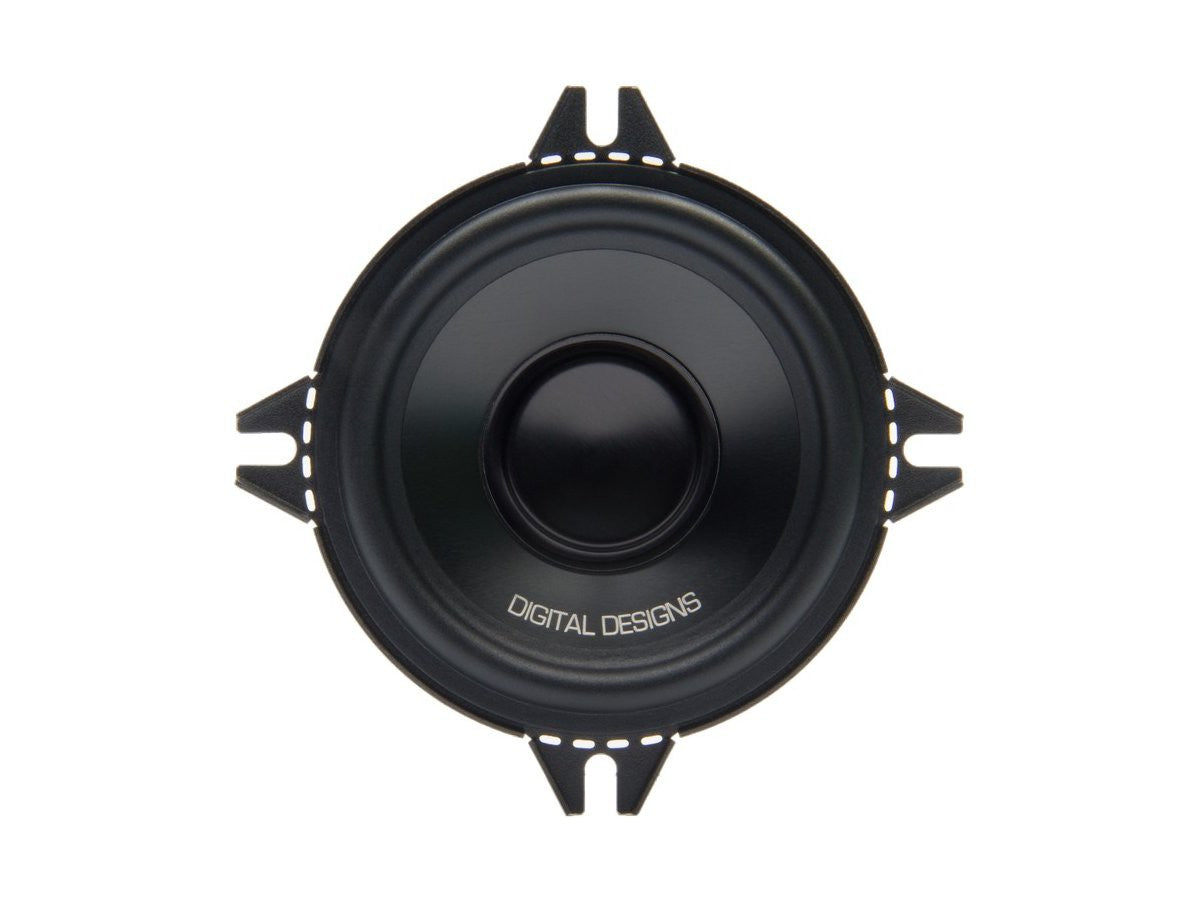

DD Audio AW3

AW3 midrange drivers represent the "highest technology" in drivers.
€288.30 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

AW3 midrange drivers represent the "highest technology" in drivers. Machined motor structures with distortion-reducing Faraday rings are held to the tightest tolerance standards and provide a well-damped magnetic field for the voice coil. The motor features dual neodymium magnets to achieve high magnetic energy from the smallest possible footprint. Top and bottom ventilation are used for maximum heat dissipation. The suspension has been optimized for sharp mid-range and extended high-frequency. The coil wire is of the highest temperature grade and held with the best adhesives. The coil former is vented, and the wire gauge/coil former thickness is optimized to reduce moving mass. The adhesive from the coil to the cone is joined with a specialized, cured material to transmit all energy from the coil to the cone. The cone is made of lightweight aluminum to achieve a wide frequency range and efficient energy transfer to the air. DDA components comprise a complete set of amazing technologies found at the pinnacle of the world's best drivers, coupled with precision German assembly and attention to detail. The result is a clear, transparent, and detailed sound with powerful bass reproduction.

Specifications

Driver Size - in 3
Power Band - Watts 60-240
VCD - in 1
Impedance S4
Frequency Response - Hz 100-22k
Fs - Hz 103 Hz
Qms 3.03
Qes 0.43
Qts 0.38
Vas - liters 0.046
dBSPL 91
Cutout Diameter - in 2.875
Mounting Depth - in 1.5
Shipping Weight - lbs 2
