DD Audio

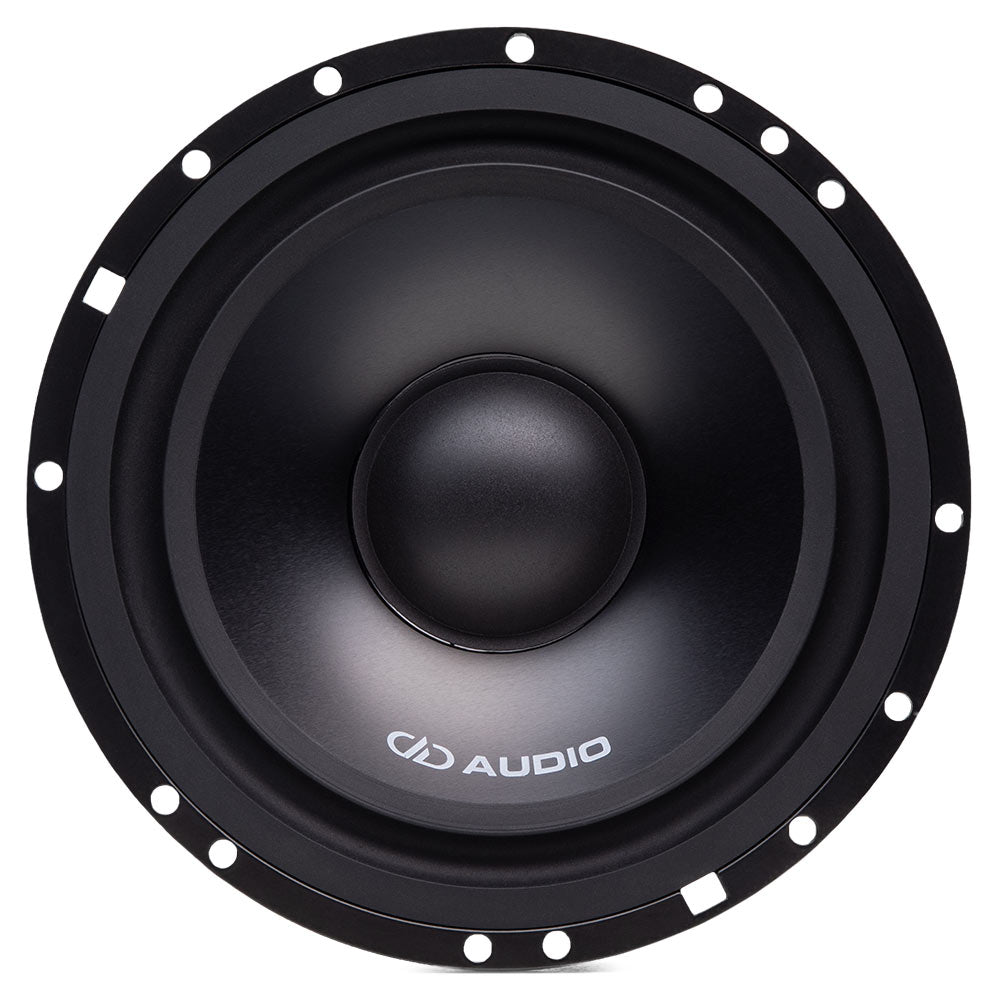

DD Audio AW6.5a

The AW-6.
€399.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

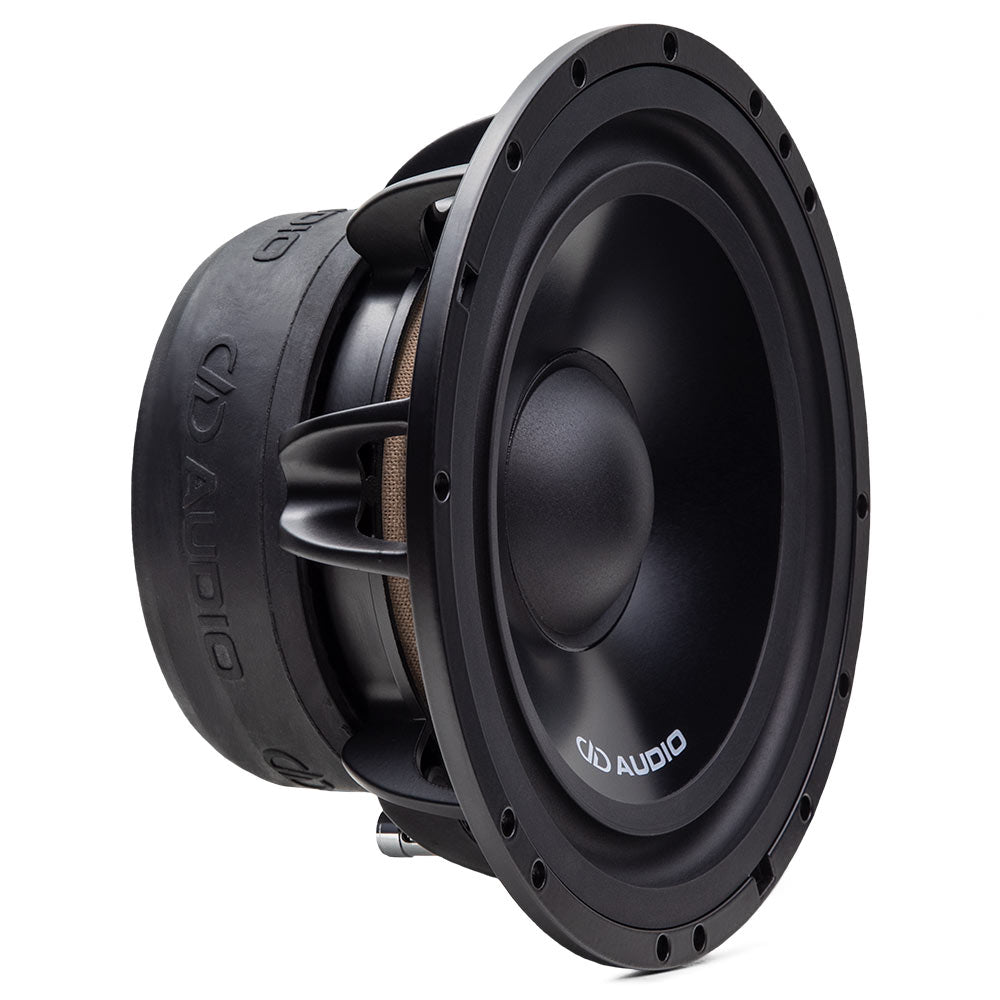

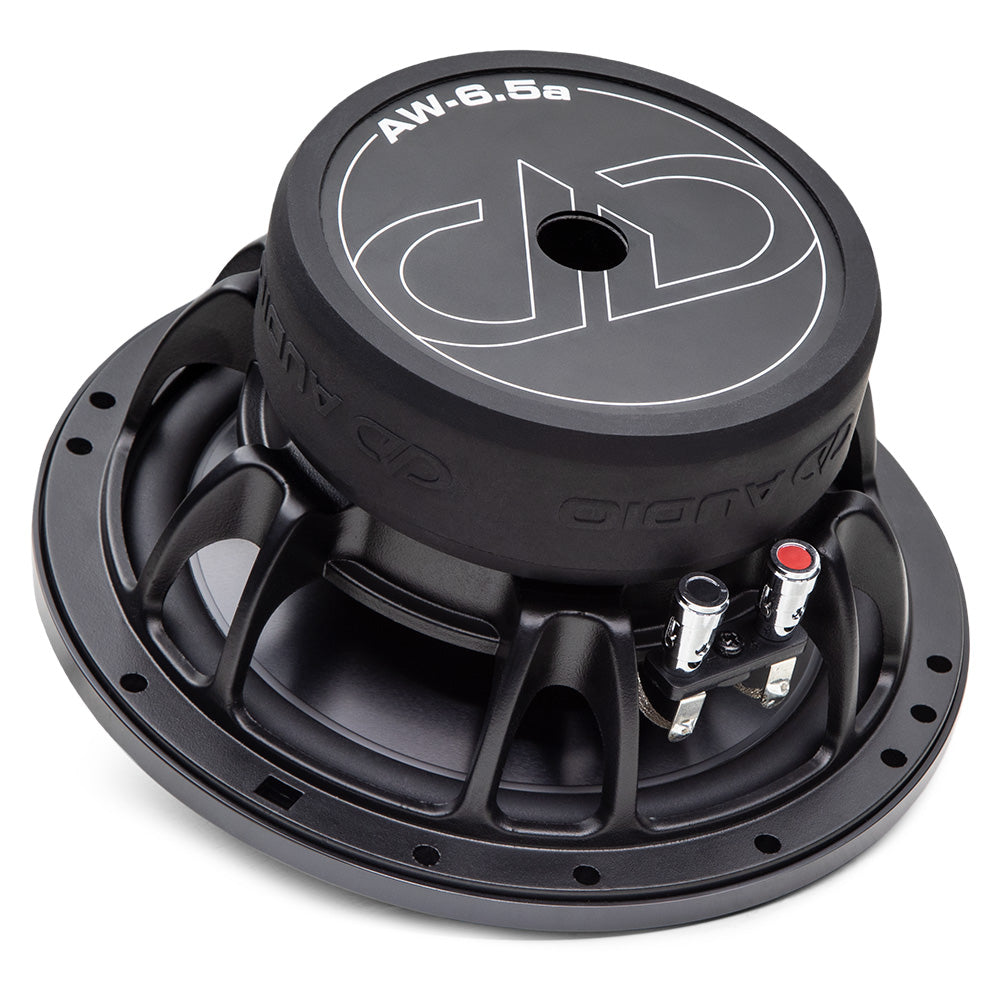

5a mid-woofers represent state-of-the-art driver technology. The open design cast aluminum baskets provide an ultra-rigid support system, while also acting as an additional heat sink and shorting ring. A high-energy dual shorting ring motor is coupled with a 1.5” copper-clad aluminum wire, Kapton former voice coil, ensuring balanced output efficiency and power handling. An inverted butyl rubber surround and composite spider work together to dampen unwanted vibrations, while maintaining control and linear characteristics. The aluminum cone with butyl dust cap offers neutral sound quality, provided by a paper cone with the precision that only an ultra-rigid cone can provide. This combination achieves wide bandwidth and efficient energy transfer to the air.

Technical specifications

Speaker Size (In):6.5
Watts RMS:75
Watts Peak:200
Impedance:S4
VCD (In):1.5
Frequency Response (Hz):50 - 20k
Fs (Hz):62
Qms:4.835
Qes:0.452
Qts:0.413
Vas:14.714
dBSPL:91
Mounting Diameter (In):5.75 (146mm)
Mounting Depth (In):2.9. (74mm)
