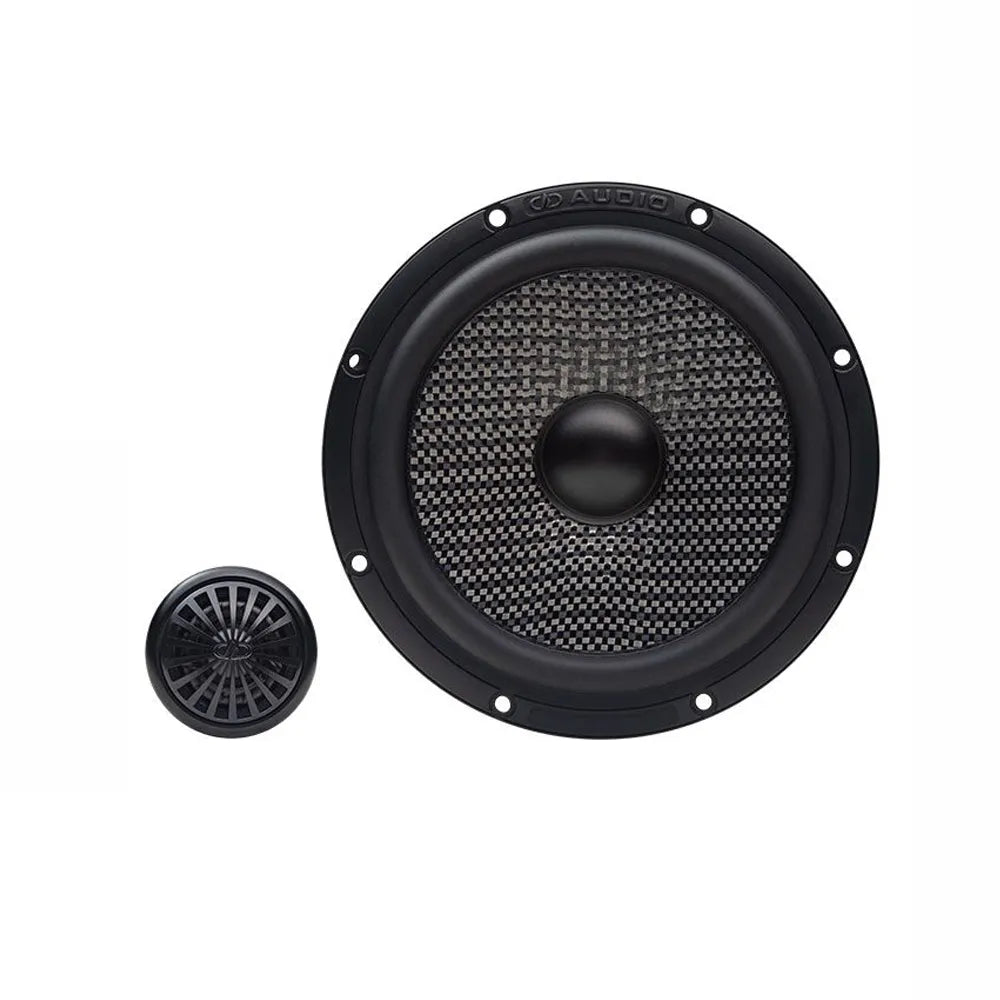

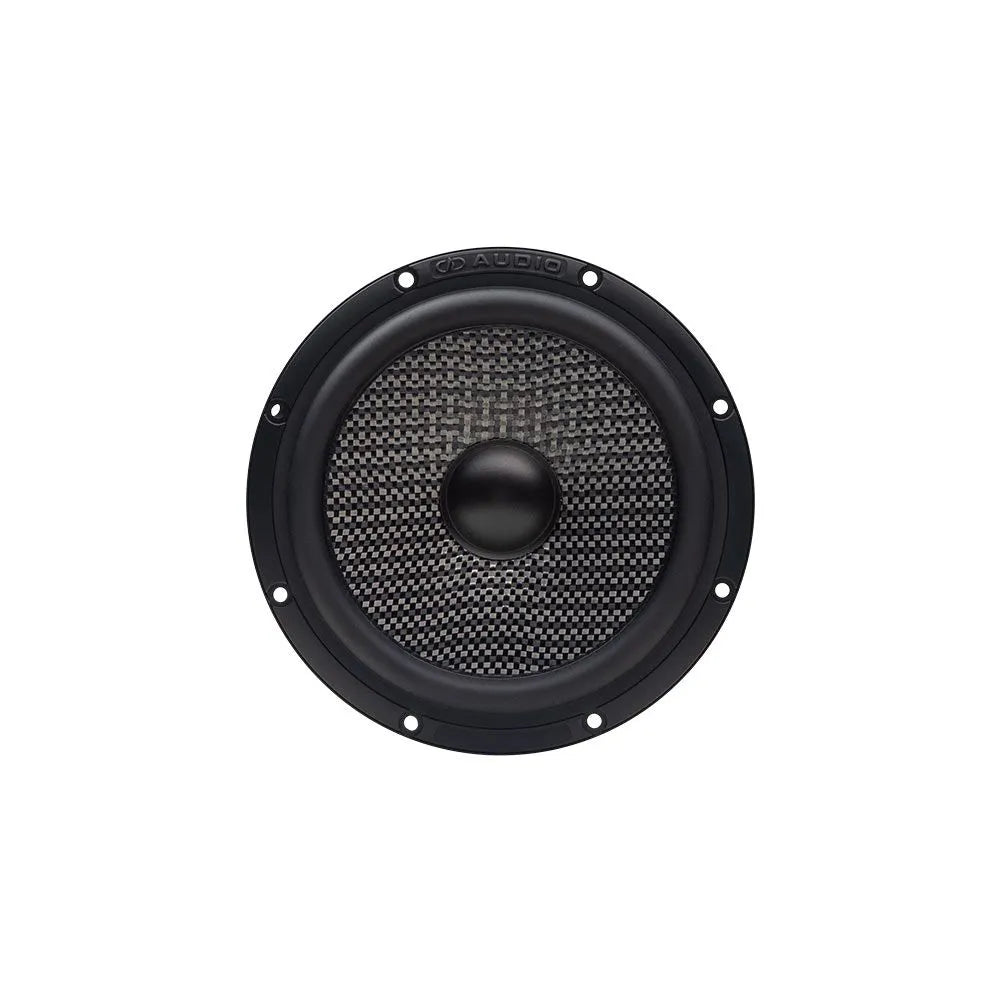

DD Audio C-C6.5C

INFORMACIJA

The newly revised C-Series component set was designed to deliver an exceptional, studio-heard experience.

These components would be at home in any high-end audio system, but with their meticulously engineered, space-saving, versatile application, they are the ideal choice to turn your vehicle's interior into a sound sanctuary.

Digital Designs' R&D team spent over two years designing and producing these advanced speakers, exceeding the excellence of DD OEM upgrade speakers without exceeding their price class. The result is an authentic audiophile-grade component set, accessible to all discerning listeners.

HIGH RANGE

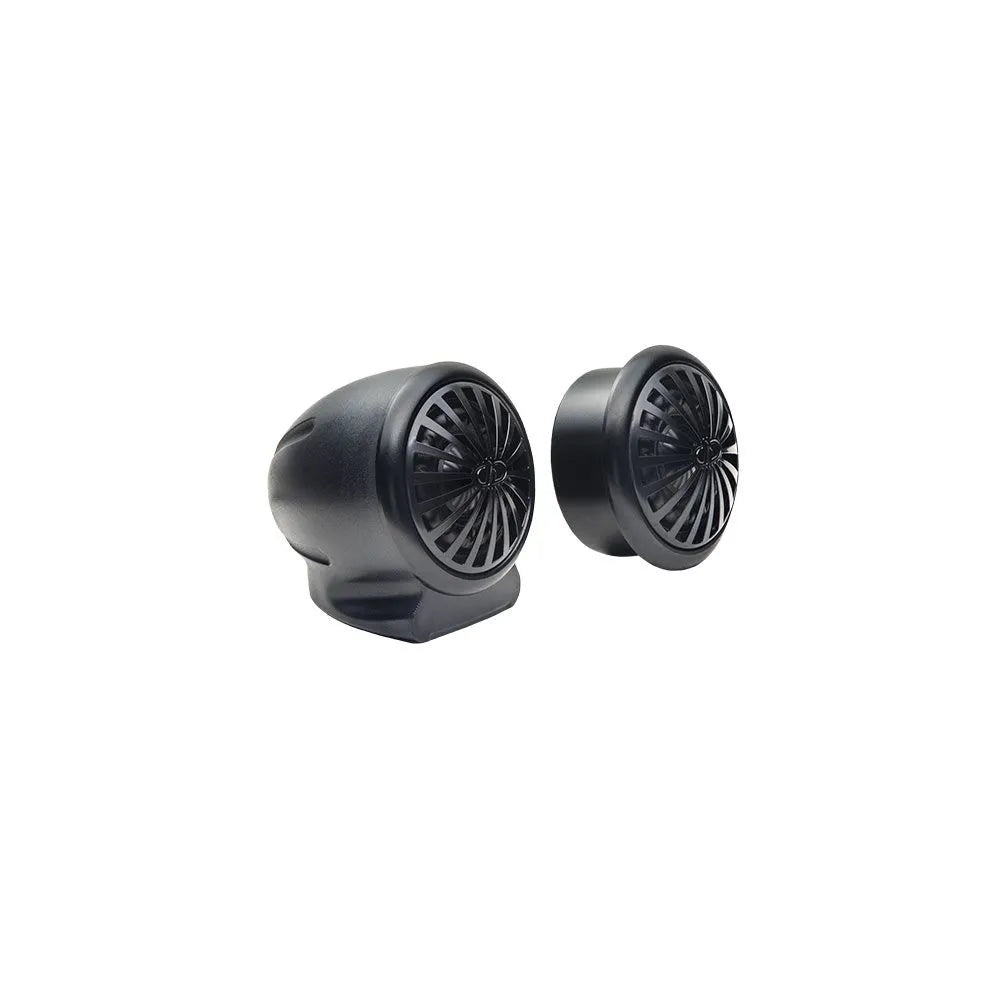

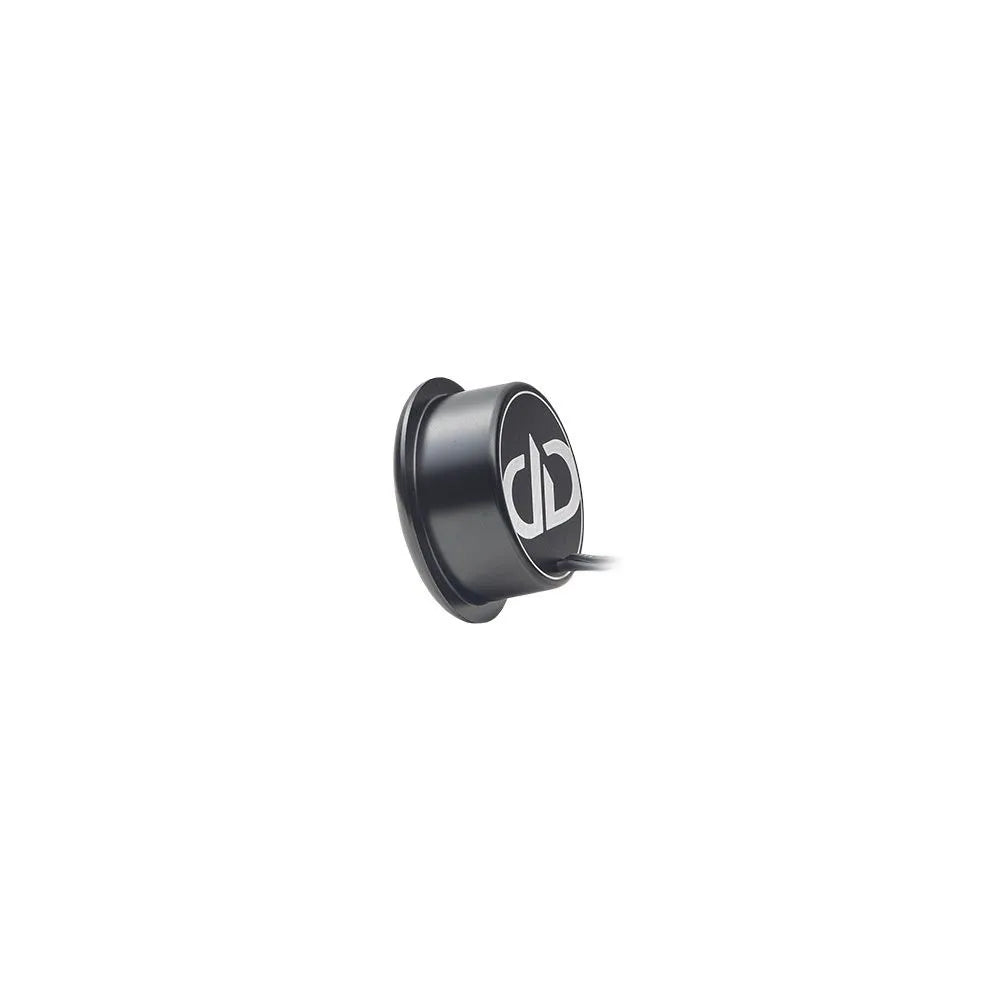

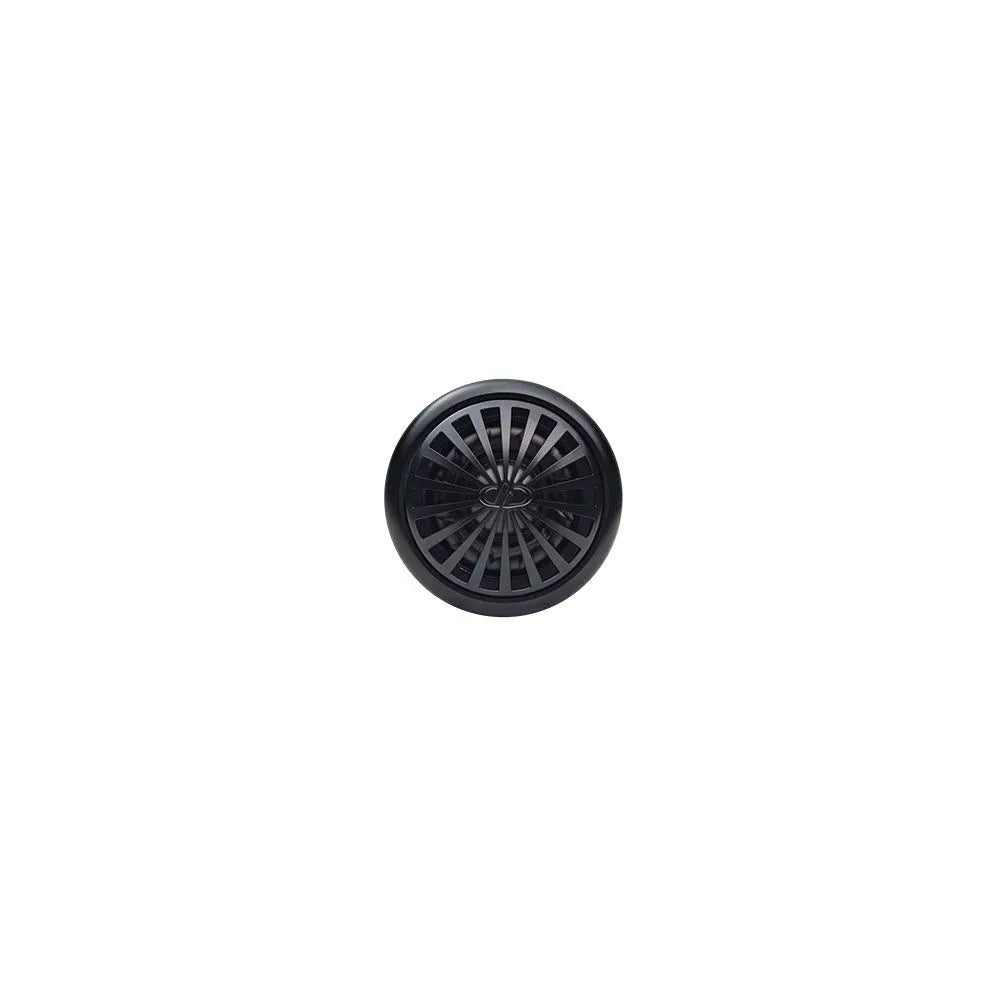

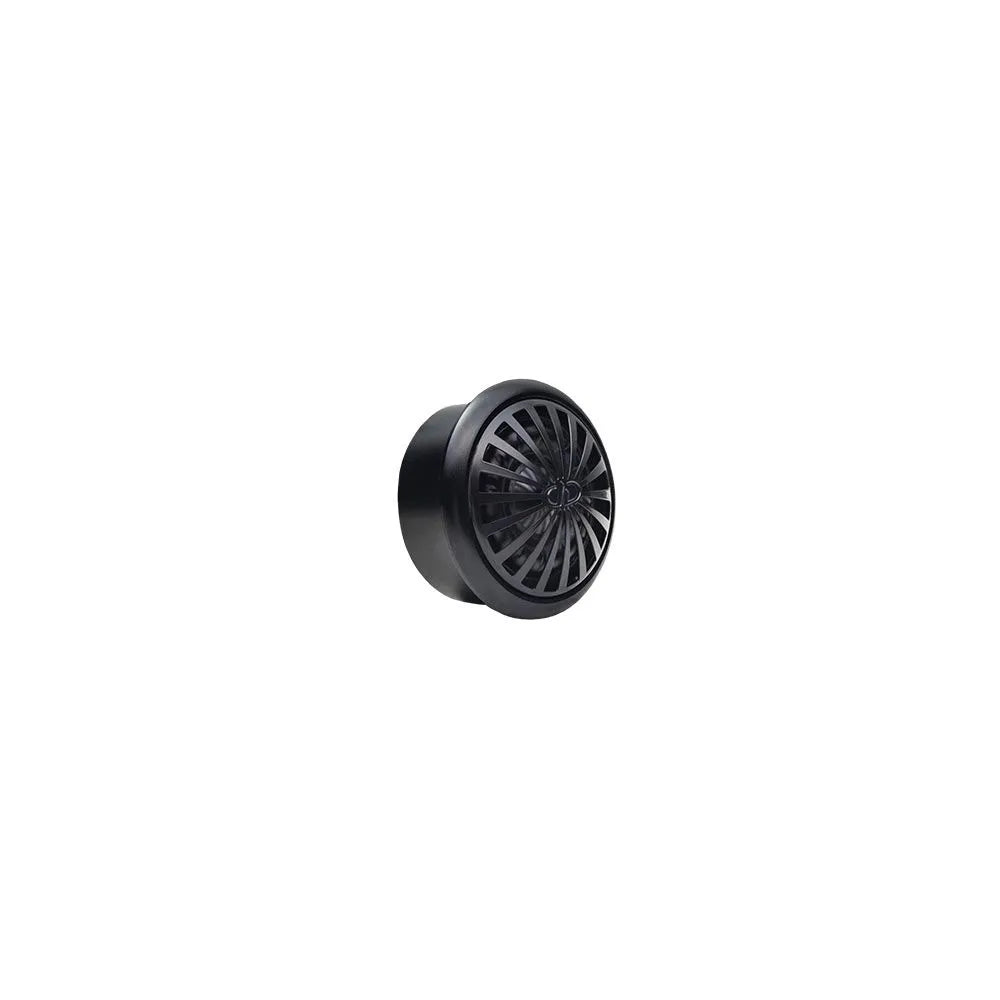

In the high range, the tweeters create a rich, airy feel that reveals clear details in every octave.

MID RANGE

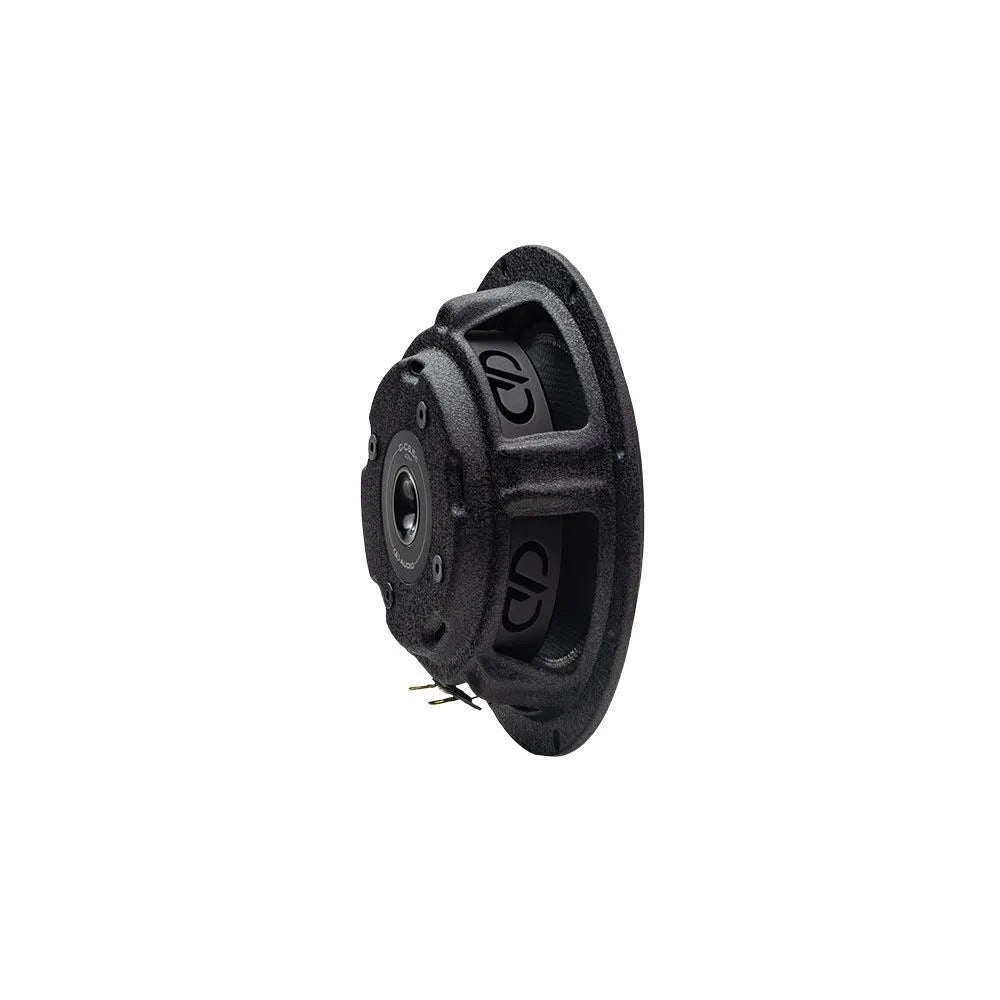

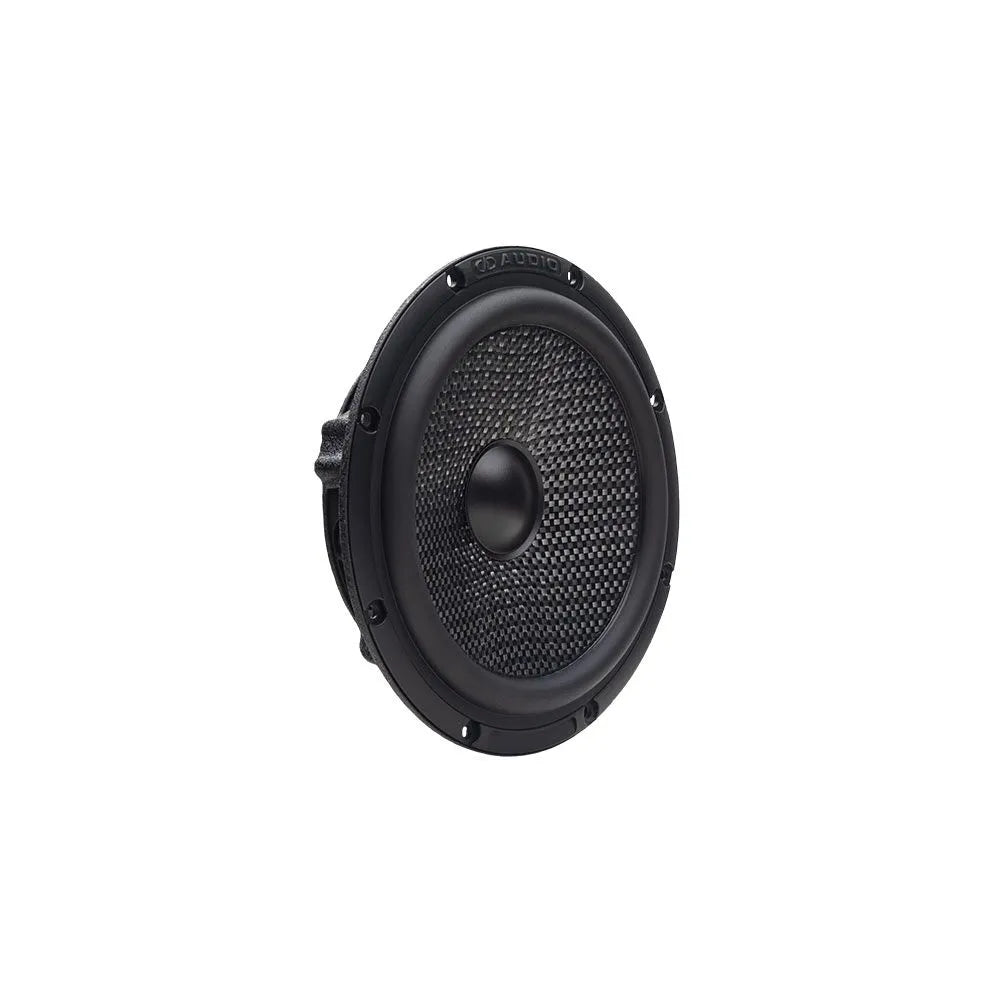

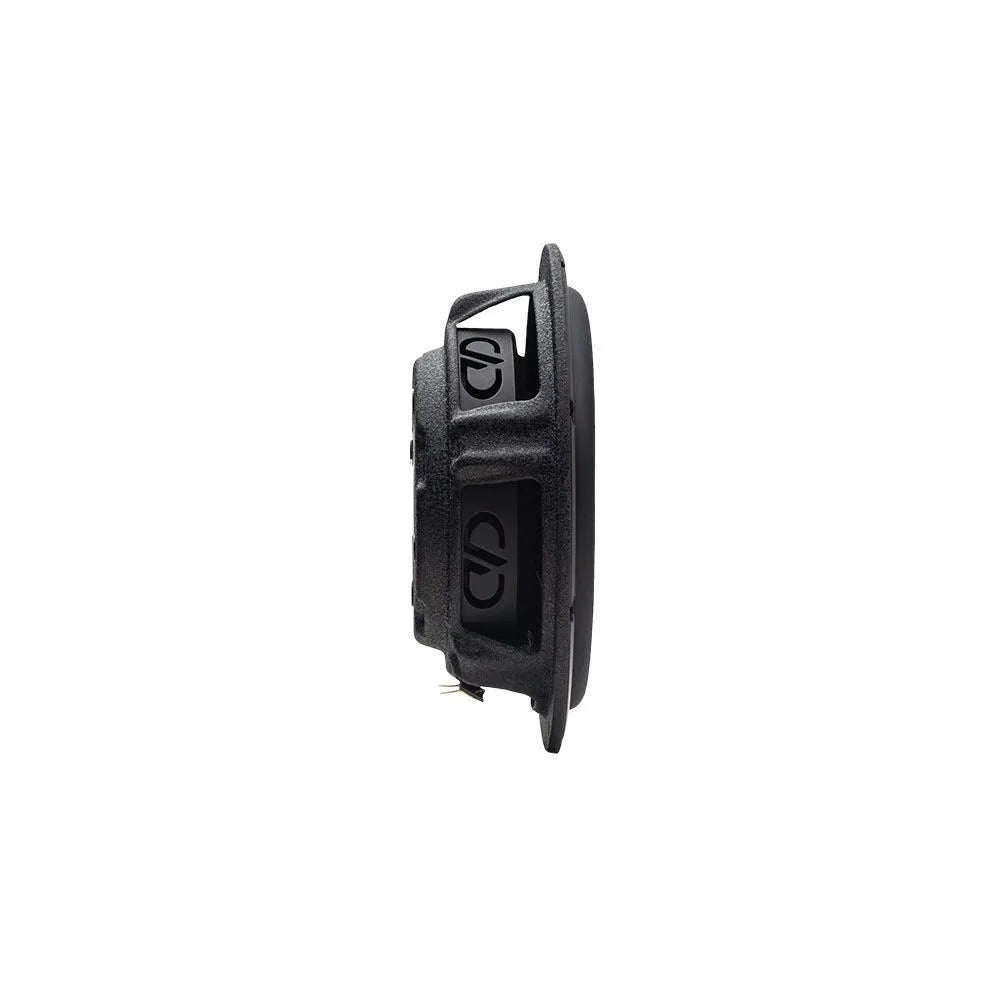

In the mid-range, the woofers reproduce vocals with a distinctly natural and lively character, while rendering band instruments and samples with smooth layering.

LOW RANGE
In the low range...

Specifications

Power Handling:
Rated Pink Noise Tested: 65w
Peak Capacity Power Tested: 150w

Nominal Impedance Zn:
Tweeter: 3.0Ω
Midwoofer: 2.0Ω

Resonance Frequency Fs:
Tweeter: 582.521Hz
Midwoofer: 49.374Hz

Qms:
Tweeter: 12.164
Midwoofer: 3.912

Qes:
Tweeter:v0.965
Midwoofer: 0.359

Qts:
Tweeter: 0.894
Midwoofer: 0.329

Frequency Response (-6dB) Free Air:
60~40,000Hz

Sensitivity @ 1W / 1M (±3dB):
89.6dB

Voice Coil Diameter:
Tweeter: 0.72 Inch / 18.4 mm
Midwoofer: 1.0 Inch / 25.5 mm

Mounting Information

Overall Diameter:
Tweeter:2.08 Inch / 53 mm
Midwoofer: 6.57 Inch / 167 mm

Cutout Diameter:
Tweeter: 1.76 Inch / 44.6 mm
Midwoofer: 5.63 Inch / 143 mm

Total Depth:
Tweeter: 1.08 Inch / 27.5 mm
Midwoofer: 2.08 Inch / 53 mm

Mounting Depth:
Tweeter: 0.67 Inch / 17 mm
Midwoofer: 1.69 Inch / 43 mm
