DD Audio  |  Bar code: 0850013938285

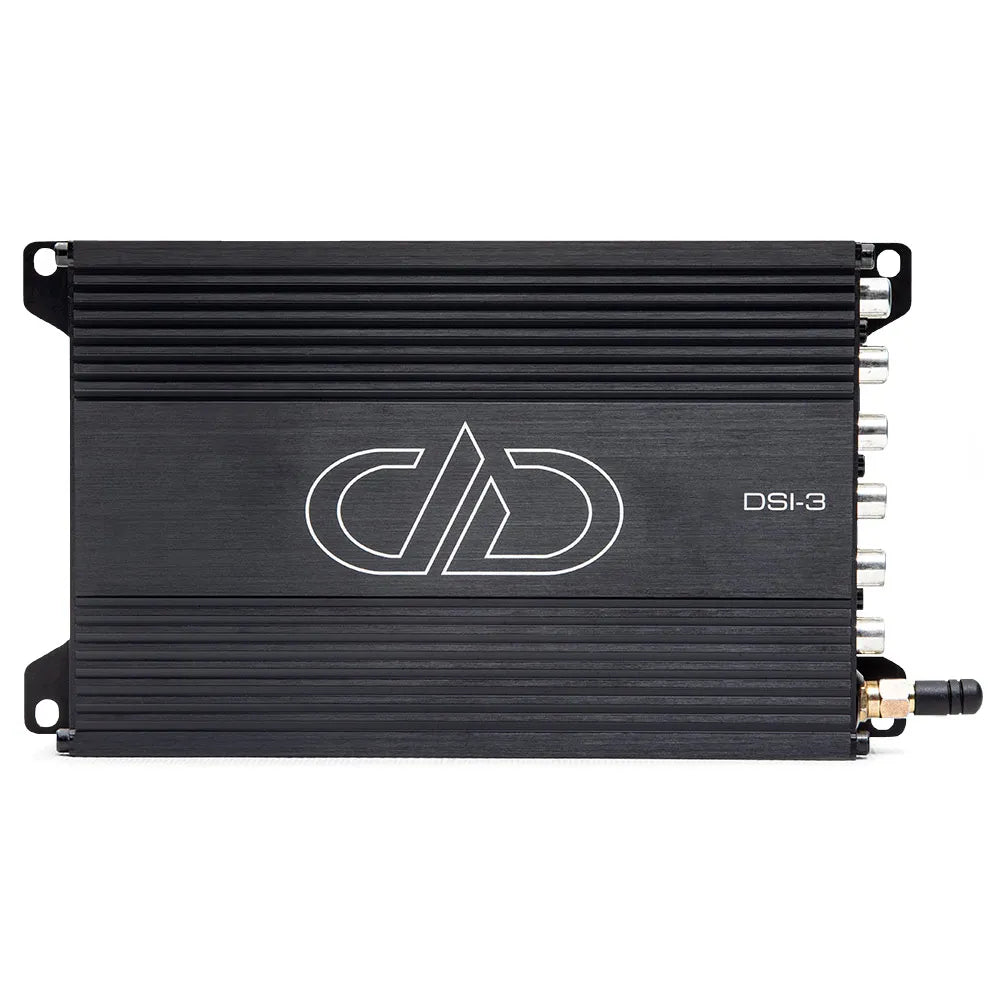

DD Audio DSI-3R

Improve your car's sound quality with the DD Audio DSI-3R audio signal processor. It easily integrates with OEM systems and can be controlled via iOS devices or a computer.

€429.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

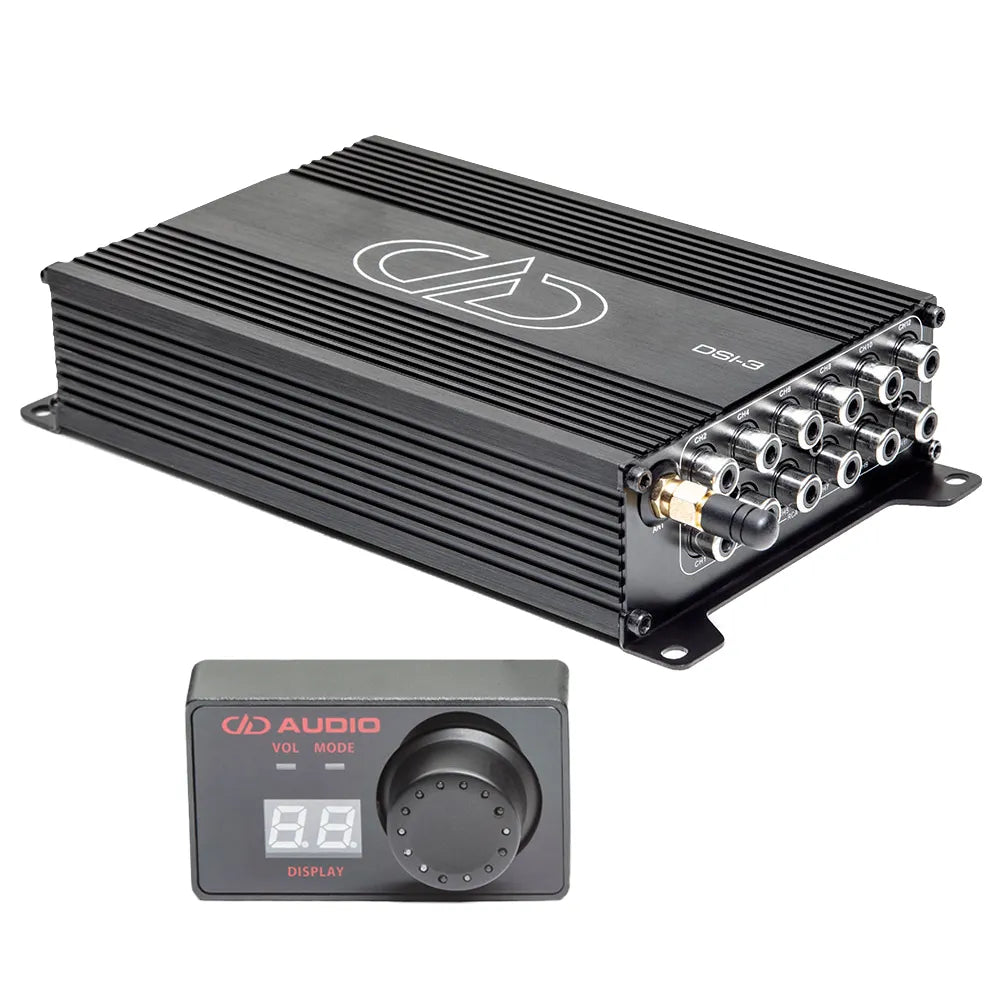

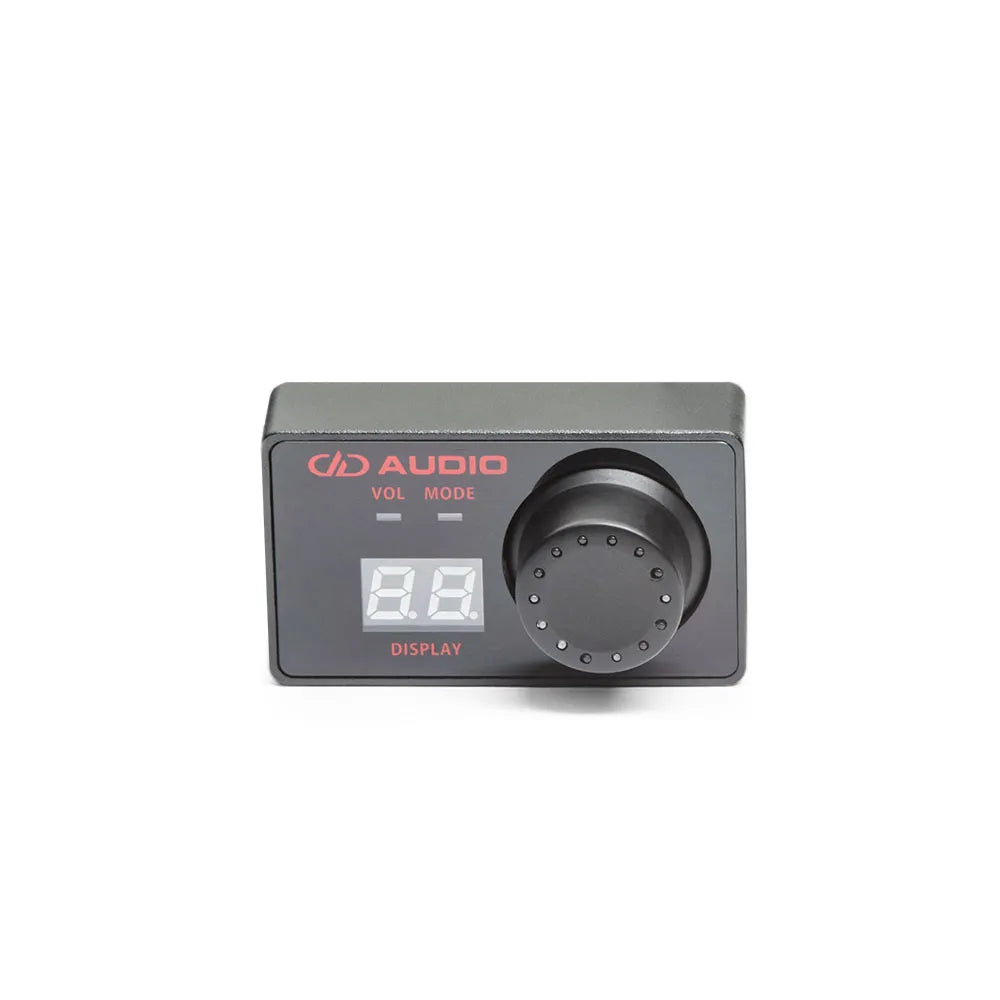

The DD Audio DSI-3R comes with a DSI-3RMT remote control.

The DSI-3 audio signal processor significantly improves upon the previous DSI-2 with several upgrades based on direct customer feedback. Improvements were made to processing power, input channels, output channels, wireless connectivity, setup features, OEM integration, and EQ capabilities. While the feature updates were extensive, the size was kept small, with only a 1.5″ increase in chassis length.

The DD Audio DSI-3 is a DSP that can be controlled via iOS devices or via PC.

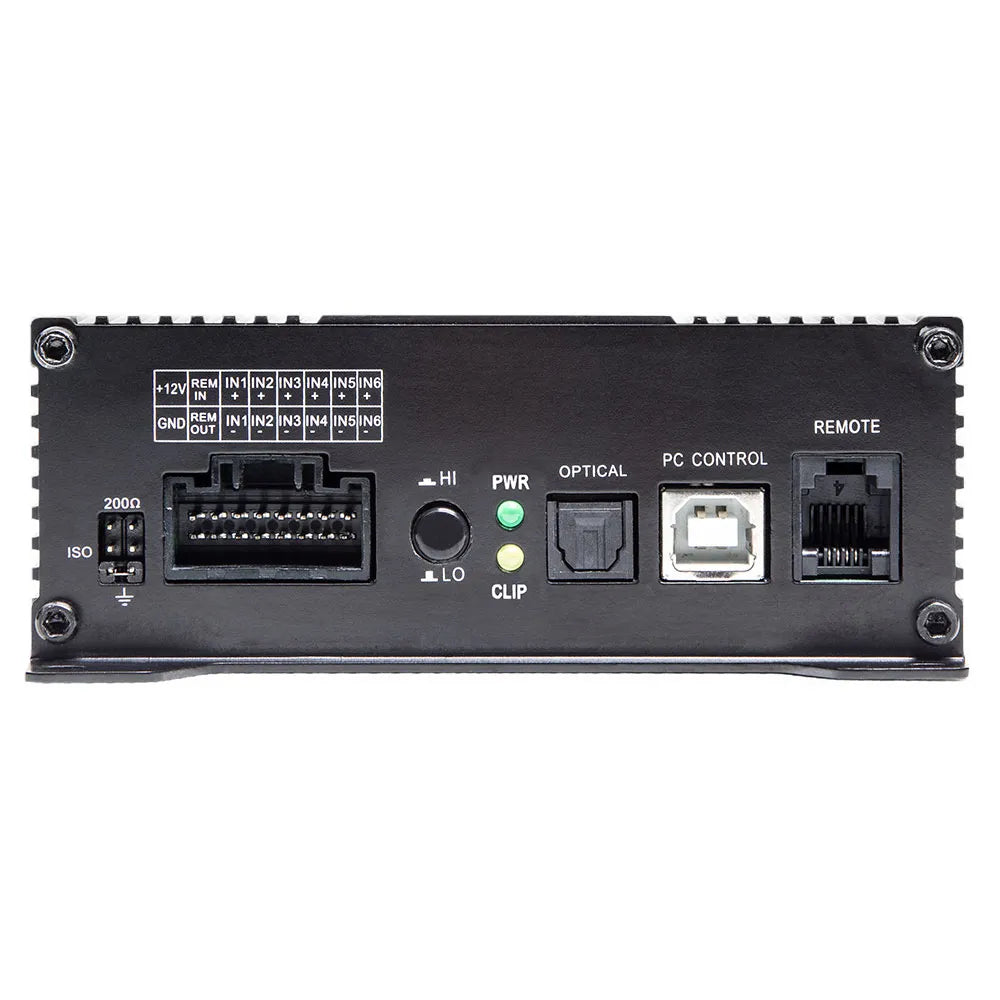

Signal inputs are available at both high and low levels. The remote turn-on system is selectable as auto high, auto low, or wired. This makes it an excellent choice for use with OEM head units. Or for any system where easy DSP use is desired.

The inputs feature summing capability. Some OEM systems do not have full-range signals on a single pair of wires, so signal summing helps to achieve a full-range signal.

This processor can be adjusted via PC (USB-B cable) or via iOS devices.

Specifications

Operating Voltage 8.7-16.5V
High-Level input impedance 240Ω
RCA input impedance 20kΩ
RCA output impedance 50Ω
RCA output voltage 0.2-5V
High-Level input S/N 105 dBA
RCA input S/N 115 dBA
High-Level input THD 0.02%
RCA input THD 0.01%
REM OUT output current 12V 500 mA
SPK input sensitivity Max 20V (CH1-4) / 40V (CH5-6)
RCA input sensitivity Max 3.2V (CH1-4) / 6.4V (CH5-6)
Turn-On 10V (REM), 1.3V(SPK/DC), 15mV (RCA)
Turn-On time 3 seconds
Input channels 6

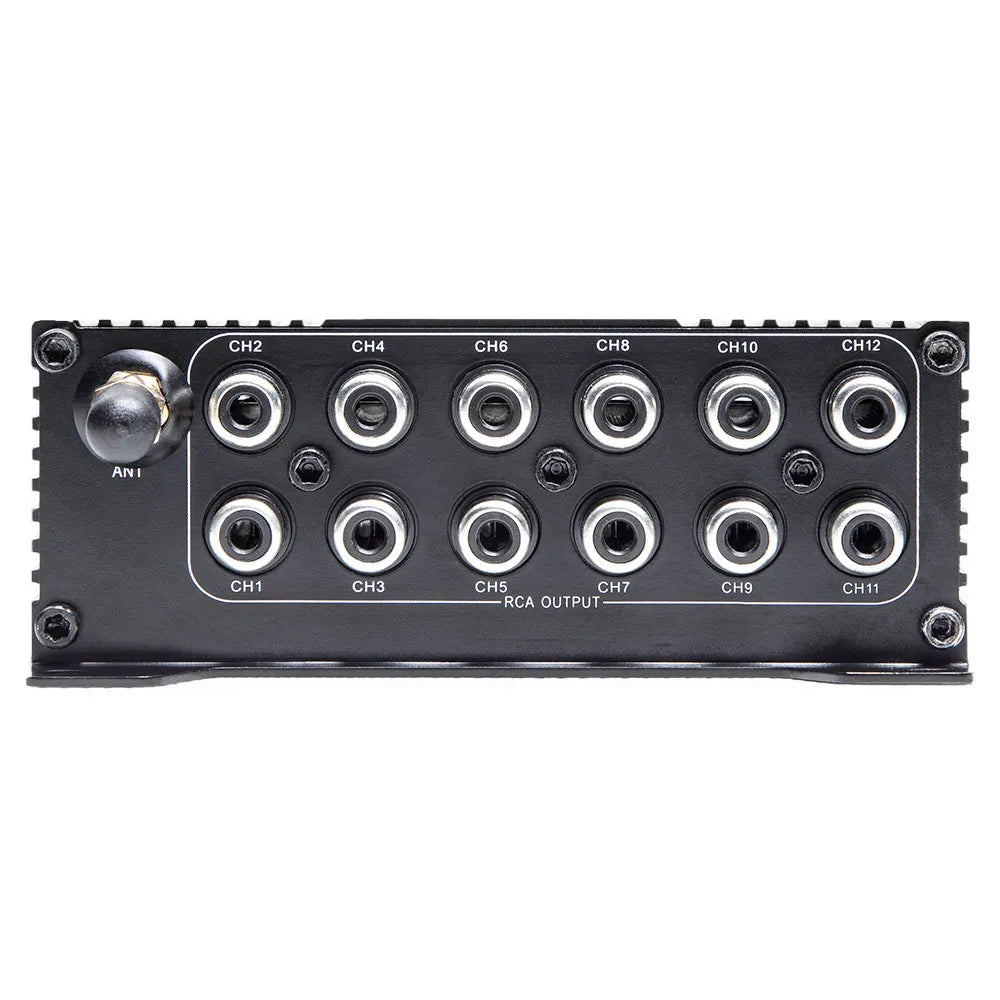

Output channels 12
Parametric / Graphic EQ 31 Bands
Sampling Frequency 192 kHZ
Bit depth 32bit
Processing speed 295 MHz
Idle current 0.46A
Dimensions (in) 7.5 x 4.2 x 1.5
Dimensions (mm) 191 x 107 x 39.
