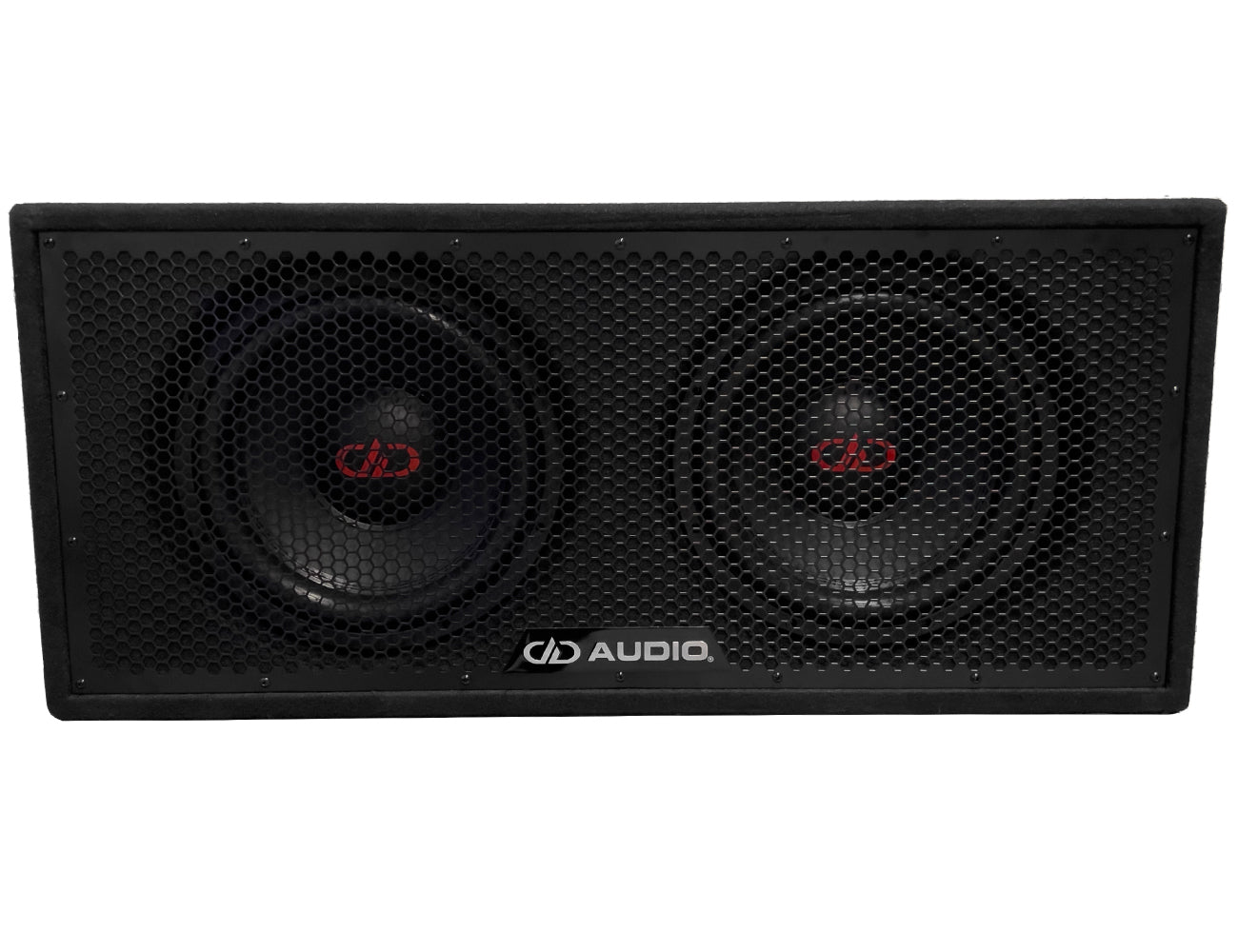

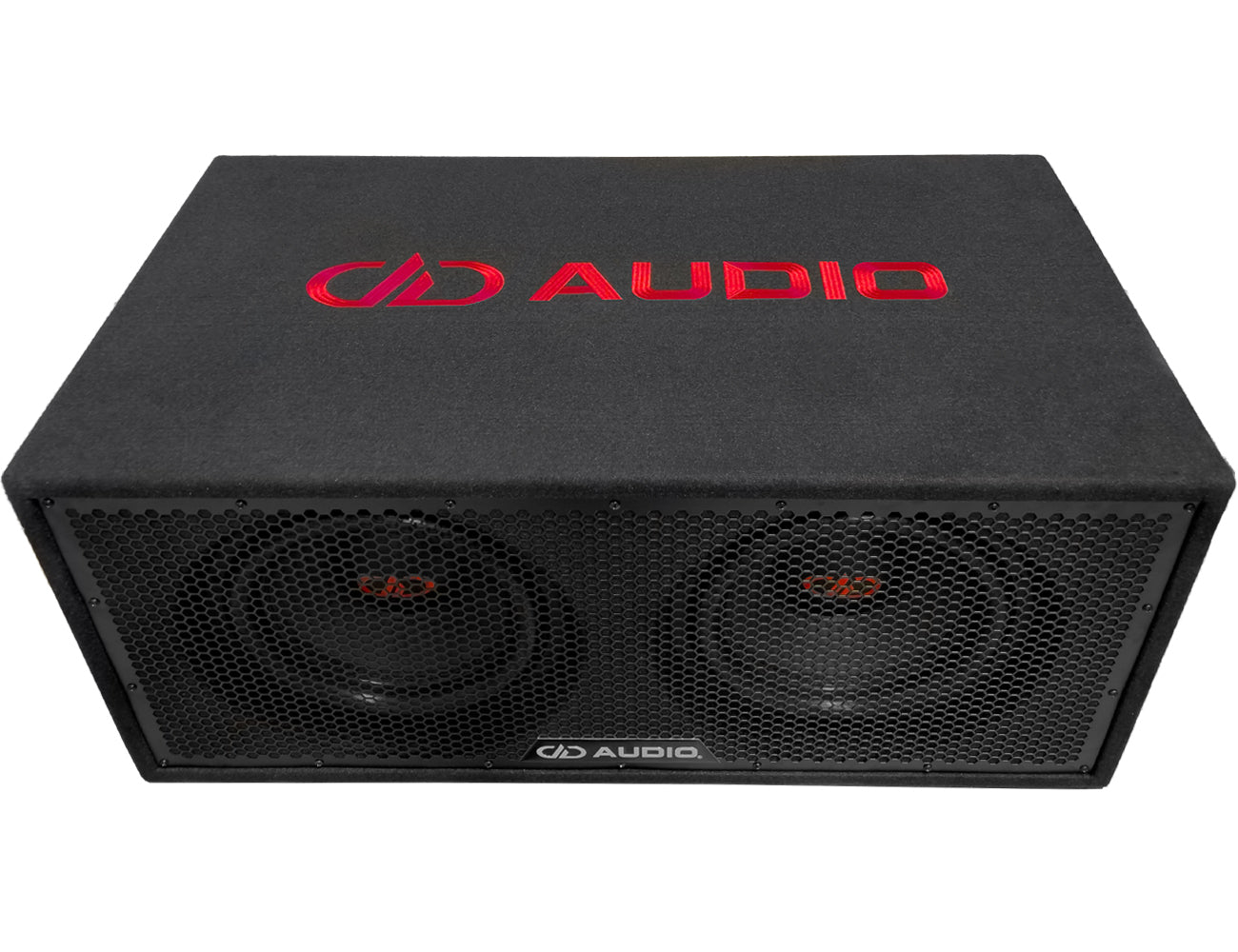

DD Audio LE-512.2 - 1Ohm

INFORMACIJA

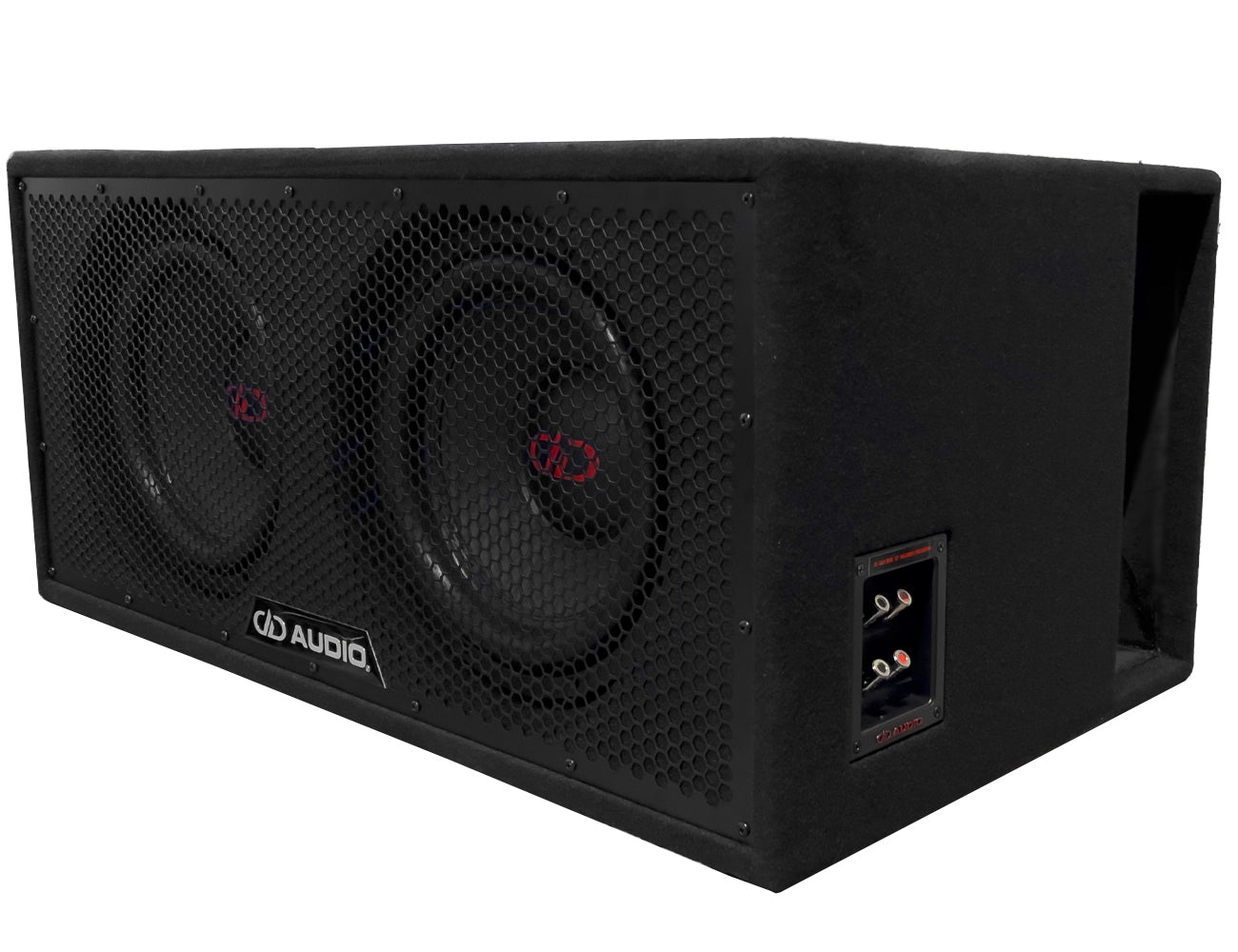

NOTE! The speaker terminal on the box is already wired in parallel inside, so the nominal ohm load on the box is always 1Ohm.
(Connect speaker cables to only one of the speaker terminal inputs)

This new generation of DD boxes delivers unparalleled sound quality, output levels, speaker protection, and superb aesthetics. These loaded boxes feature tuning that allows even the most demanding bass tracks to engulf the vehicle, while transients are clear and powerful, playing a frequency band that covers electronic lows and acoustic string instruments alike.

The new LEs feature an all-metal grill, protecting your investment from cargo mishaps. The large DD-tuned rectangular port is side-mounted to ensure optimal acoustic loading throughout the entire power band.

The LE-500 series is available in 8-inch, 10-inch, and 12-inch options. 8-inch speakers are available in boxes with either one or three speakers, and 12-inch speaker box configurations include either one or two speakers. 10-inch speakers are available in boxes with either one or three speakers.

Technical Specifications

Features:
¾” MDF Construction
Double Layer Front Baffles
Internal Bracing
Glue Cleated Internal Joinery
High Flow 35Hz Port Tuning
Full Hex Cut Custom Metal Grills
Chrome Plated Push Terminals
2.5” Voice Coil
100 oz Magnet


Specifications:
Speaker Size (In): 2 x 12
Watts RMS: 1200
Watts Peak: 3600
Impedance: S1
VCD (In): 2.5
Dimensions ( cm ): 40,6 H x 92,7 W x 50,8 D
