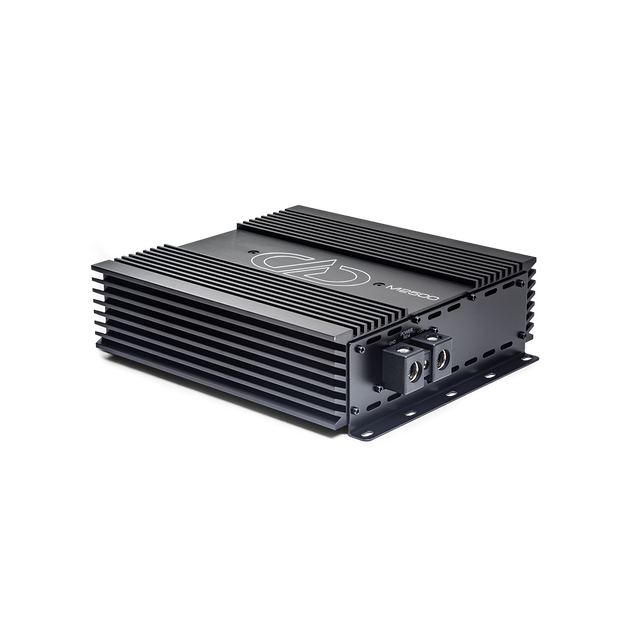

DD Audio M2500

INFORMACIJA

DD AUDIO continues to re-engineer the well-known M Series with enhancements that significantly improve power and efficiency without increasing the unit's size. The M2500 uses the best ultra-high current devices and optimizes their use with intelligent configuration to successfully maintain the modest footprint of its predecessor.

Utilizing design features borrowed from the award-winning Z12000, the new M Series extends its operating voltage with improvements in the power supply, output section, and high-efficiency heat dissipation system, providing a 16V maximum operating voltage that fully leverages today's lithium batteries. These enhancements allow for the best power to footprint ratio to date!

To further enhance performance, the M Series features new end plates, elevating the amplifiers from the mounting surface, allowing the internal fan to draw more air across the PCB even on carpeted or padded surfaces.

These high current half bridge amplifiers are more compact, lighter, and more powerful than any others.

Specifications

Features
Optimized Über High Current Power Supply
Strappable Half Bridge Design
ZVL Linking Module Input
24dB/Oct Bandpass Filters
Custom Vanity Plate Ready
Remote / LCD Voltage Display and Clipping Indicator
2500 Watts RMS Continuous Power

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 1
Continuous Wattage @4ohm: 1000
Continuous Wattage @2ohm: 1500
Continuous Wattage @1ohm: 2500
Dynamic Wattage: 4000
Max Current Draw (Amps): 400
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 97
Damping Factor: 400
Frequency Response (Hz): 20 - 500
Sub-Sonic Filter: 20 - 250Hz
Low-Pass Filter: 50 - 500Hz
ZVL Input: Yes
Pass Thru Output: No
Remote Control: Remote Included in Box
Power Wire Gauge: 1 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 9.5 x 9 x 2.6
Dimensions (MM): 240 x 230 x 66
