DD Audio

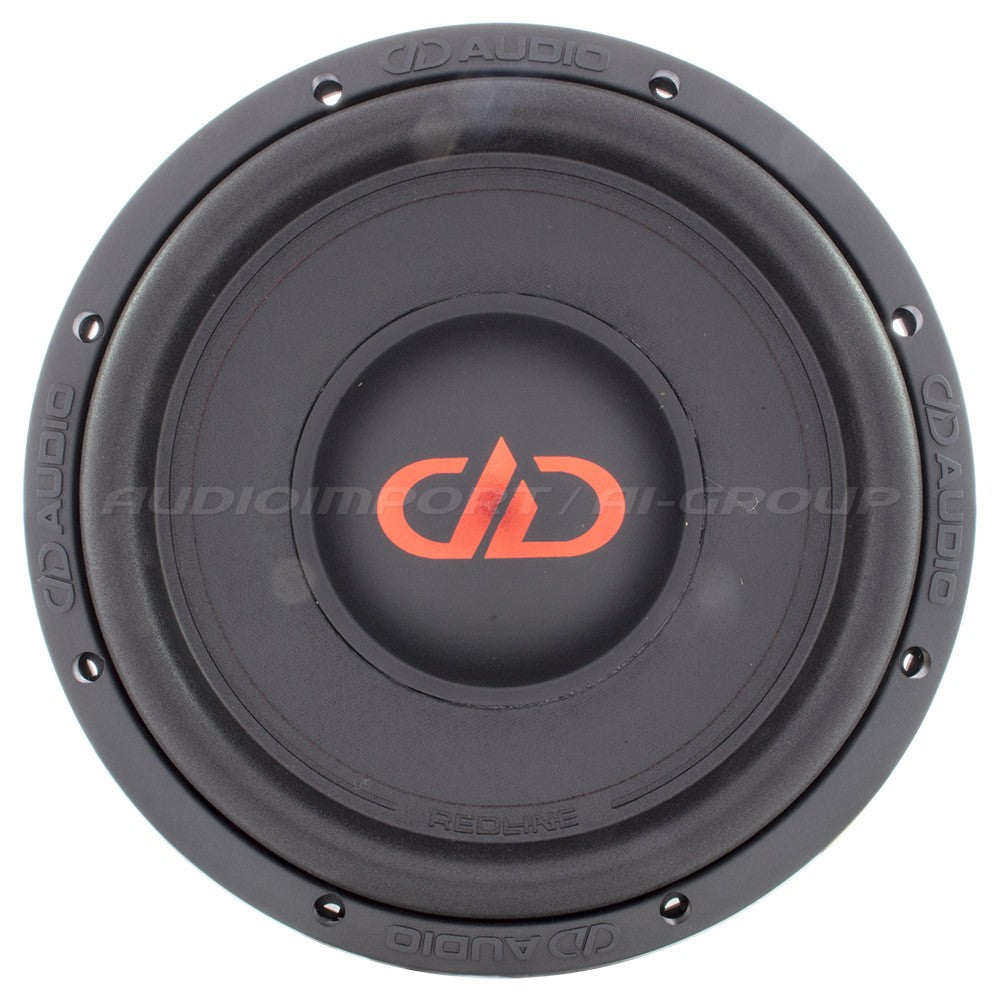

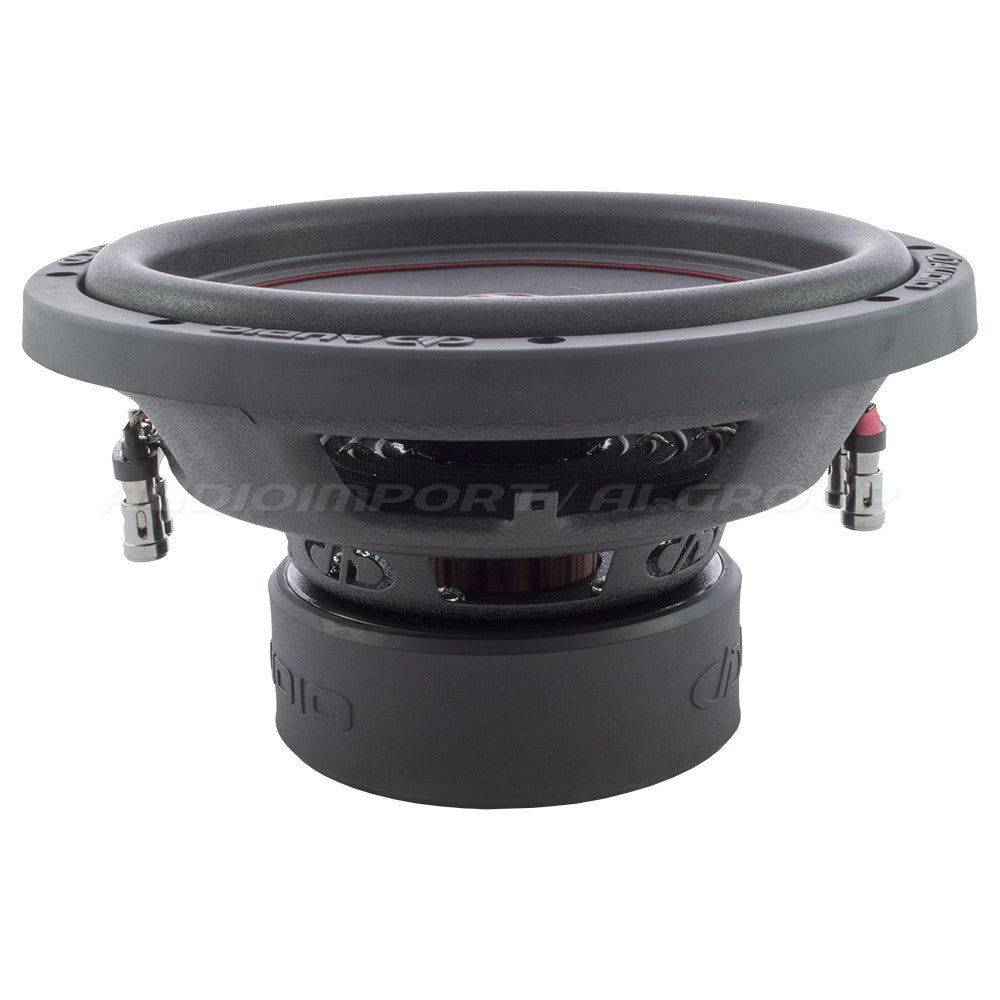

DD Audio Redline 210d D2

The new Redline 200 series delivers more low-end power and a smoother response. The updated construction ensures greater efficiency and power.

€120.95 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The completely redesigned Redline 200 series offers many advantages over the older design. Redesigned frames and suspension geometry allow for lower Fs and greater excursion potential. These two features together give YOU a lot of BASS, especially at low frequencies. The updated voice coils have increased thermal management, reduced inductance, and increased efficiency. These features provide a smoother response, more output with the same amplifiers, and more power handling.

Aesthetic improvements have also been made. The red double stitching no longer exists; the red line is now visible between the cone and the thermoformed multilayer surround. The dust cap logo is made of a reflective foil layer. All cones and dust caps now have a black matte finish. All frames feature the DD brand.

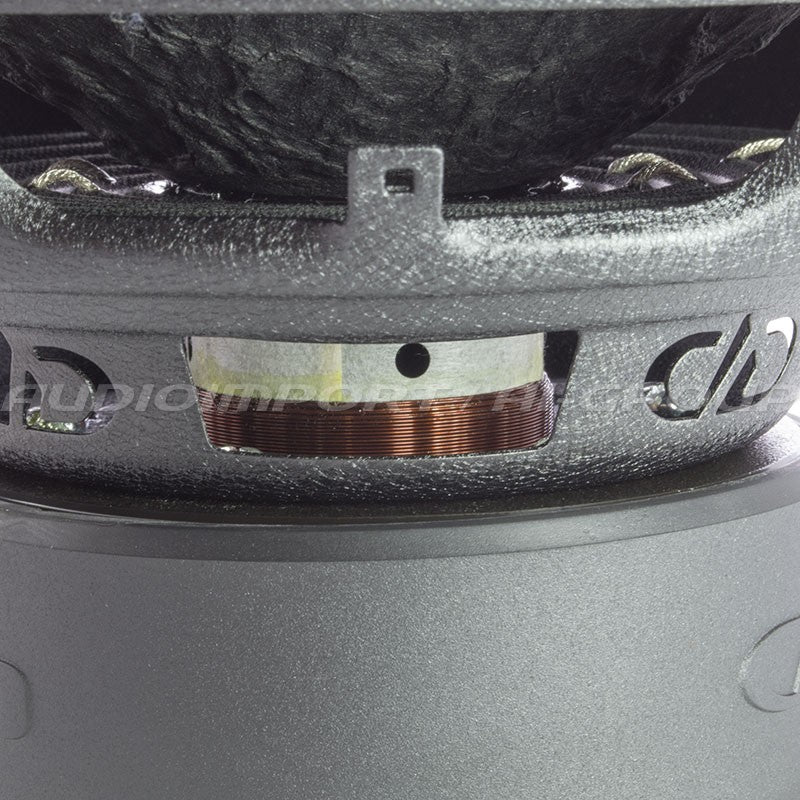

The triple voice coil ventilation, laminated spiders, and extended pole pieces that made DD subwoofers so exceptional are still present in these new models.

Redline 200 series subwoofers feature 2″ voice coils, available in dual 2 or 4 ohms. Available sizes are 10″ and 12″.

Technical specifications

- 10″ subwoofer
- 2″ voice coil wound of Made in USA wire
- 2x 2 ohms
- power handling 300 W RMS, 900 W Peak
- weight: 5 kgs
- mounting diameter: 234 mm
- mounting depth: 126 mm
- x-mech: 64 mm
- x-max: +- 10 mm
- fs: 36,34 Hz
- qts: 0,649
- vas: 33,26 litraa
- recommended ported enclosure: 35-43 liter ( NET )
- recommended sealed enclosure: 11-23 liter ( NET ).
