DD Audio

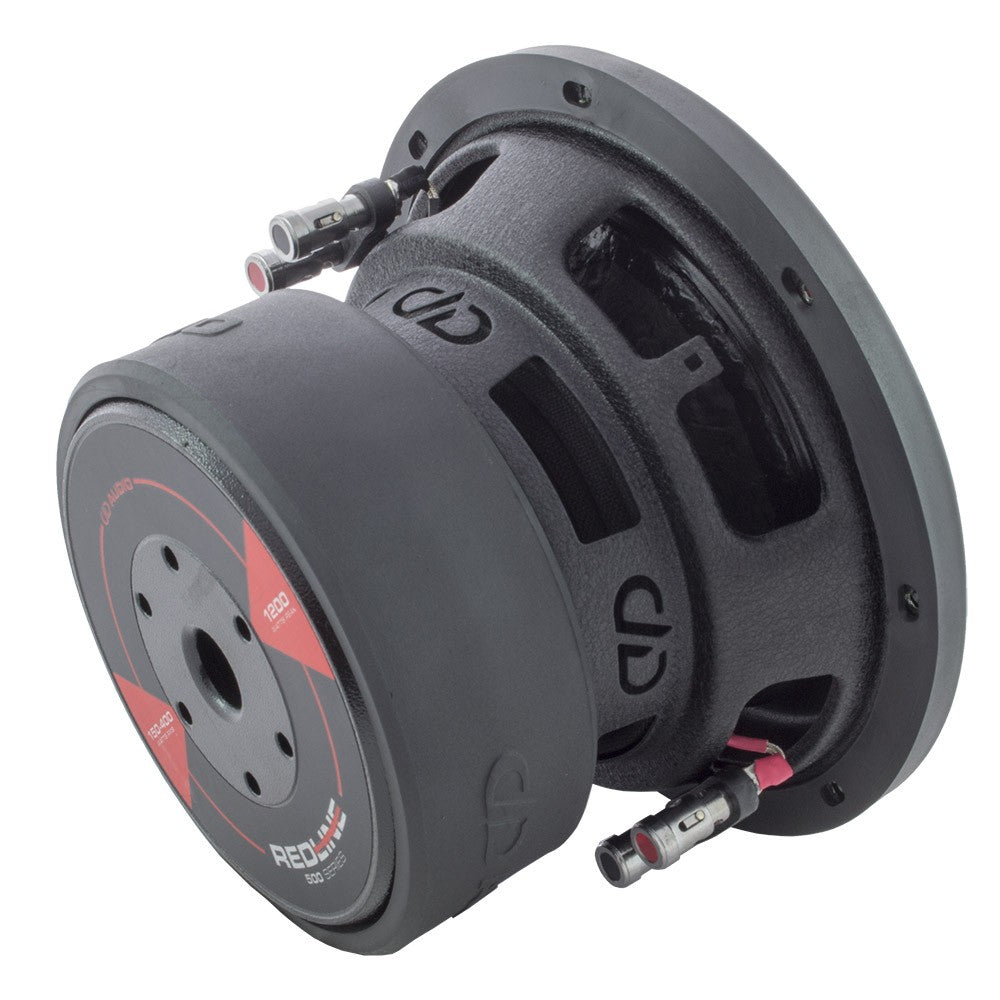

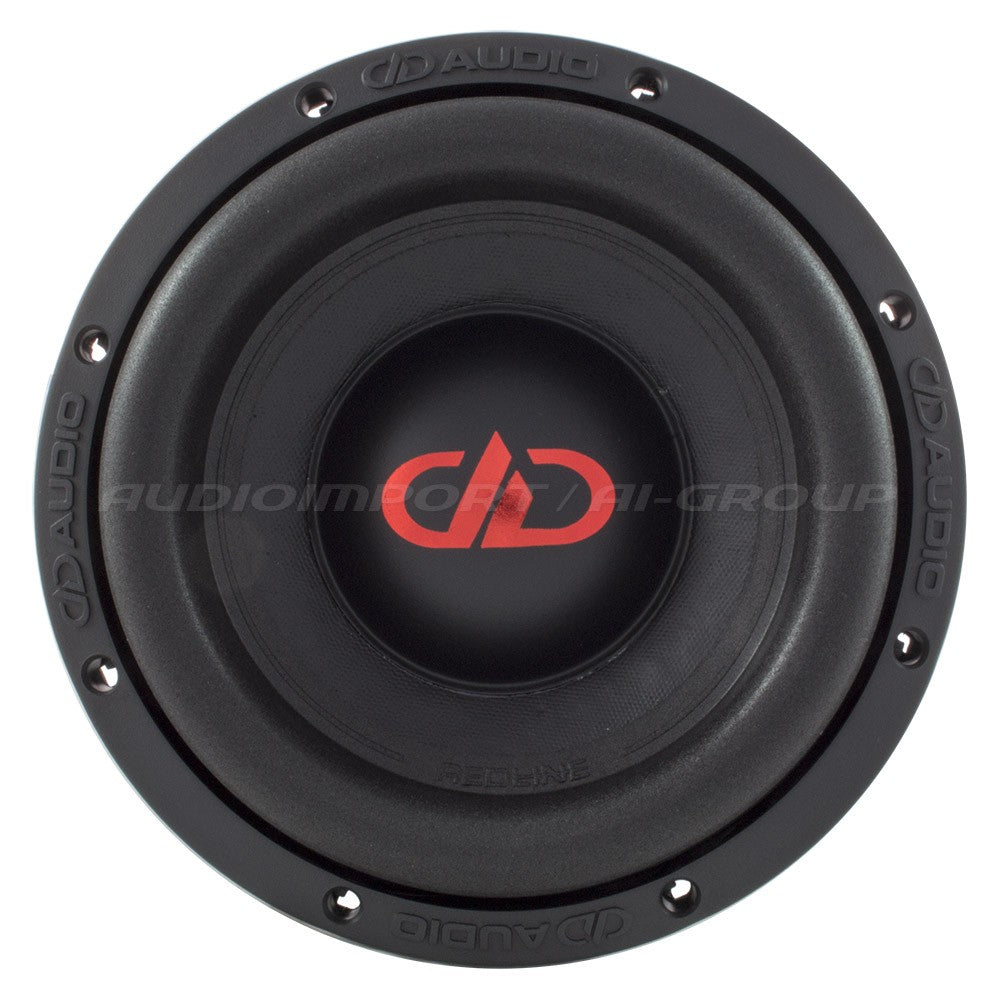

DD Audio Redline 508d D2

The new Redline 500 series delivers more low-end power and a smoother response. The improved design ensures greater efficiency and power.

€121.97 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The completely updated Redline 500 series offers many advantages compared to the older design. The updated frames and suspension geometry allow for a lower Fs and greater excursion potential. These two features combined give YOU A LOT OF BASS, especially at low frequencies. The updated voice coils have increased thermal management, reduced inductance, and increased efficiency. These features provide a smoother response, more output with the same amplifiers, and more power handling. Aesthetic improvements have also been made. The red double stitching no longer exists, the red line is now visible between the cone and the thermoformed multi-layer surround. The dust cap logo is made of a reflective foil layer. All cones and dust caps now have a black matte finish. All frames are DD branded. The triple ventilation in the voice coil, laminated spiders, and extended pole pieces that made DD subwoofers so exceptional are still present in these new models. Redline 500 series subwoofers have 2″ voice coils, available in dual 2 or 4 ohms. Available sizes are 6.5″, 8″, 10″ and 12″.

Technical specifications

- 8″ subwoofer
- 2″ voice coil wound of Made in USA wire
- 2x 2 ohms
- power handling 400 W RMS, 1200 W Peak
- weight: 6.4 kg
- mounting diameter: 183 mm
- mounting depth: 127 mm
- x-mech: 64 mm
- x-max: +- 10 mm
- fs: 37.68 Hz
- qts: 0.4526
- vas: 8.813 liters
- recommended ported enclosure: 21-35 liters (NET)
- recommended sealed enclosure: 10-17 liters (NET).
