DD Audio

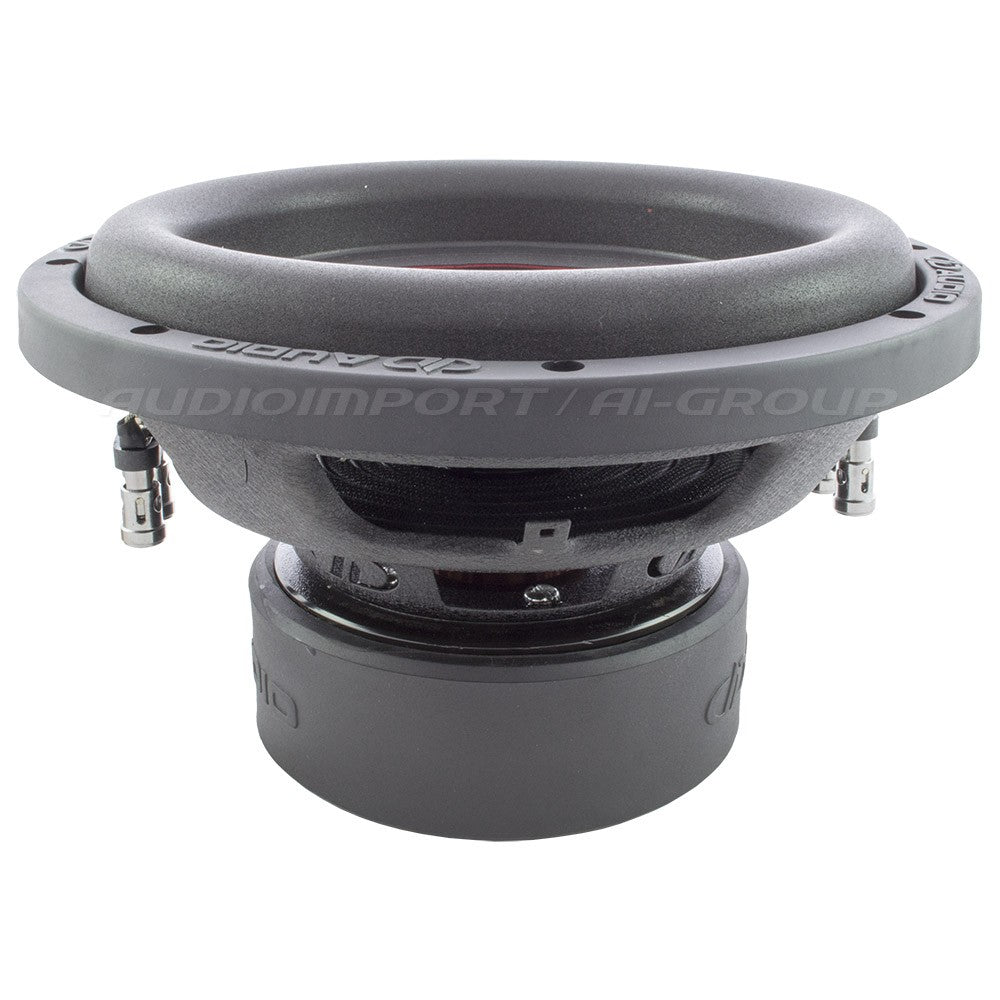

DD Audio Redline 510d D2

The new Redline 500 Series offers plenty of low-frequency sound and power. The updated design ensures smoother sound and greater efficiency.

€129.17 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The completely redesigned Redline 500 series offers numerous advantages over the older design. The re-engineered frames and suspension geometry allow for a lower Fs and greater excursion potential. These two things together provide you with PLENTY OF BASS, especially in the lower frequency ranges. The revised voice coils have increased thermal handling, reduced inductance, and increased efficiency. These features provide a smoother response, more output with the same amps, and greater power handling. Aesthetic improvements have also been made. The red double stitching line is no longer present, the red line is now visible between the cone and the thermoformed multi-layer surround. The dust cap logo is made of a reflective foil layer. All cones and dust caps now have a black matte finish. All frames are DD branded. The triple voice coil ventilation, laminated spiders, and extended pole pieces that made DD subwoofers so exceptional are still present in these new models. The Redline 500 series subwoofers feature 2″ voice coils, available in dual 2 or 4 ohms. Available sizes are 6.5″, 8″, 10″, and 12″.

Specifications

- 10″ subwoofer

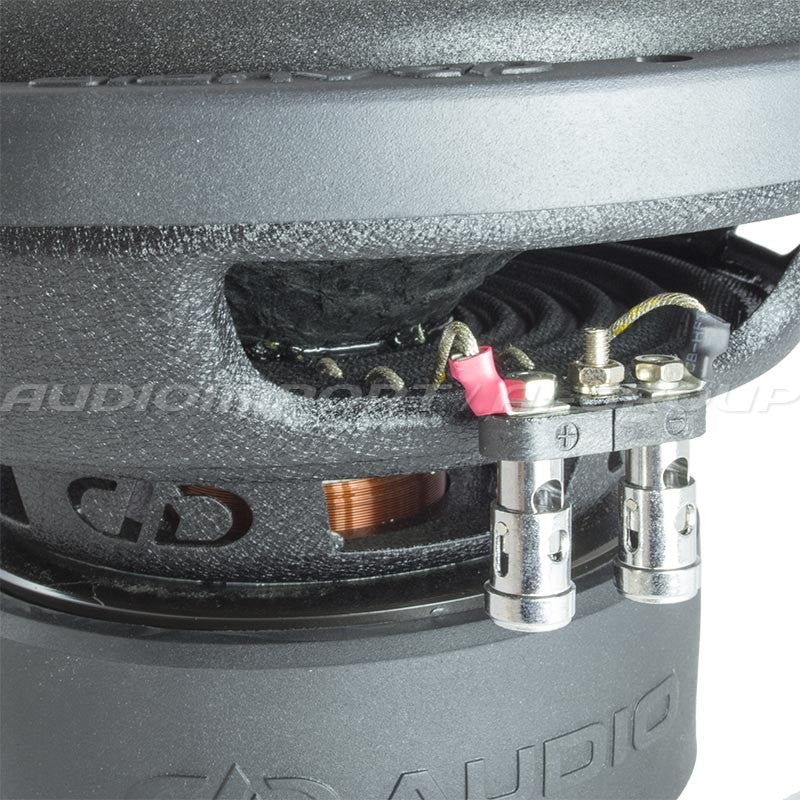

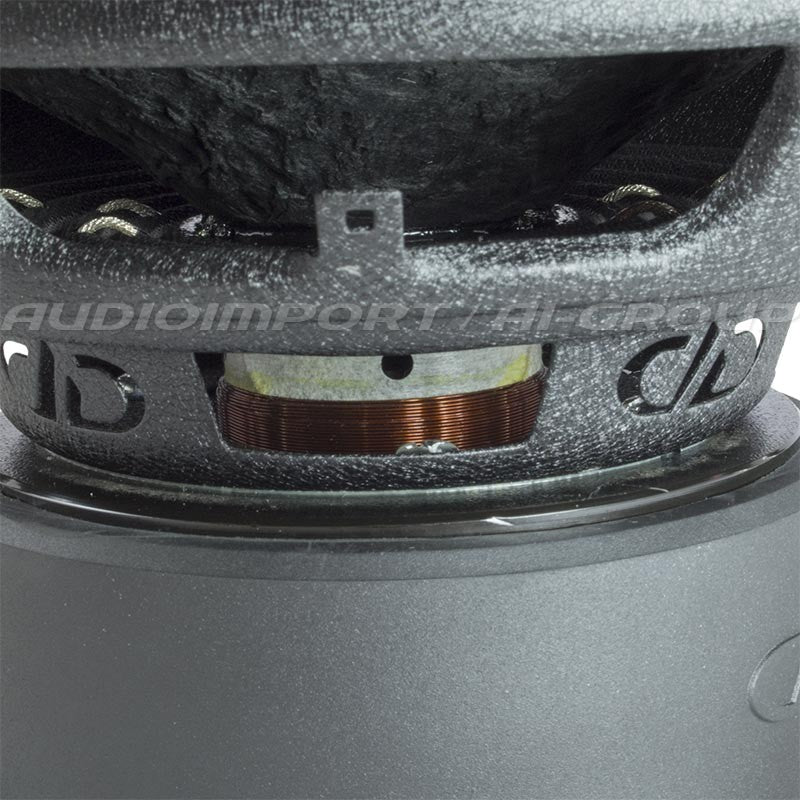

- 2″ voice coil wound of Made in USA wire
- 2x 2 ohms
- power handling 400 W RMS, 1200 W Peak
- weight: 6,8 kgs
- mounting diameter: 234 mm
- mounting depth: 134 mm
- x-mech: 64 mm
- x-max: +- 10 mm
- fs: 30,28 Hz
- qts: 0,4159
- vas: 27,44 litraa
- recommended ported enclosure: 35-42 liter ( NET )
- recommended sealed enclosure: 11-23 liter ( NET ).
