DD Audio  |  Bar code: 0850013938803

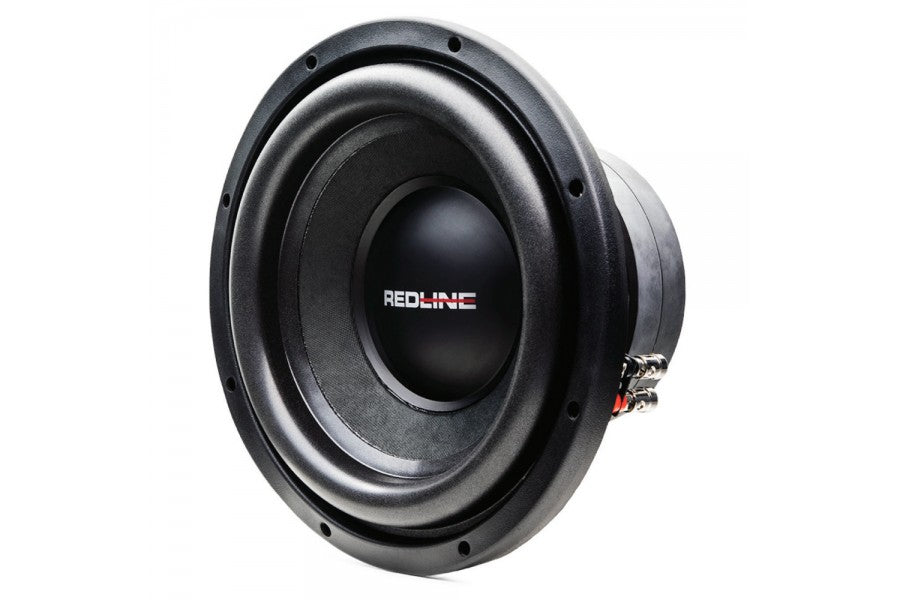

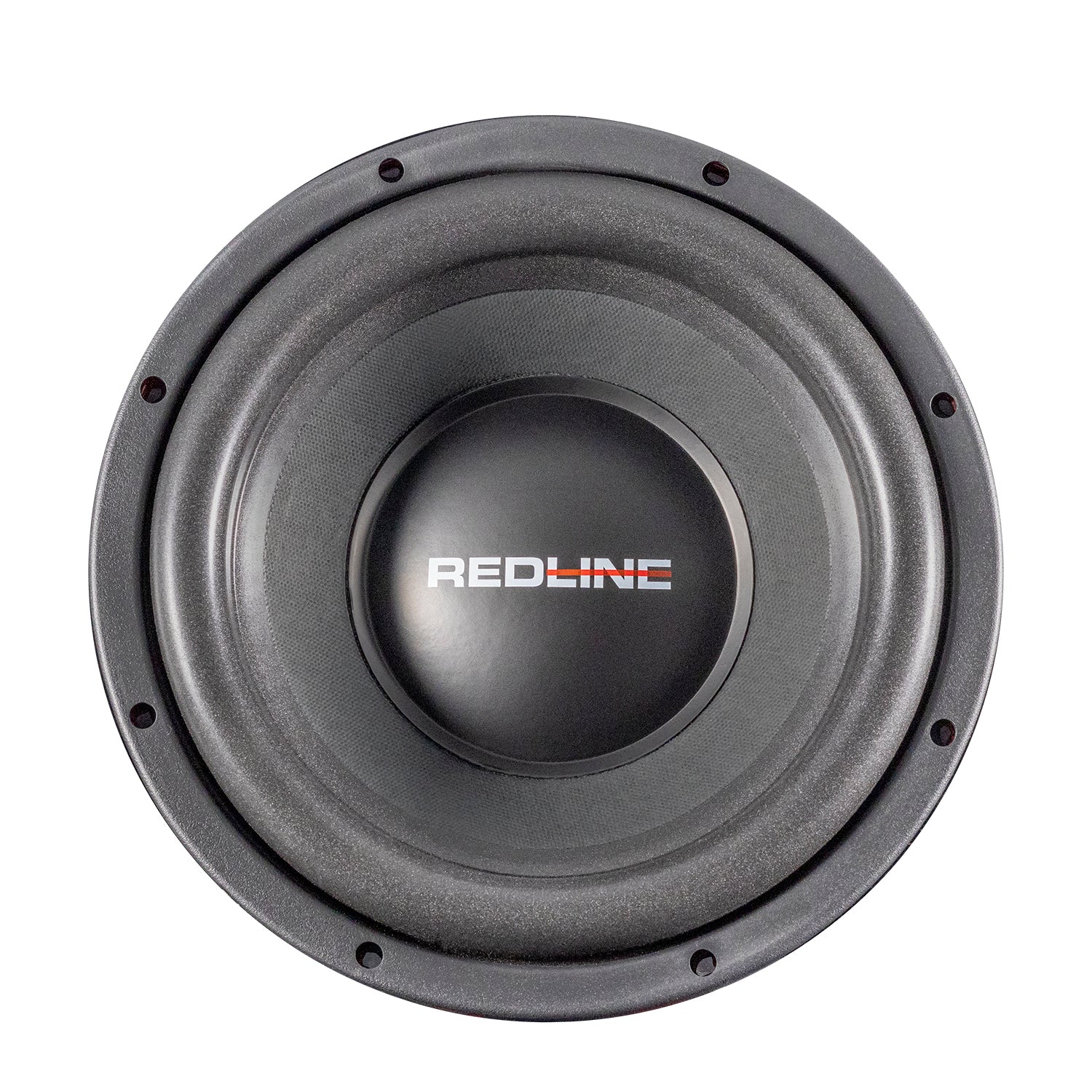

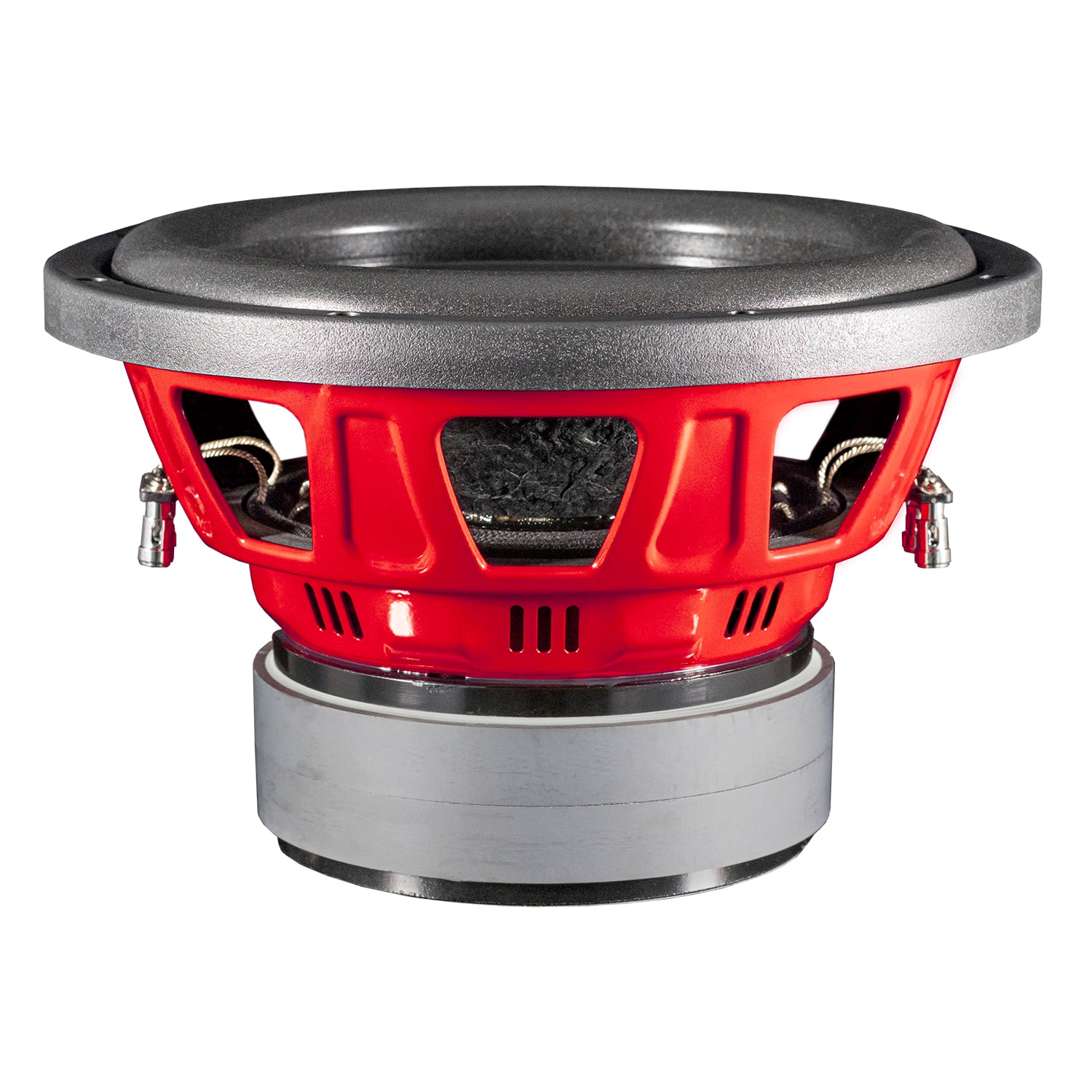

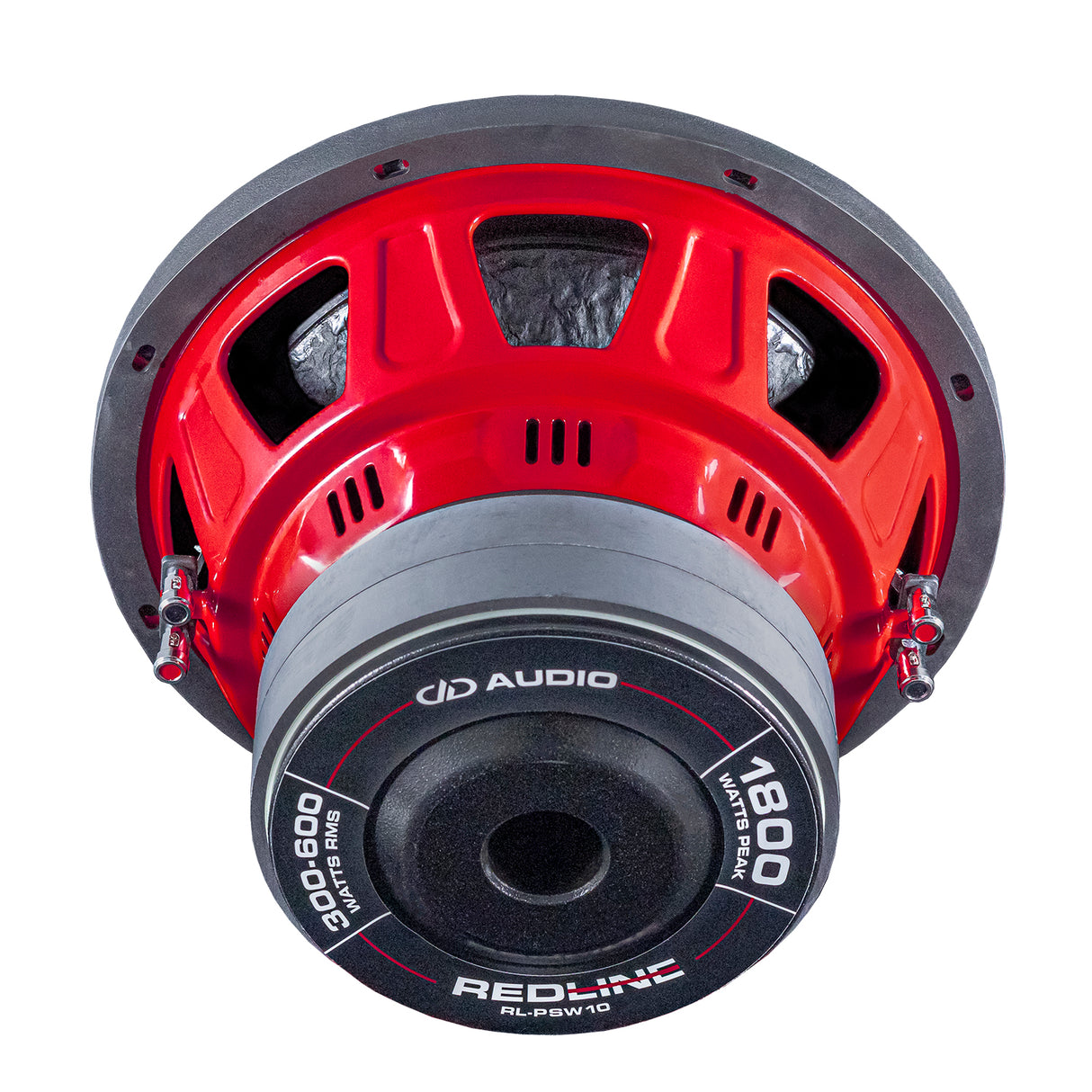

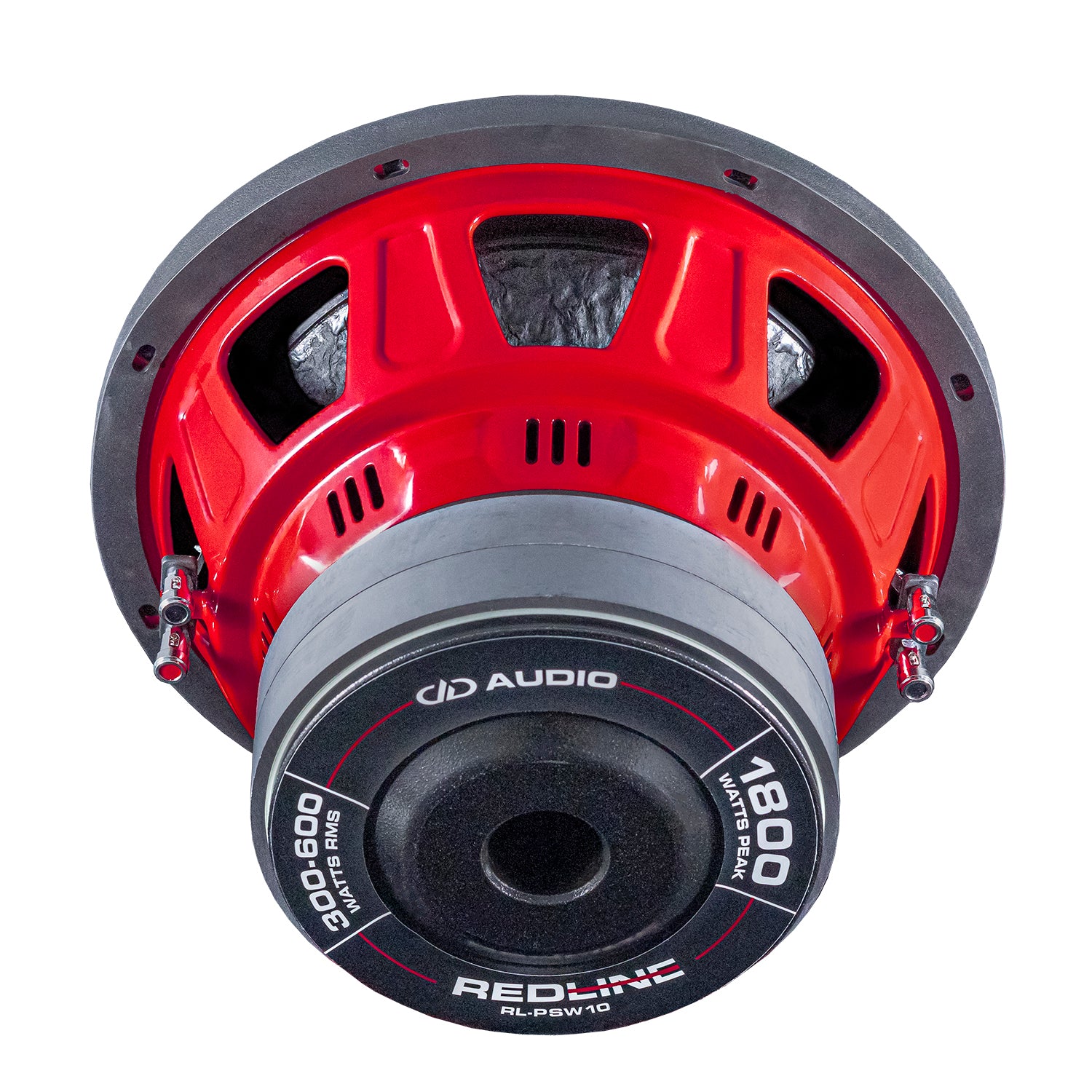

DD Audio RL-PSW10-D4

The more powerful REDLINE PSW series with a larger voice coil and magnet ensures more true bass. Improved power handling and longer Xmax provide an even better sound experience.

€99.00 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The REDLINE PSW (power) series subwoofers are a more powerful version of the REDLINE SW series subwoofers. REDLINE PSW subwoofers have been improved in every area compared to the REDLINE SW series: - Larger voice coil - Better power handling - Longer Xmax - Larger magnet - MUCH MORE REAL BASS!

Technical specifications

Speaker size: (in) 10
Watts RMS: 400
Watts peak: 800
Impedance: D2/D4
VCD: (in) 2.5
Piston diameter: (in) 8
FS: (Hz) 38
Qms: 5.114
Qes: 0.693
Qts: 0.61
Vas: (liters) 17.73
dBSPL: 85
Xmech: (mm) 27
Xmax: (mm) 13
Frame OD: (in) 10
Frame OD w/Gasket: (in) 10.15

Mounting diameter: (in) 8.93
Mounting depth: (in) 5.96
Motor diameter: (in) 6.14
Motor depth: (in) 2.59
Magnet weight: (Oz) 100
Woofer displacement: (CuFt) 0.06
Ported enclosure: (CuFt) 1.25-1.50
Shipping weight: (lbs) 18.
