DD Audio

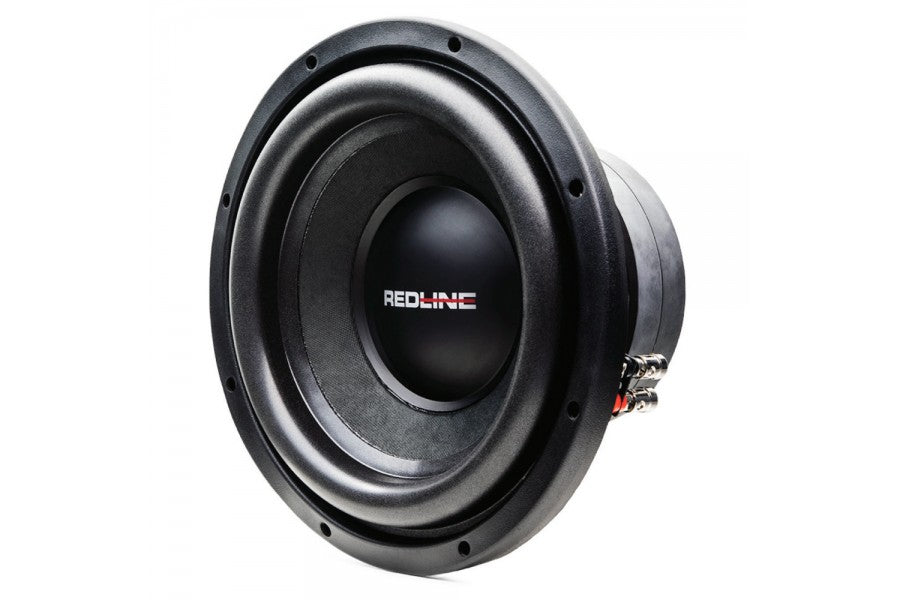

DD Audio RL-PSW12-D2

The more powerful REDLINE PSW series delivers more power and real bass. Improved in every area, this subwoofer features a larger voice coil and better power handling.

€131.11 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

REDLINE PSW (power) series subwoofers are a more powerful version of the REDLINE SW series subwoofers. REDLINE PSW subwoofers have been improved in every area compared to the REDLINE SW series: - Larger voice coil - Better power handling - Longer Xmax - Larger magnet - LOTS OF REAL BASS!

Technical specifications

Speaker size: (in) 12
Watts RMS: 400
Watts peak: 800
Impedance: D2
VCD: (in) 2.5
Piston diameter: (in) 10
FS: (Hz) 37
Qms: 5.835
Qes: 0.845
Qts: 0.738
Vas: (liters) 30.23
dBSPL: 87
Xmech: (mm) 29
Xmax: (mm) 13
Frame OD: (in) 12.126
Frame OD w/Gasket: (in) 11.17

Mounting diameter: (in) 11.02
Mounting depth: (in) 6.53
Motor diameter: (in) 6.14
Motor depth: (in) 2.59
Magnet weight: (Oz) 100
Woofer displacement: (CuFt) 0.07
Ported enclosure: (CuFt) 1.75-2.75
Shipping weight: (lbs) 19
