DD Audio  |  Bar code: 0850013938902

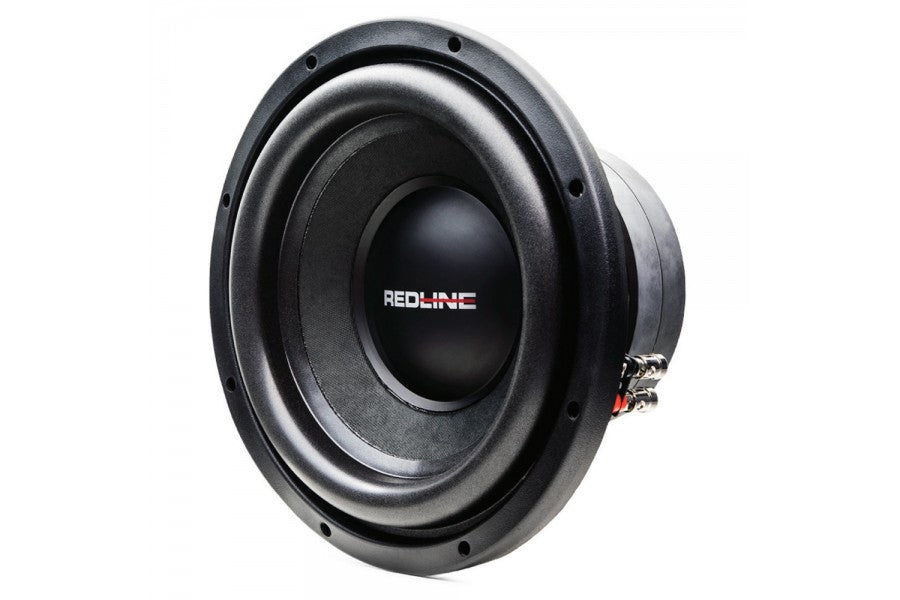

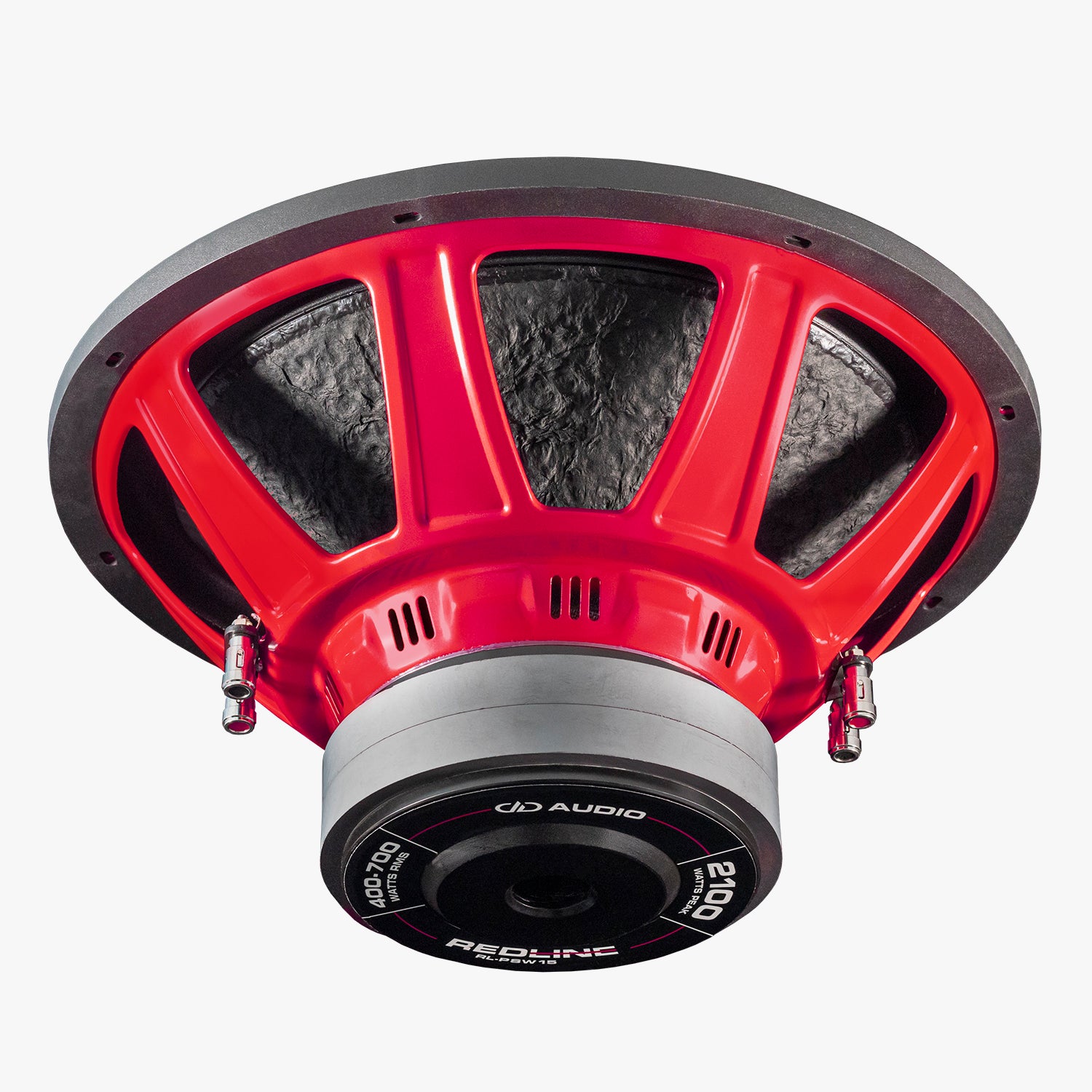

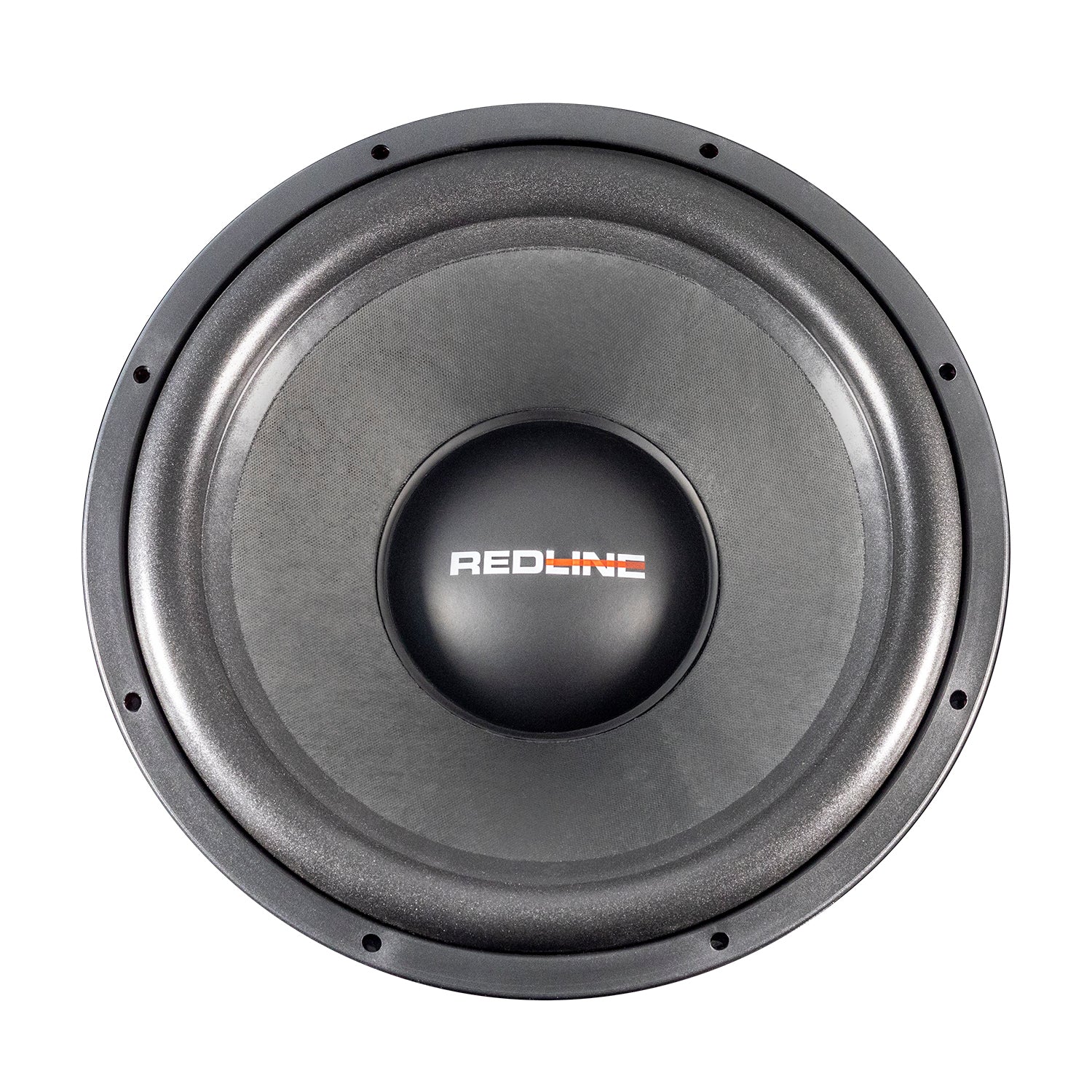

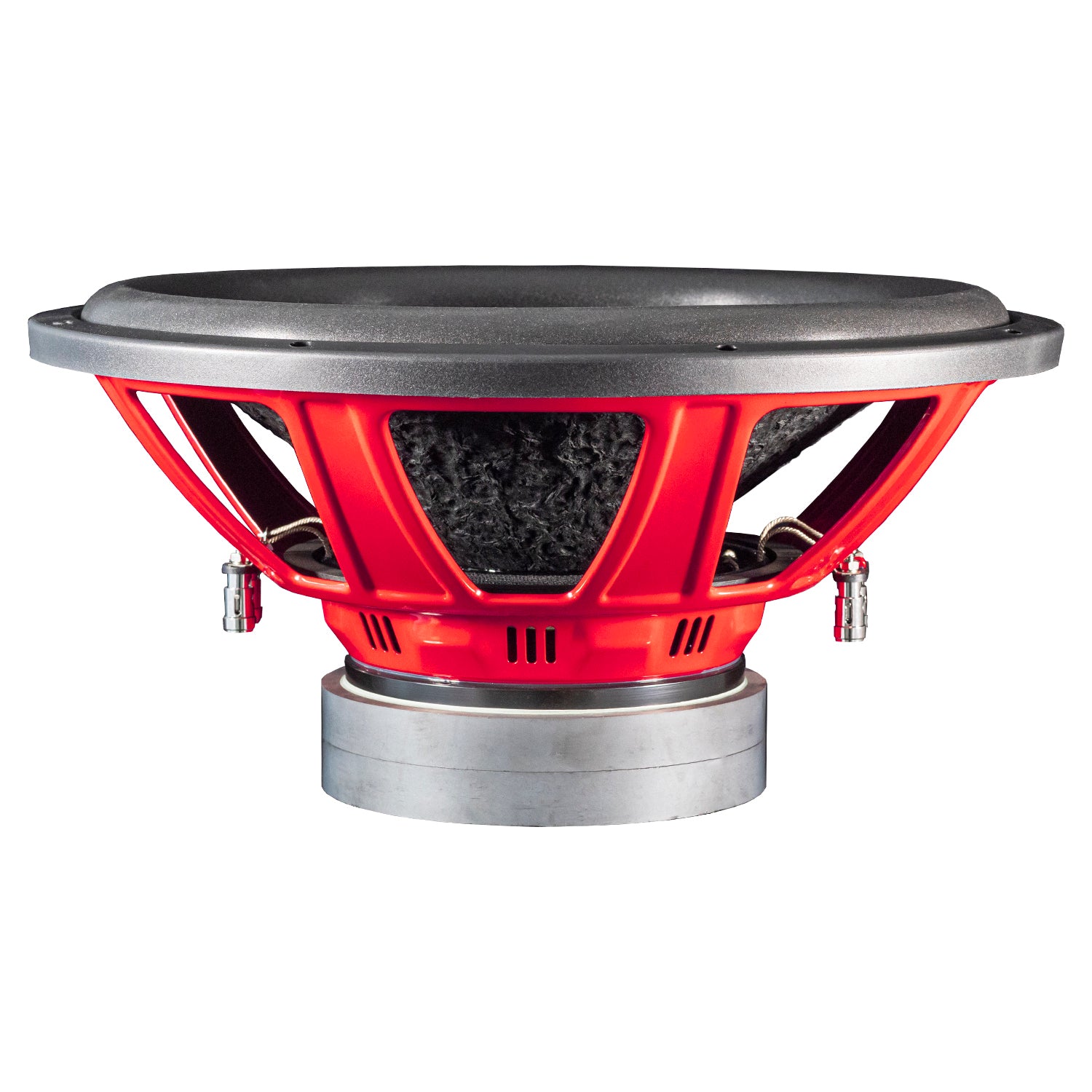

DD Audio RL-PSW15-D2

The more powerful REDLINE PSW series with an upgraded voice coil, larger magnet, and longer excursion will deliver plenty of true sound

€161.61 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

REDLINE PSW (power) series subwoofers are a more powerful version of the REDLINE SW series subwoofers. REDLINE PSW subwoofers have been improved in every aspect compared to the REDLINE SW series: - Larger voice coil - Better power handling - Longer Xmax - Larger magnet - LOTS OF REAL BASS!

Technical specifications

Speaker size: (in) 15
Watts RMS: 500
Watts peak: 1000
Impedance: D2/D4
VCD: (in) 3
Piston diameter: (in) 13
FS: (Hz) 29
Qms: 6.205
Qes: 0.89
Qts: 0.778
Vas: (liters) 93.91
dBSPL: 89
Xmech: (mm) 30
Xmax: (mm) 14
Frame OD: (in) 15.02
Frame OD w/Gasket: (in) 14.04

Mounting diameter: (in) 13.89
Mounting depth: (in) 7.32
Motor diameter: (in) 6.69
Motor depth: (in) 2.59
Magnet weight: (Oz) 115
Woofer displacement: (CuFt) 0.1
Ported enclosure: (CuFt) 3.0-5.0
Shipping weight: (lbs) 22.
