DD Audio  |  Bar code: 0850013938612

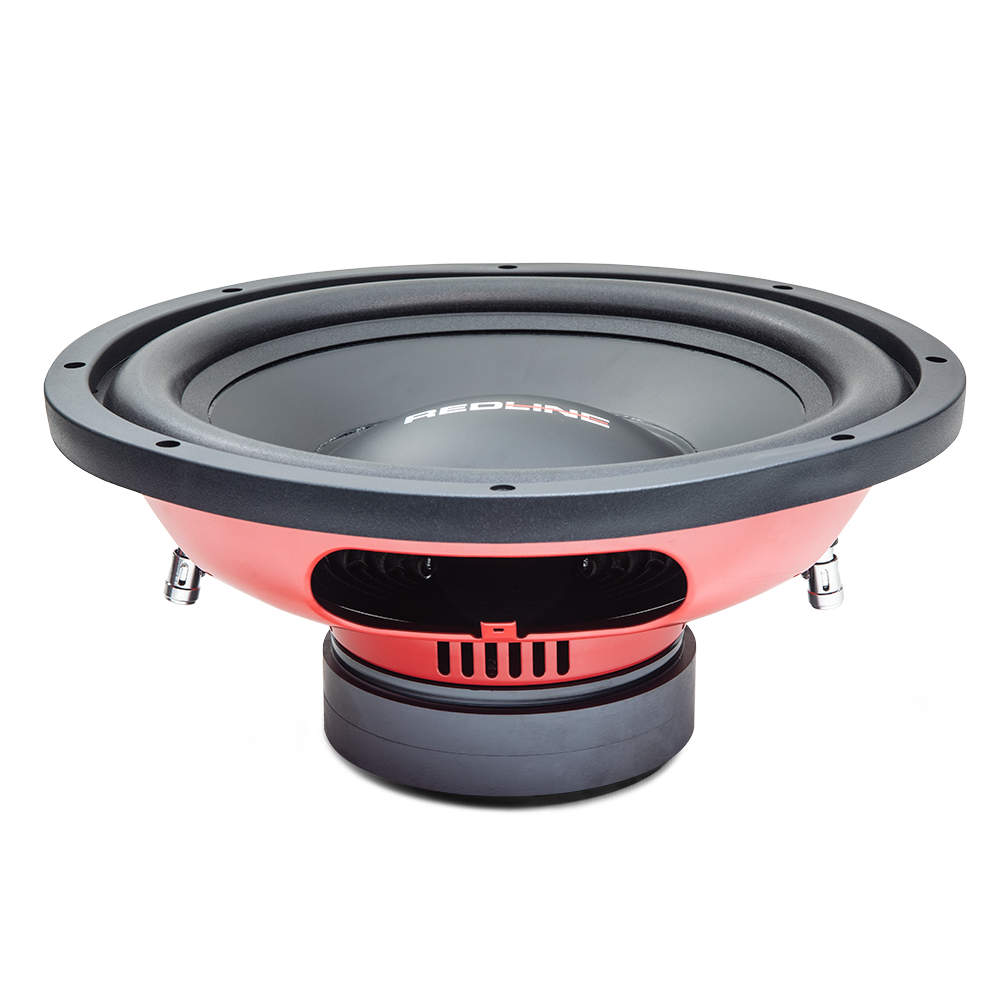

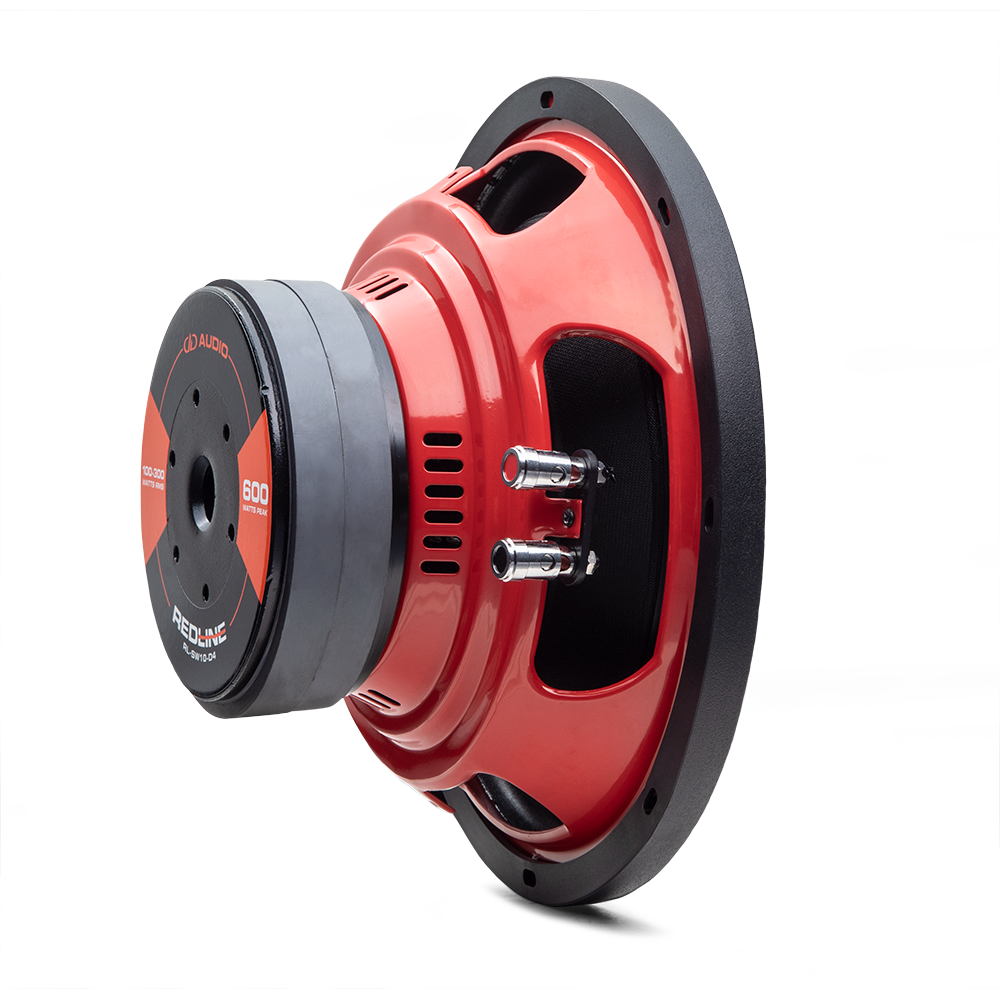

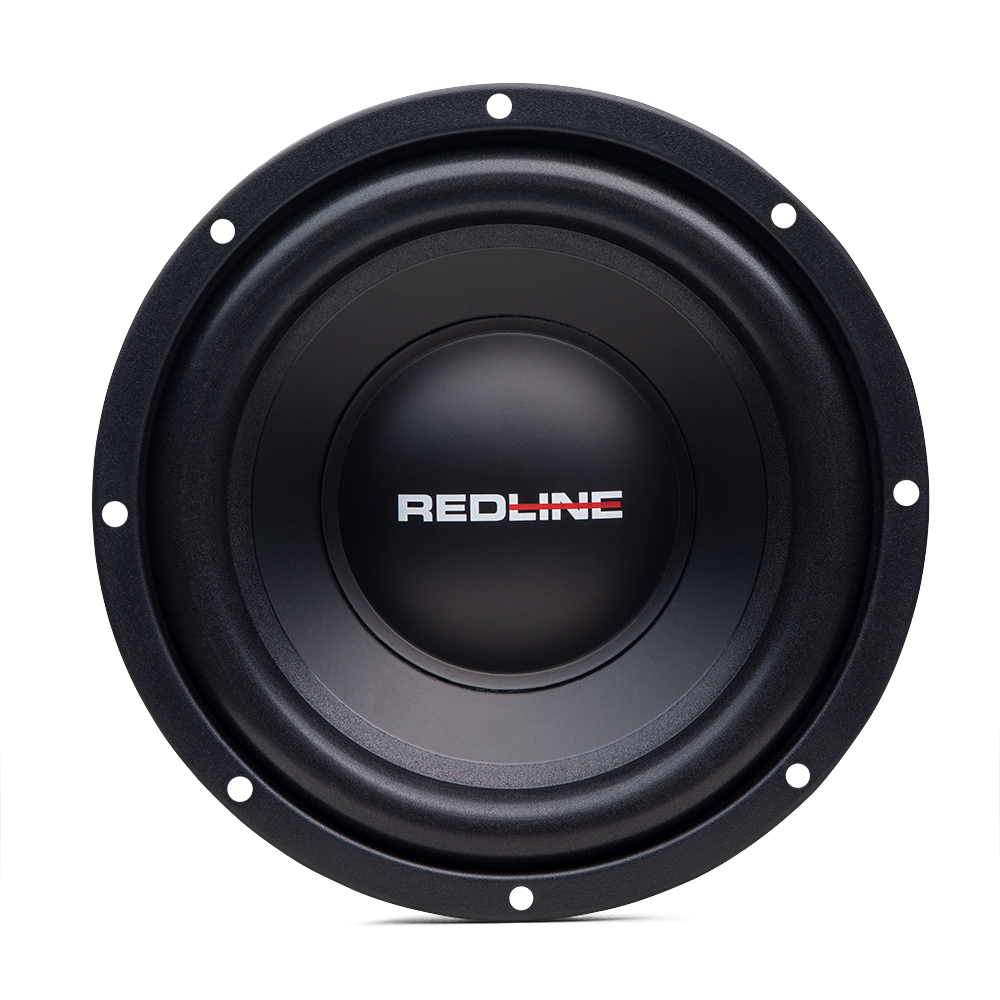

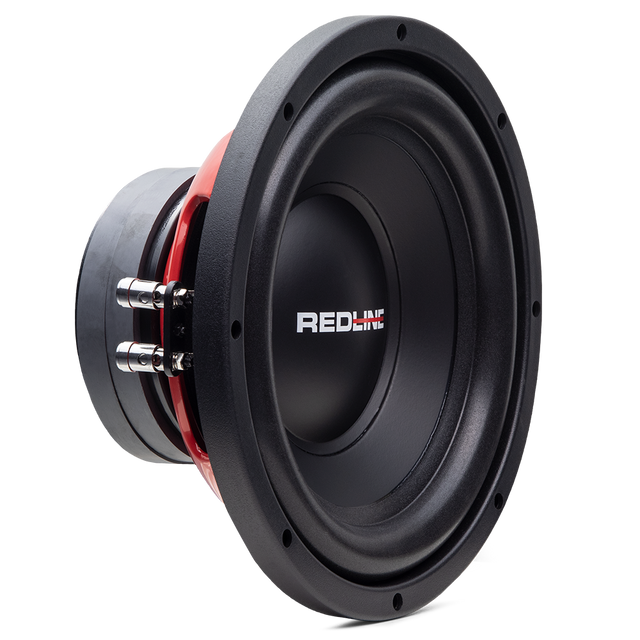

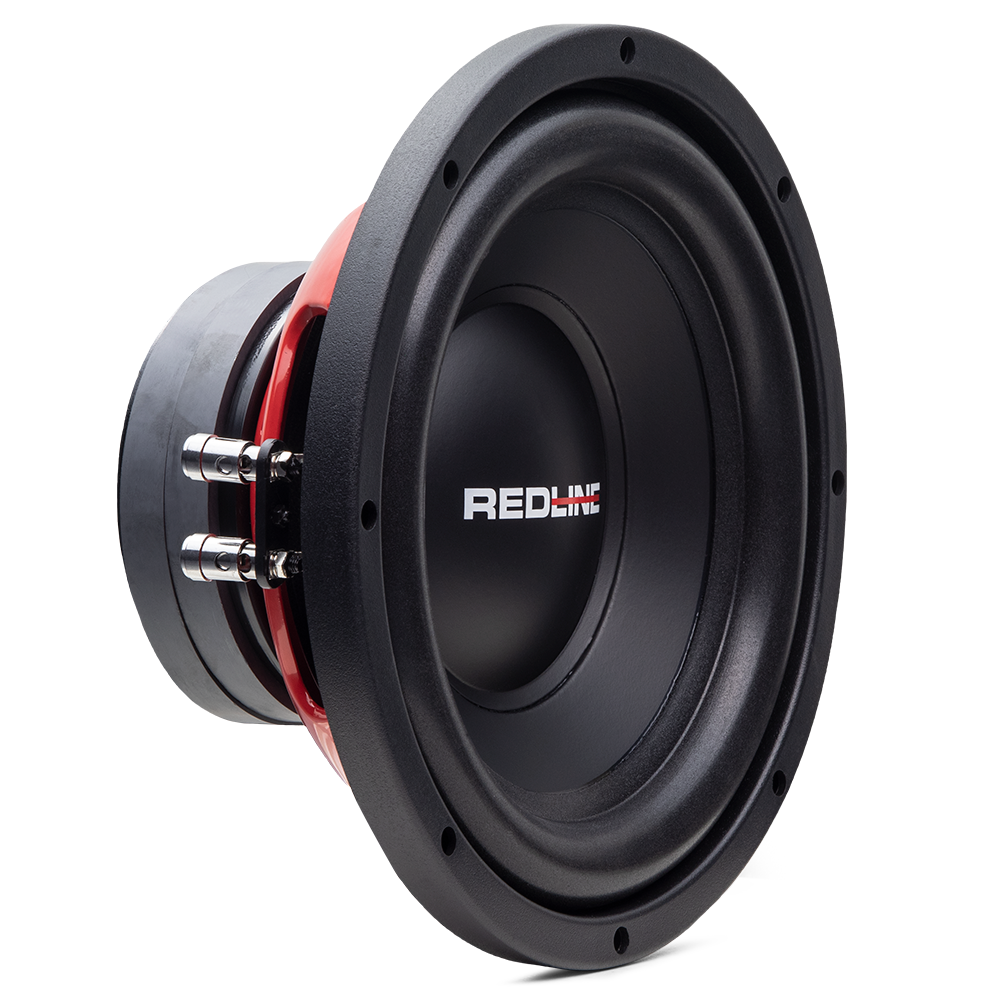

DD Audio RL-SW10-D2

REDLINE SW series subwoofers deliver extreme bass and perform exceptionally well in various enclosures, offering quality sound for everyday use.

€60.97 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

REDLINE SW series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers work great in sealed and small vented enclosures at low to medium power. They are loaded with all the performance features needed for daily use and are available in dual impedance variants to accommodate any DD Audio amplifier.

High-temperature 2” voice coil
DVC 2 Ohm, DVC 4 Ohm
EROM surround
Vented steel basket
Vented backplate
Push terminals

Specifications

Speaker Size (In):10
Watts RMS:100 - 300
Watts Peak:600
Impedance:D2 / D4
VCD (In):2
Piston Diameter (In):8
Fs (Hz):35
Qms:11.107
Qes:0.53
Qts:0.506
Vas:32.495
dBSPL:86
Xmech (MM):18
Xmax (MM):8
Frame OD (In):10.12
Frame OD w/Gasket (In):10.25
Mounting Diameter (In):9
Mounting Depth (In):4.75
Motor Diameter (In):5.27
Motor Depth (In):1.7
Magnet Weight (Oz):55
Woofer Displacement (CuFt):0.03
Sealed Enclosure (CuFt):0.5 - 1.0
Ported Enclosure (CuFt):0.75 - 1.25.
