DD Audio  |  Bar code: 0850013938629

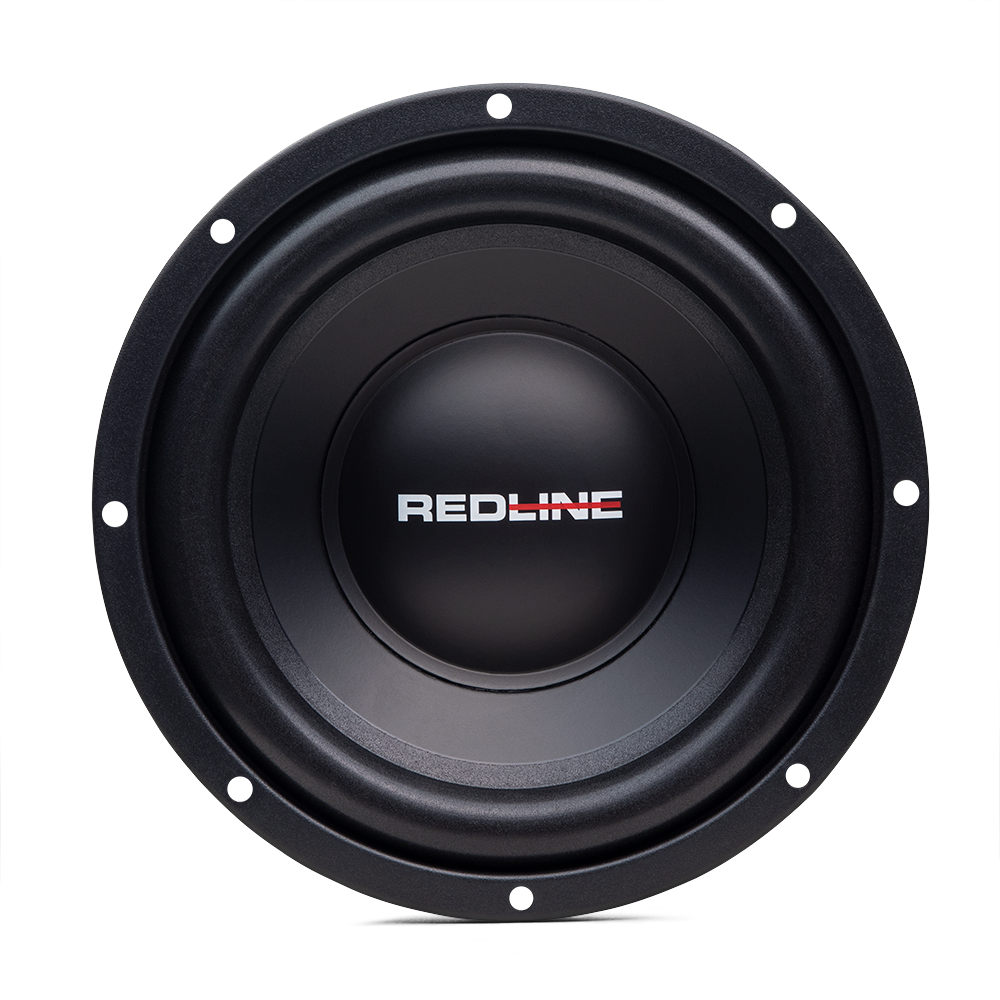

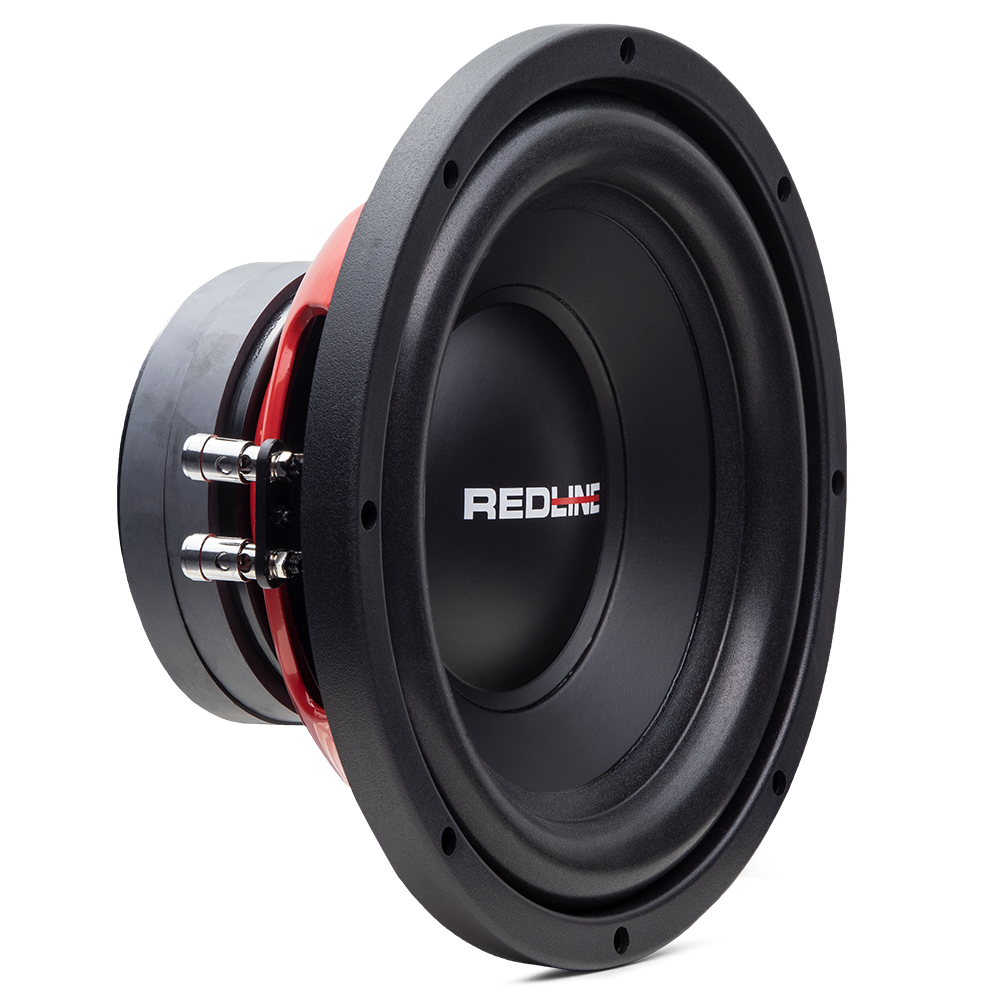

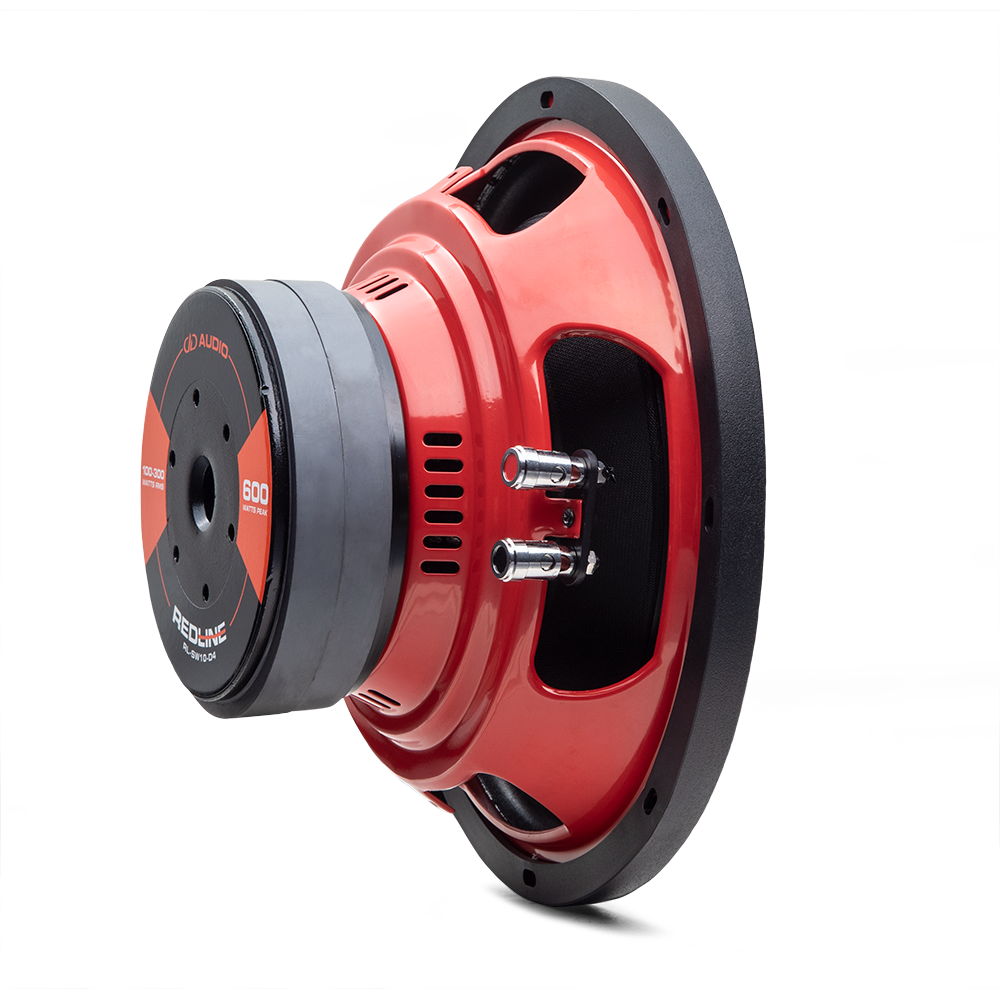

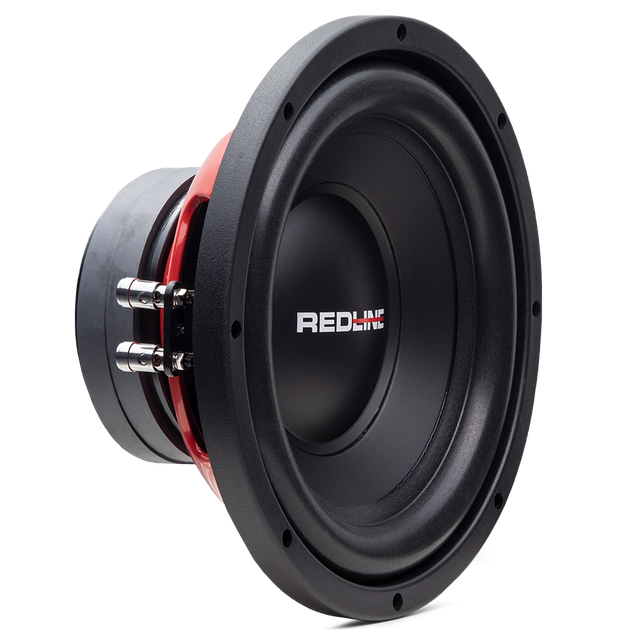

DD Audio RL-SW10-D4

REDLINE SW serijos žemadažniai suteikia ekstremalų bosą ir puikią vertę. Puikiai tinka uždariems ir ventiliuojamiems dėžėms, užtikrinant kasdieniam naudojimui reikalingas našumo funkcijas

€59.97 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

REDLINE SW series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers perform great in sealed and small vented enclosures at low to medium power. They are loaded with all the performance features needed for daily use and are available in two impedance options to match with any DD Audio amplifier. High-temp 2” voice coil DVC 2 Ohm, DVC 4 Ohm EROM surround Vented steel frame Vented back plate Push terminals

Technical specifications

Speaker Size (In):10
Watts RMS:100 - 300
Watts Peak:600
Impedance:D2 / D4
VCD (In):2
Piston Diameter (In):8
Fs (Hz):35
Qms:11.107
Qes:0.53
Qts:0.506
Vas:32.495
dBSPL:86
Xmech (MM):18
Xmax (MM):8
Frame OD (In):10.12
Frame OD w/Gasket (In):10.25
Mounting Diameter (In):9
Mounting Depth (In):4.75
Motor Diameter (In):5.27
Motor Depth (In):1.7
Magnet Weight (Oz):55
Woofer Displacement (CuFt):0.03
Sealed Enclosure (CuFt):0.5 - 1.0
Ported Enclosure (CuFt):0.75 - 1.25.
