DD Audio

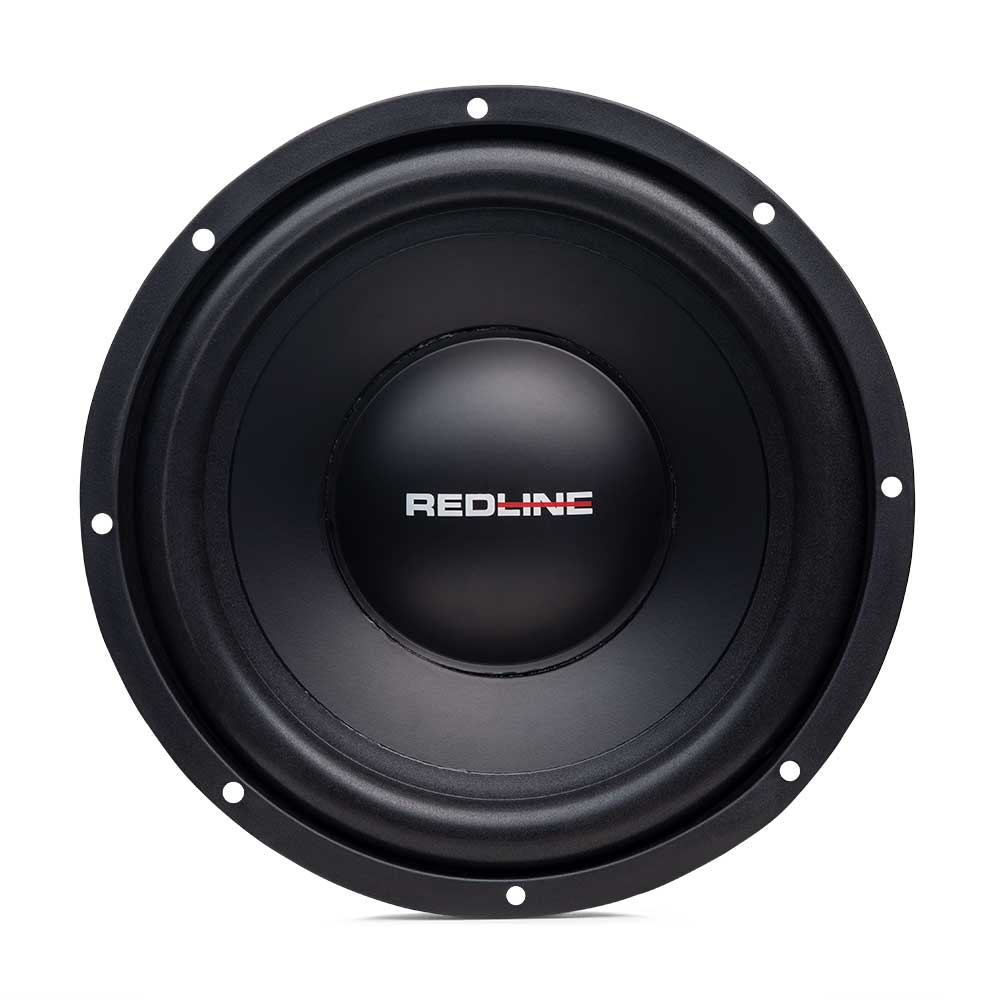

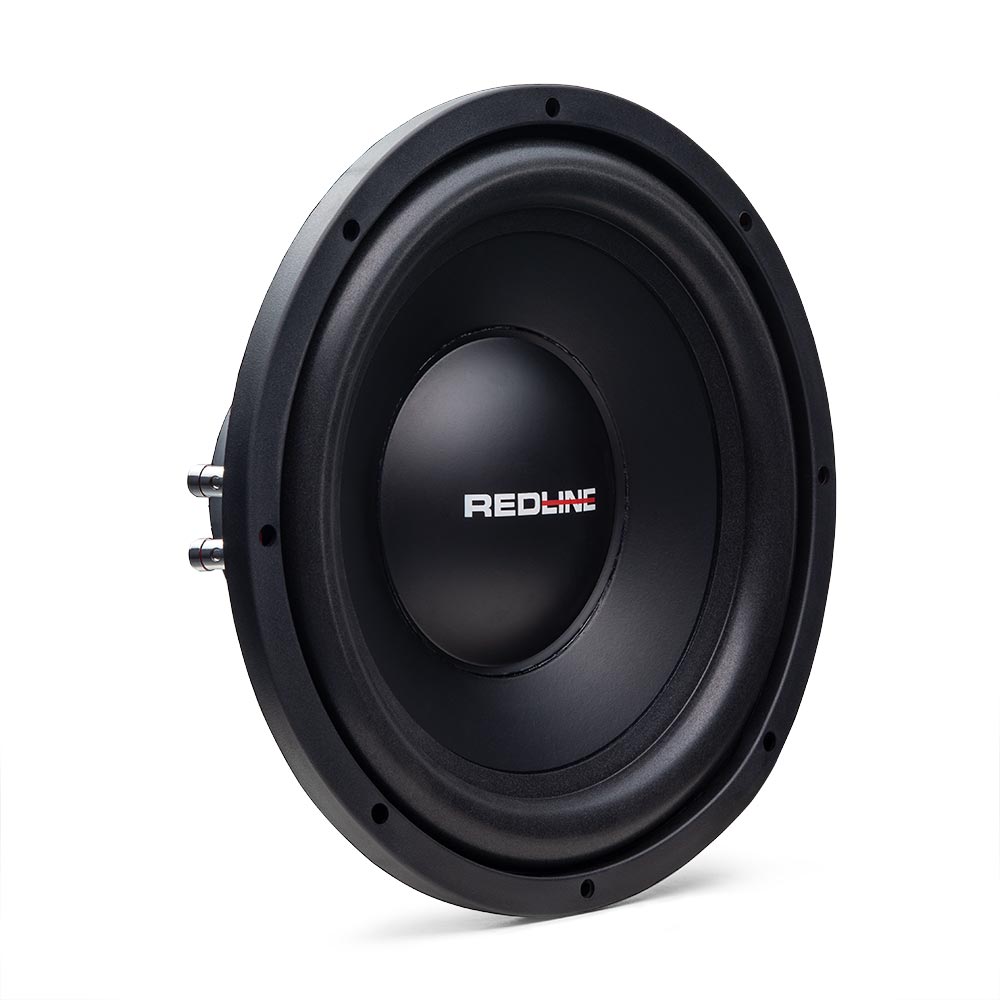

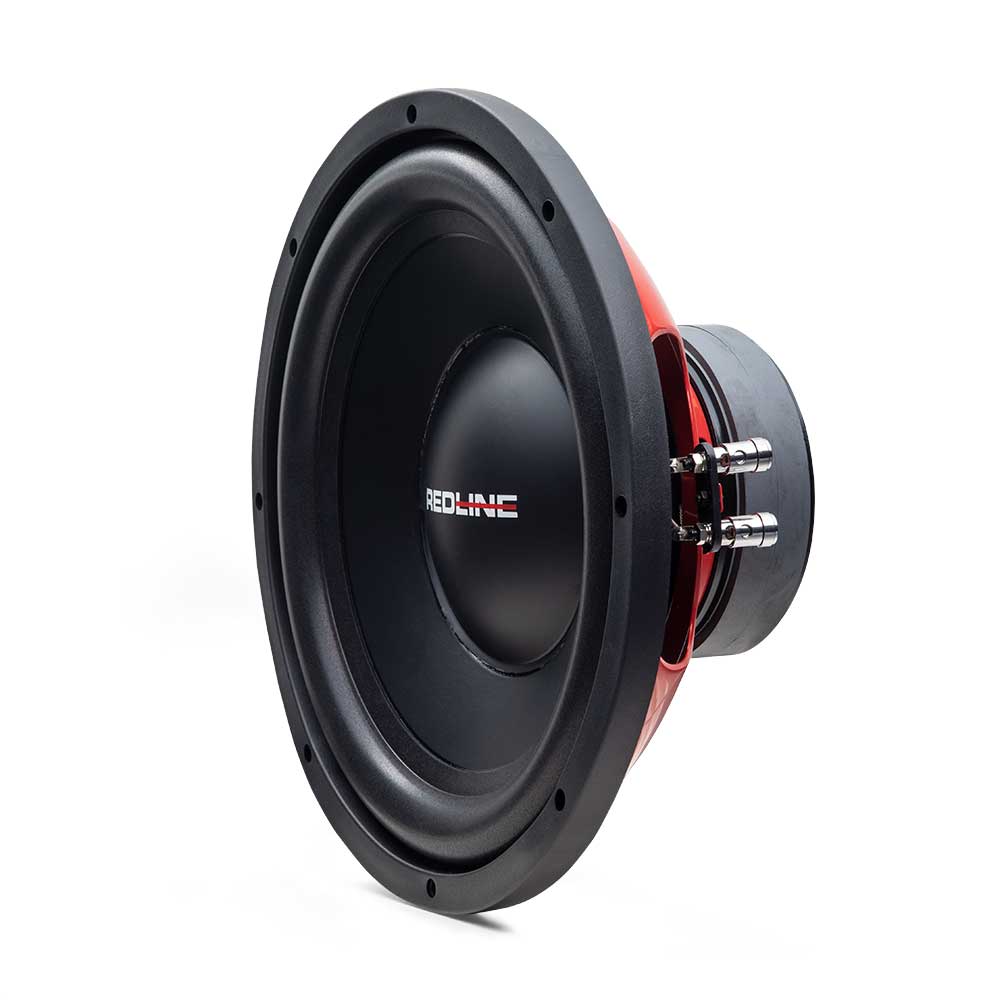

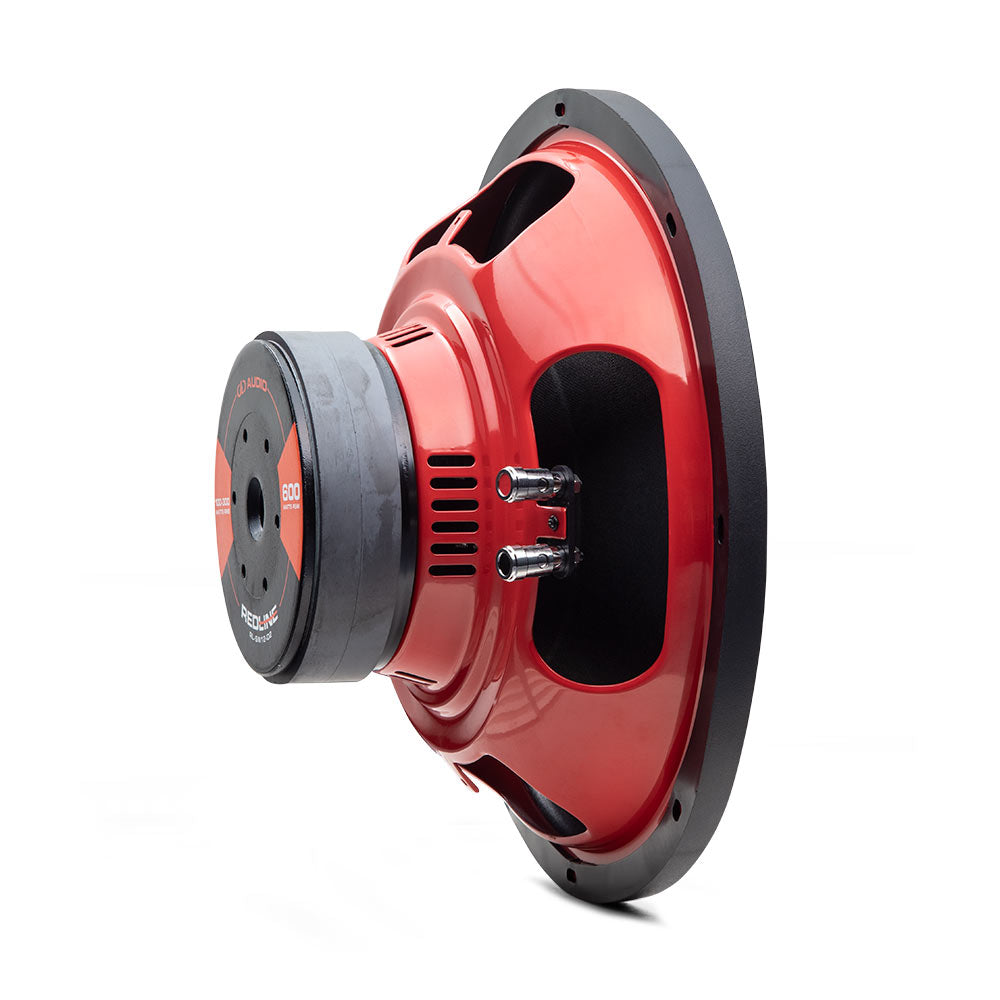

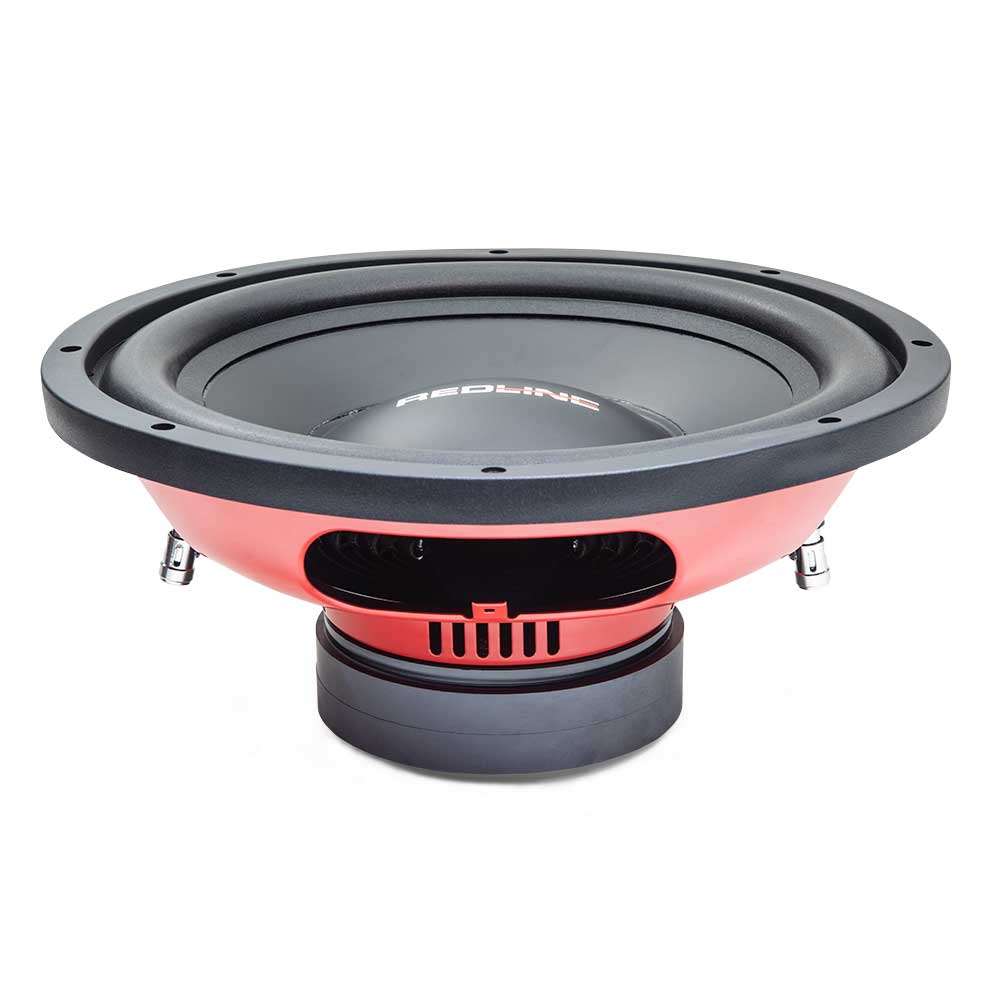

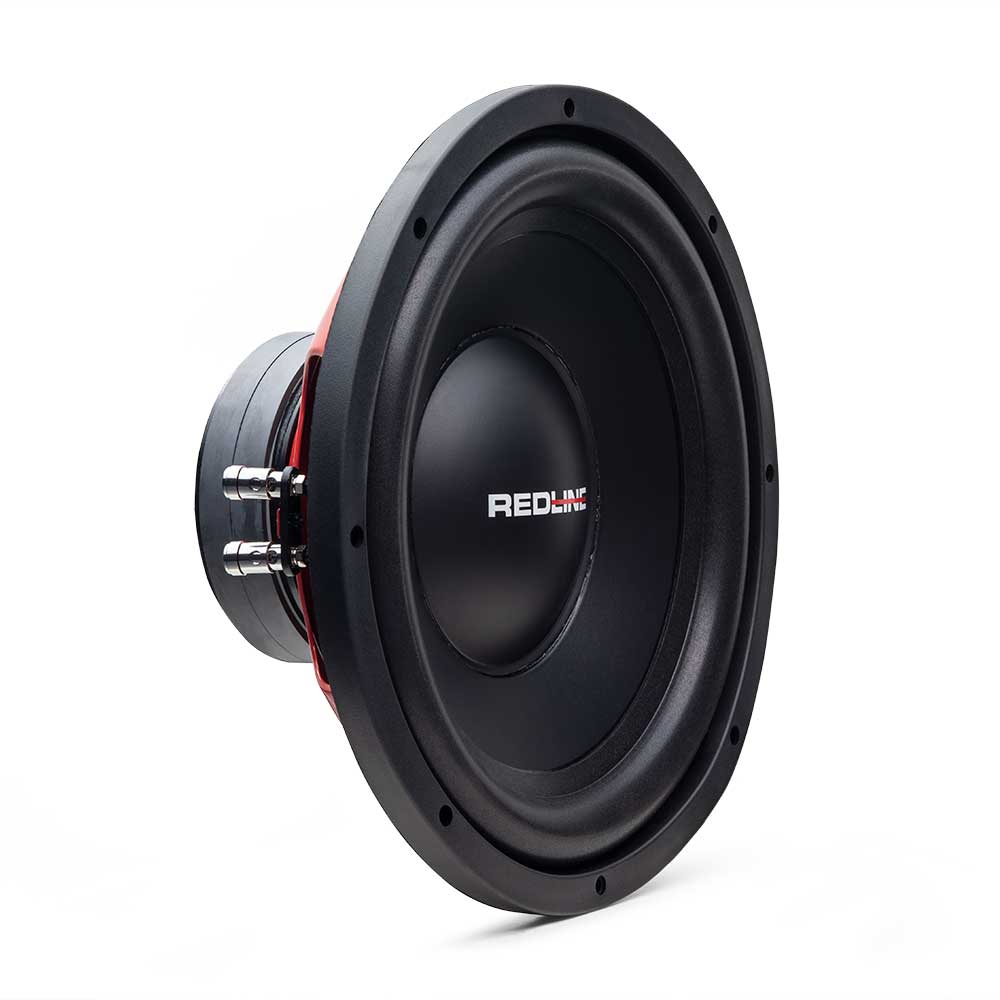

DD Audio RL-SW12-D4

REDLINE SW series subwoofers provide extreme bass and excellent value. Perfect for sealed and vented enclosures, ensuring the performance needed for daily use.

€80.30 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

REDLINE SW series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers perform well in sealed and small vented enclosures at low to medium power. They have all the performance features needed for everyday use and are available in two impedance options to match any DD Audio amplifier. High-Temperature 2” Voice Coil DVC 2 Ohm, DVC 4 Ohm EROM Surround Vented Steel Basket Vented Backplate Push Terminals

Technical Specifications

Speaker Size (In):12
Watts RMS:100 - 300
Watts Peak:600
Impedance:D2 / D4
VCD (In):2
Piston Diameter (In):10
Fs (Hz):33
Qms:8.673
Qes:0.54
Qts:0.508
Vas:65.339
dBSPL:89
Xmech (MM):25
Xmax (MM):8
Frame OD (In):12.22
Frame OD w/Gasket (In):12.4
Mounting Diameter (In):11
Mounting Depth (In):5.34
Motor Diameter (In):5.27
Motor Depth (In):1.7
Magnet Weight (Oz):55
Woofer Displacement (CuFt):0.05
Sealed Enclosure (CuFt):0.8 - 1.5
Ported Enclosure (CuFt):1.0 - 1.75.
