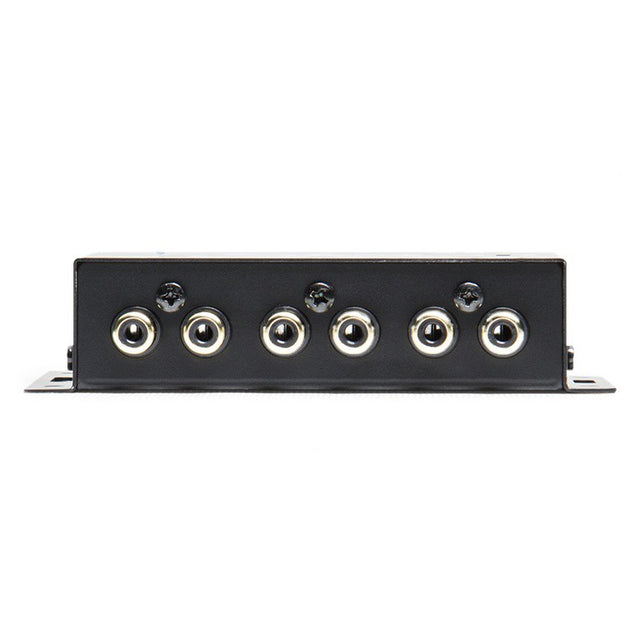

- DD Audio SC4.1 4-kanalinis linijamuonis

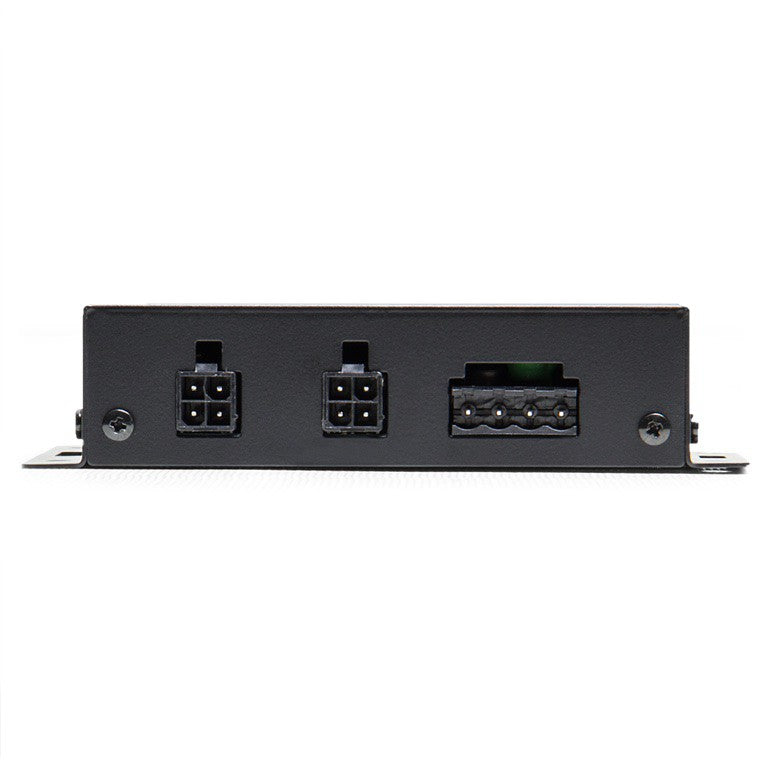

- DD Audio SC4.1 4-kanalinis linijamuonis - Galinė panelė su jungtimis ir tvirtinimo detalėmis

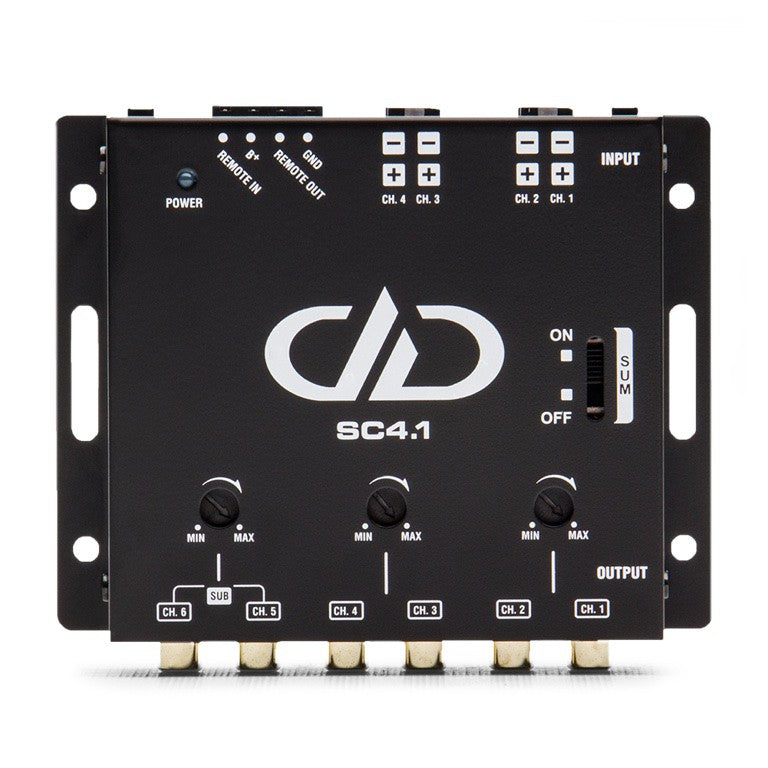

- DD Audio SC4.1 4-kanalinis linijamuonis - Išėjimo jungtys ir valdymo rankenėlės

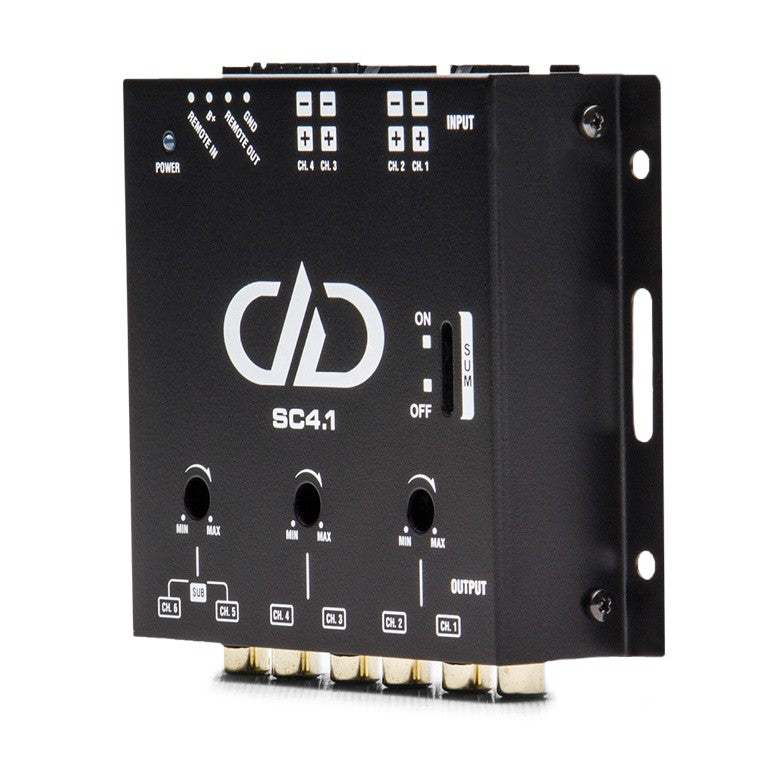

- DD Audio SC4.1 4-kanalinis linijamuonis - Galinė panelė su jungtimis ir valdymo elementais
DD Audio SC4.1 4-Channel Line Driver
DD Audio SC4.1 4-Channel Line Driver - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
If you need to install an aftermarket amplifier but removing the factory radio is not an option, the SC4.1 is your solution. The SC4.1 is a high-quality 4-channel speaker level to 6-channel line level signal converter. Channels 1~4 are full-range, while channels 5~6 are dedicated sub outputs with an integrated 300Hz 12/dB low-pass filter. The inputs feature summing capabilities and can handle up to 25 watts, making them compatible with virtually any factory system. You can rely on noise-free integration, utilizing top-tier components such as TI op-amps mounted on an FR4 board, and unlike cheaper products, its active circuitry will not stress your factory system. The RCA outputs are adjustable from 0.05-4V for precise level matching. Additionally, for the flexibility of this unit, you can choose between automatic signal detection or manual 12V remote turn-on activation. All these features are housed in a compact (4.61″x 3.75″x 1.07″) aluminum chassis.
Technical Specifications
Auto remote via speaker signal or 12V remote input
Input Voltage SensitivityUp to 25 Watts
Input Channels4 x Speaker Level
Output Channels6 x RCA
Output Voltage0.05-4.0
Dimensions: in3.5 x 4.5 x 1
Dimensions: mm94 x 116 x 27
Shipping Weight 0,2kg
5~6 are dedicated sub outputs with a built-in 300Hz 12/dB low pass filter.
